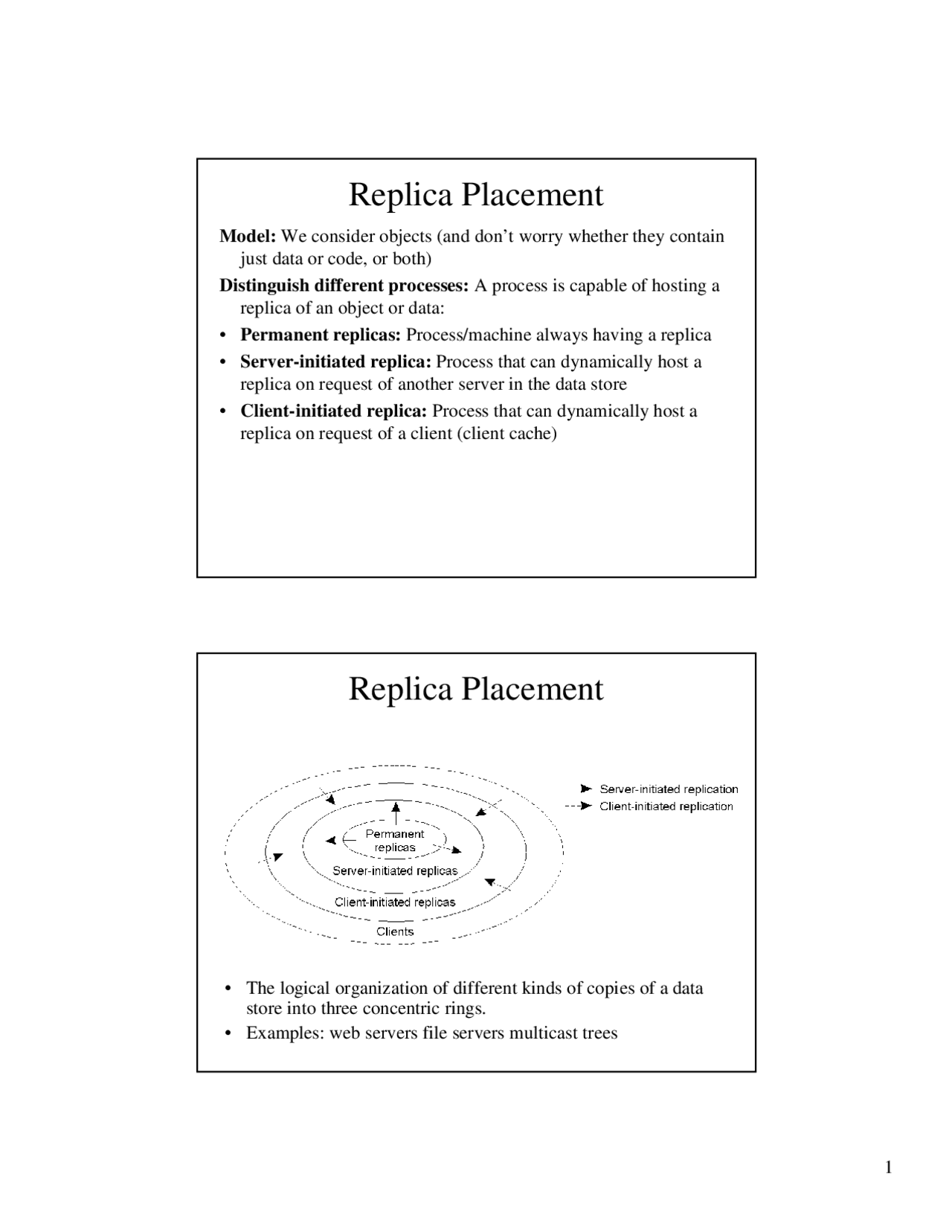

Replica Placement Model: We consider objects (and don’t worry whether they contain just data or code, or both) Distinguish different processes: A process is capable of hosting a replica of an object or data:
- Permanent replicas: Process/machine always having a replica
- Server-initiated replica: Process that can dynamically host a replica on request of another server in the data store
- Client-initiated replica: Process that can dynamically host a replica on request of a client (client cache) Replica Placement
- The logical organization of different kinds of copies of a data store into three concentric rings.
- Examples: web servers file servers multicast trees
Server-Initiated Replicas
- Keep track of access counts per file, aggregated by considering server closest to requesting clients
- Number of accesses drops below threshold D => drop file
- Number of accesses exceeds threshold R => replicate file
- Number of access between D and R => migrate file Client-Initiated Replicas
- More like a client cache
- Keep it on disk?
- Keep it in memory?
- How much space to use?
- How long to keep copy/replica?
- How to detect data is stale?
- Read-only files work best
- Sharing data among client processes may be good. Sharing space is essential
Update Propagation ( 3 / 3 ) Observation: We can dynamically switch between pulling and pushing using leases : A contract in which the server promises to push updates to the client until the lease expires. Issue: Make lease expiration time dependent on system’s behavior (adaptive leases):
- Age-based leases: An object that hasn’t changed for a long time, will not change in the near future, so provide a long-lasting lease
- Renewal-frequency based leases: The more often a client requests a specific object, the longer the expiration time for that client (for that object) will be
- State-based leases: The more loaded a server is, the shorter the expiration times become Question: Why are we doing all this? Epidemic Algorithms Basic idea: Assume there are no write–write conflicts:
- Update operations are initially performed at one or only a few replicas
- A replica passes its updated state to a limited number of neighbors
- Update propagation is lazy, i.e., not immediate
- Eventually, each update should reach every replica Anti-entropy: Each replica regularly chooses another replica at random, and exchanges state differences, leading to identical states at both afterwards Gossiping: A replica which has just been updated (i.e., has been contaminated ), tells a number of other replicas about its update (contaminating them as well).
System Model
- We consider a collection servers, each storing a number of objects
- Each object O has a primary server at which updates for O are always initiated (avoiding write-write conflicts)
- An update of object O at server S is always time-stamped; the value of O at S is denoted VAL ( O,S )
- T( O,S ) denotes the timestamp of the value of object O at server S Anti-Entropy
- Basic issue: When a server S contacts another server S* to exchange state information, three different strategies can be followed:
- Push : S only forwards all its updates to S*: if T(O,S*) < T(O,S) then VAL(O,S*) <= VAL(O,S)
- Pull : S only fetched updates from S*: if T(O,S*) > T(O,S) then VAL(O,S*) <= VAL(O,S)
- Push-Pull : S and S* exchange their updates by pushing and pulling values.
- Observation: if each server periodically randomly chooses another server for exchanging updates, an update is propagated in O(log(N)) time units. Question : why is pushing alone not efficient when many servers have already been updated?
Consistency Protocols Consistency protocol: describes the implementation of a specific consistency model. We will concentrate only on sequential consistency.
- Primary-based protocols
- Replicated-write protocols
- Cache-coherence protocols Primary-Based Protocols ( 1 / 4 )
- All read and write operations go to server
- Example: used in traditional client-server systems that do not support replication.
Primary-Based Protocols ( 2 / 4 ) Primary-backup protocol : writes are typically forwarded to server Example : Traditionally applied in distributed databases and file systems that require a high degree of fault tolerance. Replicas are often placed on same LAN. Primary-Based Protocols ( 3 / 4 ) Example : Establishes only a fully distributed, non-replicated data store. Useful when writes are expected to come in series from the same client (e.g., mobile computing without replication. Primary-based, local-write protocol : migrate the data, do not replace it.
Replicated-Write Protocols ( 2 / 2 ) Replicated invocations: “Centralized” Solution Assign a coordinator on each side (client and server), which ensures that only one invocation (a), and one reply is send (b). Triple Modular Redundancy
- Simple to implement
- Vote on all three results
- Majority (50% + 1) wins (^) Request is replicated to all servers. Request A1 A2 A Voter A Result
Quorum-Based Protocols Quorum-based protocols: Ensure that each operation is carried out in such a way that a majority vote is established: distinguish read quorum and write quorum : Example: Lazy Replication
- Basic model: number of replica servers jointly implement a causal-consistent data store.
- Clients normally talk to front ends which maintain data to ensure causal consistency.
