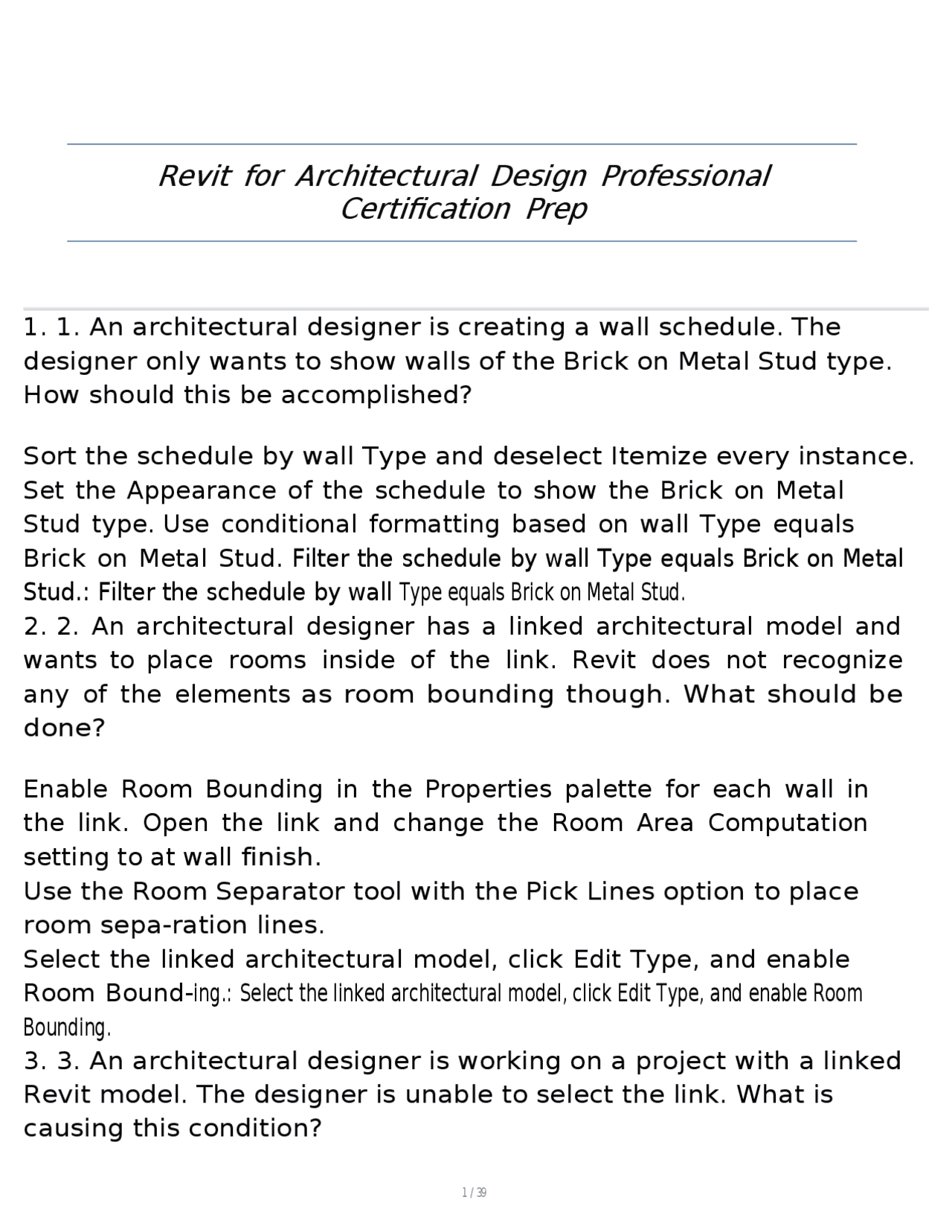

Revit for Architectural Design Professional
Certification Prep
1.
1. An architectural designer is creating a wall schedule. The
designer only wants to show walls of the Brick on Metal Stud type.
How should this be accomplished?
Sort the schedule by wall Type and deselect Itemize every instance.
Set the Appearance of the schedule to show the Brick on Metal
Stud type. Use conditional formatting based on wall Type equals
Brick on Metal Stud.
Filter
the
schedule
by
wall
Type
equals
Brick
on
Metal
Stud.:
Filter the schedule by wall
Type equals Brick on Metal Stud.
2. 2. An architectural designer has a linked architectural model and
wants to place rooms inside of the link. Revit does not recognize
any of the elements
as room bounding though. What should be
done?
Enable Room Bounding in the Properties palette for each wall in
the link. Open the link and change the Room Area Computation
setting to at wall
finish.
Use the Room Separator tool with the Pick Lines option to place
room sepa-ration lines.
Select the linked architectural model, click Edit Type, and enable
Room Bound-
ing.:
Select the linked architectural model, click Edit Type, and enable Room
Bounding.
3.
3. An architectural designer is working on a project with a linked
Revit model. The designer is unable to select the link. What is
causing this condition?
