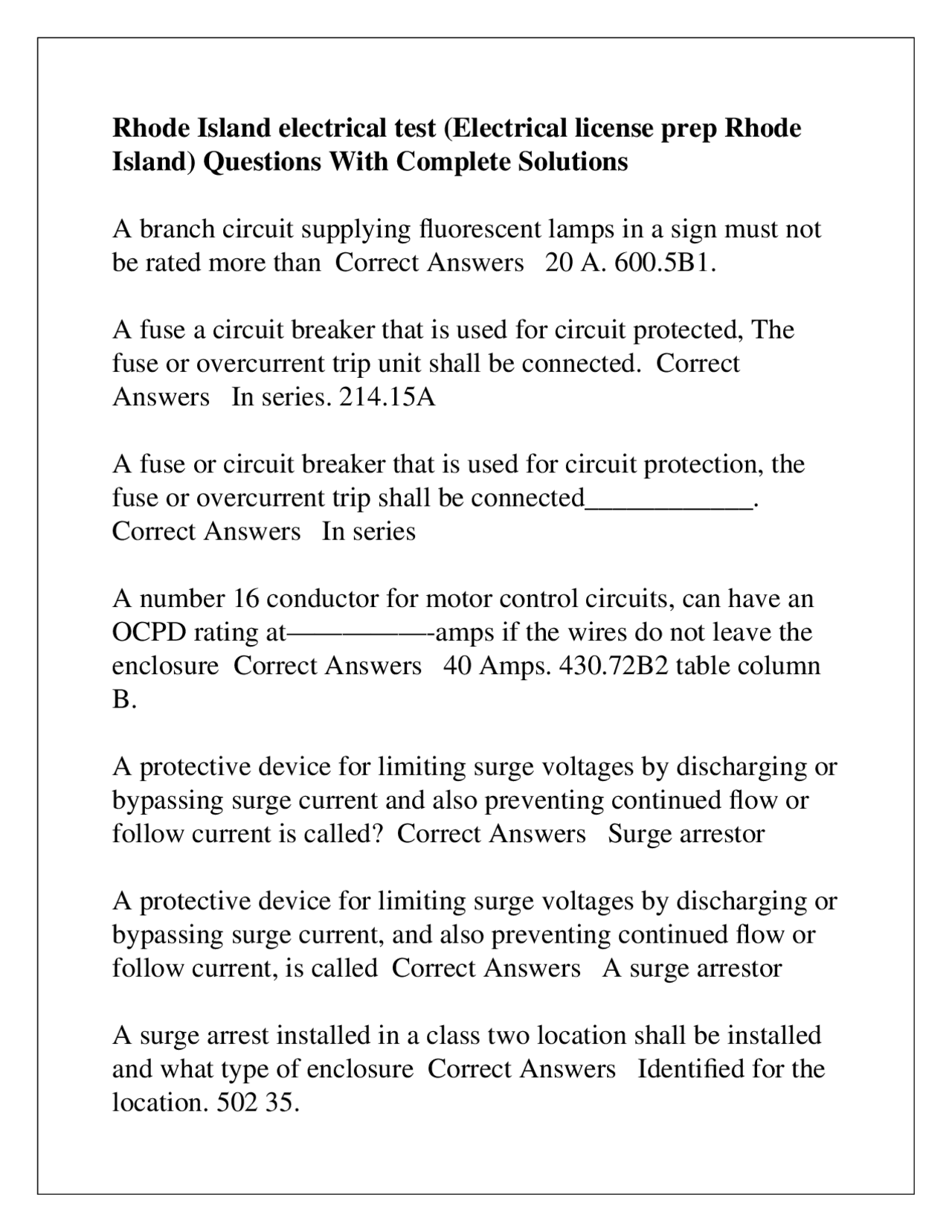

Rhode Island electrical test (Electrical license prep Rhode
Island) Questions With Complete Solutions
A branch circuit supplying fluorescent lamps in a sign must not
be rated more than Correct Answers 20 A. 600.5B1.
A fuse a circuit breaker that is used for circuit protected, The
fuse or overcurrent trip unit shall be connected. Correct
Answers In series. 214.15A
A fuse or circuit breaker that is used for circuit protection, the
fuse or overcurrent trip shall be connected____________.
Correct Answers In series
A number 16 conductor for motor control circuits, can have an
OCPD rating at—————-amps if the wires do not leave the
enclosure Correct Answers 40 Amps. 430.72B2 table column
B.
A protective device for limiting surge voltages by discharging or
bypassing surge current and also preventing continued flow or
follow current is called? Correct Answers Surge arrestor
A protective device for limiting surge voltages by discharging or
bypassing surge current, and also preventing continued flow or
follow current, is called Correct Answers A surge arrestor
A surge arrest installed in a class two location shall be installed
and what type of enclosure Correct Answers Identified for the
location. 502 35.
