This course prepares candidates for licensure as electricians in Rhode Island. It covers electrical theory, wiring methods, safety protocols, electrical codes, blueprint reading, and regulatory requirements. Candidates develop practical competencies to perform electrical installations, maintenance, and repairs while ensuring compliance with Rhode Island state laws and industry standards.
Typology: Exams
1 / 178
This page cannot be seen from the preview
Don't miss anything!

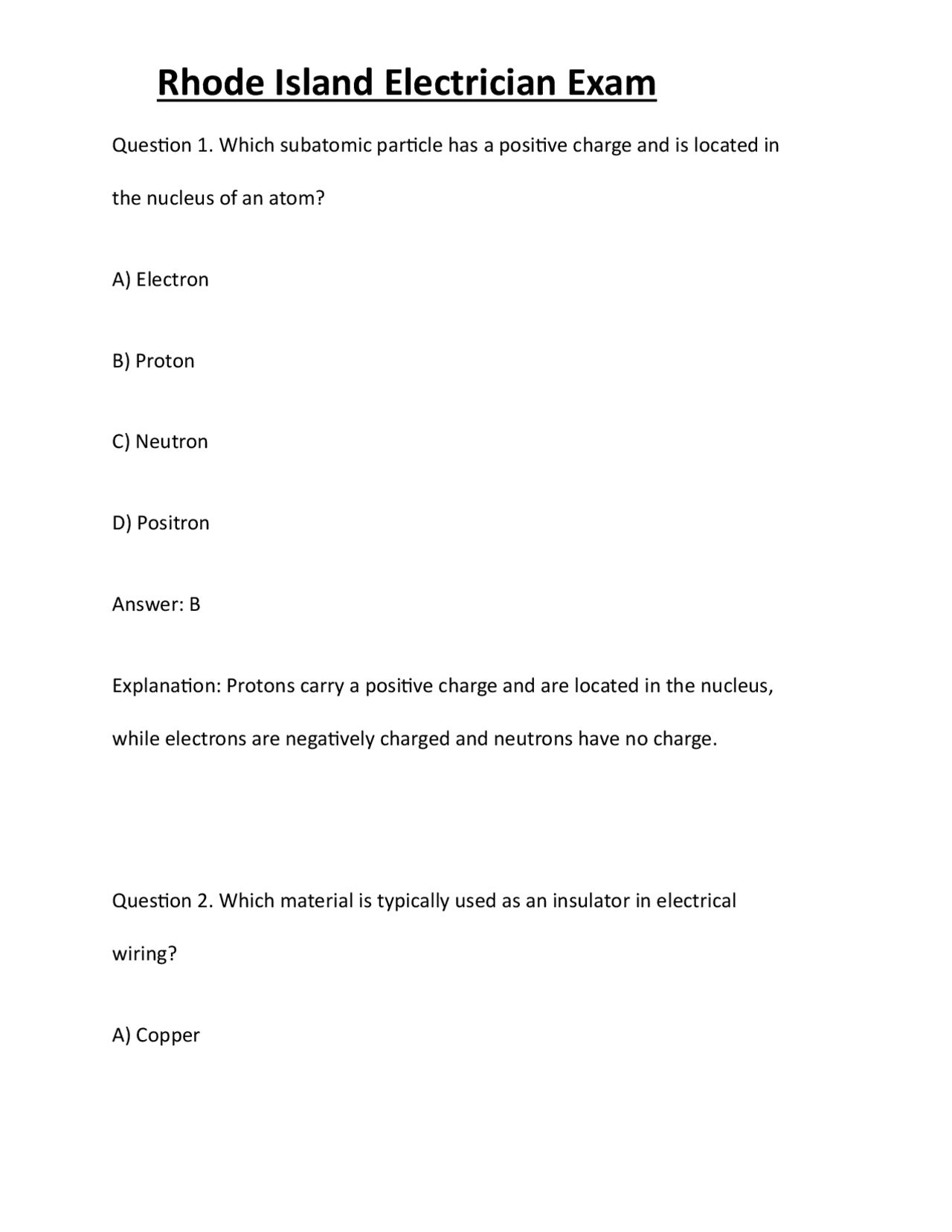

Question 1. Which subatomic particle has a positive charge and is located in the nucleus of an atom? A) Electron B) Proton C) Neutron D) Positron Answer: B Explanation: Protons carry a positive charge and are located in the nucleus, while electrons are negatively charged and neutrons have no charge. Question 2. Which material is typically used as an insulator in electrical wiring? A) Copper
B) Aluminum C) Rubber D) Silver Answer: C Explanation: Rubber is an insulating material that prevents electrical current from escaping, unlike conductors like copper and aluminum. Question 3. Which source of electricity is primarily generated by chemical reactions? A) Mechanical B) Chemical C) Light D) Heat
Question 5. According to Ohm's Law, if voltage remains constant, what happens to current when resistance increases? A) Increases B) Decreases C) Remains unchanged D) Oscillates Answer: B Explanation: Ohm's Law states V=IR. If V is constant and R increases, then I decreases proportionally. Question 6. In a DC circuit, how is power calculated using voltage and current? A) P=VI B) P=V/R
Answer: A Explanation: Power in a DC circuit is calculated as P=VI, where voltage and current are multiplied. Question 7. Which circuit type has the same current flowing through all components? A) Series circuit B) Parallel circuit C) Series-parallel circuit D) None of the above Answer: A
A) Kirchhoff's Current Law (KCL) B) Kirchhoff's Voltage Law (KVL) C) Ohm's Law D) Faraday's Law Answer: B Explanation: KVL states that the sum of voltage drops in a closed loop equals zero. Question 10. Which principle describes the process of generating a current in a conductor by changing magnetic flux? A) Lenz's Law B) Faraday's Law C) Ohm's Law
D) Coulomb's Law Answer: B Explanation: Faraday’s Law states that a change in magnetic flux induces an electromotive force (EMF) in a conductor. Question 11. According to Lenz's Law, the direction of induced current is such that it: A) Opposes the change in flux that created it B) Reinforces the change in flux C) Is always clockwise D) Is always counterclockwise Answer: A Explanation: Lenz’s Law states that the induced current opposes the change in magnetic flux that causes it.
C) Capacitance only D) Inductive reactance only Answer: B Explanation: Impedance combines resistance and reactance, representing total opposition in AC circuits. Question 14. What is the purpose of power factor correction in AC systems? A) Increase voltage B) Reduce reactive power and improve efficiency C) Increase current flow D) Reduce resistance Answer: B
Explanation: Power factor correction minimizes reactive power, improving efficiency and reducing losses. Question 15. Which characteristic distinguishes DC from AC? A) Voltage varies periodically in DC B) Current reverses direction periodically in DC C) Voltage remains constant in DC D) DC cannot be stored in batteries Answer: C Explanation: DC maintains a constant voltage and current direction, unlike AC which varies periodically. Question 16. Which component acts as a chemical energy source in a typical DC circuit?
D) Triples Answer: B Explanation: By Ohm's Law, I=V/R. Increasing R halves the current if V is constant. Question 18. What is the main purpose of the NEC? A) To standardize electrical equipment manufacturing B) To establish safety standards and requirements for electrical installations C) To regulate electrical prices D) To provide guidelines for electrical marketing Answer: B Explanation: The NEC provides safety standards for electrical installations to prevent hazards.
Question 19. Which article of the NEC defines key terms used throughout the code? A) Article 90 B) Article 100 C) Article 110 D) Article 200 Answer: B Explanation: Article 100 contains definitions of key terms used in the NEC. Question 20. According to NEC Article 110, what is required for electrical equipment to be considered properly installed? A) It must be painted with a warning label
Answer: C Explanation: White or Gray insulation is used to identify grounded (neutral) conductors. Question 22. What is the minimum working space required in front of electrical equipment according to NEC Article 110? A) 12 inches B) 30 inches C) 3 feet D) 6 feet Answer: C Explanation: The NEC generally requires a minimum of 3 feet of working space in front of electrical equipment.
Question 23. In a branch circuit, what device provides overcurrent protection? A) Transformer B) Circuit breaker or fuse C) Grounding wire D) Insulation Answer: B Explanation: Circuit breakers or fuses protect against overcurrent by disconnecting the circuit when overloads occur. Question 24. Which article covers the use and identification of grounded conductors? A) Article 210 B) Article 220
Explanation: The main bonding jumper connects the equipment grounding conductor to the neutral and grounding system, establishing a common reference point. Question 26. What is the purpose of overcurrent devices in electrical systems? A) To increase current flow during overloads B) To protect conductors and equipment from damage due to overloads or short circuits C) To regulate voltage D) To reduce electrical noise Answer: B Explanation: Overcurrent devices like fuses and circuit breakers disconnect power during overloads or short circuits, preventing damage.
Question 27. Which wiring method is typically used for underground feeder and branch-circuit wiring? A) Nonmetallic-Sheathed Cable (Type NM) B) Underground Feeder Cable (Type UF) C) Rigid Metal Conduit (Type RMC) D) Intermediate Metal Conduit (Type IMC) Answer: B Explanation: Type UF cable is specifically designed for underground installations, providing protection against moisture and physical damage. Question 28. What is the primary purpose of grounding in electrical systems? A) To control voltage fluctuations
