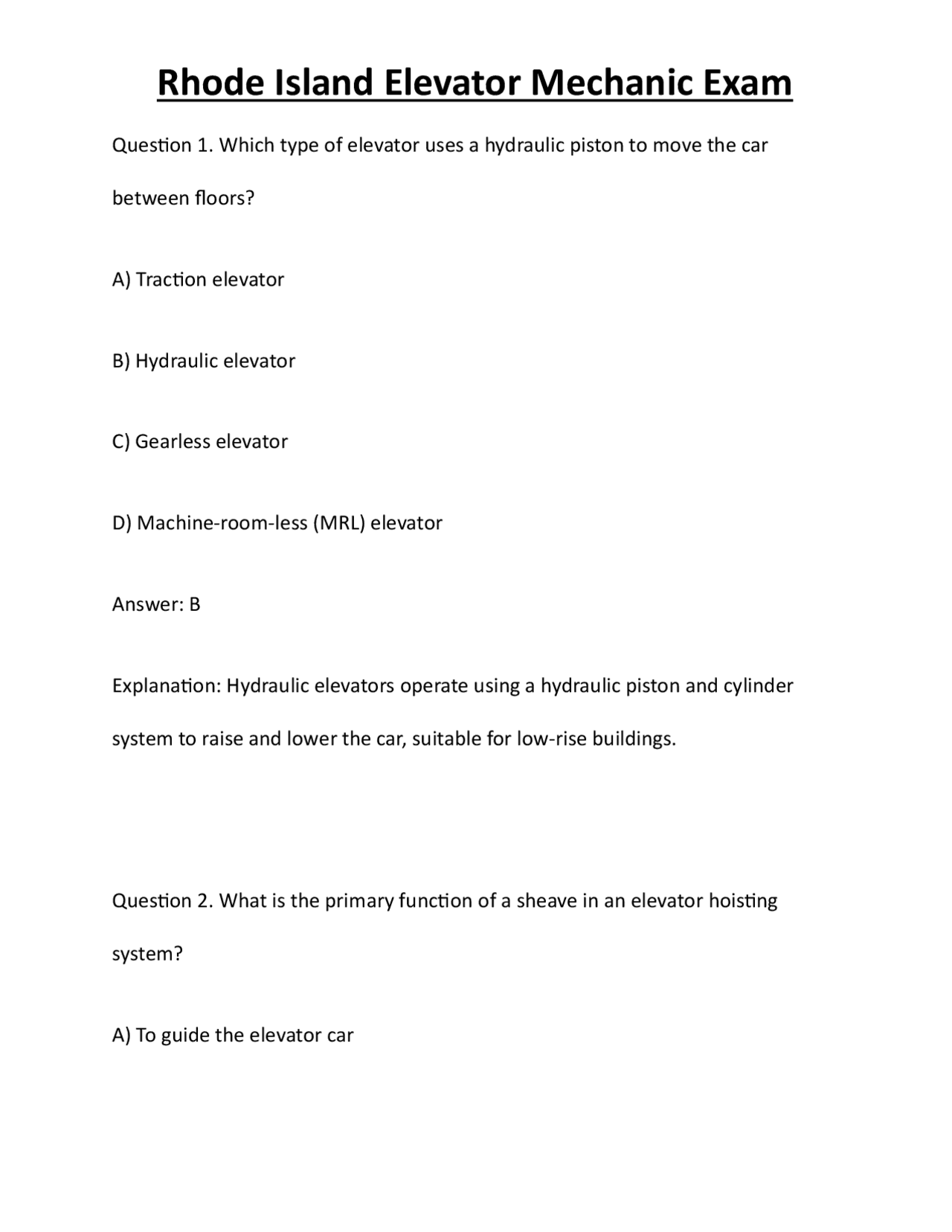

Question 1. Which type of elevator uses a hydraulic piston to move the car between floors? A) Traction elevator B) Hydraulic elevator C) Gearless elevator D) Machine-room-less (MRL) elevator Answer: B Explanation: Hydraulic elevators operate using a hydraulic piston and cylinder system to raise and lower the car, suitable for low-rise buildings. Question 2. What is the primary function of a sheave in an elevator hoisting system? A) To guide the elevator car
B) To transmit power from the motor to the cable C) To change the direction of cable movement and support the cable D) To act as a safety device Answer: C Explanation: Sheaves are pulleys that change the direction of the cable and support its movement, essential in traction systems. Question 3. Which component is responsible for releasing the emergency brake when the elevator signals a safety concern? A) Governor B) Limit switch C) Brake coil or actuator D) Relay
Question 5. What does the lockout/tagout procedure primarily ensure during elevator maintenance? A) That the elevator is shut down and cannot be operated until work is complete B) That the elevator operates at reduced speed C) That only authorized personnel can access the elevator shaft D) That communication systems are functional Answer: A Explanation: Lockout/tagout procedures prevent accidental energization, ensuring safety during maintenance by isolating energy sources. Question 6. Which law relates to electrical safety and requires employers to provide a safe working environment? A) ASME A17.
B) OSHA (Occupational Safety and Health Administration) regulations C) IBC (International Building Code) D) ADA (Americans with Disabilities Act) Answer: B Explanation: OSHA regulations set safety standards for workplaces, including electrical safety in elevator systems. Question 7. Ohm's Law states that voltage is equal to which of the following? A) Current divided by resistance B) Resistance times current C) Power divided by current D) Resistance times voltage Answer: B
A) Synchronous motor B) Induction motor C) Universal motor D) Stepper motor Answer: B Explanation: Induction motors are widely used in traction elevators due to their reliability and efficiency. Question 10. What device is used to protect electrical circuits from overloads and short circuits? A) Relay B) Fuse or circuit breaker C) Transformer
D) Capacitor Answer: B Explanation: Fuses and circuit breakers interrupt current flow in case of overloads or faults, protecting components. Question 11. A relay is primarily used in elevator control systems for what purpose? A) To convert AC to DC B) To switch circuits remotely or automatically C) To regulate voltage D) To provide backup power Answer: B Explanation: Relays act as electrically operated switches, controlling circuits based on signals.
A) To balance the weight of the car and reduce the motor load B) To provide emergency braking C) To guide the elevator car D) To serve as an electrical ground Answer: A Explanation: Counterweights balance the car's weight, minimizing the motor's effort required to move the car. Question 14. Which hydraulic component controls the flow and direction of hydraulic fluid in an elevator system? A) Pump B) Relief valve C) Hydraulic valve
D) Cylinder Answer: C Explanation: Hydraulic valves regulate the flow and pressure of hydraulic fluid, controlling the movement of the piston. Question 15. Which safety device prevents an elevator from overspeeding? A) Buffer B) Governor and safeties C) Limit switch D) Overload device Answer: B Explanation: The governor detects overspeed conditions and triggers safeties to activate brakes, preventing accidents.
B) Americans with Disabilities Act (ADA) C) IBC (International Building Code) D) OSHA regulations Answer: A Explanation: Title 23, Chapter 33 of Rhode Island General Laws governs elevator safety, inspection, and regulation. Question 18. Under ASME A17.1 standards, what is the scope of Part 6? A) Elevators for persons with disabilities B) Escalators and moving walks C) Dumbwaiters D) Hydraulic elevators Answer: B
Explanation: Part 6 covers safety requirements for escalators and moving walks. Question 19. What is the purpose of a final limit switch in an elevator system? A) To stop the car at the top and bottom landings and prevent overtravel B) To control the speed of the motor C) To activate emergency brakes D) To monitor door operation Answer: A Explanation: Final limit switches prevent the car from traveling beyond designated points, ensuring safety.
C) To act as a safety device against overspeed D) To regulate hydraulic pressure Answer: B Explanation: Programmable Logic Controllers (PLCs) automate control processes, managing elevator functions based on programmed logic. Question 22. What is the primary function of a door interlock device? A) To prevent door opening when the car is not at a landing B) To activate the car lighting C) To control the speed of the doors D) To signal maintenance personnel Answer: A
Explanation: Door interlocks ensure doors cannot open unless the car is properly aligned and stationary, preventing falls. Question 23. Which communication mode is required by the ADA for elevator emergency communication systems? A) Audible only B) Visible text and audible signals C) Video conferencing D) Two-way radio Answer: B Explanation: ADA mandates accessible emergency communication, including visual (text) and audible signals, for persons with disabilities.
C) Control valve or limit switch D) Buffer spring Answer: C Explanation: Control valves and limit switches stop the piston at preset positions, such as landings. Question 26. Which of the following is a common cause of elevator door operating issues? A) Faulty photoelectric eyes or safety edges B) Overloaded car C) Insufficient hydraulic fluid D) Worn buffer springs Answer: A
Explanation: Door operation problems often stem from misaligned or faulty safety sensors like photoelectric eyes or safety edges. Question 27. How often does Rhode Island require elevator inspections to be performed? A) Monthly B) Annually C) Every five years D) Only upon installation Answer: B Explanation: Rhode Island law mandates annual inspections to ensure safety and compliance.
