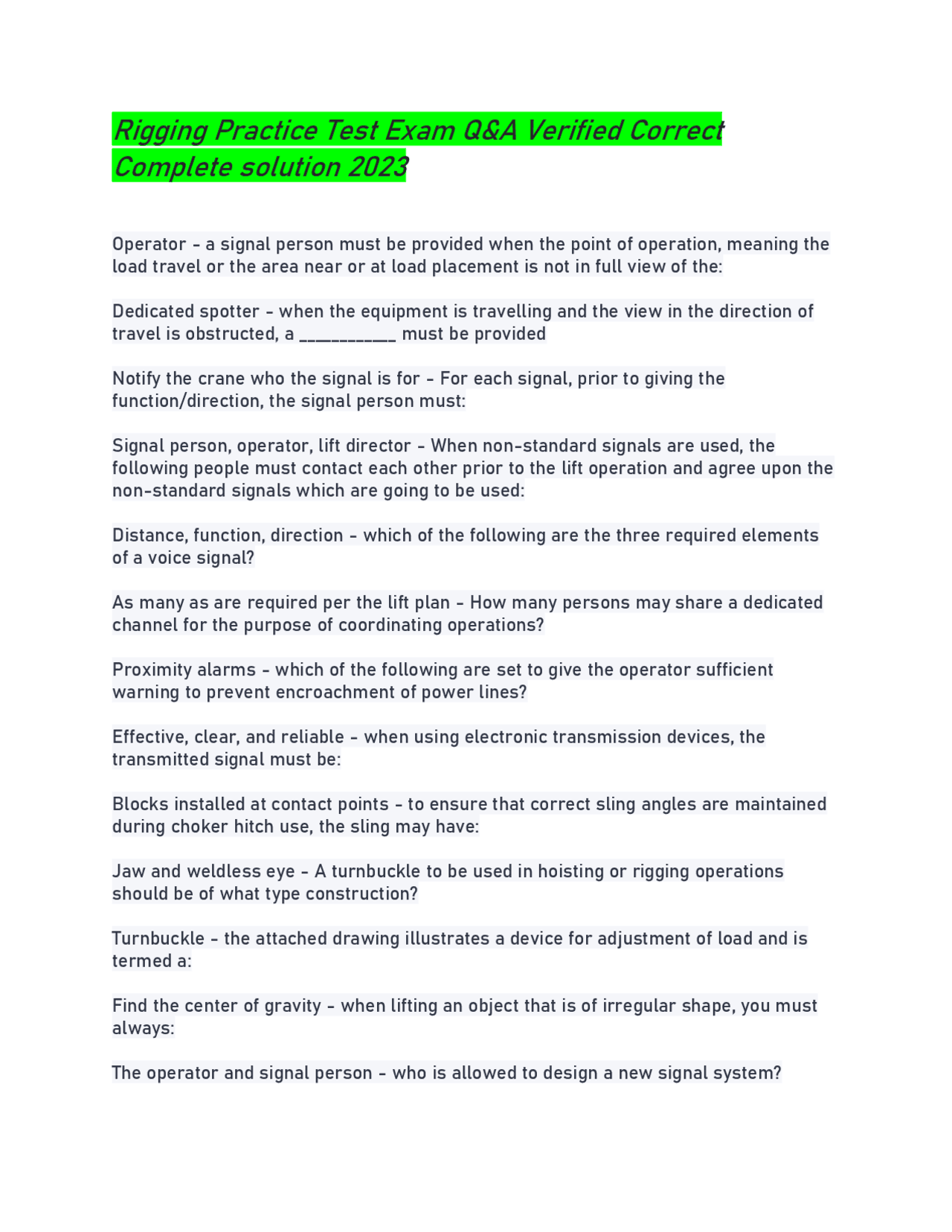

Rigging Practice Test Exam Q&A Verified Correct
Complete solution 2023
Operator - a signal person must be provided when the point of operation, meaning the
load travel or the area near or at load placement is not in full view of the:
Dedicated spotter - when the equipment is travelling and the view in the direction of
travel is obstructed, a ____________ must be provided
Notify the crane who the signal is for - For each signal, prior to giving the
function/direction, the signal person must:
Signal person, operator, lift director - When non-standard signals are used, the
following people must contact each other prior to the lift operation and agree upon the
non-standard signals which are going to be used:
Distance, function, direction - which of the following are the three required elements
of a voice signal?
As many as are required per the lift plan - How many persons may share a dedicated
channel for the purpose of coordinating operations?
Proximity alarms - which of the following are set to give the operator sufficient
warning to prevent encroachment of power lines?
Effective, clear, and reliable - when using electronic transmission devices, the
transmitted signal must be:
Blocks installed at contact points - to ensure that correct sling angles are maintained
during choker hitch use, the sling may have:
Jaw and weldless eye - A turnbuckle to be used in hoisting or rigging operations
should be of what type construction?
Turnbuckle - the attached drawing illustrates a device for adjustment of load and is
termed a:
Find the center of gravity - when lifting an object that is of irregular shape, you must
always:
The operator and signal person - who is allowed to design a new signal system?
pf3
pf4
pf5

Partial preview of the text

Download Rigging Practice Test: Crane Operation Safety Q&A and more Exams Aerospace Engineering in PDF only on Docsity!

Rigging Practice Test Exam Q&A Verified Correct

Complete solution 2023

Operator - a signal person must be provided when the point of operation, meaning the load travel or the area near or at load placement is not in full view of the: Dedicated spotter - when the equipment is travelling and the view in the direction of travel is obstructed, a ____________ must be provided Notify the crane who the signal is for - For each signal, prior to giving the function/direction, the signal person must: Signal person, operator, lift director - When non-standard signals are used, the following people must contact each other prior to the lift operation and agree upon the non-standard signals which are going to be used: Distance, function, direction - which of the following are the three required elements of a voice signal? As many as are required per the lift plan - How many persons may share a dedicated channel for the purpose of coordinating operations? Proximity alarms - which of the following are set to give the operator sufficient warning to prevent encroachment of power lines? Effective, clear, and reliable - when using electronic transmission devices, the transmitted signal must be: Blocks installed at contact points - to ensure that correct sling angles are maintained during choker hitch use, the sling may have: Jaw and weldless eye - A turnbuckle to be used in hoisting or rigging operations should be of what type construction? Turnbuckle - the attached drawing illustrates a device for adjustment of load and is termed a: Find the center of gravity - when lifting an object that is of irregular shape, you must always: The operator and signal person - who is allowed to design a new signal system?

Site conditions preclude the use of hand, voice, or audio systems - en an a new signal system be used? the operator, signal person, and lift director - who determines if a new signal system is suitable? the new signal system is at least equally effective communication as the standard system being replaced - what must be demonstrated prior to the use of a new signal system? tower - some manufactures of carrier-mounted lattice boom cranes offer optional _________ attachments for their machines bridge - the ___________ is the main structural member of an over head crane used to span the width of the runway area hoist - any overhead crane consists of three basic units; the bridge, trolley, and: crawler - carrier-mounted lattice boom cranes are also commonly referred to as __________ cranes. load hook - the crane is said to be in a particular quadrant of operation when the ______________ is located over that area 360 - in addition to using flags and barricades to show the work zone near power lines, the employer can define the work zone area ________ degrees around the equipment up to the equipment's maximum working radius block - two-blocking occurs when the ___________ or headache ball makes contact with the sheaves at the boom tip low - industrial cranes have _____________ centers of gravity to permit operation in narrow aisles or runways without outriggers front - high wind speed acting on the __________ of the boom can cause it to topple backward if it is at a high boom angle 100% - whenever anything is lifted or raised from a horizontal position to a vertical position, the crane load will be equal to _________ the weight of the object until the object is vertical and clears the ground radius - as a crane starts to tip, the load _________ begins to increase. This increases the load's leverage on the crane and the tipping force

stop the job, get clarification, and a procedure change - if the equipment you are working on has a written procedure for performing a lift and you find it differs from the manufacturer's specifications for lifting, you should: Buckle in the middle - if a two-leg sling attachment is used to lift a long load of flexible material, the load may: 194(90) - Per ASME Standard, fiber core wire rope slings of all grades shall not be exposed to temperatures in excess of what degree F (degree C)? diameter of steel in the bow section - Shackles with screw pins are sized by the: cracks and point twist - Hook inspections shall include: shackles with damaged threads should not be used - while inspecting shackles prior to use, any: is reduced - when a wire rope is bent around an object whose diameter is equal to the diameter of the wire rope load capacity of the wire rope: adjust sling length - A turnbuckle is used to: double wrap choker hitch - what type of hitch produces a 360-degree contact with the load and tightens as the lift takes place? significantly reduce the strength of synthetic rope slings - knots shall not be used to configure synthetic rope slings because knots: put an angular pull on an eyebolt - a shoulder type eyebolt must be used when you need to: double sheet bend - the ________________ is used to join two wet ropes: increase in load - If the center of gravity (cg) shifts during the lifting of an equally balanced (2) pick load, the pick point nearest the cg will: 200% SWL - in a basket hitch the capacity of the sling will be: 194 (90) - Per ASME standard nylon and polyester slings shall NOT be used in contact with temperatures in excess of what degrees F (degree C)? bowline in a bight - a knot that is used to form a loop at any point in the rope between its ends is called a:

D/d ratio - The term that applies to the size of a block sheave relative to the size of the rope running through it is: wind an overwound drum from the opposite top side of the spool - when spooling wire rope onto a tugger, what is the correct procedure? air bearings - which friction reducing tool has the least amount of friction? caterpillar dollies - which friction reducing tool is constructed using a series of rollers attached to a chain on each side? 1/2" - Given the attached drawing, determine the minimum thread engagement for the 3/8" eyebolt per the attached load distribute the load of a lift across more than one point - what is the main purpose of a spreader bar? be removed from service - Knots tied in synthetic web slings or wire rope slings reduce the SWL (safe work limit) by approximately 50% and therefore should: Remove the capacity tag - what should be done with slings when they are "taken out of service"? wire rope clips - Never saddle a dead horse is a phrase that refers to: safety latch - what feature should hooks have to retain slings and lifting attachments? 1 000 Ibs. - A four-point hook up is being used to lift 4000 Ibs. using a spreader bar such that the legs are vertical with exact same length slings. With each leg carrying an equal load, what is the stress on each sling? spreader bar - what is used to prevent the load from being crushed by the squeezing action of the slings upon lifting? to prevent the slings from crushing the load - why is a spreader bar used in a rigging operation? when the center of gravity of the load is offset to one side of the road - when is a lifting beam used? lift load and determine stress/strain on slings - which of the following is UNACCEPTABLE for determining load weight? below the attachment points - where would the CG of a load be located during a lift?
