Rock Formation Card

Discovering STEM Program

Identifying Rock Types Activity (upper elementary)

Rock Types Rock Sample Numbers

I =igneous S =sedimentary M =metamorphic 1 2 3 4 5 6 7 8 9 10 11 12

Using above properties determine the Rock Type I M S S S S I M I M I M

Rock Identification in baggies as follows:

1. granite

2. gneiss

3. conglomerate

4. limestone

5. shale

6. sandstone

7. obsidian

8. quartzite

9. diorite

10. slate

11. scoria

12. schist

Rock type Classification (how formed)

Identifying features (^) Rock Name grain size colors Igneous Intrusive : cools slower underground, crystals big enough to see

crystals bigger than small sand grains

black/white or pink/black/white

granite

black/white diorite

Extrusive: cools quickly above ground, crystals too small to see

crystals too small to see & gas bubble holes

usually black but can be reddish if oxides

scoria

no crystals usually black obsidian Sedimentary Clastic: sediment grains pressed or rock fragments cemented back together

small individual grains

white, tan or reddish

sandstone

very small grains, can’t see them

dark gray to black shale

large and small rounded grains

various individual grain colors

conglomerate

Chemical: dissolved minerals precipitate out of water

very small, usually can’t see grains

usually white or tan limestone

Metamorphic Foliated: rocks become layered due to high heat and pressure

very small, thin layers

light gray or black slate

very small with thicker layers

alternating layers with different colors

gneiss (nice)

flattened layers that sparkle

usually light white/silver or dark black/green

schist

Nonfoliated: rocks are heat altered, or chem. reaction

crystal edges blend together, usually don’t see individual crystals

white color or pink/purple

quartzite

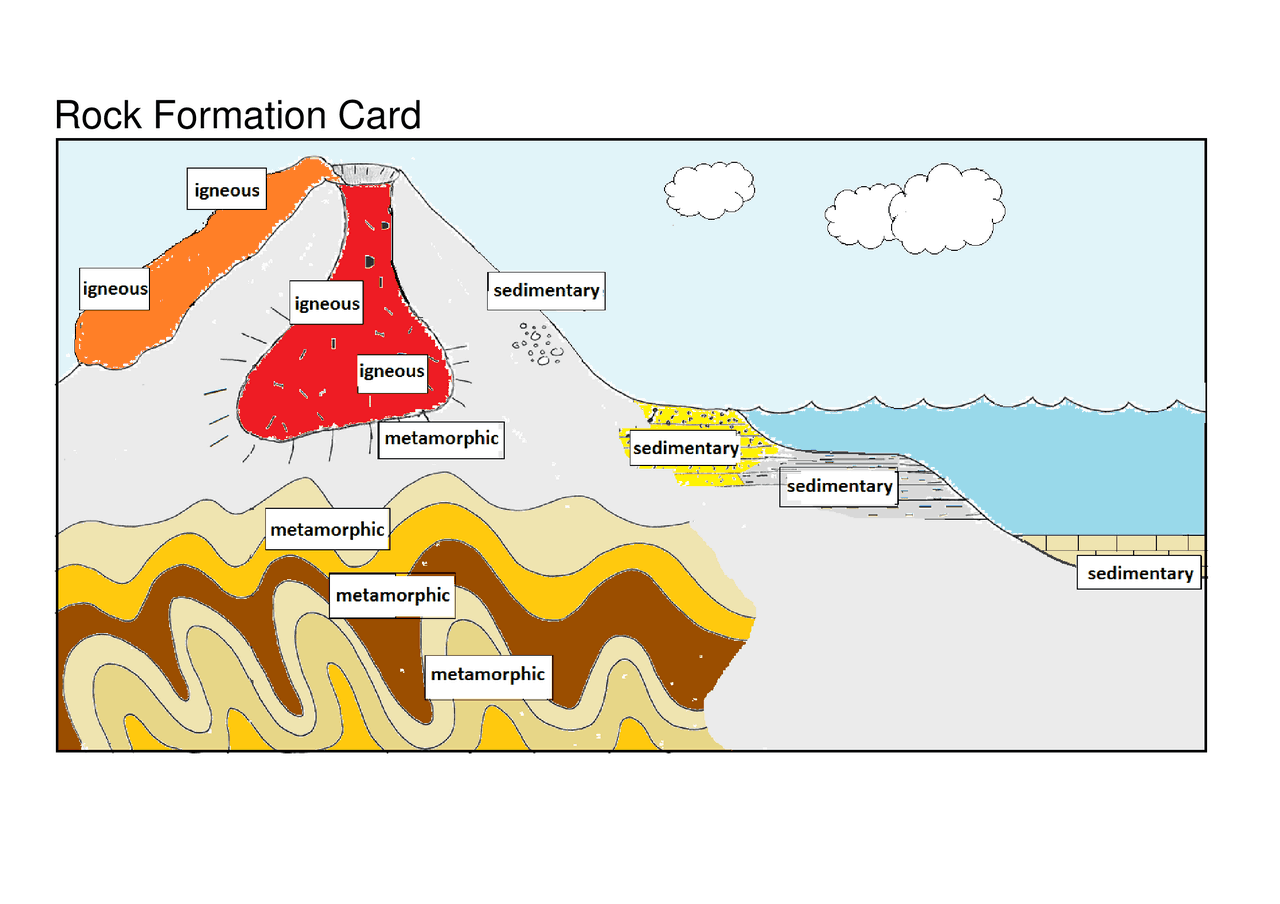

Rock Formation Card
