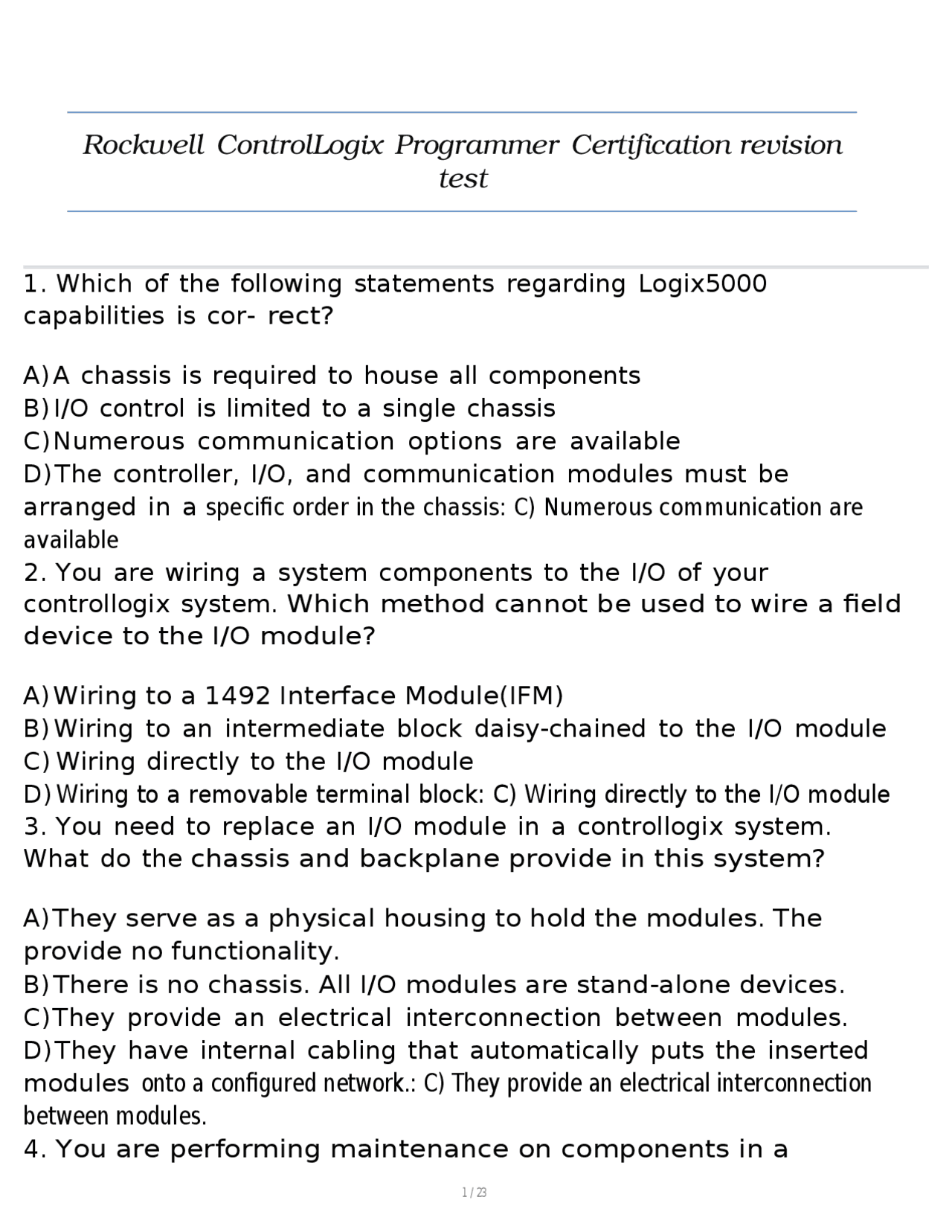

Rockwell ControlLogix Programmer Certification revision
test
1. Which of the following statements regarding Logix5000
capabilities is cor-
rect?
A)A chassis is required to house all components
B) I/O control is limited to a single chassis
C)Numerous communication options are available
D) The controller, I/O, and communication modules must be
arranged in a
specific order in the chassis: C) Numerous communication are
available
2. You are wiring a system components to the I/O of your
controllogix system.
Which method cannot be used to wire a field
device to the I/O module?
A)
Wiring to a 1492 Interface Module(IFM)
B) Wiring to an intermediate block daisy-chained to the I/O module
C) Wiring directly to the I/O module
D)
Wiring
to
a
removable
terminal
block:
C) Wiring directly to the I/O module
3. You need to replace an I/O module in a controllogix system.
What do the
chassis and backplane provide in this system?
A)
They serve as a physical housing to hold the modules. The
provide no functionality.
B)
There is no chassis. All I/O modules are stand-alone devices.
C)They provide an electrical interconnection between modules.
D) They have internal cabling that automatically puts the inserted
modules
onto a configured network.: C) They provide an electrical interconnection
between modules.
4.
You are performing maintenance on components in a
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17

Partial preview of the text

Download Rockwell ControlLogix Programmer Certification revision test and more Exams Advanced Education in PDF only on Docsity!

1 / 23

Rockwell ControlLogix Programmer Certification revision

test

  1. Which of the following statements regarding Logix capabilities is cor- rect? A) A chassis is required to house all components B) I/O control is limited to a single chassis C) Numerous communication options are available D) The controller, I/O, and communication modules must be arranged in a specific order in the chassis: C) Numerous communication are available
  2. You are wiring a system components to the I/O of your controllogix system. Which method cannot be used to wire a field device to the I/O module? A) Wiring to a 1492 Interface Module(IFM) B) Wiring to an intermediate block daisy-chained to the I/O module C) Wiring directly to the I/O module D) Wiring to a removable terminal block: C) Wiring directly to the I/O module
  3. You need to replace an I/O module in a controllogix system. What do the chassis and backplane provide in this system? A) They serve as a physical housing to hold the modules. The provide no functionality. B) There is no chassis. All I/O modules are stand-alone devices. C) They provide an electrical interconnection between modules. D) They have internal cabling that automatically puts the inserted modules onto a configured network.: C) They provide an electrical interconnection between modules.
  4. You are performing maintenance on components in a

2 / 23 logix5000 system in your facility. What component of the L7 series controllogix controller provides nonvolatile memory for project storage. A) Energy Storage module (ESM) B) Lithium Battery C) USB port D) SD card: D) SD Card

  1. A production line on the plant floor has stopped talking to the monitoring system, and you need to determine if the 1756- EN2T module is operating correctly. What is its function in this situation? A) Monitors and controls I/O across the controllogix backplane and over I/O links B) Provides power to energize all the modules inside the chassis comprising controllers, I/O, and communication modules C) Provides electrical interconnection between modules D) Bridge or route control and information data between networks: D) Bridge or route control and information data between networks
  2. Which of the following statements are correct about the display configura- tion within the application? (Select all that apply) A) Changes reflect on every networked computer within the organization B) Changes can be made only to the ladder Logic Editor view C) Toolbars can be customized D) Windows can be docked or kept floating: C) Toolbars can be customized D) Windows can be docked or kept floating
  3. Which part of Studio 5000 Logix Designer application would you use to organize the project by tasks, programs, and routines? A) Logical Organizer

4 / 23 you find the information about what a controllogix controller LED indicates? A) Controller Organizer B) Help System C) Controller Properties D) Output Window: B) Help System

  1. In Studio 5000 Logix designer project, which term has the description of a task that can be interrupted by periodic or event tasks? A) Periodic Task B) Scheduled Program C) Continuous Task D) Main Routine: C) Continuous Task
  2. In a Studio 5000 Logix Designer project, you can have only one , which is created by default with the creation of a new project. A) Subroutine B) Continuous Tasks C) Event Task D) Scheduled Program: B) Continuous Tasks
  3. In a studio 5000 logix designer project, a(n) is not used by any task. A) Main Routine B) Fault Routine C) Scheduled Program D) Unscheduled Program: D) Unscheduled Program
  4. The network that supports up to 99 devices at speeds up to 5 Mbps and utilizes coaxial or fiber cables: ControlNet
  5. The network supports time-critical applications and uses traditional Ether- net infrastructures.: EtherNet/IP

5 / 23

  1. The network supports up to 64 devices with data rates between 125 and 500 Kbps. The power and communication shares the same cable in this net- work.: DeviceNet
  2. You are a systems engineer and have decided to use a producer/consumer network model for your control system. Which of the following statements can be used to describe this model? A) Data arrives to different destinations at different times B) Data is transferred to multiple recipients at the same time C) Speed increases due to shared network topology

7 / 23 logix designer project?: When transferring a copy of a project file from a controller to a computer

8 / 23

  1. When will you select a download option?: when transferring a copy of a project file from a computer to a controller
  2. You are creating a new studio 5000 project for a production line in your facility. After creating the ladder logic code offline, what would you do next to ensure that the code functions as expected? A) Download the project and monitor the data online B) Upload the project and minitor the data C) Turn the controller keyswitch to the Run Mode and monitor the data D) Go directly online to monitor the data: A) Download the project and monitor the data online
  3. Which of the following logix500 controller modes will let you edit the project but not execute the code? A) Remote mode B) Run Mode C) Remote Test Mode D) Program mode: D) Program mode
  4. What does 192.168.1.105 in the following communication path represent? AB_ETHIP-1\192.168.1.105\Backplane A) Backplane address B) Controller slot number C) Communications module address D) Network Driver name: C) Communications module address
  5. Which of the following Logix5000 controller modes will allow the modifica- tion of codes in a running plant? A) Run Mode B) Remote Run Mode C) Remote Program Mode D) Remote Test Mode: B) Remote Run Mode

10 / 23 for a local digital output module?

11 / 23 A) Local:0:I B) Local:0:C C) Local:0:O D) Local:0:Data: B) Local:0:C

  1. You are tracing the wiring for a device back to its I/O module in a contrologix chassis. You know the 1756 I/O module tag for the device is a Local:4:I:Data.7. In which slot in the chassis you should look for the I/O module? A) Slot 5 B) Slot 4 C) Slot 8 D) Slot 7: B) Slot 4
  2. You are determining the health of a control system. Which LED indicator is a 1756 digital I/O module indicates the on/off conditions of a field device? A) Module status B) I/O status C) fault status D) Fuse status: B) I/O status
  3. While connecting a device to a logix500 controller and adding it to the I/O configuration of the controller project, which of the following statements are true? A) Modules can be added online or offline B) When online, Module Discovery cannot be used C) Modules can be deleted online when no I/O points are running in the project D)The communications format parameter can be changed online: B) When online, Module Discovery cannot be used D) The communications format parameter can be changed online

13 / 23 D) Full Diagnostics-Input Data: D) Full Diagnostics-Input Data

14 / 23

  1. The fault mode sets the physical output devices to either on, off, or hold during a. A) major recoverable fault B) major nonrecoverable fault C) communication failure to the remote test mode D) communication failure in the program mode: B) major nonrecoverable fault
  2. How many owners can a digital output have?: one
  3. In compatible keying, you can replace a drive with another device if the device has A) a lower major revision B) a lower minor revision than its major revision C) a different catalog number D) the same or a high major revision: D) the same or a high major revision
  4. Which of the following diagnostic features senses that the field wiring is disconnected or has been removed in a 1756 digital input module? A) Open wire detection B) No Load Detection C) Field Power Loss Detection: A) Open wire detection
  5. What data type can contain a decimal?: REAL
  6. A tag that can be used by all tasks, programs, and routines within a project- : Controller-scoped tag
  7. You need to monitor the live values of the tags configured in the runtime mode of the program. Which one of the following options would you select? A) Monitor tags B) Edit Tags C) Controller Tags D) User-defined tags: A) Monitor tags

16 / 23

  1. Which instruction will hold the state of the output when the rung continuity changes to false?: Retentive bit output instruction

17 / 23

  1. You want to assign a tag to an instruction, but you need to create the tag first. What is the quickest way to do this?: type the new tag name in the instruction operand, right-click, and select New Tag
  2. When adding components to a ladder logic routine, which insertion mode should you choose so that the new elements are placed to the right of the currently selected instruction and new rungs are placed below the currently selected rung?: APP (Append)
  3. When assigning a local I/O bit to an instruction, you notice that a bit in the selection is a darker gray. What does this signify?: The I/O point has been assigned.
  4. You are entering ladder logic component into a routine. Which of the following application features identifies where an instruction can be palced?: A target square.
  5. What is the function of a No Operation (NOP) instruction?: It can function as a placeholder on the branch; it performs no operation
  6. What instruction can omit a logic segment until it is need as well as allow the logic to move backwards in a routine to allow the controller to repeat iterations of logic.: JMP and LBL instructions
  7. Instructions that can pass and receive specific parameters: JSR and SBR instructions
  8. What instruction can disable the process or machine code during opera- tion?: MCR instruction
  9. What timer: You need to turn on a "product jammed" alarm if a part is in front of photoeye for more than 1 second.: TON
  10. What timer: You need to keep track of how long a machine is in cycle. It may go in and out of cycle several times during the shift, and you want to know the total amount of time it was in cycle.: RTO
  11. What timer: You want to turn on an output when rung goes true and keep the output on for 15 seconds after a condition goes false: TOF
  12. What Counter:

19 / 23

  1. As parts are taken out of inventory, reduce the value to show how many parts are still available: CTD
  2. After counting the parts placed into a package, prepare the system for another similar package: RES
  3. Which timer instruction would you program if you wanted to begin timing when the rung goes true and hold the accumulated time when the run logic goes false?: Retentive Timer On (RTO) instruction
  4. All timers in a routine contain a preset value that must be entered before they will function. What is the time based selection unit: Milliseconds(0.001)
  5. You have decided to use the done bit of the Start_Process_ timer tag as an input condition. How would you address the tag?: Start_Process_1.DN
  6. When is the .DN bit of the CTD(Count Down) instruction enabled?: Accumulated >= Preset
  7. Which of these status bits would show a counter is enabled? A) .CU and .EN B) .EN and .CD C) .CU and .CD D) .OV and .UN: C) .CU and .CD
  8. Which instruction will use the remainder after one value is divided by another?: MOD (Modulo)
  9. You have run a program containing a Divide(DIV) instruction and the result has been truncated. What type of values were used for Source A and Source B?: SINT
  10. instructions that will generate a minor fault and have a result returned as source A when source B is zero: DIV(Divide) MOD (Modulo)
  11. If desired operation is to ensure a negative value for the component count never reaches the production queue, what method or instruction would be the most appropriate?: Use and ABS instruction
  12. condition that turns true as soon as the number reaches or

20 / 23 goes beyond a number: GEQ
