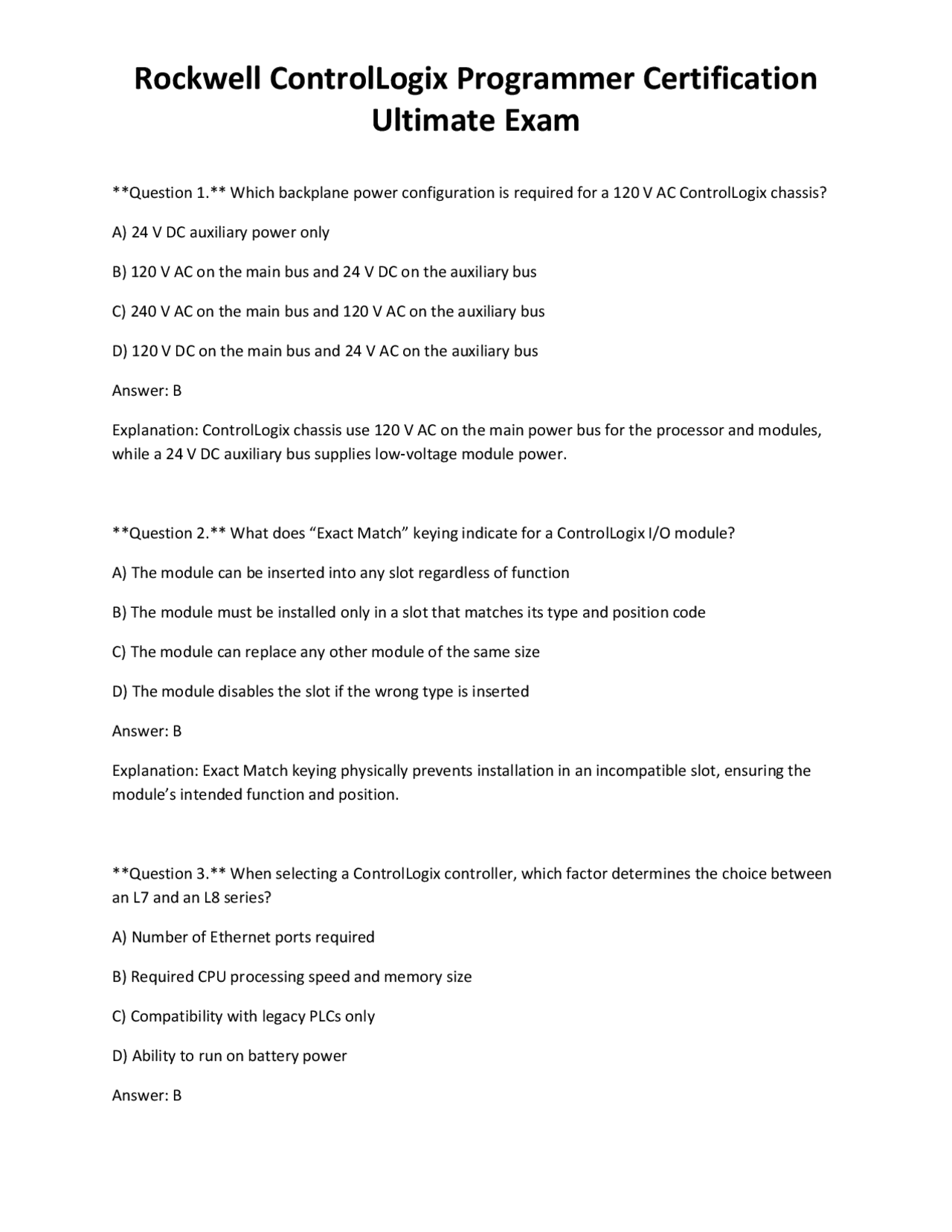

Ultimate Exam
Question 1. Which backplane power configuration is required for a 120 V AC ControlLogix chassis? A) 24 V DC auxiliary power only B) 120 V AC on the main bus and 24 V DC on the auxiliary bus C) 240 V AC on the main bus and 120 V AC on the auxiliary bus D) 120 V DC on the main bus and 24 V AC on the auxiliary bus Answer: B Explanation: ControlLogix chassis use 120 V AC on the main power bus for the processor and modules, while a 24 V DC auxiliary bus supplies low‑voltage module power. Question 2. What does “Exact Match” keying indicate for a ControlLogix I/O module? A) The module can be inserted into any slot regardless of function B) The module must be installed only in a slot that matches its type and position code C) The module can replace any other module of the same size D) The module disables the slot if the wrong type is inserted Answer: B Explanation: Exact Match keying physically prevents installation in an incompatible slot, ensuring the module’s intended function and position. Question 3. When selecting a ControlLogix controller, which factor determines the choice between an L7 and an L8 series? A) Number of Ethernet ports required B) Required CPU processing speed and memory size C) Compatibility with legacy PLCs only D) Ability to run on battery power Answer: B
Ultimate Exam
Explanation: L8 controllers provide higher processing speed and larger memory than L7, making them suitable for larger, more complex applications. Question 4. How can a non‑volatile SD card be used in a ControlLogix controller? A) To store temporary tag values during a power loss B) To hold the controller’s firmware and user project for backup and restore C) To increase the controller’s RAM capacity D) To provide additional Ethernet/IP connections Answer: B Explanation: The SD card stores the controller’s firmware and the user project, allowing backup, restore, and transfer between controllers. Question 5. Which method is recommended for assigning a static IP address to an EtherNet/IP module in a ControlLogix system? A) Using BOOTP only B) Using DHCP only C) Manually entering the IP address via the module’s front panel or RSLinx D) Allowing the module to auto‑assign a link‑local address Answer: C Explanation: Manually entering a static IP ensures a known address and avoids potential changes from DHCP or BOOTP. Question 6. What is the purpose of the Requested Packet Interval (RPI) setting on a digital input module? A) To define the maximum current the module can draw B) To control how often the module scans and sends data to the processor
Ultimate Exam
Question 9. Which task type runs continuously without a defined scan interval? A) Periodic task B) Event task C) Continuous task D) Scheduled task Answer: C Explanation: A Continuous task executes its programs as fast as the CPU allows, without a fixed RPI. Question 10. What is the effect of assigning a higher priority value to a task in ControlLogix? A) The task runs slower than lower‑priority tasks B) The task pre‑empts lower‑priority tasks when CPU time is needed C) The task is disabled until the priority is lowered D) The task runs only after a watchdog timer expires Answer: B Explanation: Higher‑priority tasks (numerically lower) get CPU time before lower‑priority tasks, allowing critical logic to execute first. Question 11. Which tag scope allows a tag to be accessed from any program in the controller? A) Program‑scoped tag B) Local tag C) Controller‑scoped tag D) Routine‑scoped tag Answer: C
Ultimate Exam
Explanation: Controller‑scoped tags are global to the entire controller and can be referenced by any program or routine. Question 12. Which data type can store a single bit and is most memory‑efficient for Boolean logic? A) BOOL B) SINT C) INT D) DINT Answer: A Explanation: BOOL occupies only one bit, making it ideal for binary on/off conditions. Question 13. How many bytes does a user‑defined data type (UDT) consisting of a BOOL, an INT, and a REAL consume? A) 6 bytes B) 7 bytes C) 9 bytes D) 12 bytes Answer: D Explanation: BOOL (1 bit) aligns to 1 byte, INT occupies 2 bytes, REAL occupies 4 bytes; total 1+2+4 = 7 bytes, but due to 4‑byte alignment the compiler pads to 12 bytes. Question 14. Which instruction copies a block of data from one tag to another without regard to data type? A) COP B) MOV
Ultimate Exam
A) AVE
B) SUM
C) MAX
D) STD
Answer: A Explanation: AVE (Average) computes the mean value of the specified array elements. Question 18. What does the Sort (SRT) instruction do when applied to a numeric array? A) Removes duplicate values B) Orders the elements in ascending or descending order based on a parameter C) Converts the array to a string D) Calculates the standard deviation Answer: B Explanation: SRT rearranges the array elements according to the specified sort direction. Question 19. Which instruction allows a program to jump to a subroutine and return automatically after execution? A) JSR B) MCR C) TND D) GSV Answer: A Explanation: JSR (Jump to Subroutine) calls a subroutine and saves the return address, enabling a return after the subroutine completes.
Ultimate Exam
Question 20. How does the Master Control Relay (MCR) instruction affect the execution of rungs beneath it? A) It forces all underlying rungs ON B) It disables execution of all underlying rungs while the MCR coil is OFF C) It resets all timers in the program D) It clears the accumulator register Answer: B Explanation: MCR acts as a master enable; when its coil is OFF, all rungs under the MCR are bypassed. Question 21. What is the purpose of the Temporary End (TND) instruction in ladder logic? A) To permanently terminate a program B) To create a conditional branch that ends execution of the current routine when true C) To reset all tags to default values D) To enable network communication temporarily Answer: B Explanation: TND provides a conditional early exit from a routine when its input condition evaluates TRUE. Question 22. When creating an Add‑On Instruction (AOI), which feature protects the AOI’s internal logic from being edited by users? A) Source‑keying B) Password protection C) Tag locking D) Read‑only mode
Ultimate Exam
B) By looking at the tag database size C) By reading the controller’s hardware manual D) By measuring the voltage on the backplane Answer: A Explanation: Task Monitor visualizes when tasks start and finish, revealing overlaps that could degrade performance. Question 26. In producer/consumer communication, which tag attribute designates a tag as a producer? A) Consumed B) Produced C) Read‑Only D) Reserved Answer: B Explanation: Setting a tag’s “Produced” attribute tells the controller to publish its value for other devices to consume. Question 27. Which MSG service type is used for a cached message that reads a tag from a remote processor? A) MSG_Read B) MSG_CachedRead C) MSG_UncachedRead D) MSG_Write Answer: B Explanation: MSG_CachedRead stores the remote tag’s value locally after the first read, reducing network traffic for subsequent accesses.
Ultimate Exam
Question 28. What does a “major fault” code typically indicate in a ControlLogix controller? A) A warning that can be ignored B) A condition that stops processor execution until cleared C) A temporary network glitch D) An informational message only visible in the log file Answer: B Explanation: Major faults stop the processor and require operator intervention or a reset to clear. Question 29. Which step is NOT part of the online editing workflow (Start, Accept, Test, Assemble)? A) Start – put the controller in Run mode B) Accept – commit the edited logic to the controller’s RAM C) Test – verify logic in a simulation environment without affecting the live system D) Assemble – compile the edited logic into the controller’s executable image Answer: C Explanation: Testing is performed on the controller while it is in Run mode, not in a separate simulation environment. Question 30. When using the Studio 5000 Trend tool, what type of data is best suited for high‑speed trending? A) Tag descriptions B) 64‑bit integer values C) High‑frequency bit transitions (e.g., encoder pulses) D) Static configuration parameters
Ultimate Exam
C) To compress the project size for faster download D) To convert ladder logic into structured text automatically Answer: B Explanation: The Compare Tool highlights added, modified, or deleted objects between two project versions. Question 34. Which practice improves documentation readability in a ControlLogix project? A) Using generic tag names like “Tag1”, “Tag2” B) Adding meaningful Tag Descriptions, Rung Comments, and Page Titles C) Removing all comments to reduce file size D) Placing all logic on a single ladder page Answer: B Explanation: Clear descriptions and comments help engineers understand intent, facilitating maintenance and troubleshooting. Question 35. What is the effect of setting a tag’s “Array Dimension” to 10 in a one‑dimensional array? A) The tag becomes a scalar value B) The array can hold 10 elements indexed 0‑ 9 C) The array size is limited to 5 elements D) The tag is converted to a string type Answer: B Explanation: Specifying a dimension of 10 creates an array with ten elements, indexed from 0 to 9. Question 36. Which instruction would you use to increment a DINT tag by 1 each scan cycle?
Ultimate Exam
A) ADD with a constant of 1 B) SUB with a constant of 1 C) MUL with a constant of 1 D) DIV with a constant of 1 Answer: A Explanation: ADD adds a constant (1) to the accumulator each scan, effectively incrementing the tag. Question 37. In a ControlLogix Ethernet/IP module, what does the “Auto‑Negotiate” setting control? A) The size of the module’s internal memory B) The speed and duplex mode of the Ethernet connection C) The number of I/O points the module can handle D) The module’s firmware version Answer: B Explanation: Auto‑Negotiate enables the module to automatically select the optimal link speed and duplex mode with the network switch. Question 38. Which tag data type provides the highest precision for representing fractional numbers? A) REAL B) DINT C) SINT D) BOOL Answer: A Explanation: REAL is a 32‑bit floating‑point type, offering fractional precision unlike integer types.
Ultimate Exam
Explanation: Disable Keying removes physical keying restrictions, permitting any module that fits the slot size to be installed. Question 42. When configuring an analog output to 0‑ 10 V, which scaling parameter must be set to translate engineering units to raw counts? A) Minimum raw count = 0, Maximum raw count = 27648 B) Minimum raw count = 0, Maximum raw count = 4095 C) Minimum raw count = 1000, Maximum raw count = 2000 D) Minimum raw count = 27648, Maximum raw count = 0 Answer: A Explanation: For a 0‑ 10 V output, the typical 16‑bit range is 0‑27648 raw counts; scaling maps engineering units to this range. Question 43. Which instruction can be used to create a conditional branch that only executes when a tag value exceeds a limit, without using a comparison instruction? A) XIC (Examine If Closed) with a preset limit tag B) GRT (Greater Than) instruction C) EQU (Equal) instruction D) TON (On‑Delay Timer) Answer: B Explanation: GRT directly compares two values and passes power only when the first is greater than the second, creating the conditional branch. Question 44. What is the effect of setting the “Cache Size” parameter of a MSG instruction to a larger value? A) Increases the number of tags that can be transferred in a single message
Ultimate Exam
B) Reduces the controller’s CPU usage by storing more data locally, but may increase RAM consumption C) Forces the message to be sent over ControlNet instead of EtherNet/IP D) Disables the message after the first execution Answer: B Explanation: A larger cache retains more data locally, decreasing network traffic but using more controller memory. Question 45. Which of the following best describes a “Dynamic Tag” in ControlLogix? A) A tag whose size can change at runtime, such as a variable‑length string or array B) A tag that is automatically created by the system for diagnostics C) A tag that is only visible in the Logical Organizer D) A tag that cannot be accessed by MSG instructions Answer: A Explanation: Dynamic tags can expand or shrink during execution, enabling flexible data structures like variable‑length strings. Question 46. When using the “Export” function for an AOI, which file extension is generated? A) .L5X B) .AOI C) .XML D) .CSV Answer: B Explanation: Exporting an AOI creates a .AOI file that contains the instruction definition for import into other projects.
Ultimate Exam
Explanation: Alias tags act as pointers; they reference the original tag’s address, saving memory. Question 50. Which instruction can be used to reset a timer without resetting its accumulated time? A) RES (Reset) B) RST (Reset) C) TON (On‑Delay) with a preset of 0 D) TMR (Timer) with a “Reset” input Answer: D Explanation: The “Reset” input on a timer instruction clears the timing accumulator but leaves the preset value unchanged. Question 51. How does the “Enable” input of a Counter instruction affect its operation? A) When FALSE, the counter holds its current value and does not count further events B) When FALSE, the counter resets to zero immediately C) When TRUE, the counter reverses count direction D) When TRUE, the counter disables the CPU for the current scan Answer: A Explanation: The Enable input gates counting; if disabled, the counter retains its current count. Question 52. Which feature of the Studio 5000 “Group” function improves tag management? A) Allows tags to be grouped under a common folder for easier navigation B) Automatically creates ladder rungs for each tag C) Encrypts the tag values for security
Ultimate Exam
D) Converts all tags in the group to BOOL type Answer: A Explanation: Groups organize tags hierarchically, simplifying large tag databases. Question 53. When configuring a ControlLogix Ethernet/IP module, what does the “Sub‑net Mask” define? A) The physical size of the module B) The range of IP addresses that belong to the same network segment C) The type of I/O points supported by the module D) The RPI for the module’s communication Answer: B Explanation: The subnet mask determines which IP addresses are considered local, influencing routing decisions. Question 54. Which instruction is used to convert an integer value to a string for display purposes? A) DINT_TO_STRING (DTOS) B) INT_TO_REAL (ITR) C) BOOL_TO_INT (BTI) D) REAL_TO_DINT (RTD) Answer: A Explanation: DTOS converts a DINT (or other integer) into a human‑readable string. Question 55. What is the effect of enabling “Source‑Keying” on an AOI that is distributed to multiple controllers? A) The AOI’s source code is hidden, preventing modification on any controller that imports it
