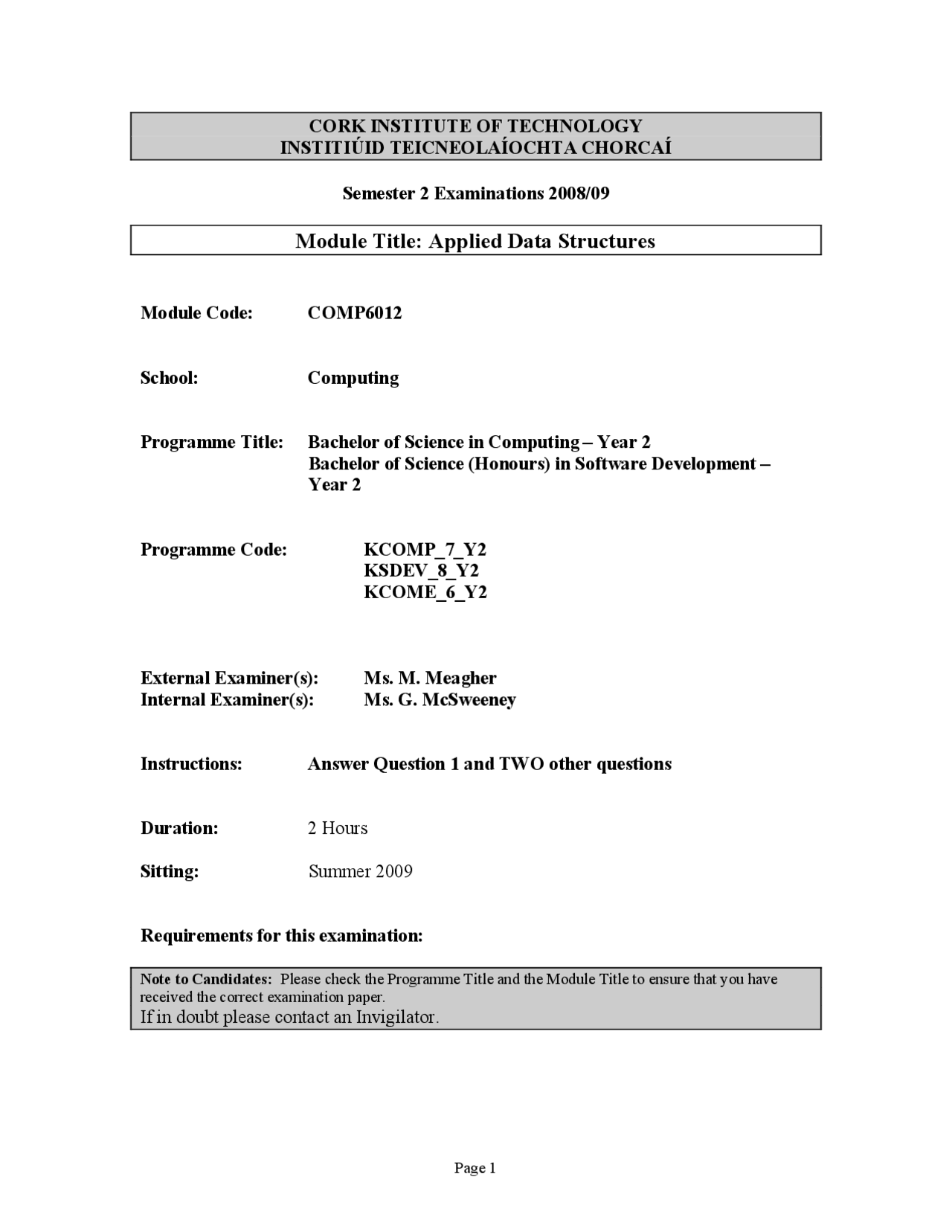

CORK INSTITUTE OF TECHNOLOGY
INSTITIÚID TEICNEOLAÍOCHTA CHORCAÍ
Semester 2 Examinations 2008/
Module Title: Applied Data Structures
Module Code: COMP
School: Computing
Programme Title: Bachelor of Science in Computing – Year 2 Bachelor of Science (Honours) in Software Development – Year 2
Programme Code: KCOMP_7_Y KSDEV_8_Y KCOME_6_Y
External Examiner(s): Ms. M. Meagher Internal Examiner(s): Ms. G. McSweeney
Instructions: Answer Question 1 and TWO other questions
Duration: 2 Hours
Sitting: Summer 2009
Requirements for this examination:
Note to Candidates: Please check the Programme Title and the Module Title to ensure that you have received the correct examination paper. If in doubt please contact an Invigilator.
Question 1 is compulsory
Question 1
Section A
Compare and contrast the types of memory allocation used for Linked Lists as distinct
from either static or dynamic arrays. 2 marks
Section A Î 2 marks
Section B
Data to be stored in a node of a linked list should include the following data on route information for flights 9 route id 9 departure 9 destination 9 Aeroplane Seating 9 Price per Adult
(i) Write the code to set up a node for a given route 2 marks
(ii) Describe how to represent the following in memory
(a) An empty list (b) A link list with 1 node 2 marks
(iii) Write a function to search for a position in a list according to the route id.
The function should determine if the node is present and return a pointer to the previous position to the node. It should return null if the node does not exist. 8 marks
(iv) Write the code for adding a route to a list in order of route id. 4 marks
Section B Î 16 marks
Question 2 Binary Trees
(i) Set up a root node struct as given in Q1 to hold the route id, the departure, the destination, adult pricing and aeroplane seating and 2 pointers left and right. 3 marks
(ii) Set up the memory for the node in (i) and set the left and right pointer to NULL. 2 marks
(iii) Write a function for attaching the node given in (i) to a binary tree based on the key route Id. 5 marks
(iv) Explain how to use recursion to add 37 to the tree in (vii) below. 4 marks
(v) Build up the expression given the following PostOrder traversal example. 3 marks
(vi) How does PostOrder traversal work for the above diagram? 3 marks
(vii) Given the following tree, demonstrate how to use recursion down to the lowest
level to display (PostOrder) the contents of the following tree. 5 marks
(vi) Explain how recursion is used to remove a node with one child. The function code to
remove a node is given in Appendix 3. 5 marks
Question 2 Î 30 marks
Root
Section C: Main Program: Use the functions written in Section B
(i) Set up Linear Queue 1 mark
(ii) Initialise a Linear Queue. 1 mark
(iii) While the queue is not empty, output the details of a stock item from the queue.
5 marks
Section C Î 7 marks
Question 3 Î 30 marks
Question 4 Sorting and Recursion
Section A
(i) Explain what is recursion 1 mark
(ii) Give an example of an anchor statement and explain its purpose.
2 marks
(iii) Write a recursive function to find the power of ( x n^ .) 3 marks
(iv) Show the steps involved when using the function to calculate 6^4.
Show how a stack is involved in the process. 9 marks
Section A Î 15 marks
Question 4 (contined)
Section B
Consider the following sort code.
void Sort( int x[], int n) { int smallPos, smallest; for( int i=0; i < n; i++) { smallPos = i; smallest = x[ smallPos ];
for(int j=i +1 ; j < n ; j++)
if ( x[j] < smallest) { smallPos = j; smallest = x [smallPos ]; }
x[ smallPos ] = x[i ]; x[i] = smallest; } }
(i) Show the steps that would have to be carried to sort the following data using the above function. You are required to show what is required for 2 passes through the code. 45, 12, 56, 78, 23 10 marks
(ii) Describe in English how this sorting function works. 2 marks
(iii) Name this sort and compare with the bubble sort. 3 marks
Section B Î 15 marks
Question 4 Î 30 marks
Appendix 2
int binarySearch(Cust * customersarray, int accno, int left, int right) {
int mid;
if (right < left) return -1;
mid = (left+right)/2;
if (accno > customersarray[mid].accno) return binarySearch(customersarray,accno,mid+1,right);
else if (accno < customersarray[mid].accno) return binarySearch(customersarray,accno,left,mid-1);
else return mid; }
Appendix 3 tree * remove_node( tree * parent, int num, int *success) { tree * temp; int new_num;
if( parent != NULL) { if ( num ==parent->num) { *success = 1; if (parent->left ==NULL && parent->right == NULL) { temp = parent; free(temp); parent = NULL; } else if (parent->left ==NULL) { temp = parent; parent = parent->right; free( temp); } else if (parent->right ==NULL) { temp = parent; parent = parent->left; free( temp); } else // find the left most node on the right side { parent-> right = successor(parent->right, &num); parent->num = num; } }// number not equal to parent_number
else if ( num < parent->num) parent->left = remove_node(parent->left, num, success); else parent->right = remove_node(parent->right, num, success); } else //parent ==null *success =0; return parent; }//end function
