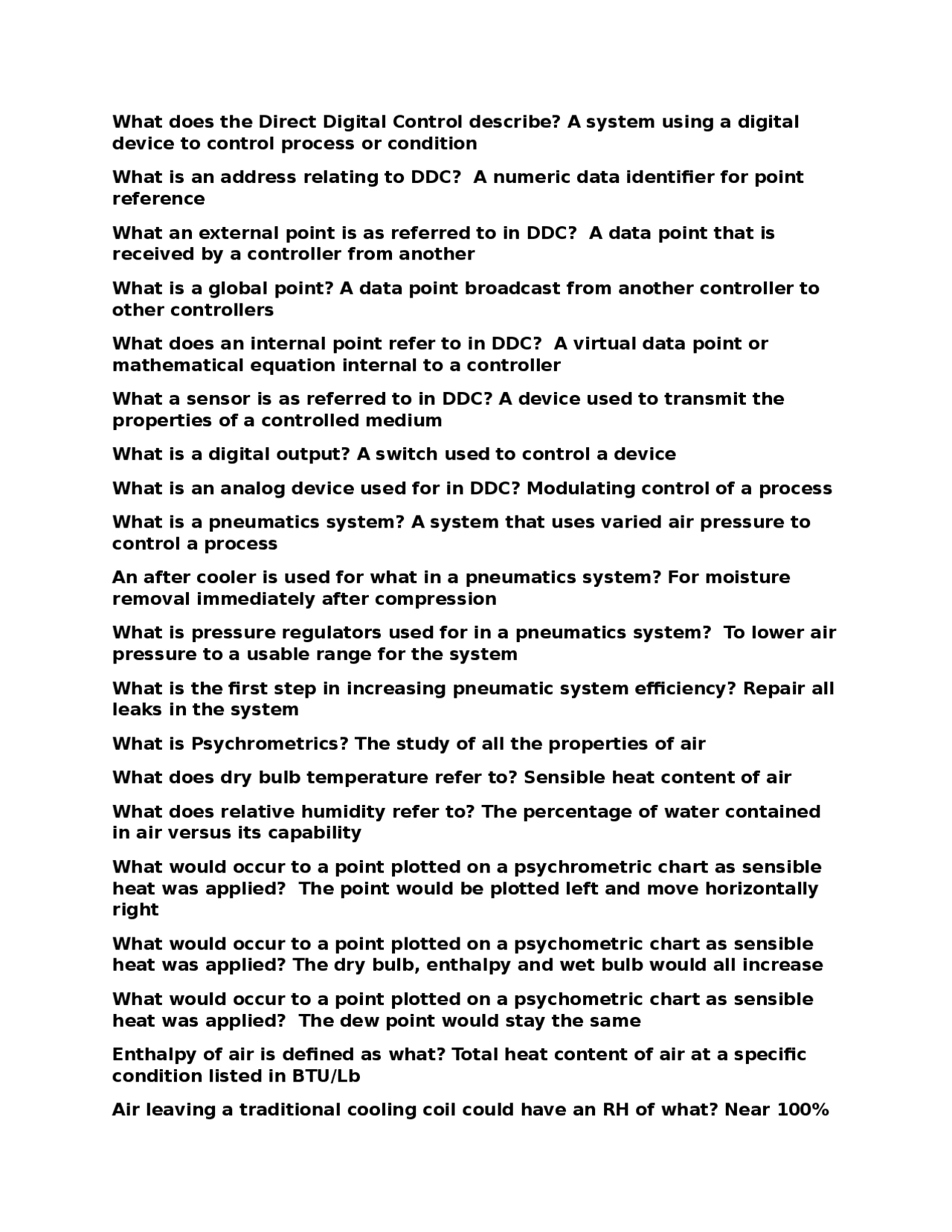

What does the Direct Digital Control describe? A system using a digital device to control process or condition What is an address relating to DDC? A numeric data identifier for point reference What an external point is as referred to in DDC? A data point that is received by a controller from another What is a global point? A data point broadcast from another controller to other controllers What does an internal point refer to in DDC? A virtual data point or mathematical equation internal to a controller What a sensor is as referred to in DDC? A device used to transmit the properties of a controlled medium What is a digital output? A switch used to control a device What is an analog device used for in DDC? Modulating control of a process What is a pneumatics system? A system that uses varied air pressure to control a process An after cooler is used for what in a pneumatics system? For moisture removal immediately after compression What is pressure regulators used for in a pneumatics system? To lower air pressure to a usable range for the system What is the first step in increasing pneumatic system efficiency? Repair all leaks in the system What is Psychrometrics? The study of all the properties of air What does dry bulb temperature refer to? Sensible heat content of air What does relative humidity refer to? The percentage of water contained in air versus its capability What would occur to a point plotted on a psychrometric chart as sensible heat was applied? The point would be plotted left and move horizontally right What would occur to a point plotted on a psychometric chart as sensible heat was applied? The dry bulb, enthalpy and wet bulb would all increase What would occur to a point plotted on a psychometric chart as sensible heat was applied? The dew point would stay the same Enthalpy of air is defined as what? Total heat content of air at a specific condition listed in BTU/Lb Air leaving a traditional cooling coil could have an RH of what? Near 100%
What measurement can directly be converted to CFM? Velocity What is the typical outside air requirement for commercial installations? 25% What is the most resistive type of duct? Flexible What is a common mistake in ductwork installation? Adding fittings not originally in the design What is a common installation with flexible duct? Improper support The component that powers a pneumatic control system is what? Air station Air for pneumatic controls should be what? Clean, Dry, and Oil Free Pneumatic control systems require an operating pressure between what? 15-25 psi Pneumatic controls are generally rated for what maximum pressure? 30 psi What is one type of oil removal filter? Absorbent The pneumatic signal to an actuator typically varies from what? 3-15 psi The output from a pneumatic controller is known as? Branch pressure What amperage signal is generally used for analog inputs? 4-20 ma What voltage range is generally used for analog inputs? 0-10 vdc What does a virtual point refer to in DDC? A calculation or point not directly connected to hardware What is a transducer in DDC? A device that converts an input of one kind and converts to another What is a digital input in DDC? An input that sees a closure of contacts from a device CT switches are used for what in DDC? current of motors BTU meters are used for what in DDC? To measure energy flow in hydronics Carbon dioxide monitors are used for what in DDC? For ventilation requirements What is BACNET in DDC? Communication protocol written by ASHRAE What is LON in DDC? Open protocol created by Echelon Corp The calculation to find CFM is:? Area= Pi x R squared along with CFM= area x velocity
o This can lead to air becoming more saturated, potentially leading to condensation if the temperature drops below the dew point.
2. Change of Air Properties Through a Heating-Only Unit: Dry Bulb Temperature (DBT): o Increases as the air is heated. Wet Bulb Temperature (WBT): o Remains relatively constant if no moisture is added to the air. o If the air is heated in a way that does not add moisture (e.g., electric heat), the wet bulb temperature may not change significantly. Enthalpy: o Increases because the air is gaining heat. o Enthalpy represents the total heat content of the air, so as the air is heated, both sensible and latent heat increase. Relative Humidity: o Decreases as the dry bulb temperature increases. o The moisture capacity of the air increases, but since no additional moisture is added, the air becomes drier, reducing **RH.
- Change of Air Properties Through a Cooling-Only Unit with No Latent Capacity:** Dry Bulb Temperature (DBT): o Decreases as the air is cooled, but no moisture is removed (the system lacks latent capacity). Wet Bulb Temperature (WBT): o Decreases similarly to DBT, as no moisture is removed from the air. Enthalpy: o Decreases, since cooling removes sensible heat from the air. Relative Humidity: o Increases because the cooling reduces the air's ability to hold moisture, causing the RH to rise without moisture removal.
o The cooling process causes the air to get closer to saturation without dehumidification, potentially nearing the dew point.
4. Change of Air Properties Through a Cooling/Dehumidification Unit (e.g., Traditional Air Conditioning Unit): Dry Bulb Temperature (DBT): o Decreases due to the cooling process of the air. Wet Bulb Temperature (WBT): o Also decreases as moisture is removed by the cooling coils. o The process of condensation on the cooling coil removes moisture from the air, leading to a drop in WBT. Enthalpy: o Decreases significantly as both sensible and latent heat are removed. o The cooling system removes both heat and moisture, thus reducing the enthalpy of the air. Relative Humidity: o Increases during the cooling process if the air temperature is reduced below the dew point, causing condensation. o If RH reaches 100%, further cooling leads to dehumidification, **as the excess moisture in the air condenses out.
- System Changes for Humidity Removal and Impact on System Performance:** Increased Cooling Capacity (for dehumidification): o Additional cooling increases the capacity to remove moisture. o However, this reduces the dry bulb temperature, which can negatively affect occupant comfort if not controlled properly. Installation of Dehumidification Coils or Enhanced Evaporators: o Specific systems can be designed to remove moisture while maintaining a balance with sensible cooling. o Involves higher energy consumption and potential increased wear and tear on the system. Use of Reheat Coils:
2. Change in Air Properties Through a Heating-Only Unit: When air passes through a heating-only unit , the system increases the dry bulb temperature without adding or removing moisture. The following properties are affected: Dry Bulb Temperature (DBT): o The DBT increases as the air is heated, which is the primary goal of the heating unit. o The air becomes warmer as it passes through the heating element. Wet Bulb Temperature (WBT): o The wet bulb temperature may remain unchanged unless moisture is added to the air. o In typical heating systems (like electric or hydronic heat), the air’s moisture content doesn’t change, so WBT stays about the same. Enthalpy: o Enthalpy (total heat content) increases because heating the air adds sensible heat. o Since no moisture is removed or added, this increase in enthalpy is purely due to the rise in dry bulb temperature. Relative Humidity (RH): o RH decreases as DBT increases, because warmer air can hold more moisture. o Since no moisture is added, the air becomes drier, thus reducing relative humidity. 3. Change in Air Properties Through a Cooling-Only Unit with No Latent Capacity: A cooling-only unit with no latent capacity refers to a system that cools the air but does not remove moisture. In this case, only sensible heat is removed, and moisture content remains unchanged. Dry Bulb Temperature (DBT): o DBT decreases as the air is cooled by the system, leading to a reduction in the overall air temperature. Wet Bulb Temperature (WBT): o WBT also decreases as the air temperature drops, assuming no moisture is removed.
o However, without latent heat removal (dehumidification), the wet bulb temperature will not decrease as drastically as it would in a system that actively removes moisture. Enthalpy: o Enthalpy decreases because the cooling system removes sensible heat from the air. o Since there’s no removal of moisture, the latent heat (energy related to water vapor) stays constant, and only the sensible heat is reduced. Relative Humidity (RH): o RH increases because the cooling process reduces the air’s ability to hold moisture, even though the moisture level does not change. o If the air is cooled enough, the relative humidity may approach 100%, causing the air to become saturated.
4. Change in Air Properties Through a Cooling/Dehumidification Unit (Traditional Air Conditioning): A cooling and dehumidification unit (like an air conditioner) cools the air and removes moisture. This process involves both sensible and latent heat transfer, which alters several air properties. Dry Bulb Temperature (DBT): o DBT decreases as the air is cooled by the evaporator coil. o The system removes sensible heat from the air, which leads to a reduction in temperature. Wet Bulb Temperature (WBT): o WBT decreases because moisture is removed from the air as it condenses on the cooling coil. o The air becomes drier, leading to a significant drop in the wet bulb temperature. Enthalpy: o Enthalpy decreases significantly because both sensible and latent heat are removed from the air. o Sensible heat is removed via cooling, and latent heat is removed via dehumidification. Relative Humidity (RH):
o Effect: Increasing airflow enhances the system’s ability to remove moisture by increasing the contact time between air and the cooling coils. o Performance Impact: This leads to higher energy consumption, as the system needs to work harder to move the air and may increase wear on the system due to the higher airflow. Use of Desiccant Dehumidifiers (in specific cases): o Effect: Desiccant dehumidifiers absorb moisture from the air without cooling it. They can be used in situations where cooling is not desired. o Performance Impact: While desiccants can remove moisture efficiently, they often require additional energy to regenerate the desiccant material, making them energy-intensive and costly to operate. Conclusion: Each HVAC system configuration and modification impacts the air's properties in distinct ways. Heating only changes dry bulb temperature without altering moisture levels, while cooling and dehumidification actively manipulate both temperature and humidity. Adjustments to these systems, such as adding dehumidification capacity or increasing airflow, come with trade-offs in terms of energy consumption and overall system performance. Understanding these interactions allows for more efficient and effective HVAC design tailored to specific environmental conditions and comfort requirements. You said: give me another variation but use different words and more details ChatGPT said: In-Depth Discussion on Air Properties in HVAC Systems
1. Understanding Relative Humidity (RH) and Its Relationship with Dry Bulb Temperature: Relative Humidity (RH) is the measure of the current water vapor content in the air compared to the maximum amount the air can hold at a given temperature, expressed as a percentage. o Equation for RH: RH=(Actual Water VaporSaturated Water Vapor at Current Temperature )×100\text{RH} = \left( \frac{\text{Actual Water Vapor}}{
text{Saturated Water Vapor at Current Temperature}} \right) \times 100RH=(Saturated Water Vapor at Current TemperatureActual Water Va por)×
As the Dry Bulb Temperature (DBT) increases: o The ability of the air to hold moisture also increases, meaning the relative humidity (RH) will decrease if the moisture content does not change. o Warmer air has a higher moisture-holding capacity, which makes the air feel drier, even though the actual water vapor content might be the same. As the Dry Bulb Temperature (DBT) decreases: o The air can hold less moisture, causing the RH to rise, assuming the moisture in the air stays constant. o When air cools, the relative humidity increases, and at some point, the RH may reach 100%, leading to condensation if the air is further cooled below its dew point.
2. Changes in Air Properties Through a Heating-Only Unit: A heating-only unit functions to increase the dry bulb temperature of the air without adding or removing moisture. Here’s how the air properties are affected: Dry Bulb Temperature (DBT): o The DBT rises as the air passes through the heating element, increasing the temperature of the air. o The primary function of the heating unit is to add sensible heat to the air. Wet Bulb Temperature (WBT): o In most heating-only systems, the WBT does not change significantly because the moisture content of the air remains constant. o If the air is heated without the addition of moisture, the wet bulb temperature stays the same, or changes very slightly due to minor fluctuations in the moisture content. Enthalpy: o Enthalpy increases as the air is heated, due to the increase in sensible heat. o Since no moisture is added or removed, the enthalpy rise is solely from the added heat to the air. Relative Humidity (RH): o RH decreases as DBT rises, because warmer air has a higher capacity to hold water vapor.
o As the temperature drops, the air becomes cooler and more comfortable. Wet Bulb Temperature (WBT): o WBT also decreases significantly as moisture is removed from the air via condensation on the cooling coil. o This moisture removal is a key feature of air conditioning, lowering the WBT by reducing the humidity in the air. Enthalpy: o Enthalpy decreases as both sensible and latent heat are extracted from the air. o The removal of sensible heat decreases the temperature, while the removal of latent heat reduces the moisture content, both contributing to a decrease in total heat content. Relative Humidity (RH): o RH initially increases as the air cools, but once the air reaches the dew point, condensation begins, and moisture is removed, effectively lowering the relative humidity. o The system can bring the air close to or below saturation, depending on the temperature and moisture levels.
5. System Modifications for Increased Humidity Removal and Their Impact on Performance: To enhance humidity removal in an HVAC system, several modifications or additions can be made. However, each of these changes has implications for system performance, energy usage, and overall comfort: Increasing Cooling Capacity: o Effect: A higher cooling capacity allows for deeper cooling, which enables greater moisture removal as the air cools below its dew point. o Impact: While this increases the system's ability to dehumidify, it also increases energy consumption as the system works harder to lower the air temperature. Overcooling can also cause discomfort if the air becomes too cold. Adding Extra Dehumidification Coils or Enhanced Evaporators: o Effect: Adding dehumidification coils allows for more moisture to condense out of the air without excessively lowering the temperature.
o Impact: This improves comfort without overcooling, but it requires additional energy to operate the dehumidification components. There could also be an increase in the size and cost of the system. Reheat Coils After Dehumidification: o Effect: A reheat coil can add heat back into the air after it has been dehumidified, restoring the temperature to a comfortable level. o Impact: Reheating increases energy consumption because the system must first cool the air to remove moisture and then heat it again, reducing overall energy efficiency. o This system modification is often used in commercial settings where both humidity control and comfort are critical. Increasing Airflow and Fan Speed: o Effect: Increasing airflow through the system improves the contact time between air and cooling coils, which enhances moisture removal. o Impact: While this can improve dehumidification, it can also increase system wear and tear and energy use. It may lead to higher utility bills and greater maintenance needs due to higher fan speeds. Incorporating Desiccant Dehumidification: o Effect: Desiccant dehumidifiers absorb moisture from the air without changing the air temperature. These are useful in environments where cooling is not desired. o Impact: Desiccant systems require additional energy to regenerate the desiccant material, making them energy-intensive. While they are effective for dehumidification, they are typically more expensive to operate than conventional air conditioning systems. Final Thoughts: The manipulation of air properties—particularly relative humidity, dry bulb temperature, and moisture content—forms the basis of efficient HVAC system design. Heating and cooling systems impact the air differently, with heating units primarily increasing the temperature and cooling units either reducing temperature or both cooling and dehumidifying. The ability to manage these changes efficiently is crucial in optimizing comfort while minimizing energy usage. Modifications to systems, such as increasing cooling capacity, adding dehumidification capabilities, or adjusting airflow, each have distinct impacts on both system performance and operational costs. Therefore, a balance between energy efficiency and comfort is key to achieving optimal HVAC performance. A Detailed Exploration of Air Properties in HVAC Systems
4. Changes in Air Properties Through a Cooling/Dehumidification Unit (Traditional Air Conditioning): A traditional air conditioning unit operates to both cool and dehumidify the air, making it one of the most common HVAC systems for regulating both temperature and humidity. As the air flows through the cooling coils, the dry bulb temperature drops, which results in the air becoming cooler. Simultaneously, as the air cools and the temperature drops below its dew point, moisture in the air condenses on the coils, reducing the moisture content of the air. This process causes the wet bulb temperature to decrease significantly as moisture is removed, and the relative humidity rises as the air cools. However, as the cooling continues and moisture is removed, the RH will eventually stabilize, and the air will be dehumidified, leaving it at a lower moisture content. The enthalpy of the air decreases because both sensible heat (from cooling) and latent heat (from dehumidification) are removed, lowering the total energy content in the air. The result is a cooling and drying process, which leaves the air with a lower temperature and lower relative humidity, improving comfort levels in warm or humid environments. 5. System Modifications for Increased Humidity Removal and Their Impact on Performance: To improve humidity removal, several system modifications can be made. One such modification is to increase the cooling capacity of the system, which would enable the unit to remove more moisture from the air by cooling it further below the dew point. However, this results in increased energy consumption, as the system will need to use more energy to provide the additional cooling, which may lead to higher operating costs. Another approach is to install additional dehumidification coils or enhance the evaporator coils, allowing for more moisture to condense out of the air without significantly cooling the air. This would increase the system’s dehumidification capacity without overcooling the space, though it still requires additional energy to run the additional components. In cases where comfort needs to be prioritized, the use of rehate coils can also be effective. After moisture is removed from the air, the air can be reheated to a more comfortable temperature, which helps maintain a comfortable indoor climate while still benefiting from the moisture removal. However, this approach reduces the system's overall energy efficiency, as the unit uses energy to cool the air and then to heat it back up. Increasing the airflow rate or fan speed is another strategy that can improve dehumidification by increasing the contact time between the air and the cooling coils. While this may enhance the removal of moisture, it could also lead to increased energy use and system wear and tear, as the fan needs to operate at higher speeds, which also affects the durability of the components. Finally, incorporating desiccant dehumidifiers into the system, especially in situations where cooling is not desired, can absorb moisture from the air without affecting the temperature. However, these systems tend to be energy-intensive because the desiccant material requires regeneration, making them more expensive to operate.
In conclusion, optimizing the removal of humidity from the air involves balancing the system's capacity to cool, dehumidify, and maintain comfort. Each modification to increase dehumidification comes with trade-offs in terms of energy consumption, system complexity, and operational costs. Finding the right balance for specific needs—whether it be for commercial, residential, or industrial applications—requires a detailed understanding of how each system affects the air properties and a careful approach to system design and adjustments. What is Relative Humidity and How Does It Change When the Temperature Goes Up or Down? Relative Humidity (RH) tells us how much water is in the air compared to how much the air could hold if it were completely full. When the air gets hotter, it can hold more water, so the RH goes down, even if there’s the same amount of water in the air. When the air gets colder, it can't hold as much water, so RH goes up, and sometimes water in the air can even turn into little drops, like when you see fog on a cold day.
2. What Happens to the Air When We Heat It Up? When we heat up the air, the temperature goes up, but the amount of water in the air stays the same. This means the air feels drier because it can hold more moisture, but it's not actually getting wetter. The temperature is higher, but the wetness of the air doesn’t change much. 3. What Happens When We Cool the Air But Don’t Take Any Water Out? When we cool the air but don't take out any moisture, the air gets colder, but the amount of water in the air stays the same. The air can hold less moisture when it's colder, so the air feels more damp. It’s like if you put a bottle of water in the fridge – the air inside will feel a little wetter even though we didn’t add any water. 4. What Happens When We Cool the Air and Take Some Water Out (Like an Air Conditioner)? When we cool the air and take water out, the air gets both cooler and drier. The cooling part makes the air colder, and the dehumidifying part takes some of the moisture out. This makes the air feel more comfortable, especially when it's too hot or too sticky. The air feels cooler, and there’s less moisture in the air to make you sweaty. 5. How Can We Take More Water Out of the Air?
