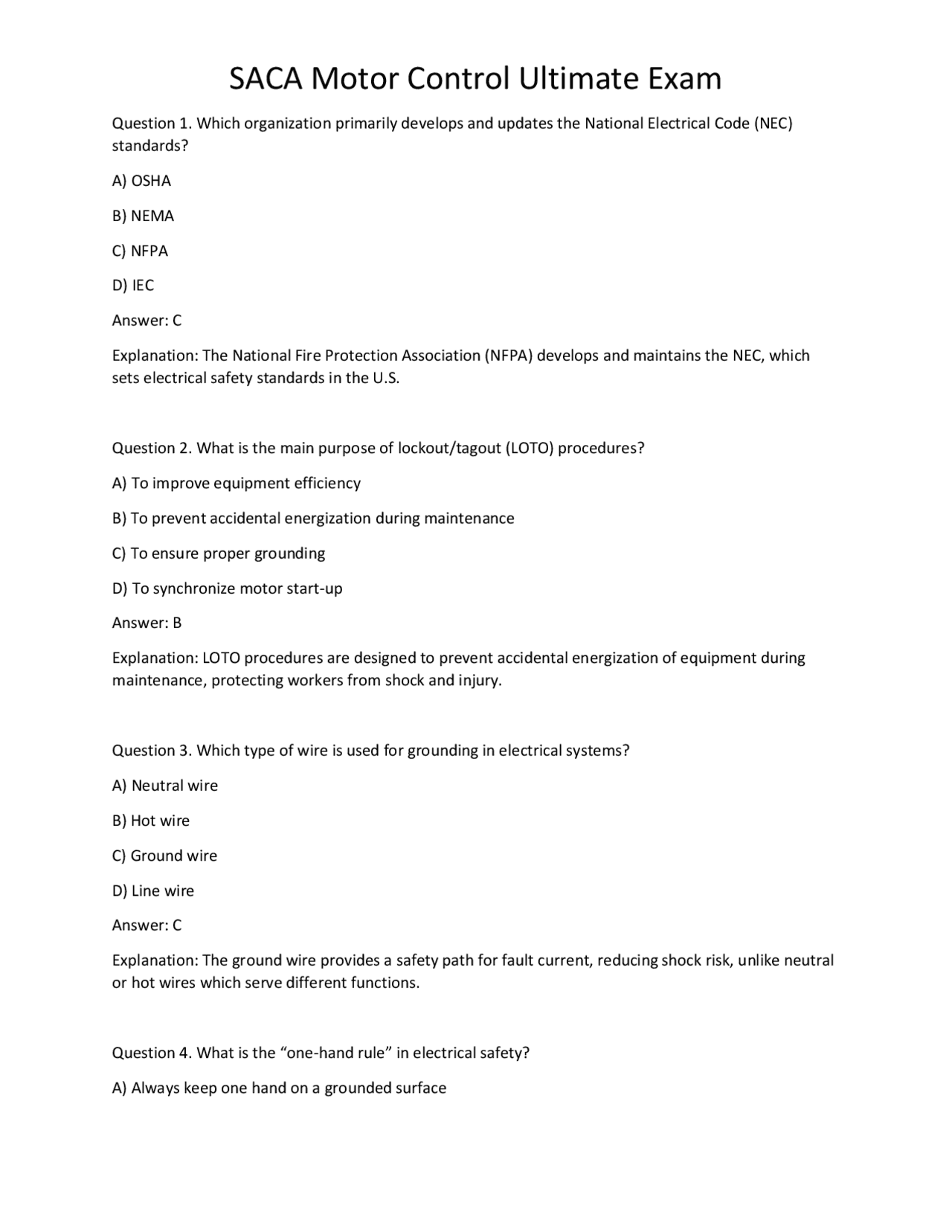

Question 1. Which organization primarily develops and updates the National Electrical Code (NEC) standards? A) OSHA B) NEMA C) NFPA D) IEC Answer: C Explanation: The National Fire Protection Association (NFPA) develops and maintains the NEC, which sets electrical safety standards in the U.S. Question 2. What is the main purpose of lockout/tagout (LOTO) procedures? A) To improve equipment efficiency B) To prevent accidental energization during maintenance C) To ensure proper grounding D) To synchronize motor start-up Answer: B Explanation: LOTO procedures are designed to prevent accidental energization of equipment during maintenance, protecting workers from shock and injury. Question 3. Which type of wire is used for grounding in electrical systems? A) Neutral wire B) Hot wire C) Ground wire D) Line wire Answer: C Explanation: The ground wire provides a safety path for fault current, reducing shock risk, unlike neutral or hot wires which serve different functions. Question 4. What is the “one-hand rule” in electrical safety? A) Always keep one hand on a grounded surface
B) Use only one hand to work on energized parts to reduce shock risk C) Keep one hand away from the panel D) Turn off power with one hand Answer: B Explanation: The one-hand rule minimizes shock hazards by preventing a current path through the chest, reducing the risk of electrocution. Question 5. In a three-phase power system, what is the typical phase angle separation between the phases? A) 90° B) 120° C) 180° D) 360° Answer: B Explanation: Three-phase systems have phases separated by 120°, providing balanced power delivery. Question 6. How does a Wye (Y) connection differ from a Delta (Δ) connection in motor windings? A) Wye has higher voltage ratings B) Delta is used only for low power motors C) Wye has a common neutral point, Delta does not D) Delta provides better efficiency than Wye Answer: C Explanation: Wye connections have a neutral point enabling line-to-neutral voltages, whereas Delta does not. Question 7. Which voltage standard is most common for industrial motors in the United States? A) 120V B) 208V C) 480V D) 600V
Question 11. What is the typical purpose of overload relays in motor circuits? A) To start the motor B) To protect against short circuits C) To prevent motor overheating by monitoring current D) To switch between single and three-phase power Answer: C Explanation: Overload relays protect motors from overheating by disconnecting power when current exceeds set limits. Question 12. Which component in an induction motor is responsible for creating the rotating magnetic field? A) Stator winding B) Rotor bars C) Slip rings D) Commutator Answer: A Explanation: The stator winding generates the magnetic field that induces current in the rotor. Question 13. How is the service factor (SF) on a motor nameplate interpreted? A) The maximum voltage the motor can handle B) The overload capacity of the motor C) The number of phases in the motor D) The efficiency percentage Answer: B Explanation: The service factor indicates how much overload the motor can handle safely without damage. Question 14. If a motor has an SF of 1.15, what is the maximum permissible horsepower overload? A) 15% above rated horsepower
B) 115% of rated horsepower C) 85% of rated horsepower D) 200% of rated horsepower Answer: A Explanation: An SF of 1.15 means the motor can handle 15% more than its rated horsepower for short durations. Question 15. How many watts are equivalent to 1 horsepower? A) 746 Watts B) 1000 Watts C) 550 Watts D) 500 Watts Answer: A Explanation: 1 horsepower equals 746 Watts, a standard conversion used in motor calculations. Question 16. According to Ohm’s Law, what is the relationship between voltage, current, and resistance? A) V = I / R B) V = I × R C) V = R / I D) V = R - I Answer: B Explanation: Ohm’s Law states that voltage equals current times resistance (V=I×R). Question 17. What is the purpose of a control transformer in motor control circuits? A) To convert AC to DC B) To step down voltage for control devices C) To provide overcurrent protection D) To start the motor
Question 21. Which method is commonly used to reduce voltage during motor starting to limit inrush current? A) Direct-on-line starting B) Reduced-voltage starting C) Overload starting D) Full-voltage starting Answer: B Explanation: Reduced-voltage starting methods, such as autotransformer or star-delta, decrease initial current draw. Question 22. What does a Variable Frequency Drive (VFD) do? A) Converts DC to AC B) Regulates motor speed by varying frequency C) Provides overload protection D) Starts the motor with full voltage Answer: B Explanation: VFDs control motor speed by adjusting the frequency and voltage supplied to the motor. Question 23. When using a multimeter to test motor windings, what indicates a healthy winding? A) Infinite resistance B) Zero resistance C) Resistance within specified range D) No continuity Answer: C Explanation: A healthy winding shows resistance within expected specifications; infinite indicates open circuit, zero indicates a short. Question 24. Which fault condition is characterized by a complete interruption of current flow in the circuit? A) Short circuit
B) Open circuit C) Ground fault D) Overload Answer: B Explanation: An open circuit results in no current flow due to a break in the conductor. Question 25. How can you verify proper motor alignment during maintenance? A) By measuring voltage B) Using a dial indicator or laser alignment tool C) Checking the nameplate data D) Listening for unusual noises Answer: B Explanation: Proper alignment is confirmed with precision tools like dial indicators or laser systems to prevent vibration and wear. Question 26. What is the typical purpose of a magnetic contactor in motor control? A) To protect against overloads B) To switch the motor ON/OFF remotely C) To measure current D) To provide grounding Answer: B Explanation: Magnetic contactors are used to control power to motors remotely, allowing automation of start/stop operations. Question 27. Which control device is commonly used to initiate a start command in motor circuits? A) Limit switch B) Pushbutton (NO) C) Relay coil D) Timer
Question 31. Which component is essential for implementing NOT logic in control circuits? A) Normally open contact B) Normally closed contact C) Series relay D) Auxiliary contact Answer: B Explanation: Normally closed contacts produce a true signal when not actuated, implementing NOT logic. Question 32. What is a common method to reverse the direction of a three-phase motor? A) Swap two line connections B) Change the phase sequence C) Increase voltage D) Use a different motor Answer: B Explanation: Reversing the phase sequence of the power supply changes the motor's rotation direction. Question 33. Which braking method uses direct current to quickly decelerate a motor? A) Friction braking B) DC injection braking C) Mechanical brake D) Air brake Answer: B Explanation: DC injection braking applies DC current to the motor to produce a braking torque and rapidly stop rotation. Question 34. When troubleshooting a motor that is not starting, which test is most appropriate first? A) Check for voltage at the motor terminals B) Measure motor temperature
C) Inspect the motor shaft visually D) Test the motor's insulation resistance Answer: A Explanation: Ensuring proper voltage is supplied is the first step; lack of voltage often causes startup failure. Question 35. How does a control relay differ from a contactor? A) Relays are used for low current circuits; contactors handle high current loads B) Relays are manual; contactors are automatic C) Relays regulate voltage; contactors measure current D) They serve identical functions Answer: A Explanation: Control relays are typically used for control signals with low current; contactors switch high-power circuits. Question 36. What is the purpose of a limit switch in motor control circuits? A) To start the motor B) To stop the motor when a mechanical position is reached C) To provide overload protection D) To measure temperature Answer: B Explanation: Limit switches detect mechanical position or movement limits and stop or control the motor accordingly. Question 37. Which instrument is best suited for measuring AC voltage in a motor circuit? A) Multimeter set to AC voltage B) Ohmmeter C) Clamp meter D) Insulation tester Answer: A
A) Tachometer B) Multimeter C) Clamp meter D) Insulation tester Answer: A Explanation: A tachometer provides a direct measurement of motor shaft speed. Question 42. When testing for shorts in a motor winding, what should a multimeter reading indicate? A) Zero resistance B) Infinite resistance C) Resistance within specified range D) No continuity Answer: C Explanation: The winding resistance should be within specifications; infinite or zero indicates faults. Question 43. Which safety practice is essential before opening a motor control panel? A) Verify de-energization and lockout/tagout procedures B) Touch the contacts to check for voltage C) Remove all fuses D) Use a metal tool to pry open the panel Answer: A Explanation: Confirming de-energization with proper lockout/tagout ensures safety during maintenance. Question 44. What is the primary reason for using a thermal overload relay? A) To prevent mechanical failure B) To protect the motor from overheating C) To facilitate starting D) To regulate voltage Answer: B
Explanation: Thermal overload relays protect motors from overheating due to excessive current or prolonged overload. Question 45. Which control component is used to implement OR logic? A) Parallel contacts B) Series contacts C) Normally closed contacts D) Auxiliary relays Answer: A Explanation: Parallel-connected contacts allow current flow if any one of them is closed, implementing OR logic. Question 46. In motor control, what is the purpose of a pilot light? A) To indicate power status B) To control the motor C) To measure current D) To protect against overload Answer: A Explanation: Pilot lights show the operational status of the circuit, indicating whether power is on. Question 47. Which type of motor is most suitable for variable speed applications? A) Squirrel Cage Induction Motor B) Universal Motor C) Variable Frequency Drive (VFD) controlled motor D) Shunt DC Motor Answer: C Explanation: VFDs enable precise speed control in induction motors, making them ideal for variable speed applications. Question 48. How is the efficiency of a motor generally calculated?
Explanation: Overloading or poor ventilation causes excess heat buildup, risking motor damage. Question 52. What is the main function of a capacitor in motor starting circuits? A) To improve power factor B) To increase starting torque C) To reduce starting current D) To provide overload protection Answer: B Explanation: Capacitors in starting circuits provide a phase shift that enhances starting torque. Question 53. How does increasing the Service Factor (SF) affect a motor's overload capacity? A) It decreases overload capacity B) It allows for higher overload handling C) It reduces efficiency D) It has no effect Answer: B Explanation: A higher SF indicates the motor can safely handle higher overloads for short periods. Question 54. Which component is typically used to connect a motor to a control circuit for manual operation? A) Contact block B) Pushbutton switch C) Circuit breaker D) Ground wire Answer: B Explanation: Pushbutton switches are used to manually control motor start and stop commands. Question 55. What does the term “locked rotor current” (LRC) refer to? A) Current when motor is running at full load
B) Current when the rotor is stationary during startup C) Current during normal operation D) Current in the control circuit Answer: B Explanation: LRC is the high current drawn when the rotor is stationary, critical for selecting protective devices. Question 56. Which safety device should be used to prevent motor damage during sustained overload conditions? A) Fuse B) Thermal overload relay C) Circuit breaker D) Ground fault interrupter Answer: B Explanation: Thermal overload relays disconnect power if the motor overheats due to overload. Question 57. How can you verify the correct wiring of a dual-voltage motor? A) By checking the wiring diagram and measuring resistance between leads B) By observing the motor run C) By listening for abnormal noise D) By measuring temperature Answer: A Explanation: Proper wiring is confirmed by matching the wiring to diagrams and resistance measurements. Question 58. What is the primary advantage of using a VFD over traditional starters? A) Lower initial cost B) Precise speed control and energy savings C) Simpler wiring D) No need for maintenance
Question 62. How does a delta connection affect the line-to-line voltage in a motor? A) It increases the voltage B) It maintains the same as phase voltage C) It divides the phase voltage by root three D) It multiplies the phase voltage by root three Answer: D Explanation: In delta, line-to-line voltage equals phase voltage times root three, affecting voltage ratings. Question 63. Which testing method is used to verify insulation resistance of motor windings? A) Megohmmeter (Insulation Resistance Tester) B) Multimeter in resistance mode C) Oscilloscope D) Clamp meter Answer: A Explanation: Megohmmeters measure the insulation resistance to ensure motor windings are properly insulated. Question 64. What is the primary concern when selecting a fuse for a motor circuit? A) Voltage rating and current rating matching the motor's requirements B) Color coding C) Physical size D) Cost Answer: A Explanation: Proper fuse selection ensures it can handle the motor’s starting and running currents without nuisance blowing. Question 65. What does a motor's efficiency rating indicate? A) The ratio of useful power output to electrical power input
B) The maximum load it can handle C) The power factor D) The starting torque Answer: A Explanation: Efficiency indicates how well the motor converts electrical energy into mechanical work. Question 66. Which condition is indicated by high Locked Rotor Amps (LRA)? A) Efficient starting B) High starting current, potential for overload C) Low power consumption D) Normal operation Answer: B Explanation: High LRA means the motor draws a large current during startup, which must be considered when selecting protective devices. Question 67. What is the primary purpose of a control relay in motor control circuits? A) To switch high current loads B) To isolate control circuits from power circuits C) To control low power signals and operate contactors D) To measure motor speed Answer: C Explanation: Control relays use low power control signals to operate high power contactors. Question 68. What safety feature is typically incorporated into a motor control circuit to prevent accidental start-up? A) Interlock switch B) Emergency stop button C) Overload relay D) All of the above
