Practice Exam

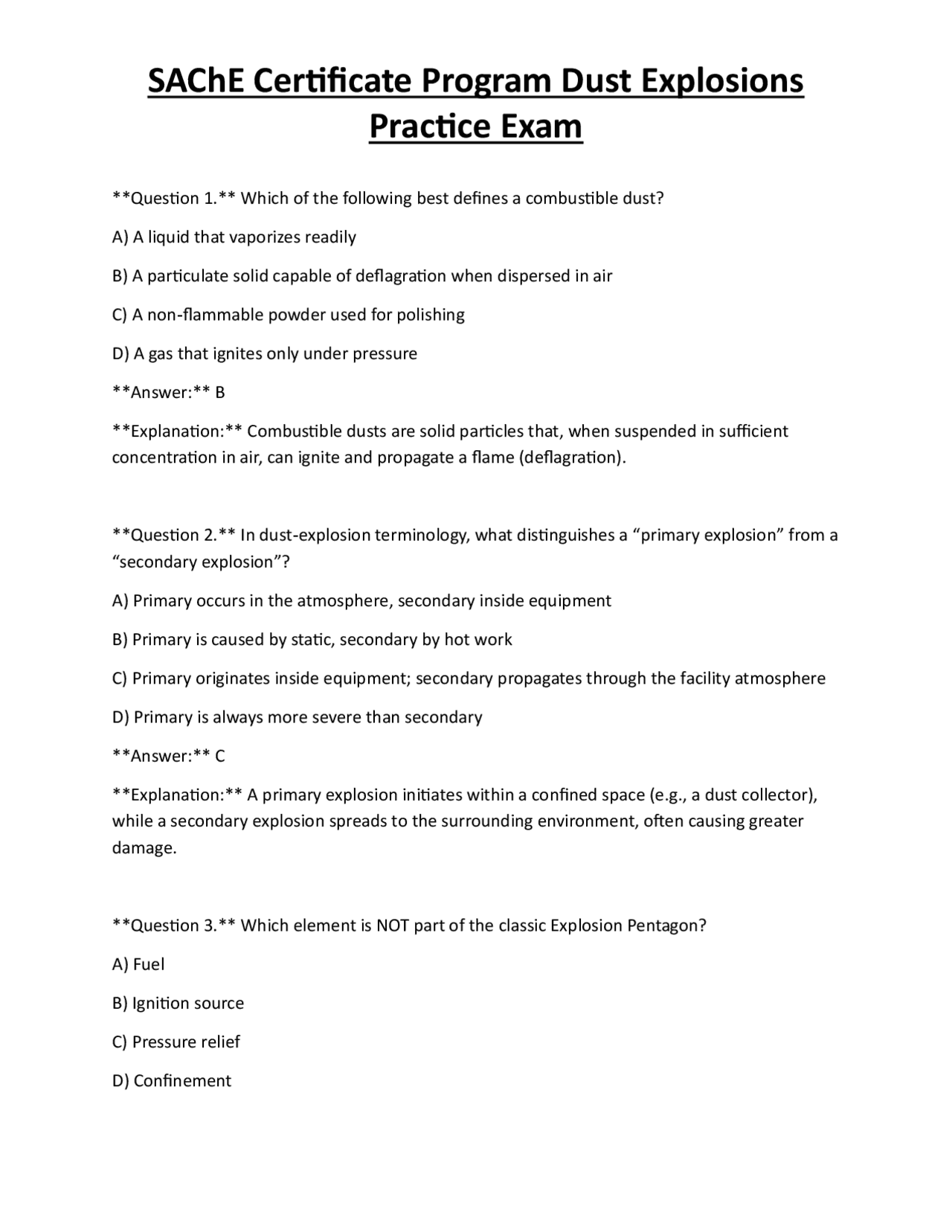

Question 1. Which of the following best defines a combustible dust? A) A liquid that vaporizes readily B) A particulate solid capable of deflagration when dispersed in air C) A non‑flammable powder used for polishing D) A gas that ignites only under pressure Answer: B Explanation: Combustible dusts are solid particles that, when suspended in sufficient concentration in air, can ignite and propagate a flame (deflagration). Question 2. In dust‑explosion terminology, what distinguishes a “primary explosion” from a “secondary explosion”? A) Primary occurs in the atmosphere, secondary inside equipment B) Primary is caused by static, secondary by hot work C) Primary originates inside equipment; secondary propagates through the facility atmosphere D) Primary is always more severe than secondary Answer: C Explanation: A primary explosion initiates within a confined space (e.g., a dust collector), while a secondary explosion spreads to the surrounding environment, often causing greater damage. Question 3. Which element is NOT part of the classic Explosion Pentagon? A) Fuel B) Ignition source C) Pressure relief D) Confinement
Practice Exam
Answer: C Explanation: The pentagon consists of fuel, oxidizer, dispersion, confinement, and ignition source. Pressure relief is a mitigation measure, not a required element for ignition. Question 4. The “sixth element” added to the Explosion Pentagon to address secondary explosions is: A) Venting B) Maintenance/Housekeeping C) Suppression D) Isolation Answer: B Explanation: Poor housekeeping and inadequate maintenance can allow dust accumulation, creating conditions for secondary explosions. Question 5. Minimum Explosive Concentration (MEC) is defined as: A) The lowest oxygen level that supports combustion B) The minimum dust concentration in air that can propagate a flame C) The minimum pressure generated in a dust explosion D) The minimum temperature needed for auto‑ignition Answer: B Explanation: MEC is the lowest dust‑air mixture concentration that will sustain a deflagration. Question 6. Which of the following typical values best represents the Minimum Ignition Energy (MIE) for many industrial combustible dusts? A) 10 J B) 100 J
Practice Exam
A) bar·m³/s B) m·s⁻¹·kg⁻¹/³ C) J·kg⁻¹ D) Pa·s Answer: B Explanation: Kst is measured in (m·s⁻¹·kg⁻¹/³) and quantifies the rate of pressure rise in a dust explosion. Question 10. A dust classified as “St 3” according to NFPA 654 indicates: A) Low explosivity, Kst < 200 m·s⁻¹·kg⁻¹/³ B) Moderate explosivity, 200 ≤ Kst < 300 m·s⁻¹·kg⁻¹/³ C) High explosivity, Kst ≥ 300 m·s⁻¹·kg⁻¹/³ D) Non‑explosive material Answer: C Explanation: St 3 dusts have Kst values of 300 m·s⁻¹·kg⁻¹/³ or greater, indicating high explosion severity. Question 11. The Go/No‑Go screening test for dust combustibility primarily determines: A) The exact Kst value B) Whether a dust is potentially explosive (yes/no) C) The required vent area for a vessel D) The proper inerting gas to use Answer: B Explanation: Screening tests provide a quick indication of whether a dust can explode, without quantifying explosivity.
Practice Exam
Question 12. When collecting a representative dust sample for DHA, which practice is essential? A) Only collect settled dust from the floor B) Use a vacuum with a HEPA filter to avoid loss of fine particles C) Mix dust from multiple processes into a single sample D) Heat the sample to remove moisture before testing Answer: B Explanation: Using a vacuum with HEPA filtration ensures that fine, most explosive particles are captured without altering the sample. Question 13. The Hartmann Tube method is considered obsolete because: A) It cannot measure Pmax accurately B) It requires excessive dust quantities C) It does not simulate real‑world dispersion conditions D) All of the above Answer: D Explanation: The Hartmann Tube provides limited data, uses large sample amounts, and does not mimic actual dust cloud formation, leading to its replacement by the 20‑L sphere test. Question 14. In the 20‑L sphere test, the pressure rise is measured over a distance of: A) 0.5 m B) 10 cm C) 2 cm D) 5 cm Answer: C
Practice Exam
C) Argon D) Helium Answer: B Explanation: CO₂ absorbs heat and dilutes oxygen more effectively than N₂, reducing flame speed and ignition probability. Question 18. A typical housekeeping practice to prevent secondary explosions is: A) Dry sweeping of dust‑laden floors B) Using compressed air to blow dust into collection hoods C) Wet mopping or vacuuming with HEPA‑filtered equipment D) Ignoring settled dust on high‑rise equipment Answer: C Explanation: Wet methods or HEPA‑vacuuming safely remove dust without creating airborne clouds. Question 19. The primary purpose of a dust collection cyclone is to: A) Increase particle size for better filtration B) Separate coarse particles from fine, explosive dust C) Generate static electricity for dust charging D) Heat the dust to prevent condensation Answer: B Explanation: Cyclones remove larger particles, reducing the load on downstream filters and limiting the amount of fine, explosive dust that can accumulate. Question 20. Which of the following is a common cause of static‑induced ignition in dust handling systems?
Practice Exam
A) Over‑pressurization of vessels B) Improper grounding and bonding of conductive parts C) Excessive ventilation rates D) Use of stainless steel equipment Answer: B Explanation: Without proper grounding and bonding, triboelectric charges can accumulate and discharge, igniting dust clouds. Question 21. The auto‑ignition temperature (AIT) of a dust is: A) The temperature at which the dust melts B) The lowest temperature at which a dust ignites without an external source in a confined atmosphere C) The temperature of the surrounding environment during a fire D) Always higher than the flash point of the corresponding liquid Answer: B Explanation: AIT is the minimum temperature at which a dust can spontaneously ignite under specified conditions. Question 22. Which control method directly removes the “ignition source” element from the explosion pentagon? A) Installing larger vent panels B) Implementing a hot‑work permit system C) Adding inert gas to the process stream D) Increasing conveyor speed Answer: B Explanation: Hot‑work permits manage activities that could introduce ignition sources (e.g., welding, cutting).
Practice Exam
Answer: B Explanation: PSR equipment is built to withstand the maximum expected explosion pressure without failure. Question 26. According to NFPA 68, the vent area required for a dust‑exploding enclosure is primarily based on: A) The size of the fire suppression system B) The dust’s Kst, the enclosure volume, and the desired reduced pressure (Pred) C) The number of employees in the area D) The type of inerting gas used Answer: B Explanation: NFPA 68 vent sizing formula incorporates Kst, volume, and target reduced pressure to ensure safe pressure relief. Question 27. Which chemical suppressant is most commonly used for metal‑dust explosions? A) Monoammonium phosphate B) Sodium bicarbonate C) Potassium chloride D) Water mist Answer: A Explanation: Monoammonium phosphate is effective for metal dusts, providing rapid heat absorption and flame inhibition. Question 28. The typical deployment time for a fast‑acting explosion suppression system must be less than: A) 10 ms
Practice Exam
B) 50 ms C) 1 s D) 5 s Answer: B Explanation: Suppressors must discharge before the pressure reaches the reduced pressure (Pred), usually within 50 ms for most dusts. Question 29. In a dust‑hazard analysis (DHA), the “screening limit” for MEC is generally set at: A) 10 % of the measured MEC B) 50 % of the measured MEC C) 100 % of the measured MEC D) 0 % (any dust is considered hazardous) Answer: B Explanation: OSHA and NFPA often use 50 % of the measured MEC as a conservative screening limit for design and control. Question 30. Which NFPA standard specifically addresses the design and installation of dust collection systems? A) NFPA 652 B) NFPA 654 C) NFPA 69 D) NFPA 61 Answer: C Explanation: NFPA 69 “Standard for the Prevention of Dust Explosions” includes requirements for dust collection system design.
Practice Exam
Explanation: In Division 1 dust areas, equipment must be dust‑ignition proof (ex‑d) to prevent ignition of dust clouds. Question 34. The primary purpose of a post‑incident investigation after a dust explosion is to: A) Assign blame to the operator B) Identify root causes and prevent recurrence C) Determine insurance payouts D) Document equipment damage for warranty claims Answer: B Explanation: Root‑cause analysis helps implement corrective actions to avoid future incidents. Question 35. Which of the following is a key feature of a “fast‑acting isolation valve” used in dust‑explosion protection? A) Operates only manually B) Opens within 5 seconds after pressure rise C) Closes within 25 ms of flame detection D) Requires external power to stay open Answer: C Explanation: Fast‑acting isolation valves are designed to close within tens of milliseconds to block flame propagation. Question 36. The term “deflagration” specifically refers to: A) A supersonic combustion wave (detonation) B) A subsonic combustion wave propagating through a dust cloud C) Spontaneous ignition without flame propagation
Practice Exam
D) Burning of a solid fuel without gas phase involvement Answer: B Explanation: Deflagration is a subsonic flame front moving through a combustible mixture. Question 37. When selecting a vent panel material for a high‑temperature dust explosion, which property is most critical? A) Electrical conductivity B) High thermal conductivity C) Ability to retain structural integrity at elevated temperatures D) Transparency to allow visual inspection Answer: C Explanation: The vent must survive the thermal and pressure loads without rupturing prematurely. Question 38. Which of the following best describes the function of a “baghouse” in a dust‑handling system? A) To increase dust particle size for easier handling B) To filter fine dust from the airstream using fabric filter bags C) To act as a primary vent for explosion pressure relief D) To generate static electricity for dust charging Answer: B Explanation: Baghouses use fabric filters to capture fine dust, reducing airborne concentrations. Question 39. The most effective method to prevent tribocharging on non‑conductive conveyor belts is: A) Installing antistatic brushes
Practice Exam
Question 42. A “dust‑ignition proof” (ex‑d) enclosure must be tested to ensure it can: A) Withstand a pressure of 10 bar without deformation B) prevent ignition of an internal dust cloud from external flame exposure C) maintain a vacuum of – 0.5 bar D) operate at temperatures above 1000 °C continuously Answer: B Explanation: Ex‑d enclosures are designed to contain any internal dust explosion and prevent external ignition sources from igniting internal dust. Question 43. Which of the following is NOT a typical cause of secondary dust explosions? A) Accumulated settled dust on equipment surfaces B) Inadequate vent sizing on primary explosion devices C) Use of inert gas in the process stream D) Improper cleaning that creates airborne dust clouds Answer: C Explanation: Inerting reduces oxygen and thus prevents secondary explosions; the other options are common contributors. Question 44. The primary benefit of using a “dual‑layer” vent system (rupture disk plus vent panel) is: A) Reducing installation cost B) Providing staged pressure relief to control discharge velocity C) Eliminating the need for a pressure sensor D) Allowing the vent to operate at any temperature Answer: B
Practice Exam
Explanation: Dual‑layer systems first relieve pressure through a rupture disk, then through a vent panel, moderating discharge flow and radiation. Question 45. In a dust‑explosion scenario, the term “flashover” refers to: A) Rapid spread of flame across a dust‑covered surface B) Sudden loss of power to the dust collection system C) A brief electrical arc that ignites dust D) The extinguishing of a flame by a water spray Answer: A Explanation: Flashover is the rapid propagation of a flame over a dust layer, often leading to secondary explosions. Question 46. Which of the following is a key requirement for a dust‑hazard analysis (DHA) under NFPA 654? A) Performing a full 20‑L sphere test on every dust type B) Documenting the process flow diagram, dust generation points, and control measures C) Installing a vent on every piece of equipment regardless of risk D) Using only nitrogen as an inerting agent Answer: B Explanation: NFPA 654 mandates a comprehensive DHA that includes process mapping, identification of dust sources, and controls. Question 47. The “critical dust concentration” for a given dust, above which an explosion can occur, is synonymous with: A) MEC B) LOC C) Kst
Practice Exam
D) Detect flame fronts within a duct Answer: B Explanation: PRPs are designed to open at a predetermined pressure, allowing safe pressure relief. Question 51. Which of the following is a key factor when selecting a material for ductwork in a dust‑prone environment? A) High thermal conductivity B) Low surface roughness to reduce dust accumulation C) Ability to conduct electricity D) Transparent to allow visual inspection of dust flow Answer: B Explanation: Smooth interior surfaces minimize dust buildup, reducing flashover risk. Question 52. The most common method to verify that a dust collection system is operating correctly is: A) Visual inspection of the exterior vent panels only B) Measuring differential pressure across filters and checking for proper airflow C) Conducting a full 20‑L sphere test on the collected dust D) Monitoring ambient temperature in the collection room Answer: B Explanation: Differential pressure indicates filter loading and airflow performance, essential for system verification. Question 53. In a dust‑explosion scenario, “flame speed” is primarily influenced by: A) The color of the dust
Practice Exam
B) The concentration of oxygen and the dust’s Kst C) The ambient humidity only D) The size of the vent panel Answer: B Explanation: Higher oxygen levels and higher Kst values increase flame propagation speed. Question 54. Which of the following is a recommended practice for preventing dust accumulation on elevated surfaces? A) Installing overhead sprinklers that spray water continuously B) Using magnetic sweepers to collect dust C) Applying anti‑static coatings to reduce adhesion D) Conducting periodic cleaning with HEPA‑vacuum systems Answer: D Explanation: HEPA‑vacuuming safely removes settled dust without dispersing it. Question 55. The primary function of a “combustible‑dust detector” in an explosion suppression system is to: A) Measure ambient temperature B) Detect the presence of a dust cloud and trigger suppression before ignition C) Monitor oxygen concentration only D) Control the speed of conveyors Answer: B Explanation: Detectors sense dust clouds (often via optical or pressure sensors) and initiate suppression actions.
