Download Sectional views in engineering drawing and more Schemes and Mind Maps Engineering Drawing and Graphics in PDF only on Docsity!

SECTIONAL VIEWS AND CONVENTIONS

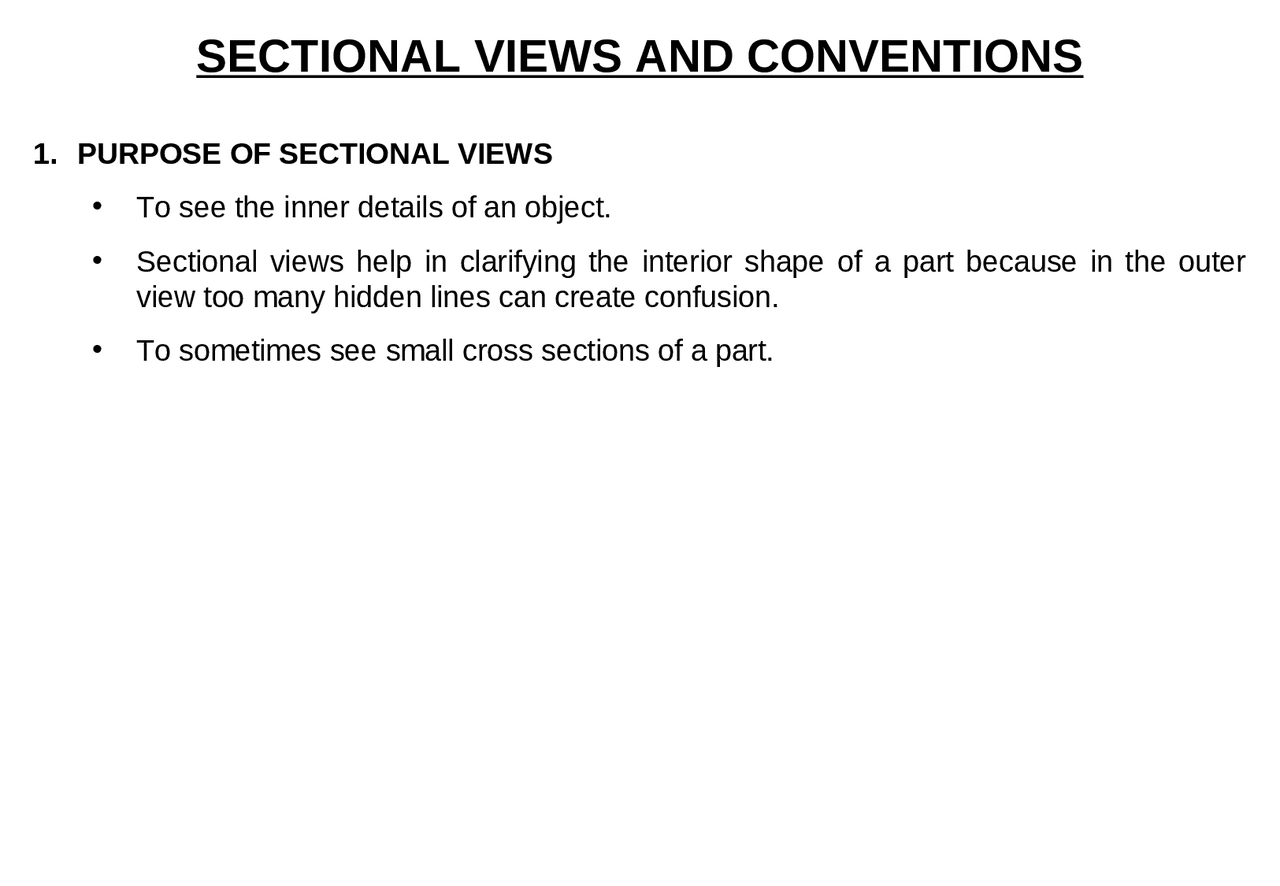

1. PURPOSE OF SECTIONAL VIEWS

  • (^) To see the inner details of an object.
  • (^) Sectional views help in clarifying the interior shape of a part because in the outer view too many hidden lines can create confusion.
  • (^) To sometimes see small cross sections of a part.

The sectioned Front View clearly shows the internal part shape.

A A

SECTION A-A

2. HOW SECTIONS ARE SHOWN

  • (^) The place from which the section is taken shall be clearly identified.
  • (^) A cutting plane, directional arrows and identification letters shall be used.
  • (^) A sectional view must show which portions of the object are solid material and which are spaces by drawing section lines in the solid parts.

A full section with the cutting plane passing straight across.

A

A SECTION A-A

A full section with the cutting plane changing direction

  • (^) Change in plane direction shall never be shown in the sectioned view.

A

A SECTION A-A

A

SECTION A-A A

  • (^) In a half section, hidden lines are usually not shown in the exterior half.
  • (^) The two halves in the sectioned view are separated by a center line.

A

SECTION A-A A

D. Rotated Section

  • (^) Used for showing cross sections of parts while saving space.
  • (^) Section is drawn on the view by rotating the section at 90o.

E. Removed Section

  • (^) Used for the same purpose as rotated section but the section is removed and placed adjacent to the drawing of the part.
  • (^) The cutting plane with reference letters shall be mentioned. A SECTION A-A

4. DRAWING PRACTICES FOR SECTIONAL VIEWS

A. Unnecessary Hidden Detail

  • (^) Hidden edges and surfaces are not shown behind the cutting plane. B. Visible Detail
  • (^) Visible edges and surfaces shall be shown behind the cutting plane.
  • (^) Shall be omitted only if the section is to be emphasized on.

Visible Edges shown (Recommended) Visible Edges not shown (Not recommended) A A^ SECTION A-A Visible Edges not shown (Recommended)

5. PARTS NOT SECTIONED

  • (^) Parts that are more easily recognized by their exterior are not sectioned.
  • (^) Bolts, nuts, screws, studs, pins, keys, cotters, rivets etc. are all fasteners and therefore shall not be sectioned. Shafts shall also not be sectioned unless inner details are required.
