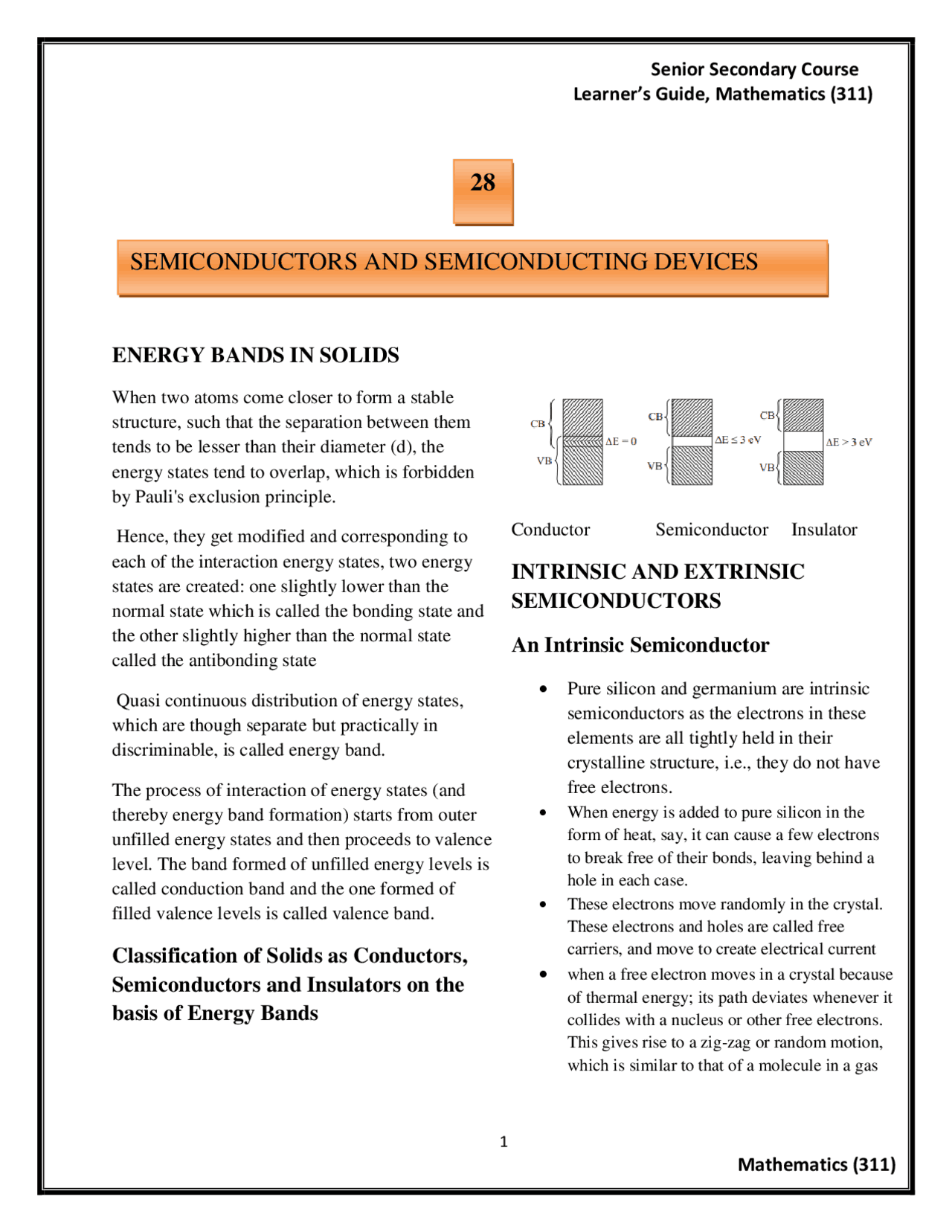

Senior Secondary Course
Learners Guide, Mathematics (311)
1
Mathematics (311)
ENERGY BANDS IN SOLIDS
When two atoms come closer to form a stable
structure, such that the separation between them
tends to be lesser than their diameter (d), the
energy states tend to overlap, which is forbidden
by Pauli's exclusion principle.
Hence, they get modified and corresponding to
each of the interaction energy states, two energy
states are created: one slightly lower than the
normal state which is called the bonding state and
the other slightly higher than the normal state
called the antibonding state
Quasi continuous distribution of energy states,
which are though separate but practically in
discriminable, is called energy band.
The process of interaction of energy states (and
thereby energy band formation) starts from outer
unfilled energy states and then proceeds to valence
level. The band formed of unfilled energy levels is
called conduction band and the one formed of
filled valence levels is called valence band.
Classification of Solids as Conductors,
Semiconductors and Insulators on the
basis of Energy Bands
Conductor Semiconductor Insulator
INTRINSIC AND EXTRINSIC
SEMICONDUCTORS
An Intrinsic Semiconductor
Pure silicon and germanium are intrinsic
semiconductors as the electrons in these
elements are all tightly held in their
crystalline structure, i.e., they do not have
free electrons.
When energy is added to pure silicon in the
form of heat, say, it can cause a few electrons
to break free of their bonds, leaving behind a
hole in each case.
These electrons move randomly in the crystal.
These electrons and holes are called free
carriers, and move to create electrical current
when a free electron moves in a crystal because
of thermal energy; its path deviates whenever it
collides with a nucleus or other free electrons.
This gives rise to a zig-zag or random motion,
which is similar to that of a molecule in a gas
SEMICONDUCTORS AND SEMICONDUCTING DEVICES
28
pf3
pf4
pf5
pf8

Partial preview of the text

Download Semiconductor briefly and more Schemes and Mind Maps Physics in PDF only on Docsity!

Learner’s Guide, Mathematics (311)

ENERGY BANDS IN SOLIDS

When two atoms come closer to form a stable

structure, such that the separation between them

tends to be lesser than their diameter (d), the

energy states tend to overlap, which is forbidden

by Pauli's exclusion principle.

Hence, they get modified and corresponding to

each of the interaction energy states, two energy

states are created: one slightly lower than the

normal state which is called the bonding state and

the other slightly higher than the normal state

called the antibonding state

Quasi continuous distribution of energy states,

which are though separate but practically in

discriminable, is called energy band.

The process of interaction of energy states (and

thereby energy band formation) starts from outer

unfilled energy states and then proceeds to valence

level. The band formed of unfilled energy levels is

called conduction band and the one formed of

filled valence levels is called valence band.

Classification of Solids as Conductors,

Semiconductors and Insulators on the

basis of Energy Bands

Conductor Semiconductor Insulator

INTRINSIC AND EXTRINSIC

SEMICONDUCTORS

An Intrinsic Semiconductor

 Pure silicon and germanium are intrinsic

semiconductors as the electrons in these

elements are all tightly held in their

crystalline structure, i.e., they do not have

free electrons.

 When energy is added to pure silicon in the form of heat, say, it can cause a few electrons to break free of their bonds, leaving behind a hole in each case.  These electrons move randomly in the crystal. These electrons and holes are called free carriers, and move to create electrical current

 when a free electron moves in a crystal because

of thermal energy; its path deviates whenever it collides with a nucleus or other free electrons. This gives rise to a zig-zag or random motion, which is similar to that of a molecule in a gas

SEMICONDUCTORS AND SEMICONDUCTING DEVICES

Learner’s Guide, Mathematics (311)

An Extrinsic Semiconductor

The process in which some atoms of a pure or intrinsic semiconductor are replaced by impurity atoms from their lattice-sites is called doping and the impurity so added is called dopant.

 Such doped semiconductors are called extrinsic semiconductors.

n-and p-type Semiconductors

n-type Semiconductor

When silicon (or germanium) is doped with a pentavalent (five electrons in the outermost orbit) atom like phosphorus, arsenic or antiomony, four electrons form covalent bonds with the four neighbouring silicon atoms, but the fifth (valence) electron remains unbound and is available for conduction

when a silicon (or germanium) crystal is doped with a pentavalent element, it develops excess free electrons and is said to be an n-type semiconductor. Such impurities are known as donor impurities.

p-type Semiconductor

If silicon (or germanium) is doped with a trivalent (three electrons in the outermost shell) atom like boron, aluminium, gallium or indium, three valence electrons form covalent bonds with three silicon atoms and deficiency of one electron is created. This deficienty of electron is referred to as hole.

 Such a semiconductor is said to be a p-type semiconductor and the impurities are known as acceptor impurities.

A p-n JUNCTION

When a n-type material is placed in contact with a p- type material. The formation is known as p-n junction.

Formation of a p-n Junction

Learner’s Guide, Mathematics (311)

As the applied voltage is increased beyond knee voltage, the current through the diode increases linearly.

Reverse Bias Characteristics

To draw reverse bias characteristics of a p-n junction

(i) The terminals of the junction are reversed.

(ii) (ii) Instead of milliammeter, microammeter

(μ A) is used

(iii) The unidirectional conducting property of

a diode is used to convert ac voltage into dc voltage as a rectifier.

(iv) Diodes are also used in adaptors to

recharge batteries of cell phones, CDplayers, laptops, etc.

(v) A device that uses batteries often contains a

diode as it simply blocks any current from leaving the battery, if it is reverse biased. This protects the sensitive electronics in the device.

TYPES OF DIODES

I–V Characteristics of Zener diode

Zener diode is fabricated by heavily doping both the p- and n-sides of the junction. Hence depletion layer formed is very thin 6 (< 10 m) −. And the electric field across the depletion layer is extremely high 6 – 1 ( 5× 10 N C ) ∼ even for a small reverse bias voltage of 5 V.

Characteristics of light-emitting diode

 In light-emitting diode (LED) when the forward

current of diode is small the intensity of light emitted is small.

 As the forward current increases, the intensity

of the emitted light increases and reaches a maximum value. Further increase in the forward current results in a decrease of light intensity.

 LEDs are biased such that the light emitting

efficiency is maximum.

Learner’s Guide, Mathematics (311)

I-V Characteristics of Photo diode

 The photo diode is fabricated such that the generation of electron – hole pairs takes place in or near the depletion region in the diode. Due to the electric field of the junction, the electrons and holes are separated before they recombine.  The direction of the electric field is such that the electrons reach the n-side and the holes reach the p-side. The electrons are collected on the n-side and the holes are collected on the p- side giving rise to an emf.  When an external load is connected, the current flows. The magnitude of the photocurrent depends on the intensity of the incident light.

I-V Characteristics of Solar Cell

The generation of emf, when the light falls on a solar cell is due to the following three basic processes: generation, separation and collection. Generation of electron – hole pairs is due to the light (with hν> Eg)

close to the junction. Separation of electrons and holes is due to the electric field of the depletion layer. Electrons are swept to the n-side and the holes to the p- side.

TRANSISTORS – pnp and npn

 A transistor is basically a silicon or germanium crystal containing three alternate regions of p and n-type semiconductors. These three regions are called emitter(E), base(B) and collector(C).  The middle region is the base and the outer two regions are emitter and collector. the emitter and collector are of the same type (p or n) and collector is the largest of the three regions.

Learner’s Guide, Mathematics (311)

Common Emitter (CE) Configuration of a pnp Transistor

Input Characteristics

Output Characteristics

1. For rectifying action we use

A. Choke

B. Transformer

C. Condenser

D. Diode

2. The saturation current in a diode can be

increased by

A. Lowering plate potential

B. Raising plate potential

C. Increasing cathode temperature

D. Decreasing cathode temperature

3. Can a diode valve be used as an oscillator

A. Yes

B. No

C. Some times with another diode

D. None of the above

4. A semiconductor is the substance which

contains

A. A large number of free electron

B. Only one electron in the outermost

electron

C. Only few electronat room

temperature

Check Yourself

Learner’s Guide, Mathematics (311)

D. No free electon at o^0 K and

atomforms covalent bond with

neighbouring bond

5. Which one of the followingis

semiconductor

A. Plastic

B. Aluminium

C. Wood

D. Cesium

1. Describe the most important characteristic

of a p-n junction diodes.

2. Explain the formation of depletion region

in a p-n junction diode.

3. Which charge carriers conduct forward

current in a p-n junction diode?

4. Differentiate between (i) Forward bias and

reverse bias (ii) Avalancehe and zener

breakdown

5. Explain the working of p-n-p and n-p-n

transistors

1C 2C 3B 4D 5D

Stretch Yourself

Hint to Check Yourself
