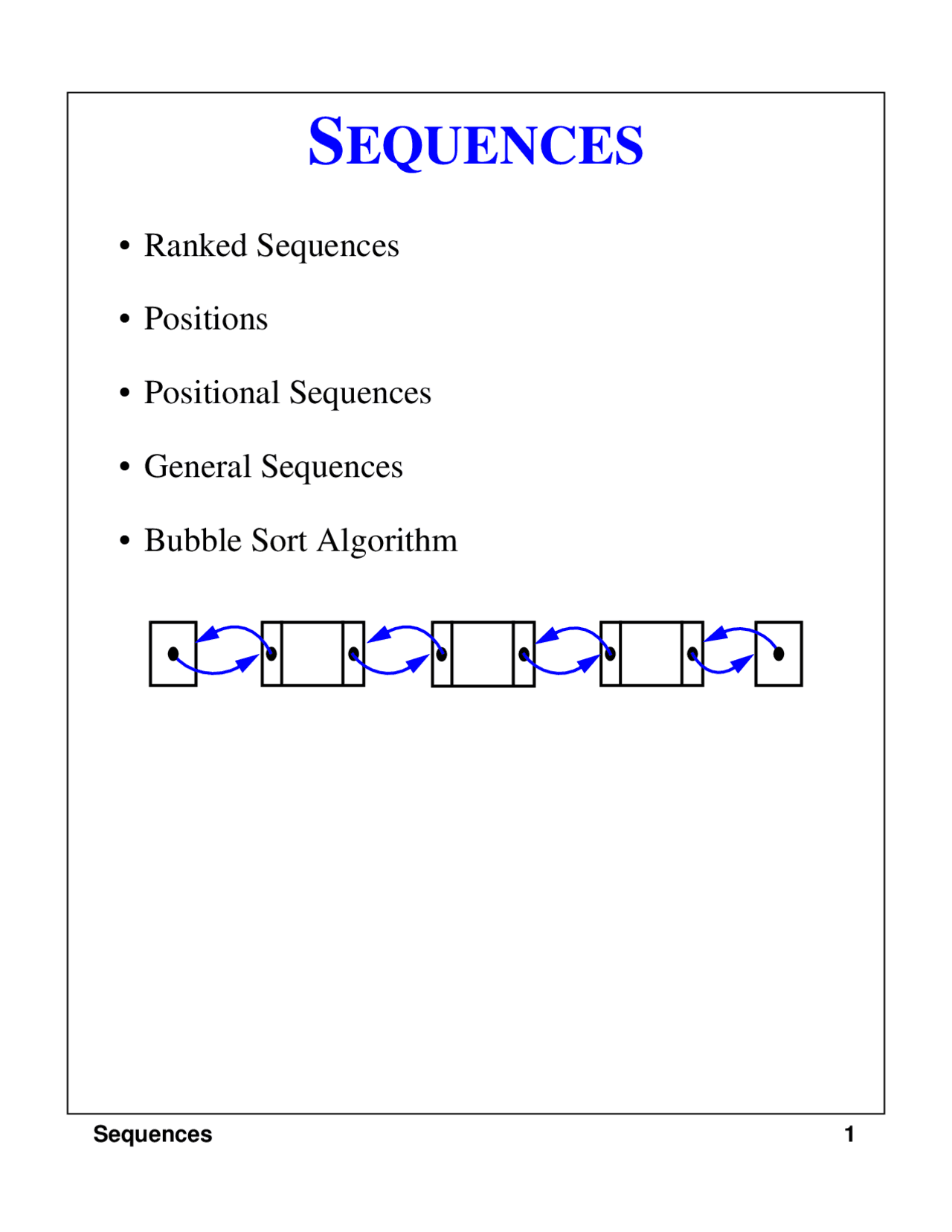

SEQUENCES

• Ranked Sequences
• Positions
• Positional Sequences
• General Sequences
• Bubble Sort Algorithm

The Ranked Sequence ADT

• A ranked sequence S (with n elements) supports the

following methods:

• elemAtRank( r ):

Return the element of S with rank r ; an

error occurs if r < 0 or r > n -

Input : Integer; Output : Object

• replaceElemAtRank( r , e ):

Replace the element at rank r with e and

return the old element; an error condition

occurs if r < 0 or r > n - 1

Input : Integer r , Object e ; Output : Object

• insertElemAtRank( r , e ):

Insert a new element into S which will

have rank r ; an error occurs if r < 0 or

r > n - 1

Input : Integer r , Object e ; Output : Object

• removeElemAtRank( r ):

Remove from S the element at rank r ; an

error occurs if r < 0 or r > n - 1

Input : Integer; Output : Object

Array-Based Implementation

(contd.)

• Time complexity of the various methods:

Method Time

size O (1)

isEmpty O (1)

elemAtRank O (1)

replaceElemAtRank O (1)

insertElemAtRank O ( n )

removeElemAtRank O ( n )

Implementation with a Doubly

Linked List

• the list before insertion:
• creating a new node for insertion:

header

Baltimore Paris Providence

trailer

header

Baltimore Paris Providence

trailer

New York

Java Implementation

public class NodeRankedSequence extends MyDeque implements Deque, RankedSequence{ public void insertElemAtRank ( int rank, Object element) throws BoundaryViolationException { if (rank != size()) //rank size() is OK for //insertion checkRank(rank); DLNode next = nodeAtRank(rank); // the new node //will be right before this DLNode prev = next.getPrev(); // the new node //will be right after this DLNode node = new DLNode(element, prev, next); next.setPrev(node); prev.setNext(node); size++; } public Object removeElemAtRank (int rank) throws BoundaryViolationException { checkRank(rank); DLNode node = nodeAtRank(rank); // node to //be removed DLNode next = node.getNext(); //node before it

Java Implementation (cont.)

DLNode prev = node.getPrev(); // node after it prev.setNext(next); next.setPrev(prev); size--; return node.getElement(); } private DLNode nodeAtRank (int rank) { // auxiliary method to find the node of the //element with the given rank DLNode node; if (rank <= size()/2) { //scan forward from head node = header.getNext(); for ( int i=0; i < rank; i++) node = node.getNext(); } else { // scan backward from the tail node = trailer.getPrev(); for ( int i=0; i < size()-rank-1 ; i++) node = node.getPrev(); } return node; }

Nodes and Positions (cont.)

• Positions:
  • Inituitve notion of “place” of an element.
  • This concept allows us to enjoy doubly-linked list

without violating object-oriented design.

• Positions have 2 methods:

element(): Return the element at the Position

Input: none; Output: Object

container():Return the sequence that contains

this position.

Input: none; Output: sequence

• Positions are defined relatively.
• Positions are not tied to an element or rank
• A Sequence is a container of elements that are

each stored in a position

The Positional Sequence ADT

• The methods are:
  • first()
  • last()
  • before()
  • after()
  • size()
  • isEmpty()
  • replace(p,e)
  • swap(p, q)
  • insertFirst(e)
  • insertLast(e)
  • insertBefore(p,e)
  • insertAfter(p,e)
  • remove(p)
  • isFirst(p)
  • isLast(p)

Doubly Linked List

Implementation(cont.)

return cont; } public Object element() throws InvalidPositionException { if (cont == null ) throw new InvalidPositionException (“Position has no container!”); return element; } // Accesor methods NSNode getNext() { return next; } NSNode getPrev() { return prev; } void setNext(NSNode newNext) { next = newNext; } // Update methods void setPrev(NSNode newPrev) { prev = newPrev; } void setElement(Object newElement) { element = newElement; } void setContainer(Container newCont) { cont = newCont; } }

Doubly Linked List

Implementation

• Code for other methods of a Doubly Linked List:
  • checkPosition protected NSNode checkPosition(Position p) throws InvalidPositionException{

if (p==head)

throw new InvalidPositionException(“Head of the sequence is not a valid position”);

if (p==tail)

throw new InvalidPositionException (“Tail of the sequence is not a valid position”); }

• first public Position first() throws EmptyContainerException { if (isEmpty()) throw new EmptyContainerException (“Sequence is empty”); return head.getNext(); }

Doubly Linked List

Implementation (cont.)

• remove public Object remove(Position p) throws InvalidPositionException { NSNode n = checkPosition(p); numElts--; NSNode nPrev = n.getPrev(); NSNode nNext = n.getNext(); nPrev.setNext(nNext); nNext.setPrev(nPrev); Object nElem = n.element(); // unlink the position from the list //and make it invalid n.setNext( null ); n.setPrev( null ); n.setContainer( null ); return nElem; }

The Sequence ADT in Java

public interface PositionalSequence extends PositionalContainer {

/* *********** Accessor Methods *********** */

public Position first() throws EmptyContainerException;

public Position last() throws EmptyContainerException;

public Position before (Position p)

throws InvalidPositionException, BoundaryViolationException;

public Position after (Positionp)

throws InvalidPositionException, BoundaryViolationException;

The Sequence ADT in Java

(contd.)

/* *********** More Update Methods *********** */

public Position insertBefore (Positionp, Object

element)

throws InvalidPositionException;

public Position insertAfter (Positionp, Objectelement)

throws InvalidPositionException;

public Object remove (Positionp)

throws InvalidPositionException;

public Object replace (Positionp, Object element)

throws InvalidPositionException;

public void swap (Positionp, Positionq)

throws InvalidPositionException; }

Comparison of Sequence

Implementations

• Is replaceElemAtRank O(1) in a list?????

Operations Array List

size, isEmpty O (1) O (1)

atRank, rankOf, elemAtRank O (1) O ( n )

first, last O (1) O (1)

before, after O (1) O (1)

replace, replaceElemAtRank, swap O (1) O (1)

insertElemAtRank, removeElemAtRank O ( n ) O ( n )

insertFirst, insertLast O (1) O (1)

insertAfter, insertBefore O ( n ) O (1)

remove O ( n ) O (1)
