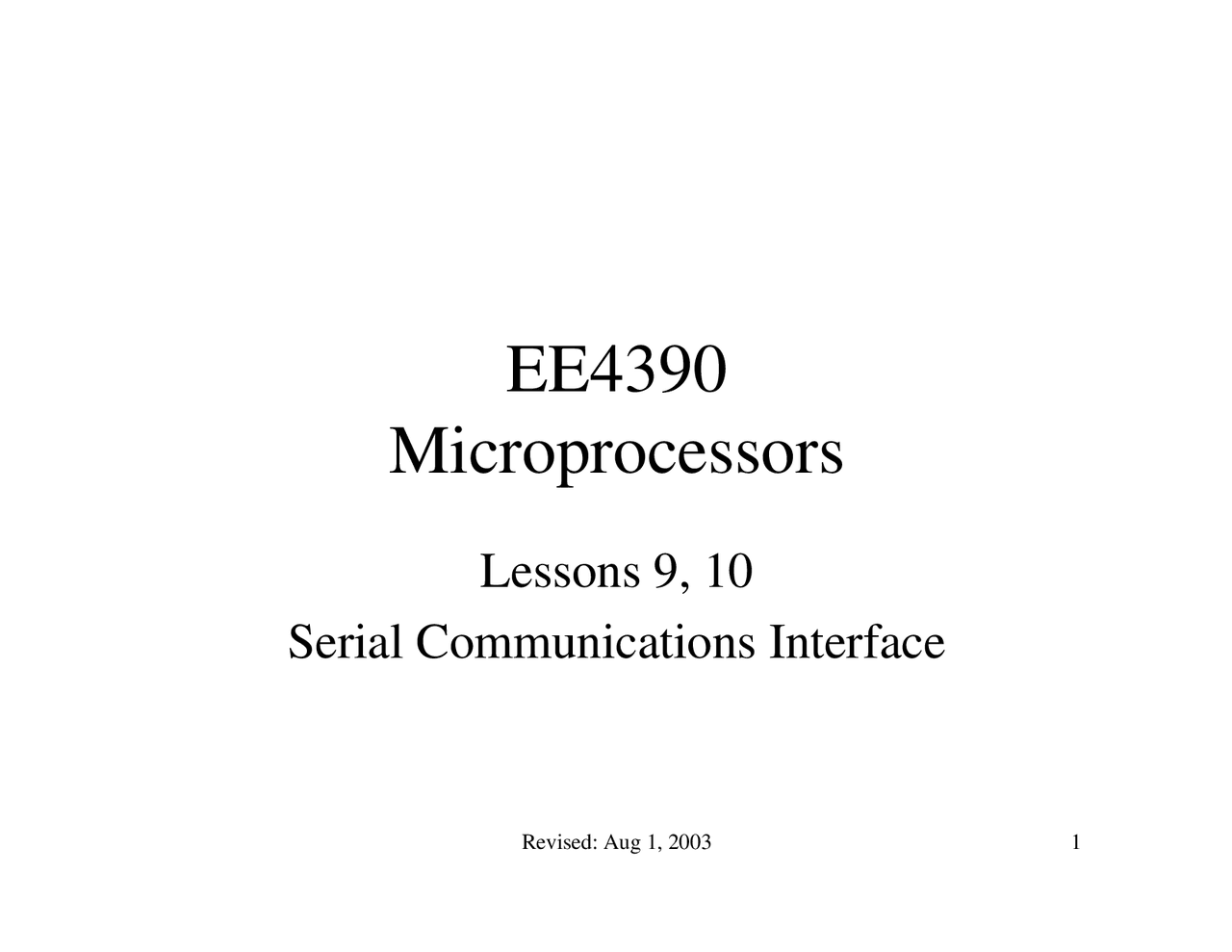

Revised: Aug 1, 2003
EE
Microprocessors
Lessons 9, 10
Serial Communications Interface
Revised: Aug 1, 2003
Overview
-^ Fundamentals and Terminology•^ Signals•^ Multiple Serial Interface•^ Serial Communications Interface (SCI) - Transmitter– Receiver– Registers -^ SCI Programming•^ RS-232 interface
Revised: Aug 1, 2003
Fundamentals and Terminology (cont)• ASCII - American Standard Code for Information Interchange
"Copyright of Motorola, Used by Permission"
Revised: Aug 1, 2003
Fundamentals and Terminology (cont)• Parity bit - used to detect a single error– odd parity: odd number of ones in character– even parity: even number of ones in character• Simplex: transmit or receive data, notsimultaneously
Revised: Aug 1, 2003
Serial Communications Interface (SCI)
Transmitter
Revised: Aug 1, 2003
Serial Communications Interface (SCI)
Receiver
Revised: Aug 1, 2003
SCI Baud Rate Control Registers
Revised: Aug 1, 2003
SCI Data Registers High/Low
Revised: Aug 1, 2003
SCI Programming
- Revised: Aug 1,
- SCI Control Registers 1,
- Revised: Aug 1,
- SCI Status Registers 1,
- Revised: Aug 1,
- Example (cont) SC1BDH, SC1BDL: SC1BDH = $00SC1BDL = $34 SC1CR1: M=0, (1 start, 1 stop,8 data bits) SC1CR2: TE =
Revised: Aug 1, 2003
Example (cont)
;SCI Initialization Example;Assume M = 8 MHz, 9600 BAUD;define register locations and masksSC1BDH = $00C
; Baud Register High location
SC1BDL = $00C
; Baud Register Low location
BAUD_HI = $
; Baud Register High mask
BAUD_LOW = $
; Baud Register Low mask
SC1CR1 = $00CA
; Control Register 1 location
SC1_CONT = $
; Control Register 1 mask
SC1CR2 = $00CB
; Control Register 2 location
SC1_MASK = $
; Control Register 2 mask
SC1SR1 = $00CC
; Status Register 1 location
SC1DRL = $00CF
; Data Register Low location
Revised: Aug 1, 2003
Example (cont)
;sci_init: initializes SCI system;Assume M = 8 MHz, 9600 BAUDsci_init:: LDAA
#BAUD_LOW
;set BAUD rate
STAA
SC1BDL
LDAA
#BAUD_HI
STAA
SC1BDH
LDAA
#SCI_CONT
;set MODE
STAA
SC1CR
LDAA
#SC1_MASK
;enable transmitter
STAA
SC1CR
LDAA
SC1SR
;clear TDRE bit - 2 step process
STAA
SC1DRL
;1: read SC1SR1, write SC1DRL
RTS^
;return from subsroutine
Revised: Aug 1, 2003
RS-232 Standard
-^ Electronic Industry Association (EIA) Standard•^ Evolved from 1960 standard - EIA-232-D•^ Four aspects: -^ Electrical specifications: voltage level, rise time, fall time–^ Functional specifications of each signal–^ Mechanical specifications: number of pins, connector shape,connector dimension–^ Procedural specifications -^ RS-232 voltage levels+12V0V -12V
idle^
idle
start^
data^
stop parity
