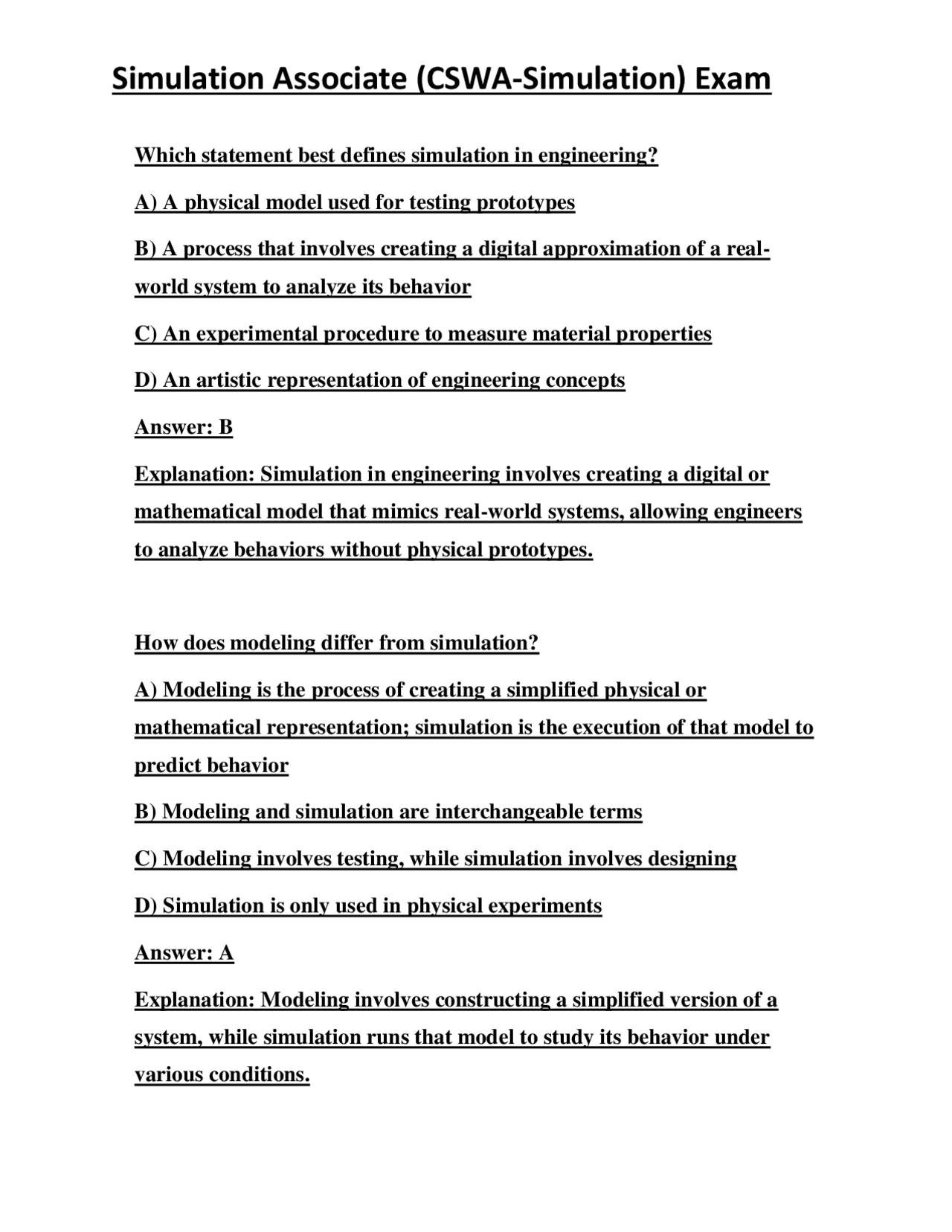

Which statement best defines simulation in engineering? A) A physical model used for testing prototypes B) A process that involves creating a digital approximation of a real- world system to analyze its behavior C) An experimental procedure to measure material properties D) An artistic representation of engineering concepts Answer: B Explanation: Simulation in engineering involves creating a digital or mathematical model that mimics real-world systems, allowing engineers to analyze behaviors without physical prototypes. How does modeling differ from simulation? A) Modeling is the process of creating a simplified physical or mathematical representation; simulation is the execution of that model to predict behavior B) Modeling and simulation are interchangeable terms C) Modeling involves testing, while simulation involves designing D) Simulation is only used in physical experiments Answer: A Explanation: Modeling involves constructing a simplified version of a system, while simulation runs that model to study its behavior under various conditions.
In product development, what is one primary role of simulation? A) To replace all physical testing B) To predict product performance and optimize designs before manufacturing C) To manufacture prototypes directly D) To eliminate the need for material selection Answer: B Explanation: Simulation helps predict how a product will perform, enabling design optimization and reducing the need for costly physical prototypes. Which of the following best distinguishes static from dynamic simulations? A) Static simulations analyze systems over time, dynamic simulations do not B) Static simulations analyze systems at equilibrium, dynamic simulations analyze changing systems over time C) Static simulations are only used in fluid dynamics, dynamic in structural analysis D) Static simulations require no boundary conditions, dynamic do Answer: B
Explanation: Physical simulations involve real-world testing, such as wind tunnel experiments, while the others are digital or computational. Which software is most commonly used for finite element analysis in solid mechanics? A) MATLAB B) SolidWorks Simulation C) AutoCAD D) Photoshop Answer: B Answer: B Explanation: SolidWorks Simulation is widely used for finite element analysis (FEA) focused on structural and mechanical problems. When selecting a simulation software tool, which of the following is NOT typically a primary criterion? A) Compatibility with existing CAD data B) Ability to handle specific analysis types needed C) The software’s color scheme D) User interface and ease of use Answer: C
Explanation: The software’s color scheme is not a relevant factor; compatibility, analysis capabilities, and usability are key criteria. Which is a benefit of using SolidWorks Simulation? A) It automatically manufactures physical prototypes B) It enables virtual testing and design optimization without physical prototypes C) It replaces the need for material selection D) It can only perform static structural analysis Answer: B Explanation: SolidWorks Simulation allows virtual testing and optimization, reducing physical prototypes and associated costs. Which industry commonly uses simulation for aerodynamic testing? A) Automotive B) Aerospace C) Consumer electronics D) Food processing Answer: B Explanation: Aerospace industry extensively uses simulations for aerodynamic analysis, such as airflow over aircraft surfaces.
A) Final manufacturing B) Creating the CAD model and defining boundary conditions C) Post-processing results D) Material disposal Answer: B Answer: B Explanation: Pre-processing involves preparing the CAD model, defining boundary conditions, and setting up the simulation parameters. Why is geometry important in simulations? A) It determines the color of the final product B) Accurate geometry ensures realistic simulation results and proper mesh generation C) Geometry is only relevant in visualizations, not analysis D) Geometry is not important if the material properties are correct Answer: B Explanation: Accurate geometry affects how well the simulation models real behavior, influencing meshing and result accuracy. Which of the following is a typical simplification made during modeling? A) Using detailed microstructures of materials
B) Assuming perfect symmetry and neglecting small features that do not affect results C) Including all minor manufacturing imperfections D) Ignoring boundary conditions entirely Answer: B Explanation: Simplifications, like symmetry or neglecting minor features, are common to reduce complexity while maintaining accuracy. How are material properties assigned in SolidWorks? A) They are automatically generated based on the geometry B) Through the material library or manual input for properties like elasticity and density C) Material properties are irrelevant in simulations D) By importing images of materials Answer: B Explanation: SolidWorks allows assigning material properties via its library or manual input, which are crucial for accurate analysis. What is the purpose of using material libraries in SolidWorks? A) To select predefined sets of material properties for different materials B) To store design sketches C) To generate mesh automatically
Explanation: Finer meshes capture details better, improving accuracy but increasing computational effort. Which of the following is a characteristic of structured meshes? A) They have an irregular pattern and are best for complex geometries B) They have a regular grid pattern, ideal for simple geometries with smooth surfaces C) They are unbreakable and cannot be refined D) They are only used in thermal simulations Answer: B Explanation: Structured meshes have a regular pattern, suitable for simple geometries, aiding in efficient analysis. What is a primary consideration when refining a mesh? A) To make the mesh as coarse as possible for speed B) To increase mesh density in regions with high stress or temperature gradients C) To remove all mesh elements in critical areas D) To avoid changing mesh density after initial setup Answer: B Explanation: Refining meshes in critical regions enhances simulation accuracy by capturing high gradients effectively.
Which type of analysis is most appropriate for evaluating stresses in a loaded structural component? A) Thermal analysis B) Structural static analysis C) Fluid flow analysis D) Motion analysis Answer: B Explanation: Structural static analysis assesses stresses and deformations under applied loads. In a static structural simulation, what do boundary conditions specify? A) The material properties of the model B) Constraints like fixed supports or pinned joints that restrict movement C) The temperature distribution within the model D) The airflow around the model Answer: B Explanation: Boundary conditions define how the model is supported or constrained, affecting the response to loads.
B) Convection C) Radiation D) Diffusion Answer: C Explanation: Radiation involves energy transfer via electromagnetic waves, unlike conduction and convection. In thermal simulations, what does thermal conductivity influence? A) The rate of heat transfer through a material B) The mechanical strength of the material C) The fluid flow velocity D) The electrical conductivity of the material Answer: A Explanation: Thermal conductivity determines how well a material conducts heat. What is the primary purpose of flow simulation in SolidWorks? A) To analyze heat transfer only B) To study fluid behavior and flow characteristics around or within objects C) To perform structural stress analysis under fluid pressure D) To simulate electromagnetic fields in fluids
Answer: B Explanation: Flow simulation (CFD) analyzes fluid flow patterns, velocities, pressures, and related phenomena. Which type of flow is characterized by smooth, orderly fluid motion? A) Turbulent flow B) Laminar flow C) Chaotic flow D) Vortical flow Answer: B Explanation: Laminar flow involves smooth, parallel layers of fluid with minimal mixing. In CFD, what boundary condition specifies where fluid enters the domain? A) Outlet boundary condition B) Inlet boundary condition C) Wall boundary condition D) Symmetry boundary condition Answer: B Explanation: Inlet boundary conditions define the flow parameters at the domain entry point.
When analyzing a mechanism, which parameter is crucial for understanding its operation? A) The material's color B) The degrees of freedom and joint constraints C) The material's thermal conductivity D) The manufacturing cost Answer: B Explanation: Degrees of freedom and joint constraints determine how a mechanism moves and functions. What is the purpose of post-processing in simulation? A) To finalize the physical prototype B) To visualize results like stress, strain, deformation, and flow patterns C) To set up boundary conditions D) To generate the initial mesh Answer: B Explanation: Post-processing involves analyzing and visualizing simulation results for interpretation and decision-making. Which visualization technique shows the distribution of stress within a component? A) Contour plot
B) Vector plot C) Displacement plot D) Flow streamlines Answer: A Explanation: Contour plots color-code stress levels, illustrating their distribution within the component. How does convergence relate to simulation results? A) It indicates that the solution has stabilized and is accurate enough for analysis B) It shows that the mesh is too coarse C) It means the simulation has failed and needs restarting D) It is unrelated to the quality of results Answer: A Explanation: Convergence suggests that iterative calculations have stabilized, implying reliable results. Which method can be used to verify the accuracy of simulation results? A) Comparing with experimental data or analytical solutions B) Ignoring boundary conditions C) Using the largest mesh possible D) Changing material properties randomly
In nonlinear simulations, what does geometric nonlinearity account for? A) Small deformations with proportional behavior B) Large deformations where assumptions of small strains are invalid C) Only thermal effects D) Linear elastic behavior only Answer: B Explanation: Geometric nonlinearity handles large deformations where linear assumptions no longer hold. Which material behavior is typically modeled in nonlinear simulations? A) Linear elastic only B) Plasticity and large strain behaviors C) Perfectly rigid materials only D) Ideal gases only Answer: B Explanation: Nonlinear simulations often include plasticity and large strains that deviate from linear elastic behavior. What is the primary focus of fatigue analysis? A) The long-term failure of materials under cyclic loading
B) The static strength of a component C) The thermal conductivity over time D) The electromagnetic properties during operation Answer: A Explanation: Fatigue analysis predicts how repeated loading can cause failure over time. Which phenomenon is a common cause of fatigue failure? A) Continuous static loading B) Cyclic loading leading to crack initiation and growth C) Sudden impact only D) Thermal expansion in a steady state Answer: B Explanation: Cyclic loads cause repeated stress cycles, leading to crack initiation and fatigue failure. How does fatigue life prediction assist engineers? A) By estimating the number of cycles before failure under cyclic loading B) By calculating the maximum static load capacity C) By determining the electrical conductivity of materials D) By identifying the chemical composition of alloys
