Practice Exam

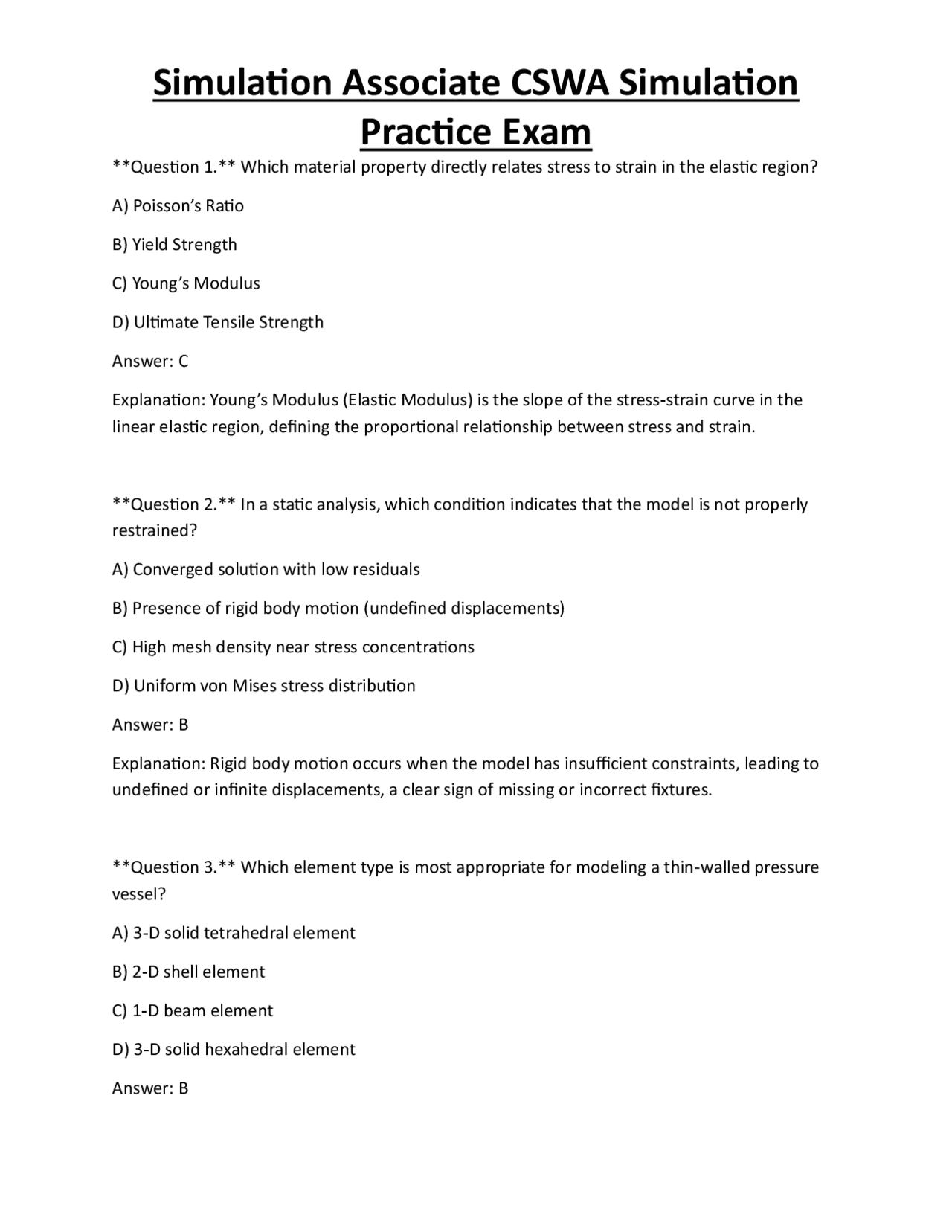

Question 1. Which material property directly relates stress to strain in the elastic region? A) Poisson’s Ratio B) Yield Strength C) Young’s Modulus D) Ultimate Tensile Strength Answer: C Explanation: Young’s Modulus (Elastic Modulus) is the slope of the stress‑strain curve in the linear elastic region, defining the proportional relationship between stress and strain. Question 2. In a static analysis, which condition indicates that the model is not properly restrained? A) Converged solution with low residuals B) Presence of rigid body motion (undefined displacements) C) High mesh density near stress concentrations D) Uniform von Mises stress distribution Answer: B Explanation: Rigid body motion occurs when the model has insufficient constraints, leading to undefined or infinite displacements, a clear sign of missing or incorrect fixtures. Question 3. Which element type is most appropriate for modeling a thin-walled pressure vessel? A) 3‑D solid tetrahedral element B) 2‑D shell element C) 1‑D beam element D) 3‑D solid hexahedral element Answer: B
Practice Exam
Explanation: Shell elements efficiently capture bending and membrane behavior of thin structures while using fewer degrees of freedom than solid elements. Question 4. A factor of safety (FOS) of 2 is calculated using which formula? A) FOS = Yield Strength / Applied Stress B) FOS = Applied Stress / Yield Strength C) FOS = Ultimate Strength / Applied Stress D) FOS = Applied Stress / Ultimate Strength Answer: A Explanation: Factor of safety is defined as the ratio of the material’s allowable strength (often yield strength for static loading) to the actual applied stress. Question 5. Which load type is defined as force per unit area? A) Torque B) Pressure C) Point force D) Gravity Answer: B Explanation: Pressure is the distribution of force over an area (N/m²), unlike a point force which acts at a single location. Question 6. When converting a load from US customary (IPS) to SI units, which conversion factor is required for a force expressed in pounds (lb) to newtons (N)? A) 1 lb = 0.4536 N B) 1 lb = 4.448 N C) 1 lb = 0.2248 N
Practice Exam
A) Fixed Geometry B) Roller/Slider C) Hinge D) Symmetry Plane Answer: B Explanation: A roller/slider (or slider) constraint permits movement along a single axis while restraining all other translations and rotations. Question 10. The Poisson’s Ratio of a material is defined as: A) Ratio of shear stress to shear strain B) Ratio of lateral strain to axial strain under uniaxial loading C) Ratio of axial stress to axial strain D) Ratio of ultimate strength to yield strength Answer: B Explanation: Poisson’s Ratio (ν) quantifies the lateral contraction that occurs when a material is stretched axially. Question 11. Which of the following statements best describes a bonded contact in an assembly? A) Allows relative sliding but prevents penetration B) Enforces zero relative motion, simulating welding or glue C) Permits separation under tensile loads D) Applies a friction coefficient of 0.2 by default Answer: B Explanation: Bonded contact imposes a permanent connection with no relative displacement, mimicking welded or glued joints.
Practice Exam
Question 12. When would a dynamic analysis be preferred over a static analysis? A) When loads are applied slowly and steadily B) When inertial effects and time‑dependent loads are significant C) When the structure is only subjected to thermal loads D) When the material behaves linearly elastic Answer: B Explanation: Dynamic analysis accounts for mass, damping, and inertia, which are essential when loads vary quickly or impact occurs. Question 13. In a simulation report, which plot is most useful for verifying that the design meets the required safety criteria? A) Displacement plot B) Temperature distribution plot C) Von Mises stress plot overlaid with material yield stress line D) Mesh quality histogram Answer: C Explanation: The von Mises stress plot directly shows where stresses exceed the material’s yield strength, allowing assessment of safety margins. Question 14. Which of the following is a primary advantage of using adaptive meshing? A) Guarantees the smallest possible element size everywhere B) Automatically refines the mesh where solution gradients are high, improving accuracy without excessive computational cost C) Eliminates the need for any mesh quality checks D) Converts all solid elements to shell elements automatically
Practice Exam
B) Only external CAD files C) Planes, axes, or points created within the simulation environment D) Material property definitions Answer: C Explanation: Reference geometry (planes, axes, points) can be constructed inside the simulation tool to locate non‑geometric restraints. Question 18. In the context of FEA, what does “degrees of freedom (DOF)” refer to? A) Number of material properties assigned to a part B) Independent ways a node can move or rotate (translations and rotations) C) Number of mesh elements in the model D) Levels of solver convergence criteria Answer: B Explanation: DOF are the independent translational and rotational motions that each node can undergo. Question 19. Which of the following mesh element shapes typically provides the highest accuracy for stress analysis in a complex 3‑D geometry? A) Linear tetrahedral elements B) Quadratic hexahedral elements C) Linear beam elements D) 2‑D triangular shell elements Answer: B Explanation: Quadratic (higher‑order) hexahedral elements capture stress gradients more accurately than linear tetrahedrals, especially in 3‑D problems.
Practice Exam
Question 20. What is the primary purpose of a “section clipping” tool in post‑processing? A) To refine the mesh locally B) To isolate and view internal results on a cut plane C) To apply additional loads after solving D) To change material properties of a region Answer: B Explanation: Section clipping creates a virtual cut through the model, allowing the analyst to examine internal stress, strain, or displacement fields. Question 21. Which of the following best describes a “roller” boundary condition? A) Prevents all translations and rotations B) Allows translation along one axis while restraining all others C) Allows rotation about a single axis only D) Applies a frictional contact condition automatically Answer: B Explanation: A roller (or slider) permits movement along a specified direction while restricting motion in all other translational and rotational DOFs. Question 22. If a simulation uses SI units, what are the standard units for stress? A) psi (pounds per square inch) B) N/mm² (megapascal) C) Pa (pascal) D) kN/m² (kilopascal) Answer: C Explanation: In the International System of Units, stress is expressed in pascals (Pa), where 1 Pa = 1 N/m². Megapascals (MPa) are commonly used for convenience.
Practice Exam
D) The yield strength decreases Answer: B Explanation: A Poisson’s Ratio near 0.5 indicates near‑incompressibility, meaning lateral expansion nearly offsets axial contraction, preserving volume. Question 26. Which of the following is a correct statement about a “no‑penetration” contact type? A) Allows interpenetration up to a specified tolerance B) Enforces a zero gap but permits sliding with friction C) Bonds the two surfaces permanently D) Applies a predefined torque between the bodies Answer: B Explanation: No‑penetration (or “contact”) prevents interpenetration while allowing relative sliding, often with a friction coefficient. Question 27. When setting up a gravity load in a static analysis, which direction is typically defined as positive? A) Along the X‑axis B) Along the Y‑axis C) Along the Z‑axis (downward) D) Opposite to the defined “up” direction in the model coordinate system Answer: D Explanation: Gravity is applied opposite to the defined “up” direction; the sign depends on the model’s coordinate orientation. Question 28. Which of the following best describes a “design variable” in an optimization study?
Practice Exam
A) A fixed material property B) A parameter that the optimizer can change (e.g., thickness, hole diameter) C) The final objective function value D) A post‑processing plot setting Answer: B Explanation: Design variables are the controllable parameters that the optimization algorithm varies to meet objectives and constraints. Question 29. In a frequency analysis, what does a “doublet” refer to? A) Two identical natural frequencies occurring due to symmetry B) A pair of modes with the same frequency but orthogonal mode shapes C) A frequency that is twice the fundamental frequency D) A mode shape that exhibits double the displacement of the fundamental mode Answer: B Explanation: A doublet consists of two modes sharing the same natural frequency, often arising from geometric symmetry, with orthogonal deformation patterns. Question 30. Which of the following is NOT a typical purpose of applying a “spring connector” in a model? A) To simulate a flexible support B) To represent a stiff welded joint C) To provide a known stiffness relationship between two nodes D) To reduce modeling complexity for compliant connections Answer: B Explanation: A spring connector represents a compliant, elastic relationship, not a rigid welded (bonded) connection.
Practice Exam
Explanation: Over‑refining low‑gradient zones wastes computational resources without meaningful accuracy gains. Question 34. In a static analysis of a cantilever beam, which boundary condition correctly represents the fixed support at the root? A) Roller in the X‑direction only B) Fixed Geometry (all six DOFs restrained) C) Hinge allowing rotation about the Y‑axis D) Symmetry plane at the root Answer: B Explanation: A fixed support restrains all translational and rotational degrees of freedom, matching the physical condition of a cantilever root. Question 35. Which of the following statements about “mesh aspect ratio” is true? A) An aspect ratio close to 1 always guarantees accurate results. B) High aspect ratios (very elongated elements) can cause stiffness errors. C) Aspect ratio only matters for shell elements, not solids. D) Aspect ratio is irrelevant if the mesh is globally refined. Answer: B Explanation: High aspect ratios indicate distorted elements that can inaccurately represent stiffness and stress distributions. Question 36. When a design study includes a mass minimization objective, which material property is most directly affected by the optimizer? A) Young’s Modulus B) Density
Practice Exam
C) Poisson’s Ratio D) Yield Strength Answer: B Explanation: Mass = density × volume; reducing density (or selecting a lighter material) directly influences the mass objective. Question 37. In a static analysis, which result type would you use to locate the location of maximum shear stress? A) von Mises stress plot B) Principal stress plot C) Shear stress component plot (e.g., τ_xy) D) Displacement magnitude plot Answer: C Explanation: Shear stress component plots directly display τ values, allowing identification of peak shear locations. Question 38. Which of the following is a valid reason to use a “symmetry plane” boundary condition? A) To apply a load uniformly across the entire model B) To reduce model size by exploiting geometric symmetry, halving the computational domain C) To increase mesh density automatically D) To enforce a temperature gradient across the model Answer: B Explanation: Symmetry planes allow the analyst to model only a portion of a symmetric structure, reducing computational effort while preserving accuracy.
Practice Exam
Answer: B Explanation: Mesh convergence is demonstrated when further refinement does not significantly alter the output, confirming solution stability. Question 42. When defining a pressure load on a curved surface, which direction is assumed by default if not specified? A) Normal to the surface (outward) B) Tangential to the surface C) Along the global X‑axis D) Along the local Y‑axis of the reference geometry Answer: A Explanation: By default, pressure acts normal (perpendicular) to the surface, either inward or outward depending on sign. Question 43. Which of the following is a typical output from a “probe” tool in post‑processing? A) Global mesh statistics B) Numerical value of stress, strain, or displacement at a specific node or location C) Automatic generation of a design report D) Modification of material properties Answer: B Explanation: Probes extract quantitative results (e.g., stress, displacement) at selected points or along paths for detailed analysis. Question 44. In a static analysis, a model shows a maximum von Mises stress of 300 MPa while the material’s yield strength is 250 MPa. What does this indicate? A) The design is safe because von Mises stress is lower than ultimate strength.
Practice Exam
B) The design is unsafe; the material will yield under the applied load. C) The model needs a finer mesh to reduce stress values. D) The factor of safety is greater than 1. Answer: B Explanation: Since von Mises stress exceeds the yield strength, the material will undergo plastic deformation, indicating an unsafe design. Question 45. Which type of analysis would you select to evaluate the effect of a sudden impact load on a component? A) Static analysis B.1) Frequency (modal) analysis C) Transient dynamic analysis D) Thermal analysis Answer: C Explanation: Transient dynamic analysis captures time‑dependent inertial effects of impact loads, unlike static or modal analyses. Question 46. Which of the following best describes the purpose of a “section view” in a simulation report? A) To change the material of a selected region B) To display internal results on a cut plane for clearer communication C) To refine the mesh locally D) To apply additional loads after solving Answer: B Explanation: Section views slice through the model, revealing internal stress, strain, or displacement fields for better visualization.
Practice Exam
D) They do not affect stress results. Answer: B Explanation: Thermal expansion is modeled as body forces derived from the coefficient of thermal expansion multiplied by the temperature change, inducing stress due to constrained expansion. Question 50. What does the term “rigid body mode” refer to in a modal analysis? A) A mode where the structure deforms significantly. B) A mode with zero natural frequency representing free translation or rotation of the entire model. C) A high‑frequency vibration mode. D) A mode that only appears when damping is included. Answer: B Explanation: Rigid body modes have zero frequency because the entire model moves without internal deformation, indicating insufficient constraints. Question 51. Which of the following is a correct method to improve mesh quality in a region with high curvature? A) Increase element size uniformly across the model. B) Use mapped (structured) mesh or curvature‑controlled refinement to capture geometry accurately. C) Switch all elements to linear beam elements. D) Apply a coarser mesh to reduce computation time. Answer: B Explanation: Curvature‑controlled refinement or mapped meshing aligns element edges with the geometry, improving accuracy in curved regions.
Practice Exam
Question 52. In a static analysis, what is the effect of applying a “gravity” load in the negative Z direction on a cantilever beam fixed at the origin? A) It adds a uniform axial tension. B) It creates a bending moment due to the weight of the beam, causing deflection. C) It has no effect because gravity is only for dynamic studies. D) It doubles the applied external loads. Answer: B Explanation: Gravity acts as a distributed load, generating a bending moment that causes the cantilever to deflect downward. Question 53. Which result type would you use to verify that a contact interface is not penetrating in a static analysis? A) Contact pressure plot B) Displacement magnitude plot C) Temperature distribution plot D) Mesh quality histogram Answer: A Explanation: Contact pressure (or contact gap) plots reveal whether surfaces are separating, touching, or interpenetrating; a zero or positive gap indicates no penetration. Question 54. When creating a simulation report, which item is essential for reproducibility? A) Only the final von Mises stress value B) Detailed model setup, material definitions, boundary conditions, and load cases C) A screenshot of the 3‑D view D) The version of the operating system only Answer: B
