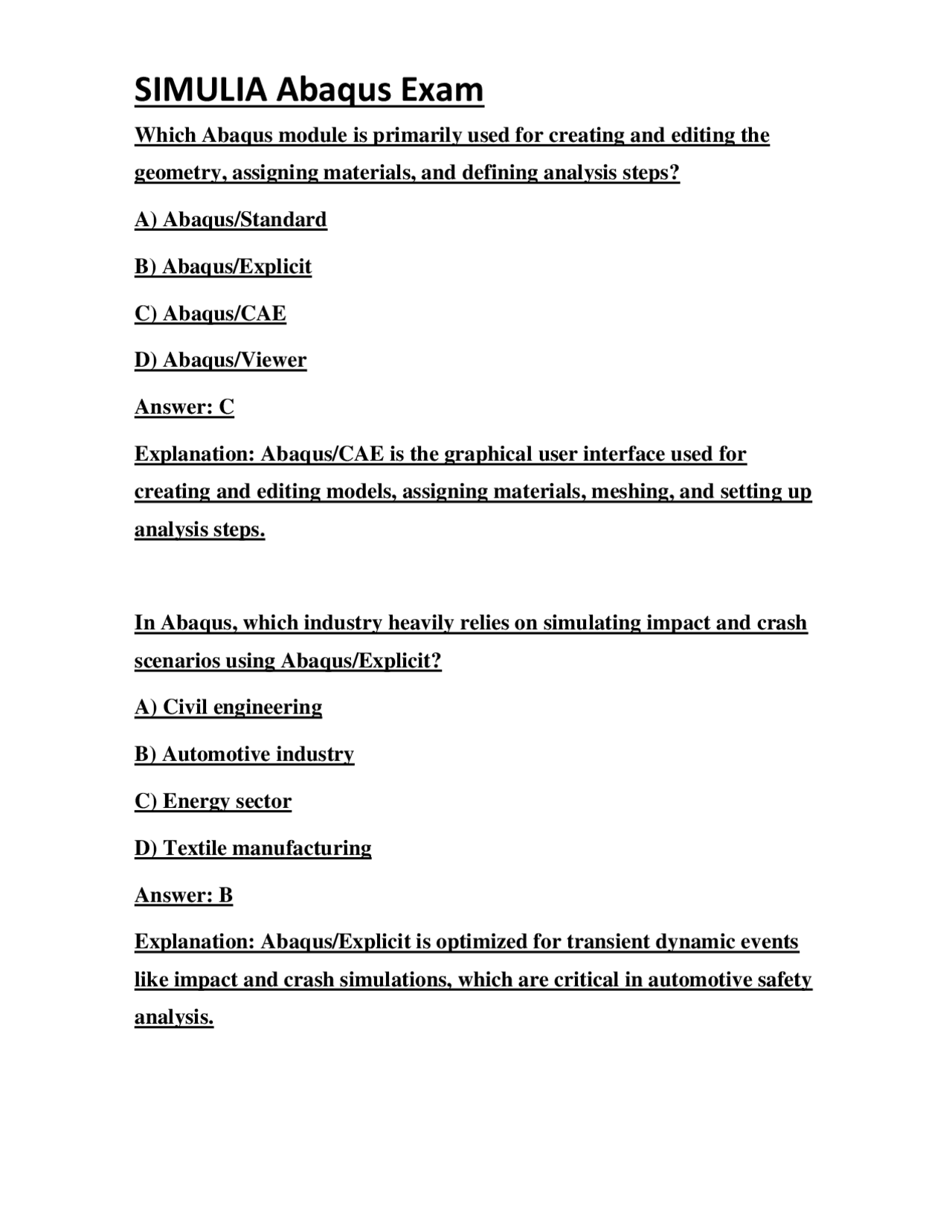

Which Abaqus module is primarily used for creating and editing the geometry, assigning materials, and defining analysis steps? A) Abaqus/Standard B) Abaqus/Explicit C) Abaqus/CAE D) Abaqus/Viewer Answer: C Explanation: Abaqus/CAE is the graphical user interface used for creating and editing models, assigning materials, meshing, and setting up analysis steps. In Abaqus, which industry heavily relies on simulating impact and crash scenarios using Abaqus/Explicit? A) Civil engineering B) Automotive industry C) Energy sector D) Textile manufacturing Answer: B Explanation: Abaqus/Explicit is optimized for transient dynamic events like impact and crash simulations, which are critical in automotive safety analysis.
What is the primary purpose of the model tree in Abaqus/CAE? A) To display the results of the analysis B) To organize and manage different parts, assemblies, and steps in the model C) To generate meshing controls D) To perform post-processing tasks Answer: B Explanation: The model tree organizes the model components, such as parts, assemblies, steps, and loads, facilitating easy management of the simulation setup. Which of the following best describes the difference between Abaqus/Standard and Abaqus/Explicit? A) Abaqus/Standard is for linear static analysis; Abaqus/Explicit is for nonlinear static analysis B) Abaqus/Standard uses an implicit solver; Abaqus/Explicit uses an explicit solver suitable for dynamic events C) Abaqus/Standard is for thermal analysis; Abaqus/Explicit is for fluid flow analysis D) Abaqus/Standard is used for meshing; Abaqus/Explicit is used for post-processing Answer: B
Explanation: An encastre or fixed boundary condition completely restricts all degrees of freedom at a node, preventing any displacement or rotation. Which element type is best suited for modeling thin-walled structures such as shells in Abaqus? A) Solid elements B) Beam elements C) Shell elements D) Truss elements Answer: C Explanation: Shell elements are specifically designed for thin-walled structures, capturing bending and membrane behaviors efficiently. In Abaqus, what is the primary function of mesh controls? A) To define material properties B) To specify how the mesh is generated, including element size and type C) To set boundary conditions D) To apply loads Answer: B Explanation: Mesh controls influence how the finite element mesh is generated, allowing for refinement and quality optimization.
Which analysis type in Abaqus is suitable for evaluating the natural frequencies and mode shapes of a structure? A) Static analysis B) Buckling analysis C) Modal analysis D) Fatigue analysis Answer: C Explanation: Modal analysis determines the natural frequencies and mode shapes of a structure, essential for dynamic response studies. Which of the following best describes a contact pair in Abaqus? A) A boundary condition that fixes a part to the ground B) A set of surfaces that can interact through contact forces during simulation C) A material property assigned to interfaces D) A meshing technique for complex geometries Answer: B Explanation: Contact pairs define the interacting surfaces in a model, enabling Abaqus to simulate contact behavior, including friction and separation.
In Abaqus, which scripting language is primarily used for automation and customizing workflows? A) Java B) Fortran C) Python D) C++ Answer: C Explanation: Abaqus uses Python scripting for automation, data processing, and customization of analyses and post-processing tasks. During convergence issues, which parameter can be adjusted to improve solver stability in Abaqus? A) Increase time increment size B) Decrease mesh density C) Use automatic stabilization techniques or refine mesh D) Turn off boundary conditions Answer: C Explanation: Stabilization techniques and mesh refinement can improve convergence by controlling numerical instabilities. Which Abaqus module is best suited for visualizing and analyzing results post-simulation?
A) Abaqus/Standard B) Abaqus/Explicit C) Abaqus/CAE (Visualization Module) D) Abaqus/Viewer Answer: D Explanation: Abaqus/Viewer is specifically designed for post-processing and visualizing simulation results. When creating a mesh for a complex geometry, which technique involves subdividing the geometry into smaller, manageable elements? A) Mesh refinement B) Mesh partitioning C) Meshing D) Element filtering Answer: C Explanation: Meshing involves discretizing the geometry into finite elements, enabling numerical analysis. Which type of analysis in Abaqus is used to determine the load at which a structure becomes unstable and buckles? A) Static analysis B) Eigenvalue buckling analysis
Answer: B Explanation: Viscoelastic models capture time-dependent behaviors like creep and stress relaxation in materials. Which of the following best describes the purpose of adaptive meshing in Abaqus? A) To automatically refine the mesh in regions with high stress gradients during analysis B) To generate initial mesh based on geometry C) To simplify the model before analysis D) To perform mesh quality diagnostics post-analysis Answer: A Explanation: Adaptive meshing refines the mesh dynamically during analysis in response to solution gradients, improving accuracy. In Abaqus, what is a common application of coupled-field analysis? A) To analyze static mechanical problems only B) To simulate phenomena involving interactions between multiple physical fields, such as thermal and mechanical C) To perform only thermal analyses D) To replace the need for meshing complex geometries Answer: B
Explanation: Coupled-field analysis models interactions between different physical phenomena, such as thermal-mechanical or electro- mechanical interactions. Which Abaqus solver type is generally more computationally intensive but more accurate for nonlinear static problems? A) Abaqus/Explicit B) Abaqus/Standard C) Abaqus/CFD D) Abaqus/Flow Answer: B Explanation: Abaqus/Standard employs an implicit solver suitable for accurate nonlinear static and steady-state analyses, albeit with higher computational effort. What is the primary benefit of using Python scripting in Abaqus/CAE? A) To perform finite element meshing automatically B) To automate repetitive tasks, customize workflows, and extend functionalities C) To replace the need for the GUI entirely D) To perform post-processing only Answer: B
Which technique in Abaqus allows for modeling the interaction between fluids and structures, such as blood flow in arteries? A) Abaqus/Standard static analysis B) Abaqus/Explicit impact simulation C) Fluid-Structure Interaction (FSI) modeling D) Mesh refinement only Answer: C Explanation: FSI modeling captures the interaction between fluid flows and structural response, essential for biomedical and hydraulic simulations. How does Abaqus handle the simulation of complex layered composite materials? A) Using single-layer isotropic properties B) By defining multiple material layers with different properties and interactions between layers C) Only through simplified shell elements D) By assuming homogeneous material properties across the entire model Answer: B Explanation: Abaqus models layered composites by defining different material properties for each layer and specifying their interactions.
Which of the following is a common method for reducing analysis time in large models? A) Increasing mesh density B) Simplifying the model geometry and applying symmetry boundary conditions C) Using more detailed material models D) Running the analysis without boundary conditions Answer: B Explanation: Simplification and exploiting symmetry reduce model size and computational effort, speeding up analysis. What role does the output request play in Abaqus post-processing? A) To define what data is saved during the analysis for later visualization and analysis B) To set mesh parameters C) To assign boundary conditions D) To generate the initial geometry Answer: A Explanation: Output requests specify which results variables (e.g., stress, displacement) are saved during the simulation for post-processing. Which of the following best describes the purpose of a mesh convergence study?
B) To model resistance to sliding and adhesion between contacting surfaces C) To assign boundary conditions D) To perform thermal analysis only Answer: B Explanation: Friction defines the resistance to relative motion at contact interfaces, critical for contact modeling accuracy. What is the main purpose of the 'Job' in Abaqus? A) To define the geometry of the model B) To compile and run the simulation analysis using the defined model C) To visualize results D) To assign material properties Answer: B Explanation: A 'Job' in Abaqus is the analysis task that runs the simulation based on the model setup. Which analysis type would you select in Abaqus to evaluate the effect of a sudden impact on a structure? A) Static analysis B) Transient dynamic analysis using Abaqus/Explicit C) Modal analysis
D) Buckling analysis Answer: B Explanation: Transient dynamic analysis with Abaqus/Explicit is ideal for simulating impact events involving rapid load application. Which of the following is a benefit of using symmetry boundary conditions? A) To simulate the entire structure without modeling the symmetric part B) To increase analysis complexity C) To restrict all degrees of freedom globally D) To model contact interactions only Answer: A Explanation: Symmetry boundary conditions allow modeling only a portion of the structure, reducing computational effort while capturing the full behavior. Which material model would you choose to simulate the behavior of a plastic component that undergoes permanent deformation? A) Linear elastic B) Plasticity C) Hyperelasticity D) Viscoelasticity
Explanation: History output records specific variables (like displacement or stress) over time or load steps for detailed analysis. Which feature in Abaqus allows for the simulation of crack initiation and propagation? A) Contact modeling B) Fracture mechanics modules and cohesive zone modeling C) Boundary condition definition D) Mesh refinement only Answer: B Explanation: Fracture mechanics techniques, such as cohesive zone modeling, enable simulation of crack growth and propagation. How does Abaqus handle large datasets during simulation? A) By automatically reducing data size B) Through efficient data management, parallel processing, and memory optimization techniques C) By limiting the number of output variables D) By preventing large analyses from running Answer: B Explanation: Abaqus employs data management strategies and parallel processing to efficiently handle large datasets during analysis.
Which element type is most suitable for modeling a slender beam subjected to bending in Abaqus? A) Solid element B) Truss element C) Beam element D) Shell element Answer: C Explanation: Beam elements are ideal for modeling slender structures subjected to bending, axial, and torsional loads efficiently. In Abaqus, what does the term 'mesh refinement' typically refer to? A) Increasing the element size to reduce computation time B) Decreasing the element size in critical regions to improve accuracy C) Removing unnecessary elements from the model D) Changing material properties Answer: B Explanation: Mesh refinement involves decreasing element size in regions with high gradients to improve solution accuracy. Which analysis type is primarily used to determine the critical buckling load of a structure?
