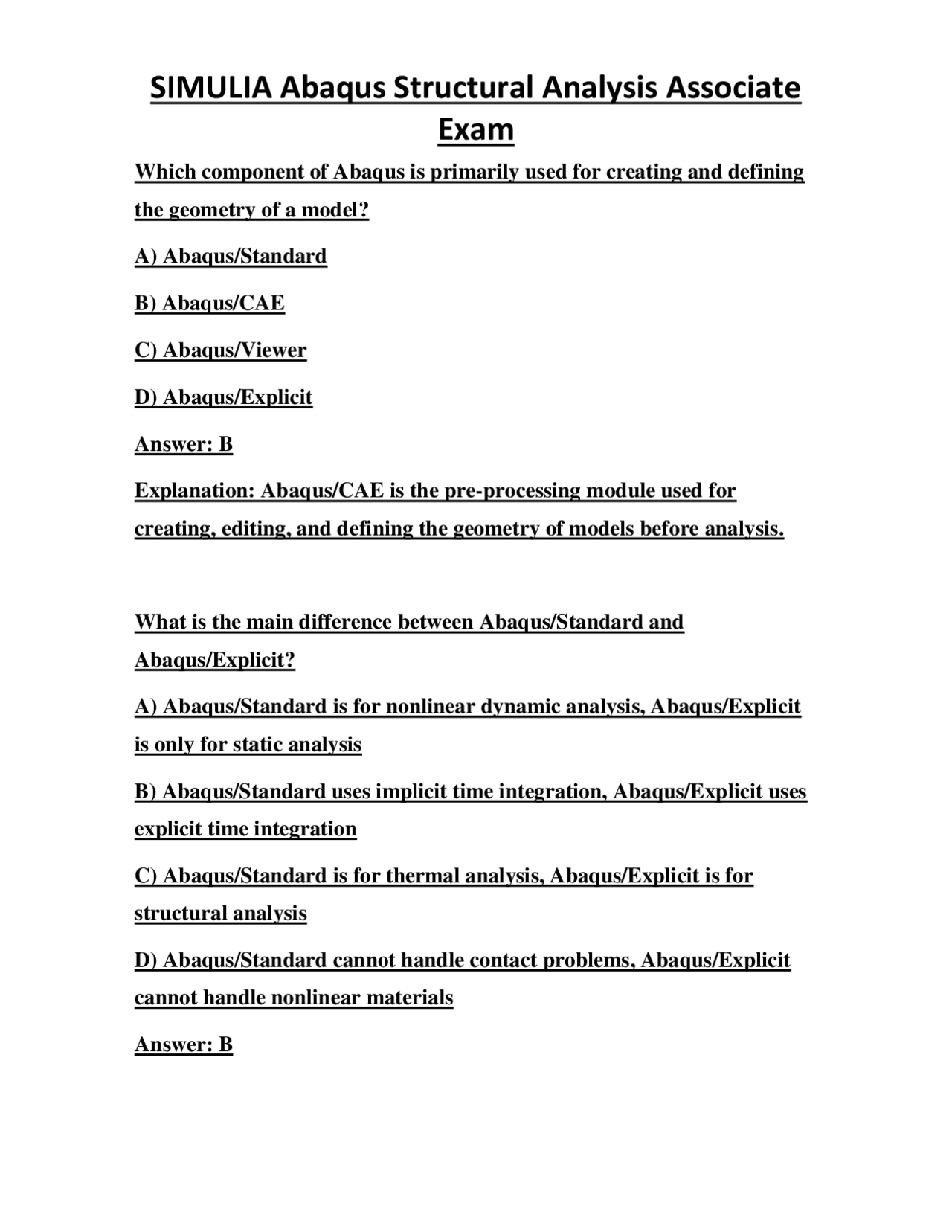

Which component of Abaqus is primarily used for creating and defining the geometry of a model? A) Abaqus/Standard B) Abaqus/CAE C) Abaqus/Viewer D) Abaqus/Explicit Answer: B Explanation: Abaqus/CAE is the pre-processing module used for creating, editing, and defining the geometry of models before analysis. What is the main difference between Abaqus/Standard and Abaqus/Explicit? A) Abaqus/Standard is for nonlinear dynamic analysis, Abaqus/Explicit is only for static analysis B) Abaqus/Standard uses implicit time integration, Abaqus/Explicit uses explicit time integration C) Abaqus/Standard is for thermal analysis, Abaqus/Explicit is for structural analysis D) Abaqus/Standard cannot handle contact problems, Abaqus/Explicit cannot handle nonlinear materials Answer: B
Exam
Explanation: Abaqus/Standard uses an implicit time integration method suitable for static and quasi-static problems, while Abaqus/Explicit uses an explicit method ideal for high-speed dynamic events. Why is finite element analysis (FEA) important in structural engineering? A) It provides exact solutions for all structures B) It allows for approximate solutions of complex structures that are difficult to solve analytically C) It replaces the need for physical testing entirely D) It simplifies the structure to a single element for analysis Answer: B Explanation: FEA provides approximate solutions for complex structural problems, enabling engineers to predict behavior accurately where analytical solutions are impractical. Which Abaqus module is primarily responsible for postprocessing results? A) Abaqus/CAE B) Abaqus/Standard C) Abaqus/Viewer D) Abaqus/Explicit
Exam
Explanation: Discretization involves dividing the structure into finite elements, enabling the approximate numerical solution of complex structural problems. Which type of finite element is most suitable for modeling a thin-walled cylindrical shell? A) Solid element B) Beam element C) Shell element D) Truss element Answer: C Explanation: Shell elements are ideal for modeling thin-walled structures like cylindrical shells because they capture bending and membrane behavior efficiently. When importing geometry from a CAD tool into Abaqus, which file formats are commonly used? A) STL and OBJ B) STEP and IGES C) DWG and DXF D) PDF and DOCX Answer: B
Exam
Explanation: STEP and IGES are standard CAD exchange formats compatible with Abaqus for importing complex geometries. Which mesh type is characterized by a structured, grid-like pattern? A) Unstructured mesh B) Hybrid mesh C) Structured mesh D) Tetrahedral mesh Answer: C Explanation: A structured mesh has a regular, grid-like pattern, making it easier to control element size and quality in certain regions. What is the effect of increasing mesh density in finite element analysis? A) Decreases solution accuracy B) Reduces computational effort C) Improves solution accuracy but increases computation time D) Has no impact on the results Answer: C Explanation: Finer meshes generally lead to more accurate results but require more computational resources.
Exam
A) Displacement with zero value in all directions B) Free boundary condition C) Symmetry boundary condition D) Prescribed displacement with non-zero value Answer: A Explanation: Fixed supports enforce zero displacement in all directions, preventing movement at the support. Which load type would be most appropriate to simulate the effect of wind pressure on a building facade? A) Thermal load B) Mechanical pressure load C) Dynamic force load D) Body force load Answer: B Explanation: Mechanical pressure loads simulate external pressures like wind acting uniformly or non-uniformly on surfaces. In static analysis, what does the term 'convergence' refer to? A) The process of simplifying the model geometry
Exam
B) The iterative process reaching a solution where residuals are minimized within a tolerance C) The physical joining of two separate parts D) The removal of boundary conditions after analysis Answer: B Explanation: Convergence in numerical analysis indicates that the iterative solution process stabilizes, and residual errors are below specified thresholds. Which analysis type is used to determine the natural frequencies and mode shapes of a structure? A) Static analysis B) Modal analysis C) Thermal analysis D) Nonlinear analysis Answer: B Explanation: Modal analysis computes eigenvalues and eigenvectors, revealing natural frequencies and corresponding mode shapes. How does Abaqus handle large deformations in nonlinear analysis? A) Using linear elastic assumptions only
Exam
C) Heat flux boundary condition D) Thermal insulation Answer: B Explanation: A temperature boundary condition prescribes a fixed temperature at a specified region. In a thermal-structural coupled analysis, what phenomenon is primarily studied? A) Heat transfer only B) Structural deformation under thermal stresses due to temperature gradients C) Fluid flow in thermal systems D) Electromagnetic effects in structures Answer: B Explanation: Thermal-structural coupling examines how temperature changes induce stresses and deformations in structures. Which postprocessing tool in Abaqus/CAE allows for creating animations of the structural response over time? A) XY Plot B) Contour Plot C) Step-Sequence Animation
Exam
D) Reaction Force Plot Answer: C Explanation: Step-Sequence Animation visualizes how the structure responds dynamically during a simulation. Which result quantity is typically used to assess the safety of a structure under load? A) Displacement magnitude B) Reaction force C) Safety factor based on stress limits D) Mesh density Answer: C Explanation: The safety factor compares allowable stresses to actual stresses, indicating the margin of safety. What is the purpose of sensitivity-based optimization in Abaqus? A) To explore different material models B) To systematically improve structural performance by adjusting design variables C) To generate an initial mesh D) To perform a failure analysis only
Exam
Explanation: Large deformations and complex contact interactions can lead to convergence issues due to numerical difficulties. Which industry heavily relies on Abaqus for crashworthiness and impact simulations? A) Aerospace B) Civil engineering C) Automotive D) Food processing Answer: C Explanation: Automotive industry uses Abaqus extensively for crash, impact, and safety simulations. Which best practice enhances the efficiency of structural analysis models in Abaqus? A) Using the highest mesh density everywhere B) Structuring models for modularity and scalability C) Ignoring material nonlinearities D) Avoiding boundary conditions to save time Answer: B Explanation: Modular and scalable models improve computational efficiency and facilitate updates and modifications.
Exam
During exam preparation, what is an effective strategy for managing time? A) Spend maximum time on difficult questions B) Allocate time proportionally to question marks and skip difficult questions temporarily C) Attempt all questions without reviewing answers D) Focus only on conceptual questions and ignore scenario-based questions Answer: B Explanation: Prioritizing questions based on difficulty and marks helps manage time effectively during the exam. Which element type is preferred for modeling a thin, curved metallic shell structure? A) Solid element B) Shell element C) Beam element D) Truss element Answer: B Explanation: Shell elements are optimized for thin, curved structures like metallic shells.
Exam
Which Abaqus feature allows for automatic contact detection between parts? A) Manual contact definition B) Automatic contact detection using surface-to-surface contact C) Frictionless contact only D) Contact must always be defined manually for each interface Answer: B Explanation: Abaqus can automatically detect and define contact interactions between surfaces during modeling. In thermal-structural analysis, what does thermal expansion cause? A) Cooling of the structure B) Stress development due to temperature changes causing expansion or contraction C) Decrease in material stiffness D) No mechanical effect Answer: B Explanation: Thermal expansion induces stresses as parts expand or contract with temperature variations. Which postprocessing technique helps visualize the distribution of stresses across a model?
Exam
A) XY plot B) Contour plot C) Reaction force plot D) Deformed shape plot Answer: B Explanation: Contour plots display the spatial distribution of stresses or strains across the model surface or section. Which of the following is a common challenge in nonlinear contact analysis? A) Mesh independence B) Convergence issues due to complex contact interactions C) Excessively fast solution times D) Lack of boundary conditions Answer: B Explanation: Nonlinear contact problems often face convergence difficulties because of complex interactions and frictional effects. Which is a typical application of Abaqus in civil engineering? A) Stress analysis of bridges and buildings B) Financial risk modeling
Exam
Answer: C Explanation: Beam or truss elements are ideal for 1D structural members due to their simplicity and efficiency. What is the primary advantage of using multi-objective optimization? A) To optimize a single design parameter B) To balance multiple conflicting design goals simultaneously C) To eliminate the need for constraints D) To perform a static analysis only Answer: B Explanation: Multi-objective optimization aims to find the best trade-offs among several conflicting objectives. Which scripting language is used to automate simulation workflows in Abaqus? A) Visual Basic B) FORTRAN C) Python D) JavaScript Answer: C
Exam
Explanation: Python scripting is integrated into Abaqus for automation and customization of analysis workflows. What is a typical cause of poor mesh quality in Abaqus? A) Using too few elements B) Elements with high aspect ratio or skewness C) Excessive mesh refinement D) Proper boundary conditions Answer: B Explanation: Poor element quality often results from high aspect ratios or skewness, leading to inaccurate results. Which analysis type is most appropriate for studying the vibration characteristics of a structure? A) Static analysis B) Modal analysis C) Thermal analysis D) Nonlinear static analysis Answer: B Explanation: Modal analysis determines natural frequencies and mode shapes related to vibrations.
