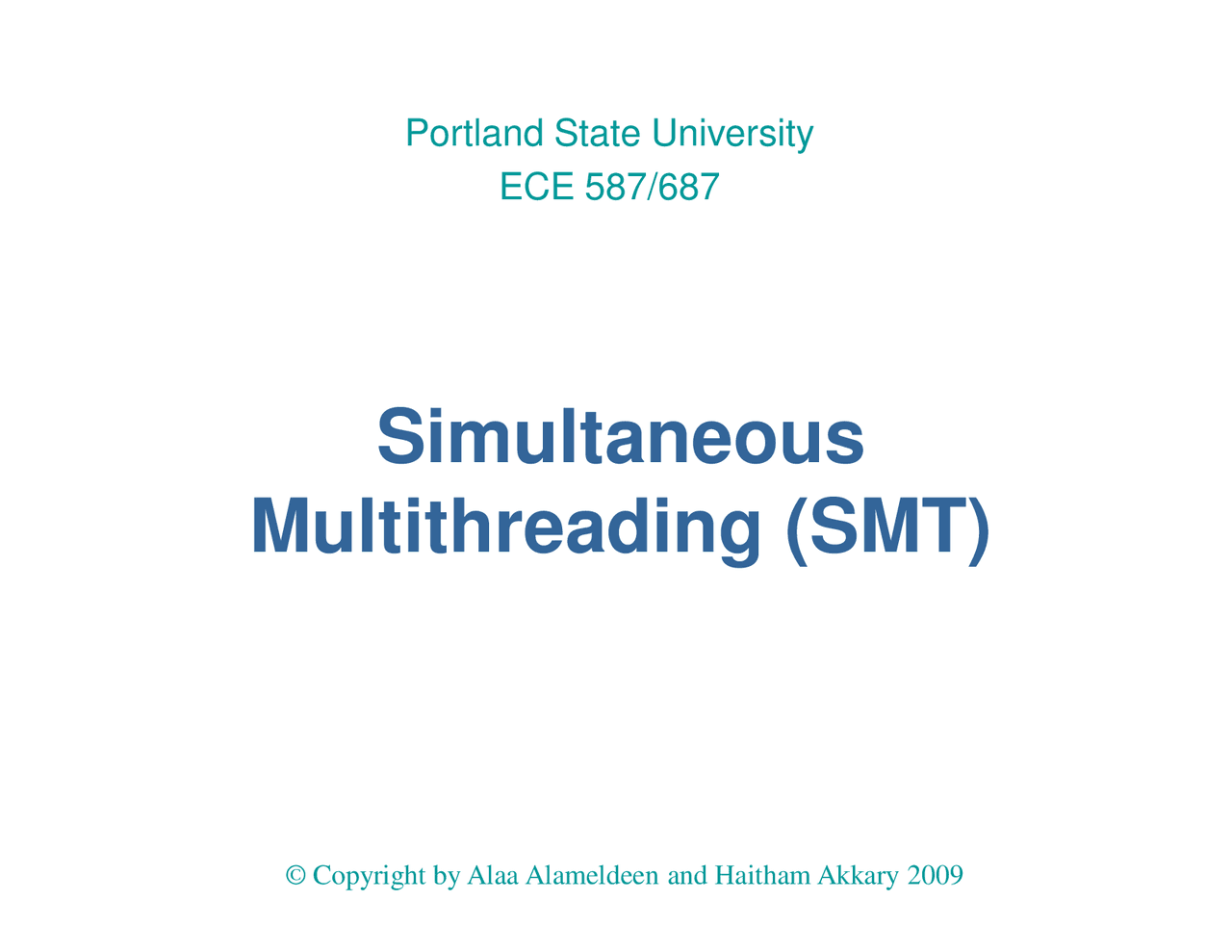

© Copyright by Alaa Alameldeen and Haitham Akkary 2009
Simultaneous
Multithreading (SMT)
Portland State University ECE 587/
Motivation
ILP limitations of superscalar processors
Many control, data and functional dependences
Wide superscalar pipelines cannot use all issueslots
Vertical Waste: All issue slots in a cycle are notused Horizontal waste: Some issue slots in a cycle arenot used Paper Figure 1
To increase throughput, we need to use thread-level parallelism (TLP)
Multithreading Alternatives
Fine-grain multithreading
During each cycle, a single thread is allowed toissue instructions Removes vertical waste Still limited by ILP available within each thread
Simultaneous Multithreading
During each cycle, any thread can issueinstructions (instructions from different threads canbe issued at the same time) Addresses both horizontal and vertical waste
Superscalar Processors: Where Have Cycles Gone?
Discuss Paper Figure 2
Issue slots are utilized only 19% of the time Lots of causes for issue stall cycles Need aggressive latency-hiding techniques
Multiple causes for stalls can be addressed usinglatency-hiding techniques
Paper Table 3
Simultaneous Multithreading Models (Cont.)
SM: Limited Connection
Each thread is connected to exactly one of eachtype of functional unit Limits scheduling choices for functional units toreduce hardware complexity
Hardware Complexity: Paper Table 4
SMT Performance
Paper Figure 3
Fine-grain MT can only increase throughput by afactor of 2.
SMT has much higher speedup
Alternatives to execute 4 instructions per cycle
Four issue or full SMT with 3-4 threads Dual issue SMT with 4 threads Limited Connection SMT with 5 threads Single issue SMT with 6 threads
SMT vs. Multiprocessors
Paper Figure 5
SMT outperforms multiprocessing for all scenarioscompared
Advantages of SMT vs. MP
Area efficiency Reducing number of threads (i.e., threads becomingidle) allows other threads to progress faster in SMTprocessors, no change in MP Granularity and flexibility of design: Unit of design is awhole processor for MP, more flexible in SMT Disadvantages? (discuss)
SMT Design Issues
Hardware complexity Scheduling hardware requirements increase with threads Register file size increase May need more ports Pipeline depth Bigger structures (e.g., register file) require longer accesstime Leads to increasing the number of pipeline stages Issue policy Fixed thread priority Round-Robin priority ICOUNT Others?
