AQ-01/CA2/AM/SPR’09 20/01/2009 Marks: 10 / Time: 13min
Name: ______________________________________ Roll No: _________________ Section: ________
Page 1/2
Note: Do not attach any extra sheet. You can use the back of the sheet if absolutely necessary.

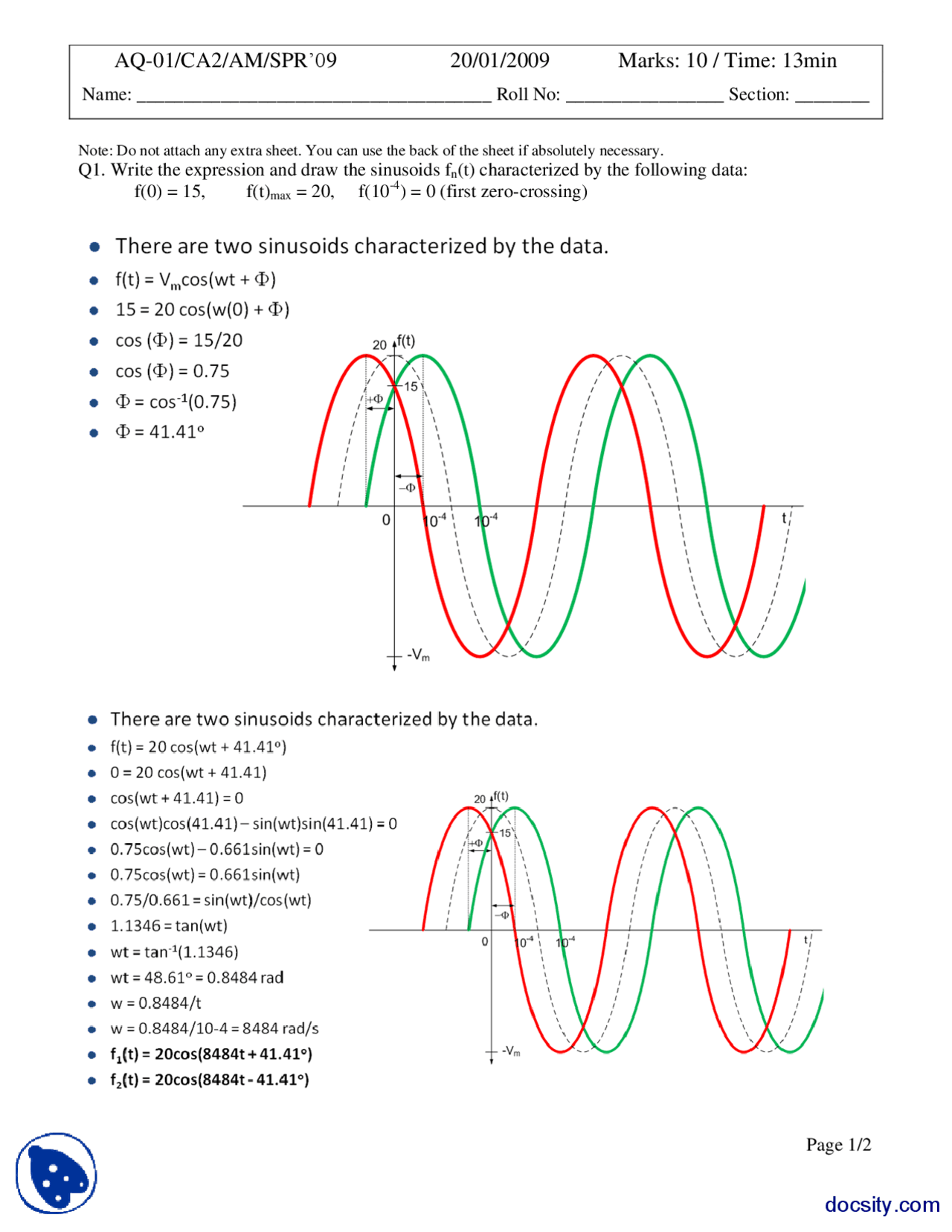

Q1. Write the expression and draw the sinusoids fn(t) characterized by the following data:
f(0) = 15, f(t)max = 20, f(10-4) = 0 (first zero-crossing)
docsity.com
pf2

Partial preview of the text

Download Sinusoids-Circuit Analysis-Exam Paper and more Exams Electrical Circuit Analysis in PDF only on Docsity!

AQ-01/CA2/AM/SPR’0 9 20/01/2009 Marks: 10 / Time: 13min

Name: ______________________________________ Roll No: _________________ Section: ________ Page 1/ Note: Do not attach any extra sheet. You can use the back of the sheet if absolutely necessary. Q1. Write the expression and draw the sinusoids fn(t) characterized by the following data: f(0) = 15, f(t)max = 20, f(

  • ) = 0 (first zero-crossing)

docsity.com

AQ-01/CA2/AM/SPR’0 9 20/01/2009 Marks: 10 / Time: 13min

Name: ______________________________________ Roll No: _________________ Section: ________ Page 2/ Q2. For y 1 = -15+j26, y 2 = 10<-135o, y 3 = j , solve 3 1 2
