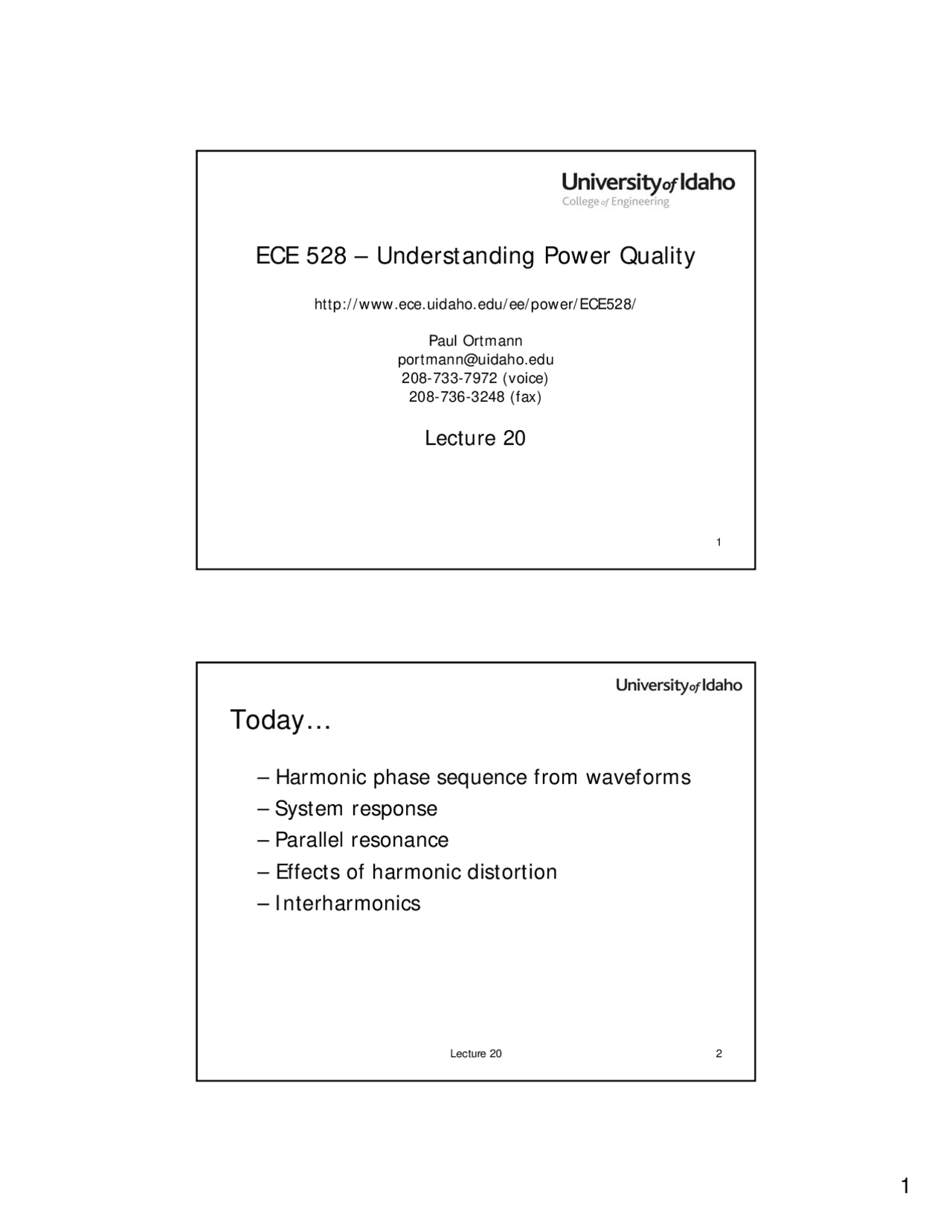

Lecture 20
1
ECE 528 – Understanding Power Quality
Paul Ortmann
208-733-7972 (voice)
208-736-3248 (fax)
http://www.ece.uidaho.edu/ee/power/ECE528/
Lecture 20 2
Today…
Harmonic phase sequence from waveforms
System response
Parallel resonance
Effects of harmonic distortion
Interharmonics
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Understanding Power Quality: Harmonics, Parallel Resonance, and Derating Transformers - Pr and more Study notes Electrical and Electronics Engineering in PDF only on Docsity!

Lecture 20

1

ECE 528 – Understanding Power Quality

Paul Ortmann [email protected] 208-733-7972 (voice) 208-736-3248 (fax)

http://www.ece.uidaho.edu/ee/power/ECE528/

Lecture 20 2

Today…

  • Harmonic phase sequence from waveforms
  • System response
  • Parallel resonance
  • Effects of harmonic distortion
  • Interharmonics

Lecture 20 3

Harmonic phase sequence clarification

  • A graphical example of harmonic phase sequence
    • Three-phase fundamental and 2nd^ harmonic waveforms

A

B

C

Sequence is ABC for fundamental, ACB for 2nd harmonic

Lecture 20 4

Triplen harmonics on three-phase systems

  • Triplen harmonics in a three-phase system
    • Three-phase fundamental and 3rd harmonic waveforms

Third harmonic waveforms are in phase – they add in the neutral

C

A

B

Lecture 20 7

Series resonance

  • Created by series combination of transformer and capacitor
  • May affect customers with no non-linear load
  • May damage utility capacitors near customers with non-linear loads

Lecture 20 8

A real-world example

Lecture 20 9

Effects of harmonic distortion

  • Capacitors
    • Overheating
    • Blown fuses
    • May provide a path to the neutral for triplen harmonics
  • Transformers
    • Harmonic current and voltage distortion will contribute to transformer heating

Lecture 20 10

Derating transformers serving non-linear loads

  • Note corrections to PSQ text:
    • p213, “table 5.2” should be “table 6.5” (p275)
    • Also, eq. 5.30 is wrong; K-factor is not the same as FHL (Harmonic Loss Factor) See FPQ eq. 6. and 6.69 for correct definitions.
  • Transformer losses due to harmonic currents:
    • I 2 R losses – increased RMS current=more losses
    • Eddy-Current Losses – increase with the square of the current frequency

Lecture 20 13

Derating transformers serving non-linear loads FPQ pg 216-

  • Changes to losses with harmonics:
  • In per-unit…

P

I 2 R

P

I 2 R R− h

Ih

IR

⎛ ⎜ ⎝

⎞ ⎟ ⎠

2

The summation is a factor that increases the RMS value of the current in the I^2 R losses based on harmonic content. IR is rated current.

P I^2 R

( pu) h

Ih 2

∑⎡ ⎣ (^ pu)⎤ ⎦

Lecture 20 14

Derating transformers serving non-linear loads FPQ pg 216-

  • Changes to losses with harmonics:
  • In per-unit…

The summation is a factor that increases the eddy current losses by the square of the frequency causing the losses.

PEC PEC R− h

Ih IR

2 ⋅h 2

PEC ( pu) PEC R− ( pu) h

⎡Ih (^ pu)

2 h 2

Lecture 20 15

Derating transformers serving non-linear loads FPQ pg 216-

  • A little rearranging… PLL (pu ) P I 2 R

( pu) +PEC ( pu)

PLL ( pu) h

∑ ⎡ ⎣I h^2 (pu^ )⎤ ⎦ PEC R− (^ pu) h

  • ⋅∑⎡⎣⎡⎣ I h ( pu)⎤⎦^2 ⋅h 2 ⎤⎦

PLL( pu ) h

∑ ⎡ ⎣I h^2 (^ pu)⎤ ⎦^1 PEC R− (^ pu)^

h

⎡Ih (pu^ ) ⎣ ⎤⎦

⎡^2 ⋅h 2 ⎣

⎤ ∑ ⎦

h

∑⎡ ⎣I h^2 (^ pu)⎤ ⎦

⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎣

⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎦

Lecture 20 16

Derating transformers serving non-linear loads FPQ pg 216-

  • F HL – the harmonic loss factor for eddy currents:

FHL h

∑⎡⎣⎡⎣ I h (^ pu)⎤⎦^2 ⋅h^2 ⎤⎦

h

∑⎡ ⎣I h^2 (pu^ )⎤ ⎦

See other forms of this equation in eq. 6.60, p. 218.

Lecture 20 19

Derating transformers serving non-linear loads

  • Example from FPQ p. 219.
    • From table 6.4:
    • From table 6.6:

PEC_R :=0.

FHL

:= FHL =6.

Lecture 20 20

Derating transformers serving non-linear loads

  • The result:
  • For a current with the harmonic spectrum described in table 6.5, the transformer should be derated to 77.16% of its nameplate capacity.

Derating

1 +PEC_R 1 +FHL ⋅PEC_R

Derating 0.

The “allowable current” calculation in P.U. translates directly to a derating factor

Lecture 20 21

Derating transformers serving non-linear loads

  • Another way – The K-factor (FPQ p. 221):
  • Using K-factor, we compute the K-factor for a given current and select a K-rated transformer accordingly.
  • Note: K-factor depends on the magnitude of the current
    • we can reduce K by reducing overall loading; in effect derating the transformer.

K_factor h

∑⎛ ⎝ Ih^2 h^2 ⎞ ⎠

IR 2

Lecture 20 22

Other impacts

  • Motors
    • For motors, the impact of harmonic voltages is similar to that of negative sequence fundamental frequency voltages – heating
  • Telecommunication systems
    • Higher frequency currents on the power system will more easily couple to nearby communication circuits
