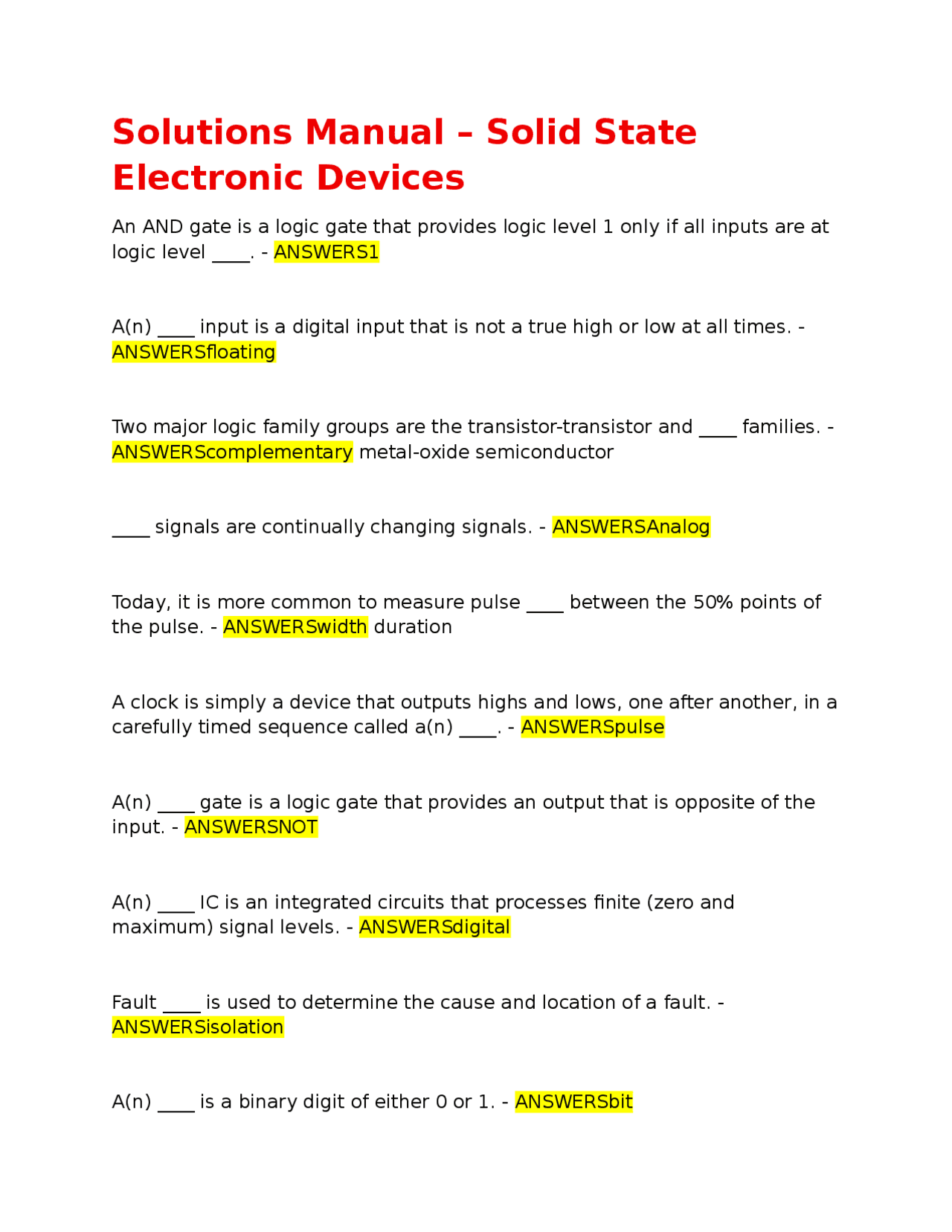

Solutions Manual – Solid State
Electronic Devices
An AND gate is a logic gate that provides logic level 1 only if all inputs are at
logic level ____. - ANSWERS1
A(n) ____ input is a digital input that is not a true high or low at all times. -
ANSWERSfloating
Two major logic family groups are the transistor-transistor and ____ families. -
ANSWERScomplementary metal-oxide semiconductor
____ signals are continually changing signals. - ANSWERSAnalog
Today, it is more common to measure pulse ____ between the 50% points of
the pulse. - ANSWERSwidth duration
A clock is simply a device that outputs highs and lows, one after another, in a
carefully timed sequence called a(n) ____. - ANSWERSpulse
A(n) ____ gate is a logic gate that provides an output that is opposite of the
input. - ANSWERSNOT
A(n) ____ IC is an integrated circuits that processes finite (zero and
maximum) signal levels. - ANSWERSdigital
Fault ____ is used to determine the cause and location of a fault. -
ANSWERSisolation
A(n) ____ is a binary digit of either 0 or 1. - ANSWERSbit
