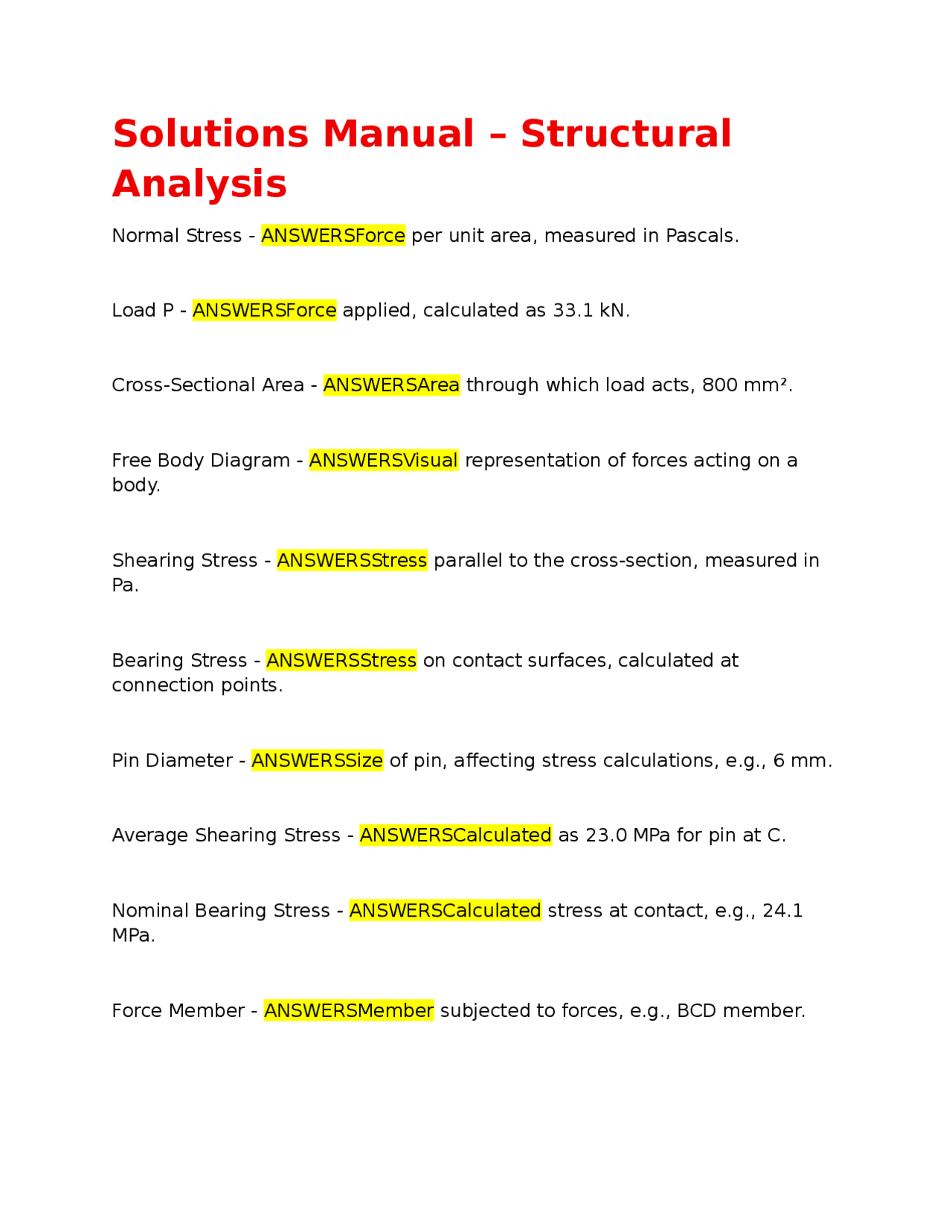

Solutions Manual – Structural
Analysis
Normal Stress - ANSWERSForce per unit area, measured in Pascals.
Load P - ANSWERSForce applied, calculated as 33.1 kN.
Cross-Sectional Area - ANSWERSArea through which load acts, 800 mm².
Free Body Diagram - ANSWERSVisual representation of forces acting on a
body.
Shearing Stress - ANSWERSStress parallel to the cross-section, measured in
Pa.
Bearing Stress - ANSWERSStress on contact surfaces, calculated at
connection points.
Pin Diameter - ANSWERSSize of pin, affecting stress calculations, e.g., 6 mm.
Average Shearing Stress - ANSWERSCalculated as 23.0 MPa for pin at C.
Nominal Bearing Stress - ANSWERSCalculated stress at contact, e.g., 24.1
MPa.
Force Member - ANSWERSMember subjected to forces, e.g., BCD member.
