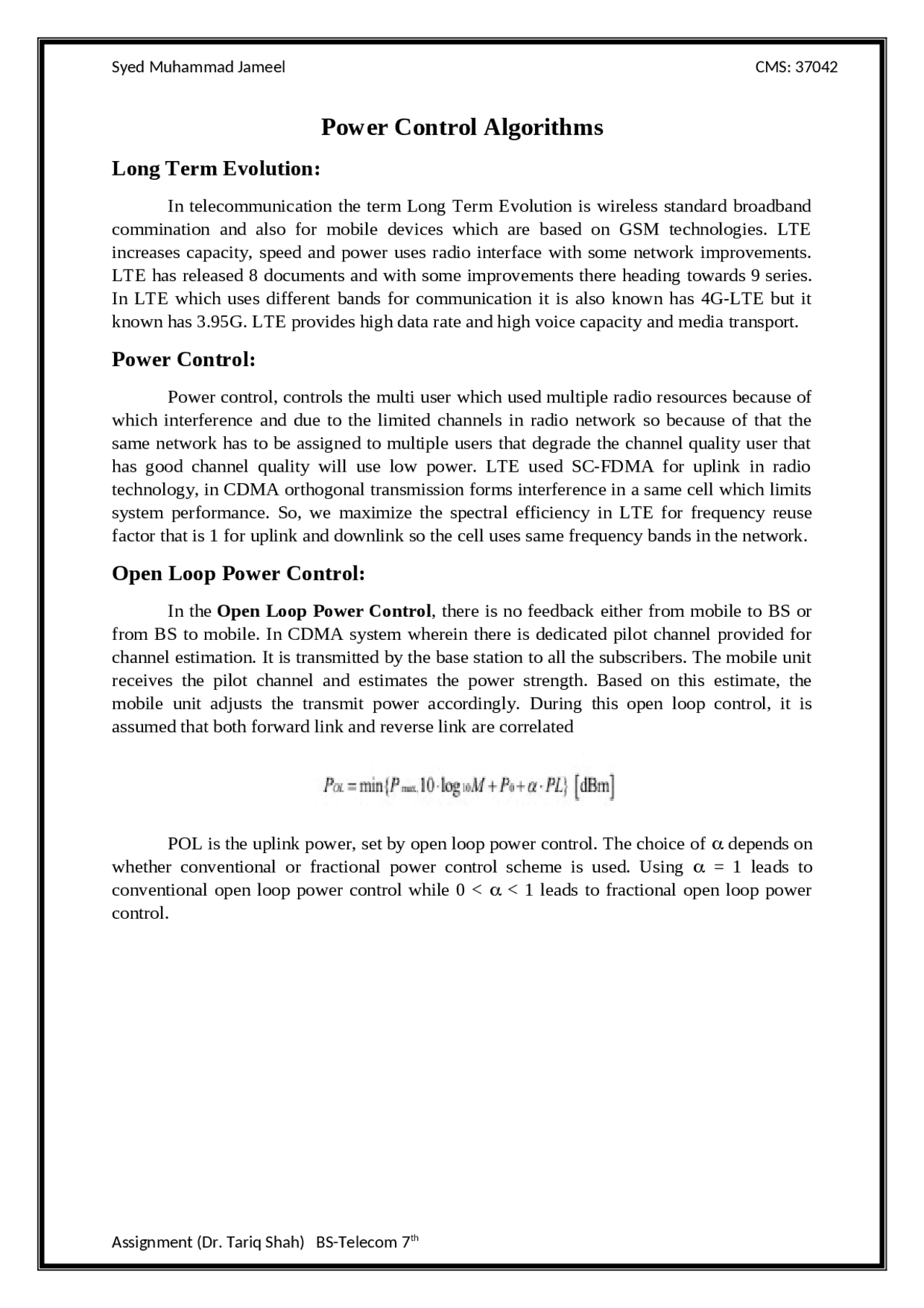

Syed Muhammad Jameel CMS: 37042
Power Control Algorithms
Long Term Evolution:
In telecommunication the term Long Term Evolution is wireless standard broadband
commination and also for mobile devices which are based on GSM technologies. LTE
increases capacity, speed and power uses radio interface with some network improvements.
LTE has released 8 documents and with some improvements there heading towards 9 series.
In LTE which uses different bands for communication it is also known has 4G-LTE but it
known has 3.95G. LTE provides high data rate and high voice capacity and media transport.
Power Control:
Power control, controls the multi user which used multiple radio resources because of
which interference and due to the limited channels in radio network so because of that the
same network has to be assigned to multiple users that degrade the channel quality user that
has good channel quality will use low power. LTE used SC-FDMA for uplink in radio
technology, in CDMA orthogonal transmission forms interference in a same cell which limits
system performance. So, we maximize the spectral efficiency in LTE for frequency reuse
factor that is 1 for uplink and downlink so the cell uses same frequency bands in the network.
Open Loop Power Control:
In the0Open Loop Power Control, there is no feedback either from mobile to BS or
from BS to mobile. In CDMA system wherein there is dedicated pilot channel provided for
channel estimation. It is transmitted by the base station to all the subscribers. The mobile unit
receives the pilot channel and estimates the power strength. Based on this estimate, the
mobile unit adjusts the transmit power accordingly. During this open loop control, it is
assumed that both forward link and reverse link are correlated
POL is the uplink power, set by open loop power control. The choice of depends on
whether conventional or fractional power control scheme is used. Using = 1 leads to
conventional open loop power control while 0 < < 1 leads to fractional open loop power
control.
