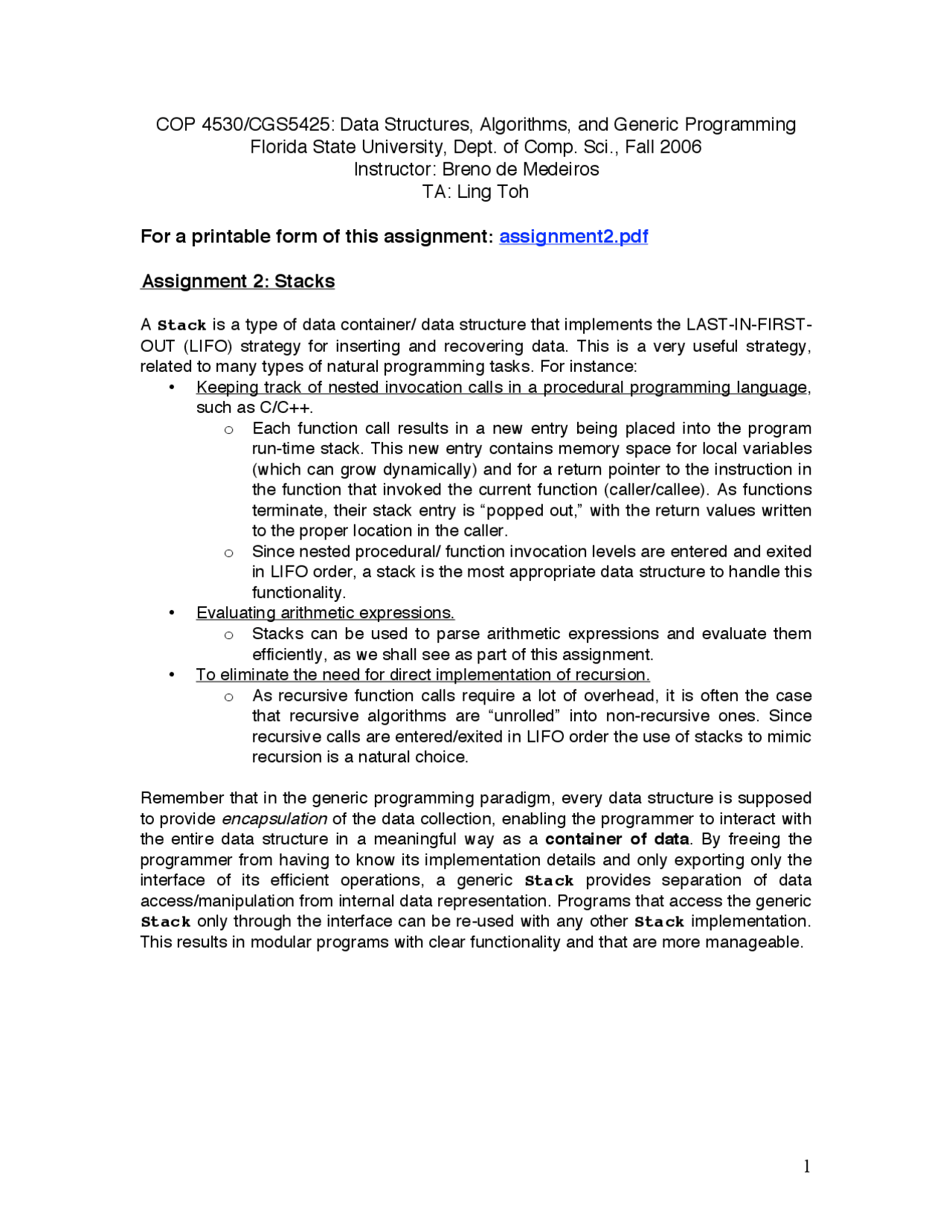

COP 4530/CGS5425: Data Structures, Algorithms, and Generic Programming

Florida State University, Dept. of Comp. Sci., Fall 2006

Instructor: Breno de Medeiros

TA: Ling Toh

For a printable form of this assignment: assignment2.pdf

Assignment 2: Stacks

A Stack is a type of data container/ data structure that implements the LAST-IN-FIRST-

OUT (LIFO) strategy for inserting and recovering data. This is a very useful strategy,

related to many types of natural programming tasks. For instance:

• Keeping track of nested invocation calls in a procedural programming language,

such as C/C++.

o Each function call results in a new entry being placed into the program

run-time stack. This new entry contains memory space for local variables

(which can grow dynamically) and for a return pointer to the instruction in

the function that invoked the current function (caller/callee). As functions

terminate, their stack entry is “popped out,” with the return values written

to the proper location in the caller.

o Since nested procedural/ function invocation levels are entered and exited

in LIFO order, a stack is the most appropriate data structure to handle this

functionality.

• Evaluating arithmetic expressions.

o Stacks can be used to parse arithmetic expressions and evaluate them

efficiently, as we shall see as part of this assignment.

• To eliminate the need for direct implementation of recursion.

o As recursive function calls require a lot of overhead, it is often the case

that recursive algorithms are “unrolled” into non-recursive ones. Since

recursive calls are entered/exited in LIFO order the use of stacks to mimic

recursion is a natural choice.

Remember that in the generic programming paradigm, every data structure is supposed

to provide

encapsulation

of the data collection, enabling the programmer to interact with

the entire data structure in a meaningful way as a container of data. By freeing the

programmer from having to know its implementation details and only exporting only the

interface of its efficient operations, a generic Stack provides separation of data

access/manipulation from internal data representation. Programs that access the generic

Stack only through the interface can be re-used with any other Stack implementation.

This results in modular programs with clear functionality and that are more manageable.

Partial preview of the text

Download Stacks - Data Structures, Algorithms Generic Programming - Assignment 2 | COP 4530 and more Assignments Computer Science in PDF only on Docsity!

COP 4530/CGS5425: Data Structures, Algorithms, and Generic Programming

Florida State University, Dept. of Comp. Sci., Fall 2006

Instructor: Breno de Medeiros

TA: Ling Toh

For a printable form of this assignment: assignment2.pdf

Assignment 2: Stacks

A Stack is a type of data container/ data structure that implements the LAST-IN-FIRST- OUT (LIFO) strategy for inserting and recovering data. This is a very useful strategy, related to many types of natural programming tasks. For instance:

Keeping track of nested invocation calls in a procedural programming language, such as C/C++. o Each function call results in a new entry being placed into the program run-time stack. This new entry contains memory space for local variables (which can grow dynamically) and for a return pointer to the instruction in the function that invoked the current function (caller/callee). As functions terminate, their stack entry is “popped out,” with the return values written to the proper location in the caller. o Since nested procedural/ function invocation levels are entered and exited in LIFO order, a stack is the most appropriate data structure to handle this functionality.
Evaluating arithmetic expressions. o Stacks can be used to parse arithmetic expressions and evaluate them efficiently, as we shall see as part of this assignment.
To eliminate the need for direct implementation of recursion. o As recursive function calls require a lot of overhead, it is often the case that recursive algorithms are “unrolled” into non-recursive ones. Since recursive calls are entered/exited in LIFO order the use of stacks to mimic recursion is a natural choice. Remember that in the generic programming paradigm, every data structure is supposed to provide encapsulation of the data collection, enabling the programmer to interact with the entire data structure in a meaningful way as a container of data. By freeing the programmer from having to know its implementation details and only exporting only the interface of its efficient operations, a generic Stack provides separation of data access/manipulation from internal data representation. Programs that access the generic Stack only through the interface can be re-used with any other Stack implementation. This results in modular programs with clear functionality and that are more manageable.

Goals:

Implement a generic Stack
Write a program that parses Infix artithmetic expressions to Postfix arithmetic expressions using a Stack
Write a program that evaluates Postfix arithmetic expressions using a Stack More detailed descriptions for each of the above tasks are now provided. Task1: Implement a GenericStack:

GenericStack MUST store elements internally in a BasicContainer.
It should use only the public interface to BasicContainer , as we will compile/link your GenericStack implementation with our BasicContainer class.
Therefore, in particular GenericStack MUST: o be able to store elements of an arbitrary type. o have a no-argument constructor that initializes it to some size. This size MUST NOT be so large as to prevent a calling program to initialize several GenericStack instances in a single execution. Suggested length values are 10, 16, or 256. o Every GenericStack MUST instance holding n elements MUST accept insertions as long as the system has enough free memory to dynamically allocate an array of 2n+1 elements at insertion request time, regardless of the initial capacity of the GenericStack. If the system does not have such free memory, GenericStack MUST report an error message as the result of the insertion request.
GenericStack MUST implement the full interface specified below
You MUST provide both the template (in a class named GenericStack.h) and the implementation (in a class named GenericStack.cpp).

Interface:

The interface of GenericStack is specified below. It provides for the following public functionality, all of which can be efficiently achieved using an internal array representation for the data. GenericStack(): no-argument constructor. Initializes the Stack to some pre-specified capacity. ~GenericStack (): destructor. GenericStack (const GenericStack &): copy constructor. GenericStack& operator= (const GenericStack &): similar to the copy constructor.

(5 + 3) * 12 - 7 is an infix arithmetic expression that evaluates to 89 5 + 3 * 12 – 7 is an infix arithmetic expression that evaluates to 34 For the sake of comparison, postfix arithmetic expressions (also known as reverse Polish notation) equivalent to the above examples are: 5 3 + 12 * 7 – 5 3 12 * + 7 – Two characteristics of the Postfix notation are (1) any operator, such as ‘+’ or ‘/’ is applied to the two prior operand values, and (2) it does not require ever the use of parenthesis. More examples: a + b1 * c + ( dd * e + f ) * G in Infix notation becomes a b1 c * + dd e * f + G * + in Postfix notation To implement Infix to Postfix conversion with a stack, one parses the expression as sequence of space-separated strings. When an operand (i.e., an alphanumeric string) is read in the input, it is immediately output. Operators (i.e., ‘-‘, ‘*’) may have to be saved by placement in the operator_stack. We also stack left parentheses. Start with an initially empty operator_stack. Follow these 4 rules for processing operators/parentheses:

If input symbol is ‘(‘, push it into stack.
If input operator is ‘+’, ‘-‘, ‘*’, or ‘/’, repeatedly print the top of the stack to the output and pop the stack until the stack is either (i) empty ; (ii) a ‘(‘ is at the top of the stack; or (iii) a lower-precedence operator is at the top of the stack. Then push the input operator into the stack.
If input operator is ‘)’ and the last input processed was an operator, report an error. Otherwise, repeatedly print the top of the stack to the output and pop the stack until a ‘(‘ is at the top of the stack. Then pop the stack discarding the parenthesis. If the stack is emptied without a ‘(‘ being found, report error.
If end of input is reached and the last input processed was an operator or ‘(‘ report error. Otherwise print the top of the stack to the output and pop the stack until the stack is empty. If an ‘(‘ is found in the stack during this process, report error. For more details on how the PostfixInfix conversion works, look up section 3.6 of the textbook. Evaluating Infix Arithmetic Expressions

After converting a given expression in Infix notation to Postfix notation, you will evaluate the resulting arithmetic expression IF all the operands are numeric (int, float, etc.) values. Otherwise, if the resulting Infix expression contains characters, your output should be equal to the input. Example inputs: 5 3 + 12 * 7 – 5 3 12 * + 7 – 3 5 * c – 10 / Example outputs: 89 34 3 5 * c – 10 / To achieve this, you will have an operand_stack, initially empty. Assume that the expression contains only numeric operands (no variable names). Operands are pushed into the stack as they are ready from the input. When an operator is read from the input, remove the two values on the top of the stack, apply the operator to them, and push the result onto the stack. If an operator is read and the stack has fewer than two elements in it, report an error. If end of input is reached and the stack has more than one operand left in it, report an error. If end of input is reached and the stack has exactly one operand in it, print that as the final result, or 0 if the stack is empty. For more information on the evaluation of Infix notation arithmetic expressions, look up section 3.6 of the textbook. We provide scripts with example input and output values. Summarizing task 2. Your program should expect as input from (possibly re-directed) stdin a series of space-separated strings. If you read a1 (no space) this is the name of the variable a and not ‘a’ followed by ‘ 1 ’. Similarly, if you read ‘bb 12’, this is a variable ‘bb’ followed by the number ‘ 12 ’ and not ‘b’ ,‘b’, ‘ 12 ’ or ‘bb’, ‘ 1 ’ ,‘ 2 ’. Your program should convert all Infix expressions to Postfix expressions, including expressions that contain variable names. The resulting Postfix expression should be printed to stdout. Your program should evaluate the computed Postfix expressions that contain only numeric operands, using the above algorithm, and print the results to stdout.

Restrictions

You MAY NOT use any C++ STL classes in addition to the GenericStack, BasicContainer, and ANSI string class for all your data structures.
