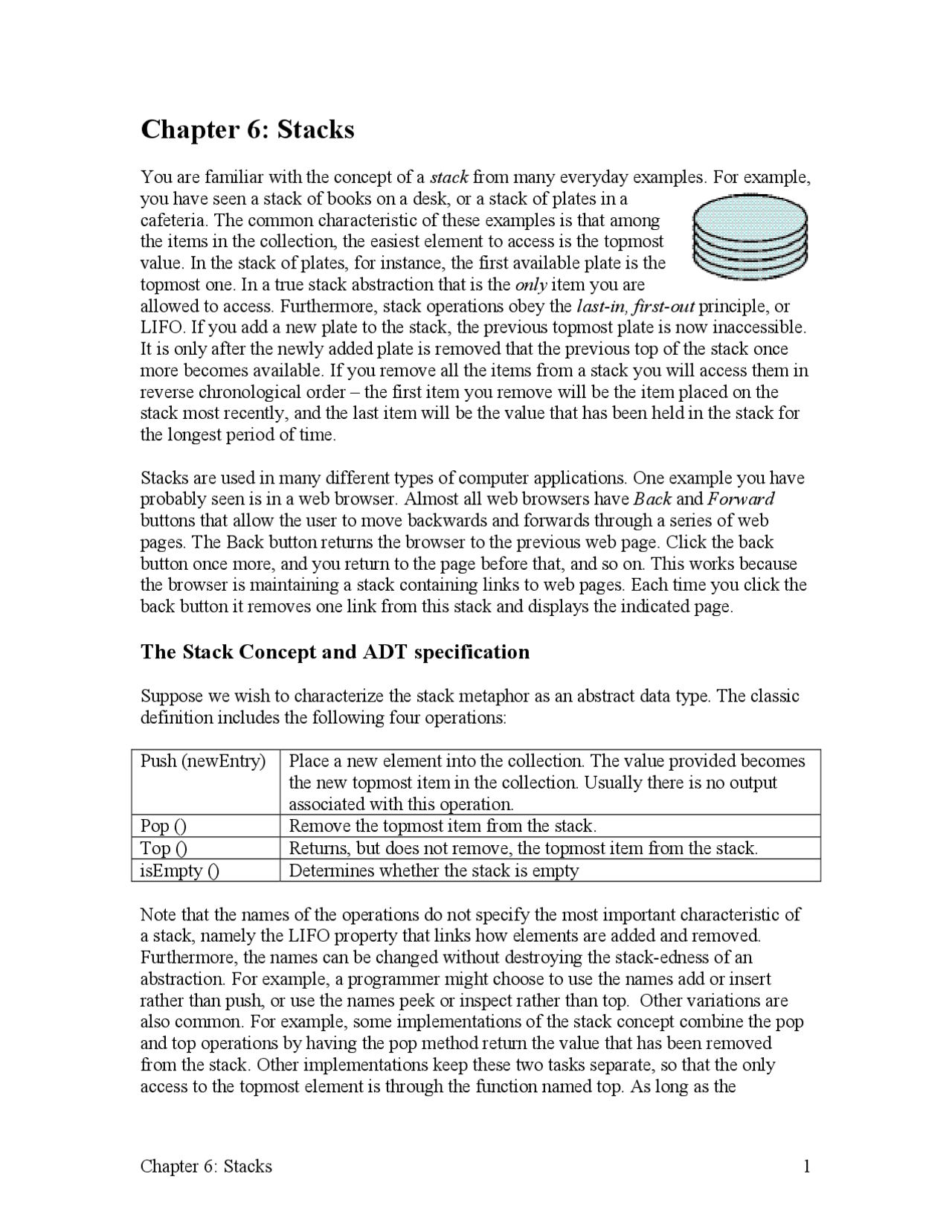

Chapter 6: Stacks
You are familiar with the concept of a stack from many everyday examples. For example, you have seen a stack of books on a desk, or a stack of plates in a cafeteria. The common characteristic of these examples is that among the items in the collection, the easiest element to access is the topmost value. In the stack of plates, for instance, the first available plate is the topmost one. In a true stack abstraction that is the only item you are allowed to access. Furthermore, stack operations obey the last-in, first-out principle, or LIFO. If you add a new plate to the stack, the previous topmost plate is now inaccessible. It is only after the newly added plate is removed that the previous top of the stack once more becomes available. If you remove all the items from a stack you will access them in reverse chronological order – the first item you remove will be the item placed on the stack most recently, and the last item will be the value that has been held in the stack for the longest period of time. Stacks are used in many different types of computer applications. One example you have probably seen is in a web browser. Almost all web browsers have Back and Forward buttons that allow the user to move backwards and forwards through a series of web pages. The Back button returns the browser to the previous web page. Click the back button once more, and you return to the page before that, and so on. This works because the browser is maintaining a stack containing links to web pages. Each time you click the back button it removes one link from this stack and displays the indicated page.
The Stack Concept and ADT specification
Suppose we wish to characterize the stack metaphor as an abstract data type. The classic definition includes the following four operations: Push (newEntry) Place a new element into the collection. The value provided becomes the new topmost item in the collection. Usually there is no output associated with this operation. Pop () Remove the topmost item from the stack. Top () Returns, but does not remove, the topmost item from the stack. isEmpty () Determines whether the stack is empty Note that the names of the operations do not specify the most important characteristic of a stack, namely the LIFO property that links how elements are added and removed. Furthermore, the names can be changed without destroying the stack-edness of an abstraction. For example, a programmer might choose to use the names add or insert rather than push, or use the names peek or inspect rather than top. Other variations are also common. For example, some implementations of the stack concept combine the pop and top operations by having the pop method return the value that has been removed from the stack. Other implementations keep these two tasks separate, so that the only access to the topmost element is through the function named top. As long as the
fundamental LIFO behavior is retained, all these variations can still legitimately be termed a stack. Finally, there is the question of what to do if a user attempts to apply the stack operations incorrectly. For example, what should be the result if the user tries to pop a value from an empty stack? Any useful implementation must provide some well-defined behavior in this situation. The most common implementation technique is to throw an exception or an assertion error when this occurs, which is what we will assume. However, some designers choose to return a special value, such as null. Again, this design decision is a secondary issue in the development of the stack abstraction, and whichever design choice is used will not change whether or not the collection is considered to be a stack, as long as the essential LIFO property of the collection is preserved. The following table illustrates stack operations in several common languages: Java class Stack C++ stack adapter Python list push push(value) push(value) lst.append(value) pop pop() pop Del lst[-1] top peek() top() lst[-1] isEmpty empty() empty() len(lst) == 0 In a pure stack abstraction the only access is to the topmost element. An item stored deeper in the stack can only be obtained by repeatedly removing the topmost element until the value in question rises to the top. But as we will see in the discussion of implementation alternatives, often a stack is combined with other abstractions, such as a dynamic array. In this situation the data structure allows other operations, such as a search or direct access to elements. Whether or not this is a good design decision is a topic explored in one of the lessons described later in this chapter. To illustrate the workings of a stack, consider the following sequence of operations: push(“abe”) push(“amy”) push(“andy”) pop() push(“anne”) push(“alfred”) pop() pop() The following diagram illustrates the state of the stack after each of the eight operations.
Question : Web browsers often provide a history feature, which records all web pages accessed in the recent past. How is this different from the back stack? Describe how the history should change when each of the three following conditions occurs: (a) when the user moves to a new page by pressing a hyperlink, (b) when the user restores an old page by pressing the back button, and (c) when the user moves forward by pressing the forward button.
Buffered Character Input
An operating system uses a stack in order to correctly process backspace keys in lines of input typed at a keyboard. Imagine that you enter several keys and then discover a mistake. You press the backspace key to move backward over a previously entered character. Several backspaces may be used in turn to erase more than one character. If we use < to represent the backspace character, imagine that you typed the following: correcktw<<<<t tw<ext The operating system function that is handling character input will arrive at the correct text because it stores the characters as they are read in a stack-like fashion. Each non-backspace character is simply pushed on the stack. When a backspace is typed, the topmost character is popped from the stack and erased. Question : What should be the effect if the user enters a backspace key and there are no characters in the input?
Activation Record Stack
Another example of a stack that we discussed briefly in an earlier chapter is the activation record stack. This term describes the spaced used by a running program to store parameters and local variables. Each time a function or method is invoked, space is set aside for these values. This space is termed an activation record. For example, suppose we execute the following function void a (int x) int y y = x - 23; y = b (y)
When the function a is invoked the activation record looks something like the following: Imagine that b has the following recursive definition int b (int p) if (p < 15) return 1; else return 1 + b(p-1) Each time the function b is invoked a new activation record is created. New local variables and parameters are stored in this record. Thus there may be many copies of a local variable stored in the stack, one for each current activation of the recursive procedure. Functions, whether recursive or not, have a very simple execution sequence. If function a calls function b, the execution of function a is suspended while function b is active. Function b must return before function a can resume. If function b calls another function, say c, then this same pattern will follow. Thus, function calls work in a strict stack-like fashion. This makes the operation of the activation record stack particularly easy. Each time a function is called new area is created on the activation record stack. Each time a function returns the space on the activation record stack is popped, and the recovered space can be reused in the next function call. Question : What should (or what does) happen if there is no available space in memory for a new activation record? What condition does this most likely represent?
Checking Balanced Parenthesis
A simple application that will illustrate the use of the stack operations is a program to check for balanced parenthesis and brackets. By balanced we mean that every open parenthesis is matched with a corresponding close parenthesis, and parenthesis are properly nested. We will make the problem slightly more interesting by considering both parenthesis and brackets. All other characters are simply ignored. So, for example, the inputs (x(y)(z)) and a( {(b)}c) are balanced, while the inputs w)(x) and p({(q)r)} are not.
associativity rules when desired. For example, we could explicitly have written 6 – (3 – 2). The evaluation of infix expressions is not always easy, and so an alternative notion, termed postfix notation , is sometimes employed. In postfix notation the operator is written after the operands. The following are some examples: Infix 2 + 3 2 + 3 * 4 (2 + 3) * 4 2 + 3 + 4 2 - (3 – 4) Postfix 2 3 + 2 3 4 * + 2 3 + 4 * 2 3 + 4 + 2 3 4 - - Notice that the need for parenthesis in the postfix form is avoided, as are any rules for precedence and associativity. We can divide the task of evaluating infix expressions into two separate steps, each of which makes use of a stack. These steps are the conversion of an infix expression into postfix, and the evaluation of a postfix expression.
Conversion of infix to postfix
To convert an infix expression into postfix we scan the value from left to right and divide the tokens into four categories. This is similar to the balanced parenthesis example. The categories are left and right parenthesis, operands (such as numbers or names) and operators. The actions for three of these four categories is simple: Left parenthesis Push on to stack Operand Write to output Right parenthesis Pop stack until corresponding left parenthesis is found. If stack becomes empty, report error. Otherwise write each operator to output as it is popped from stack The action for an operator is more complex. If the stack is empty or the current top of stack is a left parenthesis, then the operator is simply pushed on the stack. If neither of these conditions is true then we know that the top of stack is an operator. The precedence of the current operator is compared to the top of the stack. If the operator on the stack has higher precedence, then it is removed from the stack and written to the output, and the current operator is pushed on the stack. If the precedence of the operator on the stack is lower than the current operator, then the current operator is simply pushed on the stack. If they have the same precedence then if the operator associates left to right the actions are as in the higher precedence case, and if association is right to left the actions are as in the lower precedence case. The following diagram illustrates the state of the stack and the output as different characters in the input are read: picture
Question : Using this algorithm, show the state of the stack and the output for each of the following expressions: example
Evaluation of a postfix expression
The advantage of postfix notation is that there are no rules for operator precedence and no parenthesis. This makes evaluating postfix expressions particularly easy. As before, the postfix expression is evaluated left to right. Operands (such as numbers) are pushed on the stack. As each operator is encountered the top two elements on the stack are removed, the operation is performed, and the result is pushed back on the stack. Once all the input has been scanned the final result is left sitting in the stack. The following illustrates the state of the stack during the evaluation of the expression picture Question : Using this algorithm, show the state of the stack and the output for each of the following expressions. Question : What error conditions can arise if the input is not a correctly formed postfix expression? What happens for the expression 3 4 + +? How about 3 4 + 4 5 +?
Stack Implementation Techniques
In the worksheets we will discuss two of the major techniques that are typically used to create stacks. These are the use of a dynamic array, and the use of a linked list. Study questions that accompany each worksheet help you explore some of the design tradeoffs a programmer must consider in evaluating each choice. The self-study questions given at the end of this chapter are intended to help you measure your own understanding of the material. Exercises and programming assignments that follow the self-study questions will explore the concept in more detail. Worksheet 16 Introduction to the Dynamic Array Worksheet 17 Dynamic Array Stack Worksheet 18 Introduction to Linked List, Linked List Stack
Building a Stack using a Dynamic Array
An array is a simple way to store a collection of values:
be handled. The first occurs when an attempt is made to remove a value from an empty stack. In this situation you should throw a StackUnderflow exception. The second exceptional condition is more difficult. When a push instruction is requested but the size is equal to the capacity, there is no space for the new element. In this case a new array must be created. Typically, the size of the new array is twice the size of the current. Once the new array is created, the values are copied from existing array to the new array, and the new array replaces the current array. Since there is now enough room for the new element, it can be inserted. Worksheet 16 explores the implementation of a dynamic array stack. In the exercises at the end of the chapter you will explore the idea that while the worst case execution time for push is relatively slow, the worst case occurs relatively infrequently. Hence, the expectation is that in the average execution of push will be quite fast. We describe this situation by saying that the method push has constant amortized execution time.
Linked List Implementation of Stack
An alternative implementation approach is to use a linked list. Here, the container abstraction maintains a reference to a collection of elements of type Link. Each Link maintains two data fields, a value and a reference to another link. The last link in the sequence stores a null value in its link. The advantage of the linked list is that the collection can grow as large as necessary, and each new addition to the chain of links requires only a constant amount of work. Because there are no big blocks of memory, it is never necessary to copy an entire block from place to place. Worksheet 17 will introduce the idea of a linked list, and explore how a linked list can be used to implement a stack.
Memory Management The linked list and the Dynamic Array data structures take different approaches to the problem of memory management. The Dynamic Array uses a large block of memory. This means that memory allocation is much less common, but when it occurs much more work must be performed. The linked list allocates a new link every time a new element is added. This makes memory allocation more frequent, but as the memory blocks are small less work is performed on each allocation. If, as is often the case, a linked list is used to store pointers to a dynamically allocated value, then there are two dynamically allocated spaces to manage, the link and the data field itself: An important principle of good memory management is “everybody must clean up their own mess”. (This is sometimes termed the kindergarten principle ). The linked list allocates space for the link, and so must ensure that the space is freed by calling the associated pop routine. The user of the list allocates space for the data value, and must therefore ensure that the field is freed when no longer needed. Whenever you create a dynamically allocated value you need to think about how and when it will be freed. Earlier we pointed out the problem involved in placing a new element into the middle of a Dynamic Array (namely, that the following elements must then be moved). Linked lists will help solve this problem, although we have not yet demonstrated that in this chapter. For the Dynamic Array we created a single general-purpose data structure, and then showed how to use that data structure in a variety of ways. In examining the linked list we will take a different approach. Rather than making a single data abstraction, we will examine the idea of the linked list in a variety of different forms. In subsequent lessons we will examine a number of variations on this idea, such as header or sentinel links, single versus double links, maintaining a pointer to the last as well as the first link, and more. Occasionally you will find links placed directly into a data object. For example, suppose you were creating a card game, and needed a list of cards. One way to do this would be the following: Each card can then be used as a link in a linked list. link data value
- What would eventually happen if the pop function did not free the first link in the list?
- Suppose you wanted to test your linked list class. What would be some boundary value test cases? Develop a test harness program and execute your code with these test cases.
Short Exercises
- Describe the state of an initially empty stack after each of the following sequence of operations. Indicate the values held by any variables that are declared, and also indicate any errors that may occur: a. que.addLast(new Integer(3)); Object a = que.getLast(); que.addLast(new Integer(5)); que.removeLast(); b. que.addLast(new Integer(3)); que.addLast(new Integer(4)); que.removeLast(); que.removeLast(); Object a = que.getLast();
- What is the Polish notation representation of the following expression? (a * (b + c)) + (b / d) * a
- One problem with polish notation is that you cannot use the same symbol for both unary and binary operators. Illustrate this by assuming that the minus sign is used for both unary and binary negation, and explain the two alternative meanings for the following postfix polish expression: 7 5 - -
- Write an algorithm to translate a postfix polish expression into an infix expression that uses parenthesis only where necessary.
- Phil Parker runs a parking lot where cars are stored in six stacks holding at most three cars each. Patrons leave the keys in their cars so that they can be moved if necessary. picture Assuming that no other parking space is available, should Phil allow his parking space to become entirely full? Assuming that Phil cannot predict the time at which patrons will
return for their cars, how many spaces must he leave empty to ensure that he can reach any possible car?
- Imagine a railroad switching circuit such as the one below. Railroad cars are given unique numbers, from 1 onwards. Cars come in from the right in a random order, and the goal is to assemble the cars in numeric order on the left. picture For example, to assemble the cars in the sequence shown (2, 1, 3) the car numbered 2 would be switched on to the siding. Then car numbered 1 would be moved on to the siding and then to the left. Next car numbered 2 would be moved up from the siding and assembled behind car 1. Finally, car numbered 3 would be moved from the right to the left, via the siding. Notice that the cars in the siding work as a stack, since if a car is moved on to a nonempty siding the existing cars cannot be accessed until the new car is removed. Can you describe an algorithm that will rearrange the cars in sequential order regardless of the order in which they appear on the left? What is the complexity of your algorithm as a function of N, the number of cars entering on the right?
- Some people prefer to define the Stack data type by means of a series of axioms. An example axiom might be that if a push operation is followed by a top, the value returned will be the same as the value inserted. We can write this in a code like fashion as follows: Object val = new Integer(7); stk.push(val); boolean test = (val == stk.top()); // test must always be true Trace the ArrayStack implementation of the stack and verify the following axioms: Stack stk = new Stack(); boolean test = stk.isEmpty(); // should always be true stk.push(new Integer(2)); boolean test = stk.isEmpty(); // should always be false Stack stk = new Stack(); boolean test = stk.pop(); // should always raise error
- Using a ListStack as the implementation structure do the same analysis as in previous question.
- Does an ArrayStack or a ListStack use less memory? Assume for this question that a data value requires 1 unit of memory, and each memory reference (such as the next field in a Link, or the firstLink field in the ListStack, or the data field in the ArrayStack) also
each simple insertion, and n for each time an array of n elements is copied. Then print out a table showing 200 consequitive insertions into a stack, and the value of the unit cost at each step.
- The Java standard library contains a number of classes that are implemented using techniques similar to those you developed in the programming lessons described earlier. The classes Vector and ArrayList use the dynamic array approach, while the class LinkedList uses the idea of a linked list. One difference is that the names for stack operations are different from the names we have used here: Stack Vector ArrayList LinkedList Push(newValue) Add(newValue) Add(newValue) addFirst(newObject) Pop() Remove(size()-1) Remove(size()-1) removeFirst(ewObject) Top() lastElement() Get(size()-1) getFirst() IsEmpty() Size() == 0 isEmpty() isEmpty() Another difference is that the standard library classes are designed for many more tasks than simply representing stacks, and hence have a much larger interface. An important principle of modern software development is an emphasis on software reuse. Whenever possible you should leverage existing software, rather than rewriting new code that matches existing components. But there are various different techniques that can be used to achieve software reuse. In this exercise you will investigate some of these, and explore the advantages and disadvantages of each. All of these techniques leverage an existing software component in order to simplify the creation of something new. Imagine that you are a developer and are given the task of implementing a stack in Java. Part of the specifications insist that stack operations must use the push/pop/top convention. There are at least three different approaches you could use that
- If you had access to the source code for the classes in the standard library, you could simply add new methods for these operations. The implementation of these methods can be pretty trivial, since they need do nothing more than invoke existing functions using different names.
- You could create a new class using inheritance, and subclass from the existing class. class Stack extends Vector { … } Inheritance implies that all the functionality of the parent class is available automatically for the child class. Once more, the implementation of the methods
for your stack can be very simple, since you can simply invoke the functions in the parent class.
- The third alternative is to use composition rather than inheritance. You can create a class that maintains an internal data field of type Vector (alternatively, ArrayList or LinkedList). Again, the implementation of the methods for stack operations is very simple, since you can use methods for the vector to do most of the work. class Stack { private Vector data; … } Write the implementation of each of these. (For the first, just write the methods for the stack operations, not the other vector code). Then compare and contrast the three designs. Issues to consider in your analysis include readability/usability and encapsulation. By readability or usability we mean the following: how much information must be conveyed to a user of your new class before they can do their job. By encapsulation we mean: How good a job does your design do in guaranteeing the safety of the data? That is, making sure that the stack is accessed using only valid stack instructions. On the other hand, there may be reasons why you might want to allow the stack to be accessed using non-stack instructions. A common example is allowing access to all elements of the stack, not just the first. Which design makes this easier? If you are the developer for a collection class library (such as the developer for the Java collection library), do you think it is a better design choice to have a large number of classes with very small interfaces, or a very small number of classes that can each be used in a number of ways, and hence have very large interfaces? Describe the advantages and disadvantages of both approaches. The bottom line is that all three design choices have their uses. You, as a programmer, need to be aware of the design choices you make, and the reasons for selecting one alternative over another.
- In the previous question you explored various alternative designs for the Stack abstraction when built on top of an existing class. In some of those there was the potential that the end user could manipulate the stack using commands that were not part of the stack abstraction. One way to avoid this problem is to define a stack interface. An interface is similar to a class, but only describes the signatures for operations, not their implementations. An interface for the Stack abstraction can be given as follows: interface Stack { public void push (T newValue); public void pop ();
- Complete the implementation of a program that will read an infix expression from the user, and print out the corresponding postfix expression.
- Complete the implementation of a program that will read a postfix expression as a string, break the expression into parts, evaluate the expression and print the result.
- Combine parts 1 and 2 to create a program that will read an infix expression from the user, convert the infix expression into an equivalent postfix expression, then evaluate the postfix expression.
- Add a graphical user interface (GUI) to the calculator program. The GUI will consist of a table of buttons for numbers and operators. By means of these, the user can enter an expression in infix format. When the calculate button is pushed, the infix expression is converted to postfix and evaluated. Once evaluated, the result is displayed.
- Here is a technique that employs two stacks in order to determine if a phrase is a palindrome, that is, reads the same forward and backward (for example, the word “rotator'” is a palindrome, as is the string “rats live on no evil star”).
- Read the characters one by one and transfer them into a stack. The characters in the stack will then represent the reversed word.
- Once all characters have been read, transfer half the characters from the first stack into a second stack. Thus, the order of the words will have been restored.
- If there were an odd number of characters, remove one further character from the original stack.
- Finally, test the two stacks for equality, element by element. If they are the same, then the word is a palindrome. Write a procedure that takes a String argument and tests to see if it is a palindrome using this algorithm.
- In Chapter 5 you learned that a Bag was a data structure characterized by the following operations: add an element to the collection, test to see if an element is in the collection, and remove an element from the collection. We can build a bag using the same linked list techniques you used for the linked list stack. The add operation is the same as the stack. To test an element, simply loop over the links, examining each in turn. The only difficult operation is remove, since to remove a link you need access to the immediately preceding link. To implement this, one approach is to loop over the links using a pair of pointers. One pointer will reference the current link, while the second will always reference the immediate predecessor (or null, if the current link is the first element). That way, when
you find the link to remove, you simply update the predecessor link. Implement the three bag operations using this approach.
On the Web
The wikipedia entry for “Stack (data structure)” provides another good introduction to the concept. Other informative wikipedia entries include LIFO, call stack, and stack-based memory allocation. Wikipedia also provides a bibliographical sketch of Friedrich L. Bauer, the computer scientist who first proposed the use of stack for evaluating arithmetic expressions. The NIST Dictionary of Algorithms and Data Structures also has a simple description of the stack data type. (http://www.nist.gov/dads/HTML/stack.html) If you google “Stack in Java” (or C++, or C, or any other language) you will find many good examples.
