Problem 6.12

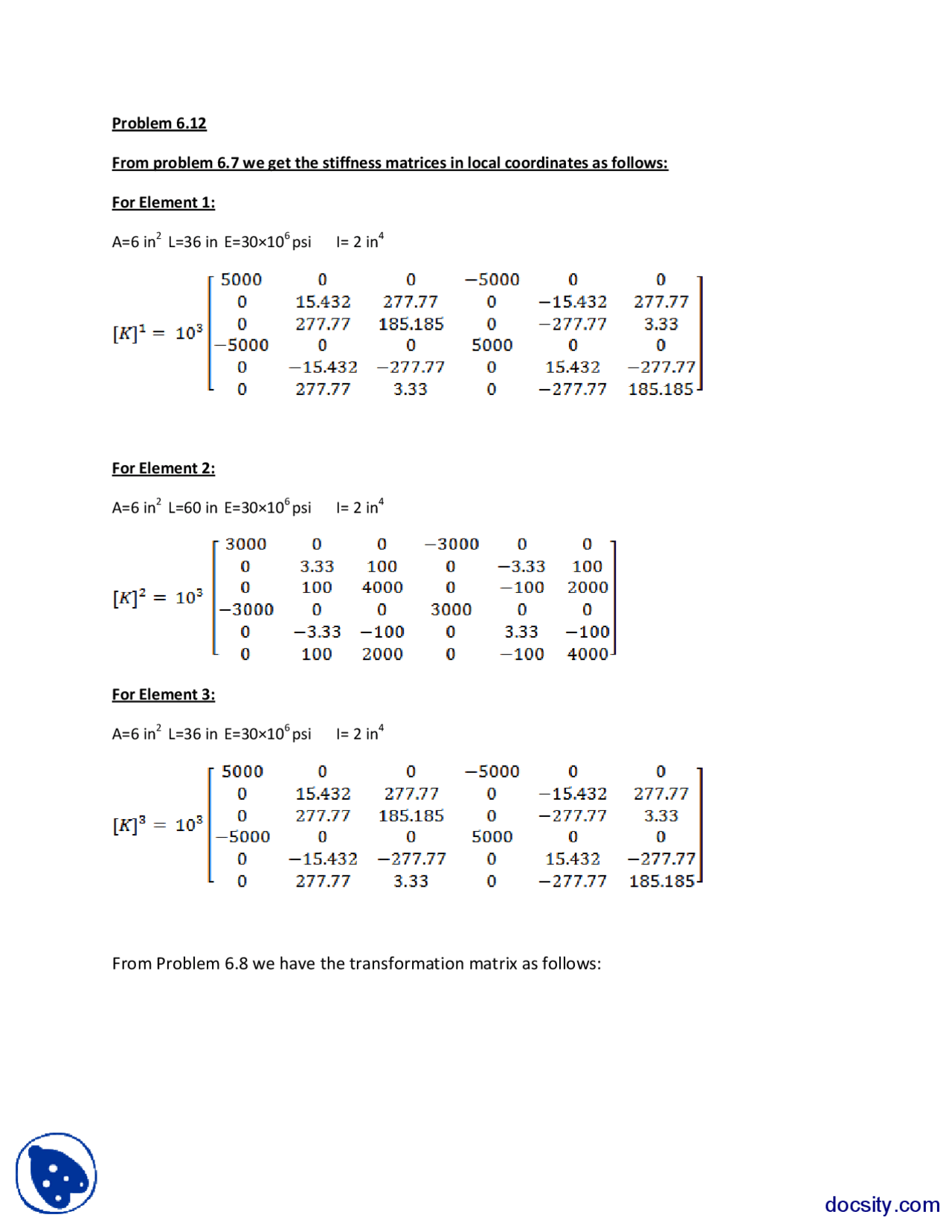

From problem 6.7 we get the stiffness matrices in local coordinates as follows:
For Element 1:
A=6 in2 L=36 in E=30×106 psi I= 2 in4
For Element 2:
A=6 in2 L=60 in E=30×106 psi I= 2 in4
For Element 3:
A=6 in2 L=36 in E=30×106 psi I= 2 in4
From Problem 6.8 we have the transformation matrix as follows:
docsity.com
pf3

Partial preview of the text

Download Stiffness Matrices and Global Assembly for Three Identical Structural Elements and more Exercises Mathematical Methods for Numerical Analysis and Optimization in PDF only on Docsity!

Problem 6. From problem 6.7 we get the stiffness matrices in local coordinates as follows: For Element 1: A=6 in^2 L=36 in E=30×10^6 psi I= 2 in^4 For Element 2: A=6 in^2 L=60 in E=30×10^6 psi I= 2 in^4 For Element 3: A=6 in^2 L=36 in E=30×10^6 psi I= 2 in^4

From Problem 6.8 we have the transformation matrix as follows:

Now we have the formulae for global matrix as follows

By applying this formulae we have the global stiffness matrices as follows:
