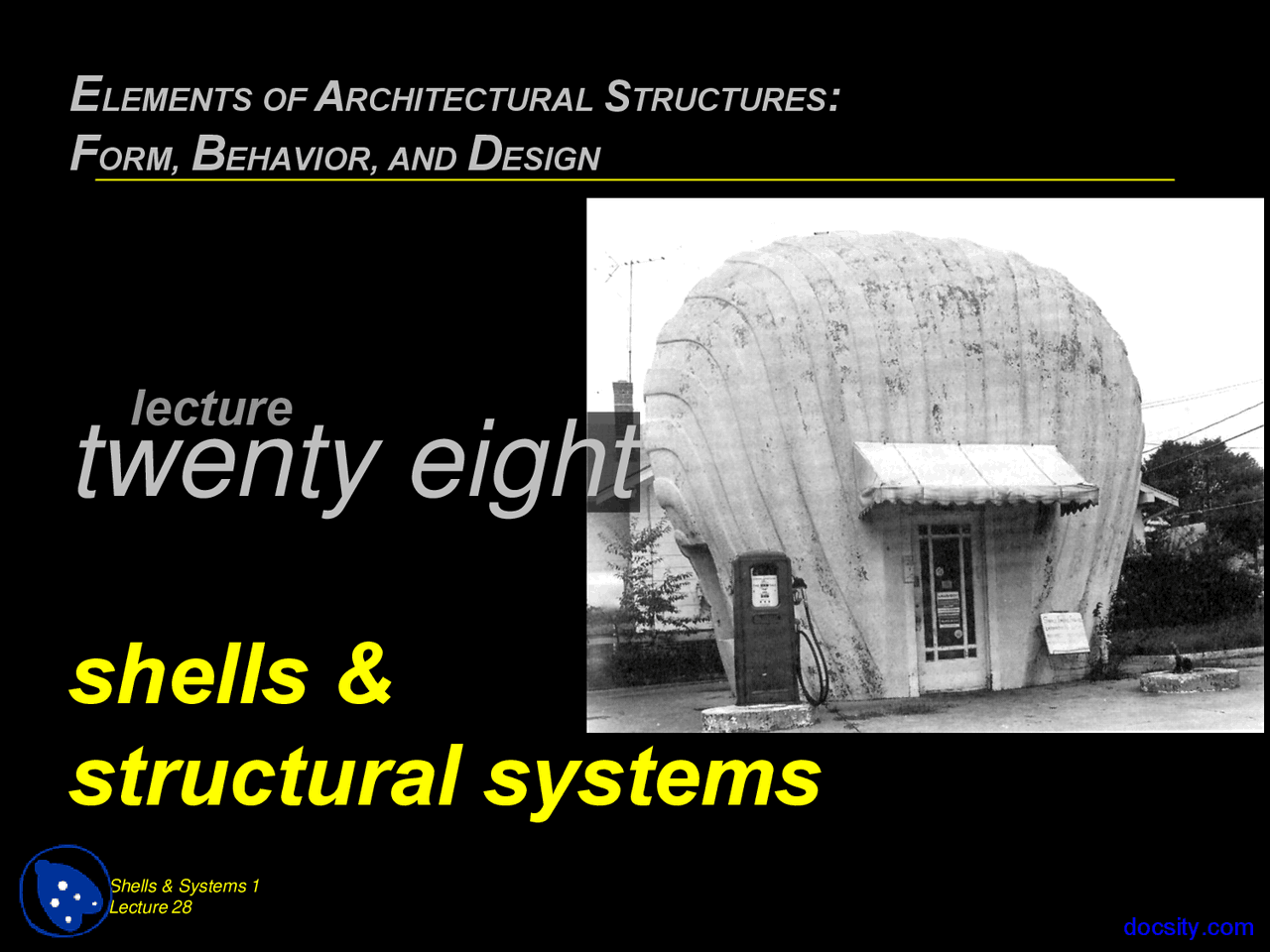

Shells & Systems 1 Lecture 28

ELEMENTS OF ARCHITECTURAL STRUCTURES: FORM, BEHAVIOR, AND DESIGN

lecture

twenty eight

shells &

structural systems

Shells & Systems 2 Lecture 28

Office Hours

not available at this time^ link to posted schedule

Shells & Systems 4 Lecture 28

Arches

• behavior
  • stabilization
  • resist thrust
• compression only

Shells & Systems 5 Lecture 28

Shell Types

• shape classifications
  • developable:
    • revolution (vault)
  • synclastic
    • doubly curved
    • same direction
  • anticlastic:
    • doubly curved
    • opposite curvature
  • free form

Shells & Systems 7 Lecture 28

Vaulted Shells

• can resist tension
• shape adds “depth”

Shells & Systems 10 Lecture 28

Kimball Museum, Kahn 1972

• skylights at peak

Shells & Systems 11 Lecture 28

Domes

• arch of revolution
• compression
• some tension

Shells & Systems 13 Lecture 28

Annunciation Greek Orthodox Church

• Wright, 1956

http://www.bluffton.edu

Shells & Systems 14 Lecture 28

Annunciation Greek Orthodox Church

• Wright, 1956

Shells & Systems 16 Lecture 28

Zarzuela Hippodrome, Torroja 1935

http://www.bluffton.edu

• Shells & Systems 8 Lecture
• Kimball Museum, Kahn
• Shells & Systems 17 Lecture
• Zarzuela Hippodrome, Torroja

Shells & Systems 19 Lecture 28

Illini Hall, Harrison & Abramovitz 1963

• Assembly Hall, University of Illinois
• Harrison & Abramovitz 1963
• Edge-supported dome spanning 400 feet wound with 614 miles of one-fifth inch steel wire

www.library.illinois.edu

Shells & Systems 20 Lecture 28

Systems

• total of components
• behavior of whole
• classifications
  • one-way
  • two-way
  • tubes
  • braced
  • unbraced
