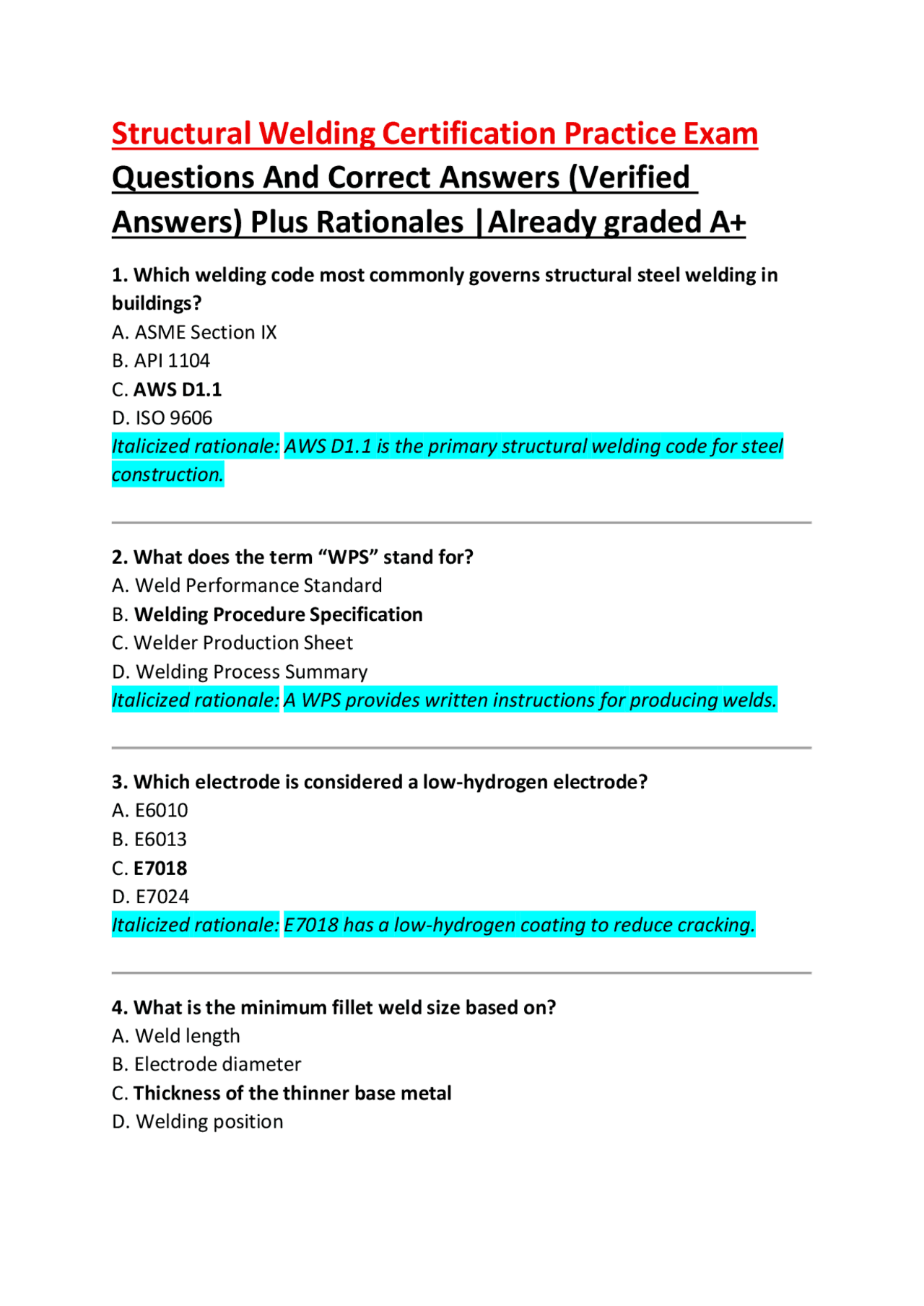

Structural Welding Certification Practice Exam
Questions And Correct Answers (Verified
Answers) Plus Rationales |Already graded A+
1. Which welding code most commonly governs structural steel welding in
buildings?
A. ASME Section IX
B. API 1104
C. AWS D1.1
D. ISO 9606
Italicized rationale: AWS D1.1 is the primary structural welding code for steel
construction.
2. What does the term “WPS” stand for?
A. Weld Performance Standard
B. Welding Procedure Specification
C. Welder Production Sheet
D. Welding Process Summary
Italicized rationale: A WPS provides written instructions for producing welds.
3. Which electrode is considered a low-hydrogen electrode?
A. E6010
B. E6013
C. E7018
D. E7024
Italicized rationale: E7018 has a low-hydrogen coating to reduce cracking.
4. What is the minimum fillet weld size based on?
A. Weld length
B. Electrode diameter
C. Thickness of the thinner base metal
D. Welding position
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16

Partial preview of the text

Download Structural Welding Certification Practice Exam Questions And Correct Answers and more Exams Welding Technologies in PDF only on Docsity!

Structural Welding Certification Practice Exam

Questions And Correct Answers (Verified

Answers) Plus Rationales |Already graded A+

  1. Which welding code most commonly governs structural steel welding in buildings? A. ASME Section IX B. API 1104 C. AWS D1. D. ISO 9606 Italicized rationale: AWS D1.1 is the primary structural welding code for steel construction.
  2. What does the term “WPS” stand for? A. Weld Performance Standard B. Welding Procedure Specification C. Welder Production Sheet D. Welding Process Summary Italicized rationale: A WPS provides written instructions for producing welds.
  3. Which electrode is considered a low-hydrogen electrode? A. E B. E C. E D. E Italicized rationale: E7018 has a low-hydrogen coating to reduce cracking.
  4. What is the minimum fillet weld size based on? A. Weld length B. Electrode diameter C. Thickness of the thinner base metal D. Welding position

Italicized rationale: Code requirements tie minimum fillet size to base metal thickness.

  1. Which welding position is designated “3G”? A. Flat groove B. Horizontal groove C. Vertical groove D. Overhead groove Italicized rationale: 3G refers to vertical groove welding.
  2. What type of crack typically occurs during solidification of weld metal? A. Fatigue crack B. Lamellar tear C. Hot crack D. Cold crack Italicized rationale: Hot cracks form as the weld metal cools and solidifies.
  3. Which base metal condition increases the risk of hydrogen cracking? A. Low carbon steel B. Thin materials C. High strength steel D. Aluminum alloys High-strength steels are more susceptible to hydrogen-
  4. Preheating steel before welding primarily helps to: A. Improve appearance B. Increase travel speed C. Reduce cooling rate and hydrogen cracking D. Increase penetration only Italicized rationale: Preheating slows cooling and allows hydrogen to escape. induced cracking. Italicized rationale:

C. T-joint D. Corner joint Italicized rationale: T-joints are common in beam and column connections.

  1. What inspection method uses magnetic fields to locate surface cracks? A. Radiographic testing B. Ultrasonic testing C. Magnetic particle testing D. Liquid penetrant testing Italicized rationale: MT is effective for ferromagnetic materials.
  2. Slag inclusions are usually caused by: A. Excessive current B. Improper cleaning between passes C. Fast cooling D. High hydrogen content Italicized rationale: Trapped slag results from poor interpass cleaning.
  3. Which weld size dimension determines strength of a fillet weld? A. Leg length B. Reinforcement C. Throat thickness D. Weld width Italicized rationale: Effective throat governs fillet weld strength.
  4. Which position is considered the most difficult to weld? A. Flat B. Horizontal C. Vertical D. Overhead Italicized rationale: Gravity works against the welder in overhead welding.
  1. A Procedure Qualification Record (PQR) Documents: A. Welder Skill B. Inspection Results C. Actual Test Data Supporting A WPS D. Code Interpretations Italicized Rationale: Pqrs Verify That A Procedure Produces Sound Welds.
  2. What Defect Results From Excessive Welding Current? A. Slag Inclusion B. Lack Of Fusion C. Excessive Spatter D. Cold Cracking Italicized Rationale: High Current Increases Spatter And Burn-Through Risk.
  3. Which Steel Group Requires Special Attention Due To Lamellar Tearing? A. Cast Iron B. Stainless Steel C. Rolled Plate Steel D. Galvanized Steel Italicized Rationale: Rolled Plate Can Tear Along Inclusions Under Shrinkage Stress.
  4. What Is The Primary Purpose Of Backing Bars? A. Increase Weld Size B. Support Molten Weld Metal C. Reduce Distortion D. Improve Appearance Italicized Rationale: Backing Provides Support For Root Passes.
  5. Which Defect Is Typically Spherical In Shape? A. Slag Inclusion B. Lack Of Fusion C. Porosity
  1. Which Welding Variable Is NOT Essential? A. Current B. Voltage C. Color Of Electrode Coating D. Travel Speed Italicized Rationale: Electrode Color Does Not Affect Weld Quality.
  2. What Inspection Method Is Best For Detecting Internal Weld Defects? A. Visual Testing B. Magnetic Particle Testing C. Ultrasonic Testing D. Dye Penetrant Testing Italicized Rationale: UT Can Detect Internal Flaws Without Radiation.
  3. Lack Of Fusion Is Most Often Caused By: A. Too Slow Travel Speed B. Low Heat Input C. Excessive Preheat D. Over-Cleaning Italicized Rationale: Insufficient Heat Prevents Proper Fusion.
  4. Which Joint Requires The Least Weld Metal? A. T-Joint B. Lap Joint C. Butt Joint D. Corner Joint Italicized Rationale: Butt Joints Are More Material-Efficient.
  5. Which Weld Is Designed To Resist Shear Loads? A. Groove Weld B. Plug Weld C. Fillet Weld D. Slot Weld Italicized Rationale: Fillet Welds Are Commonly Loaded In Shear.
  1. What Causes Arc Blow? A. Moist Electrodes B. Magnetic Field Imbalance C. Low Voltage D. High Travel Speed Italicized Rationale: Arc Blow Results From Magnetic Interference.
  2. Which Defect Is Acceptable Within Limits Under AWS D1.1? A. Cracks B. Lack Of Fusion C. Minor Porosity D. Incomplete Penetration Italicized Rationale: Small, Scattered Porosity May Be Acceptable.
  3. What Is The Purpose Of Interpass Temperature Control? A. Improve Bead Appearance B. Prevent Metallurgical Damage C. Increase Deposition Rate D. Reduce Weld Size Italicized Rationale: Interpass Control Maintains Material Properties.
  4. Which Position Is “2F”? A. Flat Fillet B. Horizontal Fillet C. Vertical Fillet D. Overhead Fillet Italicized Rationale: 2F Designates Horizontal Fillet Welding.
  5. Which Weld Defect Is Always Rejectable? A. Undercut Within Limits B. Porosity Within Limits C. Cracks

B. Argon C. N/A D. N/A Italicized Rationale: SMAW Does Not Use Shielding Gas.

  1. What Is The Primary Function Of Electrode Flux? A. Increase Current B. Shield Molten Weld Metal C. Cool The Weld D. Increase Penetration Only Italicized Rationale: Flux Protects The Weld From Atmospheric Contamination.
  2. What Type Of Weld Joins Two Overlapping Plates? A. Butt Weld B. Corner Weld C. Lap Weld D. Edge Weld Italicized Rationale: Lap Joints Involve Overlapping Members.
  3. Which Factor Most Affects Weld Penetration? A. Travel Speed B. Welding Current C. Electrode Angle D. Cleaning Method Italicized Rationale: Current Strongly Influences Penetration Depth.
  4. What Is The Purpose Of A Run-Off Tab? A. Reduce Distortion B. Allow Full Weld Termination C. Increase Weld Size D. Improve Appearance Italicized Rationale: Run-Off Tabs Ensure Sound Weld Ends.
  1. Which Inspection Is Required Before Welding Begins? A. Radiographic B. Ultrasonic C. Visual Inspection D. Magnetic Particle Italicized Rationale: Pre-Weld Visual Checks Materials And Joint Fit-Up.
  2. A Groove Weld Is Primarily Used To Resist: A. Shear B. Compression Only C. Tension And Bending D. Thermal Loads Italicized Rationale: Groove Welds Provide Full Cross-Sectional Strength.
  3. What Does “PWHT” Stand For? A. Partial Weld Heat Test B. Post Weld Heat Treatment C. Pre-Weld Hydrogen Test D. Pressure Weld Holding Time Italicized Rationale: PWHT Relieves Residual Stresses.
  4. Which Weld Defect Reduces Fatigue Life The Most? A. Porosity B. Slag Inclusion C. Cracks D. Spatter Italicized Rationale: Cracks Act As Severe Stress Concentrators.
  5. Who Is Responsible For Ensuring Welds Meet Code Requirements? A. Welder Only B. Inspector Only C. Contractor And Quality Control D. Engineer Only Italicized Rationale: Code Compliance Is A Shared Responsibility.

D. Tool Steel Italicized Rationale: Low Carbon Steels Have Lower Susceptibility To Cracking.

  1. What Is The Primary Purpose Of A Root Pass? A. Improve Appearance B. Provide Full Penetration At The Joint Root C. Reduce Distortion D. Cover Defects Italicized Rationale: The Root Pass Ensures Joint Strength From The Root.
  2. Which Weld Discontinuity Is Characterized By A Depression Along The Weld Toe? A. Porosity B. Undercut C. Slag Inclusion D. Overlap Italicized Rationale: Undercut Reduces Base Metal Thickness At The Weld Edge.
  3. Which Process Uses A Continuously Fed Wire Electrode? A. SMAW B. GMAW C. GTAW D. PAW Italicized Rationale: GMAW (MIG) Uses Continuous Wire Feed And Shielding Gas.
  4. Which Gas Is Commonly Used In GMAW Of Carbon Steel? A. Oxygen B. Helium C. Carbon Dioxide Or Argon/CO2 Mix D. Nitrogen Italicized Rationale: CO2 Or Argon-CO2 Mixtures Protect The Weld Pool.
  1. A “Tee” Joint Fillet Weld’s Effective Throat Is Measured From: A. Fillet Leg To Leg Intersection B. Root To Hypotenuse Of Triangle Formed By Weld Legs C. Weld Face To Base Metal D. End Of Weld To Center Italicized Rationale: Effective Throat Determines Load-Carrying Capacity.
  2. Which Inspection Method Can Reveal Lamellar Tearing? A. Radiographic Testing B. Ultrasonic Testing C. Magnetic Particle D. Visual Italicized Rationale: UT Detects Internal Separations In Rolled Plate.
  3. What Is The Most Common Cause Of Porosity In SMAW Welds? A. Excessive Preheat B. Low Current C. Moisture In Electrode Or Base Metal D. High Travel Speed Italicized Rationale: Hydrogen From Moisture Creates Gas Bubbles.
  4. Which Joint Design Is Most Suited For Full-Penetration Welds On Thick Plates? A. Lap Joint B. Fillet Weld C. Single-V Or Double-V Groove D. Butt Lap Joint Italicized Rationale: V-Groove Joints Allow Complete Penetration.
  5. Post-Weld Heat Treatment (PWHT) Is Primarily Used To: A. Improve Aesthetics B. Increase Weld Size C. Reduce Residual Stress And Hardness
  1. Which Welding Process Uses Flux-Cored Wire? A. SMAW B. FCAW C. GTAW D. PAW Italicized Rationale: FCAW Uses Tubular Wire Filled With Flux For Shielding.
  2. Which Factor Does NOT Directly Affect Weld Penetration? A. Welding Current B. Electrode Angle C. Color Of Weld Gloves D. Travel Speed Italicized Rationale: Penetration Is Unaffected By Glove Color.
  3. Cracks Perpendicular To The Weld Axis Are Usually: A. Longitudinal B. Transverse C. Corner Cracks D. Toe Cracks Italicized Rationale: Transverse Cracks Are Across The Weld And More Critical.
  4. Which Type Of Electrode Produces Deep Penetration For Root Passes? A. E B. E C. E D. E Italicized Rationale: E6010 Has A Fast-Freeze, Deep-Penetrating Arc.
  5. Which Defect Can Be Minimized By Controlling Interpass Temperature? A. Porosity B. Slag Inclusion C. Lamellar Tearing And Hydrogen Cracking D. Spatter Italicized Rationale: Excessive Temperature Variations Increase Residual Stress.
  1. Fillet Weld Leg Length Should Be: A. Equal To Plate Thickness Always B. Based On Code Tables Relative To Base Metal Thickness C. Arbitrary D. Twice The Electrode Diameter Italicized Rationale: AWS Specifies Minimum Fillet Dimensions.
  2. Which Inspection Method Uses X-Rays? A. Ultrasonic Testing B. Magnetic Particle Testing C. Radiographic Testing D. Dye Penetrant Testing Italicized Rationale: Radiography Detects Internal Defects.
  3. Which Weld Discontinuity Can Cause Fatigue Failure Most Quickly? A. Minor Porosity B. Cracks C. Undercut Within Limits D. Slag Inclusion Italicized Rationale: Cracks Concentrate Stress And Reduce Fatigue Life.
  4. Which Electrode Is Best Suited For Vertical Down Welding? A. E B. E C. E D. E Italicized Rationale: E6010’s Fast-Freeze Characteristics Suit Vertical-Down Welding.
  5. What Is “Reinforcement” In A Weld? A. Base Metal Thickness B. Excess Weld Metal Above The Base Metal Surface C. Weld Root Penetration

B. 100 °F

C. 150 °F

D. 300 °F

Italicized Rationale: Preheat Depends On Carbon Equivalent; 150 °F Is Typical.

  1. Which Welding Parameter Is Adjusted To Control Bead Width? A. Electrode Type B. Current And Travel Speed C. Travel Speed D. Gas Type Italicized Rationale: Faster Travel Narrows The Bead; Slower Travel Widens It.
  2. What Type Of Welding Current Is Most Common For SMAW? A. AC Only B. AC Or DC Depending On Electrode C. Pulsed DC Only D. AC High Frequency Italicized Rationale: Some Electrodes Require DCEP, Others AC.
  3. Which HAZ Property Is Critical In High-Strength Steels? A. Color B. Hardness C. Toughness D. Surface Finish Italicized Rationale: HAZ Can Become Brittle If Not Properly Managed.
  4. What Is The Correct Sequence For Welding Multi-Pass Groove Welds? A. Start At The Top B. Random C. Root, Filler, Cap D. Filler Only Italicized Rationale: Root Pass Ensures Full Penetration; Filler And Cap Build Strength.
  1. Which Defect Appears As A Raised Weld Bead Rolling Over The Base Metal? A. Porosity B. Slag Inclusion C. Overlap D. Undercut Italicized Rationale: Overlap Is Excess Weld Metal Not Fused To The Base.
  2. Which Welding Process Is Best For Thick Plates In Structural Work? A. GTAW B. SMAW C. SAW D. GMAW Italicized Rationale: SAW Provides Deep Penetration And High Deposition Rates.
  3. Which Symbol Indicates A Field Weld? A. Circle At Tail Of Symbol B. Triangle At Reference Line C. Flag At Intersection Of Arrow And Reference Line D. Square At Weld Symbol Italicized Rationale: The Flag Denotes Field Welding Per AWS Standards.
  4. Which Electrode Provides Smooth, High-Deposition Beads For Flat Welding? A. E B. E C. E D. E Italicized Rationale: E7024 Deposits Metal Quickly In Flat Positions.
  5. Which Welding Defect Is Caused By Excessive Travel Speed? A. Overlap B. Incomplete Fusion C. Crater Crack
