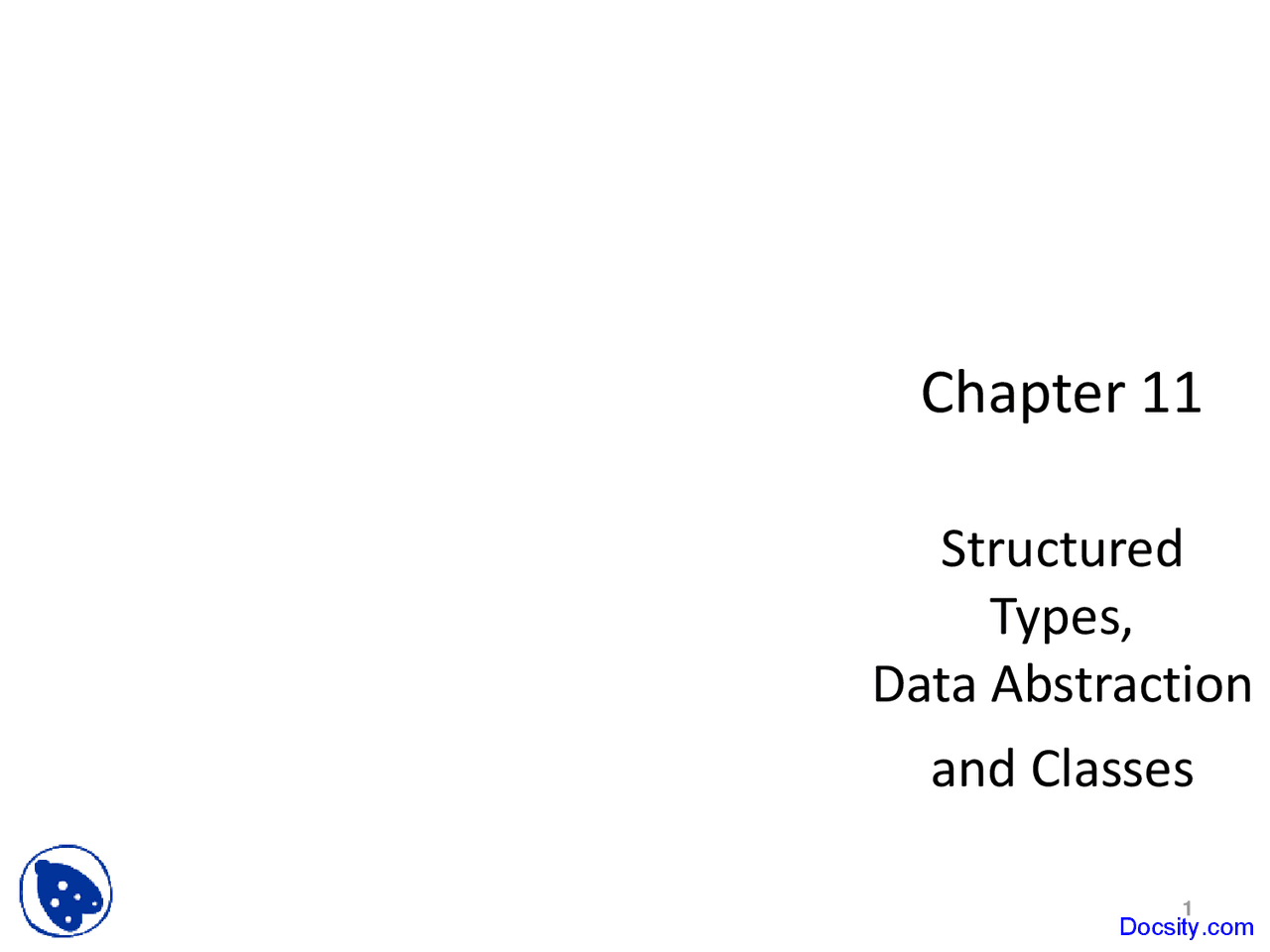

Chapter 11

Structured

Types,

Data Abstraction

and Classes

1

Chapter 11 Topics

• Meaning of a Structured Data Type

• Declaring and Using a struct Data Type

• C++ union Data Type

• Meaning of an Abstract Data Type

• Declaring and Using a class Data Type

• Using Separate Specification and

Implementation Files

• Invoking class Member Functions in Client

Code

• C++ class Constructors

2

Structured Data Type

A structured data type is a type in which each

value is a collection of component items

• The entire collection has a single name
• Each component can be accessed individually
• Used to bundle together related data of various types for convenient access under the same identifier

For example...

4

thisAnimal

5

.id 2037581 .name “giant panda” .genus “Ailuropoda” .species “melanoluka” .country “China” .age 18 .weight 234. .health Good

struct AnimalType

enum HealthType { Poor, Fair, Good, Excellent }; struct AnimalType // Declares a struct data type { // does not allocate memory long id; string name; string genus; string species; struct members string country; int age; float weight; HealthType health; }; // Declare variables of AnimalType AnimalType thisAnimal; AnimalType anotherAnimal; 7 7

struct type Declaration

SYNTAX

struct TypeName // Does not allocate memory { MemberList };

MemberList SYNTAX

DataType MemberName; DataType MemberName; . . . 8

More about struct type declarations

Scope of a struct

• If the struct type declaration precedes all functions, it will be visible throughout the rest of the file
• If it is placed within a function, only that function can use it

It is common to place struct type declarations in a (.h)

header file and #include that file

It is possible for members of different struct types to have

the same identifiers; also a non-struct variable may have

the same identifier as a structure member

10

Accessing struct Members

Dot (period) is the member selection operator

After the struct type declaration, the various members can be

used in your program only when they are preceded by a

struct variable name and a dot

EXAMPLES

thisAnimal.weight

anotherAnimal.country

11

Aggregate Operation

An aggregation operation is an operation

on a data structure as a whole, as opposed

to an operation on an individual

component of the data structure

13

Aggregate struct Operations

• Operations valid on struct type variables are

 Assignment to another struct variable of the same type

 Pass as an argument (by value or by reference)

 Return as value of a function

• I/O, arithmetic, and comparisons of entire struct

variables are NOT ALLOWED!

14

void WriteOut( /* in */ AnimalType thisAnimal) // Prints out values of all members of thisAnimal // Precondition: all members of thisAnimal are assigned // Postcondition:all members have been written out { cout << “ID # “ << thisAnimal.id << thisAnimal.name << endl; cout << thisAnimal.genus << thisAnimal.species << endl; cout << thisAnimal.country << endl; cout << thisAnimal.age << “ years “ << endl; cout << thisAnimal.weight << “ lbs. “ << endl; cout << “General health : “; WriteWord (thisAnimal.health); } 16 Docsity.com

Passing a struct Type by Reference void ChangeAge(/* inout */ AnimalType& thisAnimal) // Adds 1 to age // Precondition: thisAnimal.age is assigned // Postcondition:thisAnimal.age == // thisAnimal.age@entry + 1 { thisAnimal.age++; } 17

Hierarchical Structures

• The type of a struct member can be another

struct type

• This is called nested or hierarchical structures

• Hierarchical structures are very useful when

there is much detailed information in each

record

For example...

19

struct MachineRec

Information about each machine in a shop contains:

an idNumber,

a written description,

the purchase date,

the cost,

and a history (including failure rate, number of

days down, and date of last service)

20
