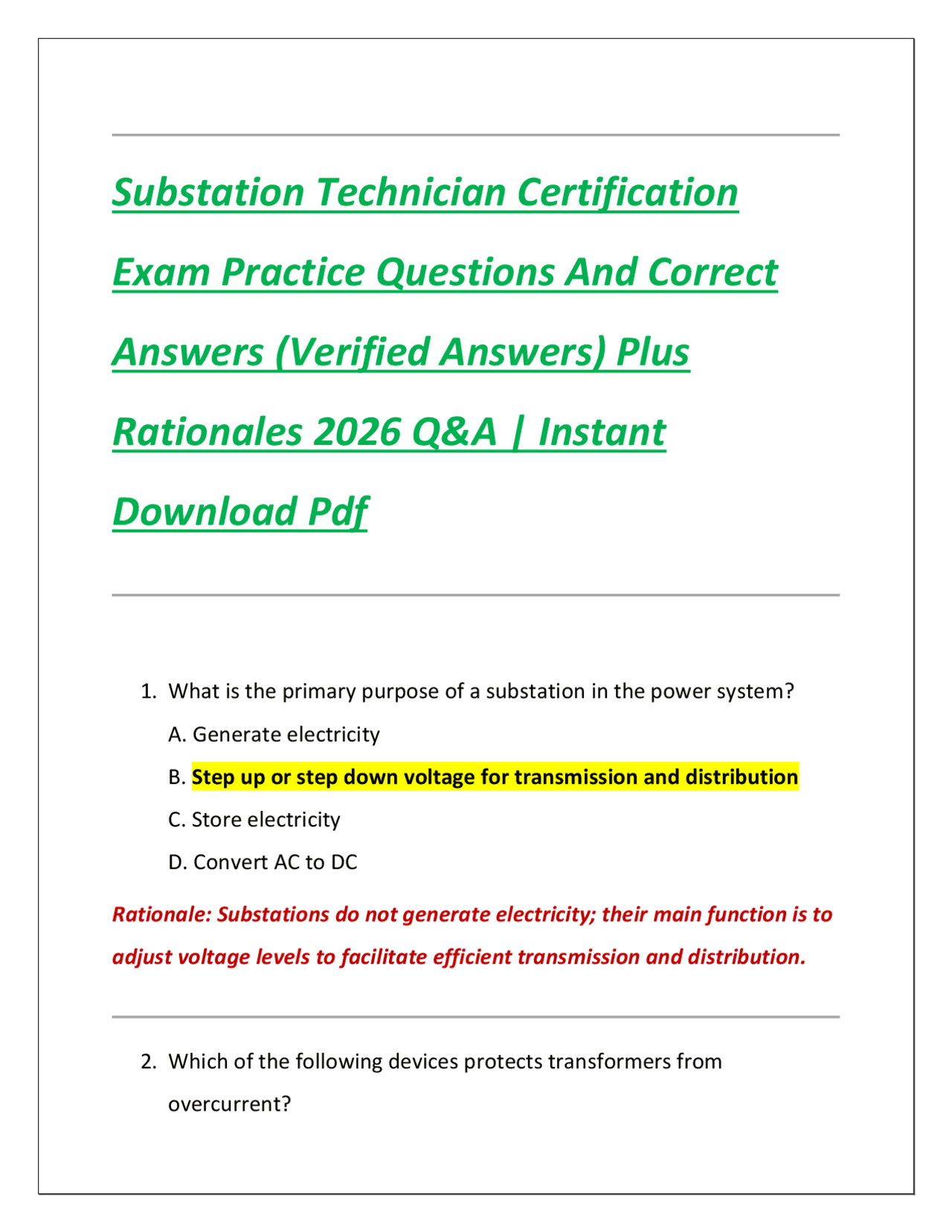

Substation Technician Certification
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant
Download Pdf
- What is the primary purpose of a substation in the power system? A. Generate electricity B. Step up or step down voltage for transmission and distribution C. Store electricity D. Convert AC to DC
Rationale: Substations do not generate electricity; their main function is to adjust voltage levels to facilitate efficient transmission and distribution.
- Which of the following devices protects transformers from overcurrent?
A. Circuit breaker B. Lightning arrester C. Fuse D. Disconnect switch
Rationale: Fuses are designed to interrupt the current in case of overcurrent to prevent damage to transformers.
- What is the main function of a circuit breaker in a substation? A. Transform voltage B. Interrupt fault currents C. Measure power D. Regulate frequency
Rationale: Circuit breakers are protective devices used to interrupt current flow during abnormal conditions.
- Which type of transformer is commonly used to step down high transmission voltage to distribution levels? A. Autotransformer B. Distribution transformer C. Isolation transformer D. Instrument transformer
B. Provide a visible break in the circuit for maintenance C. Measure voltage D. Store energy
Rationale: Isolators (disconnect switches) are used to safely isolate equipment during maintenance and are not meant to interrupt load currents.
- What type of substation is located near residential areas to supply electricity to homes? A. Transmission substation B. Distribution substation C. Bulk supply substation D. Generating substation
Rationale: Distribution substations lower voltage to levels suitable for commercial and residential use.
- Which of the following is a type of instrument transformer used to measure current? A. Voltage transformer B. Current transformer C. Auto-transformer D. Step-down transformer
Rationale: Current transformers scale high currents down to measurable levels for protection and metering.
- What is the main advantage of using SF6 gas in circuit breakers? A. Lower cost B. Excellent arc-quenching properties C. Increased mechanical strength D. Reduce voltage
Rationale: SF6 gas provides high dielectric strength and helps extinguish arcs efficiently in high-voltage breakers.
- Which grounding method provides the safest approach for substation personnel? A. Single-point grounding B. Floating grounding C. Equipotential grounding D. Isolated grounding
Rationale: Equipotential grounding reduces voltage differences across the substation, minimizing the risk of electric shock.
- What is the main purpose of a capacitor bank in a substation? A. Step down voltage
- In a three-phase substation, what is the most common bus configuration for reliability? A. Single bus B. Double bus double breaker C. Single bus double breaker D. Ring bus
Rationale: Double bus double breaker arrangement allows maintenance without interrupting supply and increases reliability.
- Which device is installed to prevent overvoltage on transformers? A. Fuse B. Current transformer C. Surge arrester D. Circuit breaker
Rationale: Surge arresters limit overvoltages from lightning or switching surges to protect transformers.
- What is the main purpose of a substation control room? A. Store transformers B. Repair cables
C. Monitor and control substation equipment D. Generate electricity
Rationale: Control rooms house SCADA systems and protection equipment for centralized monitoring.
- What is the purpose of a grounding grid in a substation? A. Store electricity B. Ensure safety by providing a low-resistance path to ground C. Step up voltage D. Measure current
Rationale: Grounding grids dissipate fault currents safely into the earth and protect personnel.
- Which type of relay operates based on voltage differences between two points? A. Overcurrent relay B. Differential relay C. Directional relay D. Frequency relay
Rationale: Differential relays detect differences in current or voltage between two points, indicating faults.
C. Switching substation D. Generating substation
Rationale: Interconnection substations connect transmission systems to improve reliability and transfer capacity.
- Which device in a substation protects transformers from lightning surges? A. Fuse B. Circuit breaker C. Lightning arrester D. Current transformer
Rationale: Lightning arresters divert high-voltage surges away from sensitive equipment.
- What is the primary purpose of a bus coupler in a substation? A. Step down voltage B. Measure current C. Connect two bus sections to allow flexibility D. Protect equipment
Rationale: Bus couplers can connect or isolate bus sections, enabling maintenance without service interruption.
- Which type of insulator is commonly used for high-voltage transmission lines entering a substation? A. Pin insulator B. Suspension insulator C. Strain insulator D. Post insulator
Rationale: Suspension insulators can support heavy conductors and handle high voltage effectively.
- What is the purpose of a SCADA system in a substation? A. Generate power B. Repair transformers C. Monitor and control equipment remotely D. Step down voltage
Rationale: SCADA systems provide operators with real-time data and remote control over substation operations.
- Which factor primarily determines the size of a grounding conductor in a substation? A. Voltage level B. Fault current and soil resistivity
- Which protective device provides both overcurrent and earth fault protection? A. Fuse B. Circuit breaker with relay C. Lightning arrester D. Potential transformer
Rationale: Circuit breakers with relays can detect overcurrent and ground faults and isolate faulty circuits.
- What is the typical voltage level for a substation serving a residential area? A. 132 kV B. 66 kV C. 11 kV or 33 kV D. 400 kV
Rationale: Distribution substations step down voltages to levels suitable for commercial and residential use, typically 11 kV or 33 kV.
- Which type of transformer provides isolation between high and low voltage circuits? A. Autotransformer B. Distribution transformer
C. Isolation transformer D. Current transformer
Rationale: Isolation transformers separate circuits electrically while allowing power transfer.
- Which protective relay operates based on the direction of fault current? A. Overcurrent relay B. Differential relay C. Directional relay D. Distance relay
Rationale: Directional relays detect the flow direction of fault currents, crucial for proper breaker operation.
- What is the purpose of a surge capacitor in a substation? A. Store energy permanently B. Step down voltage C. Absorb transient overvoltages D. Measure current
Rationale: Surge capacitors protect equipment by absorbing voltage spikes and reducing transient effects.
C. Switching substation D. Interconnection substation
Rationale: Switching substations connect transmission lines without voltage transformation.
- What is the main hazard of step and touch potential in substations? A. Fire B. Explosions C. Electric shock to personnel D. Equipment vibration
Rationale: Step and touch potentials can create voltage differences across the ground, posing electrocution risks.
- Which of the following measures improves substation grounding effectiveness? A. Reduce busbars B. Use multiple ground rods and a mesh system C. Increase transformer rating D. Install capacitors
Rationale: A grounding mesh with multiple rods lowers resistance and provides a safer path for fault currents.
- Which type of switchgear uses SF6 gas for insulation? A. Oil-insulated switchgear B. Air-insulated switchgear C. Gas-insulated switchgear (GIS) D. Vacuum switchgear
Rationale: GIS uses SF6 gas to insulate high-voltage components, reducing size and improving reliability.
- What is the purpose of a current transformer in protection circuits? A. Step up voltage B. Break the circuit C. Provide scaled current for protective relays D. Store energy
Rationale: Current transformers reduce high currents to measurable levels for relays and meters.
- Which component prevents flashover between live conductors and ground? A. Fuse B. Circuit breaker
- Which type of protective relay is used to detect phase-to-phase faults? A. Overcurrent relay B. Earth fault relay C. Differential relay D. Directional relay
Rationale: Differential relays detect current imbalances caused by phase- to-phase faults.
- What is the function of a surge arrester connected across a transformer winding? A. Store energy B. Step down voltage C. Limit overvoltages due to surges D. Conduct current continuously
Rationale: Surge arresters protect transformer windings from transient overvoltages.
- Which of the following is a safety measure during substation maintenance? A. Energize all circuits
B. Wear regular clothing C. Implement lockout-tagout procedures D. Work alone
Rationale: Lockout-tagout ensures equipment is de-energized and prevents accidental operation during maintenance.
- Which type of transformer winding is typically grounded in a substation? A. High-voltage winding B. Low-voltage winding or neutral C. Both windings D. Secondary winding only
Rationale: Grounding the low-voltage neutral ensures safety and fault detection.
- What is the main purpose of a switchyard in a substation? A. Generate power B. Connect transmission lines and equipment C. Store energy D. Step down voltage
Rationale: Switchyards contain busbars, breakers, and switches for connecting and controlling the flow of power.
