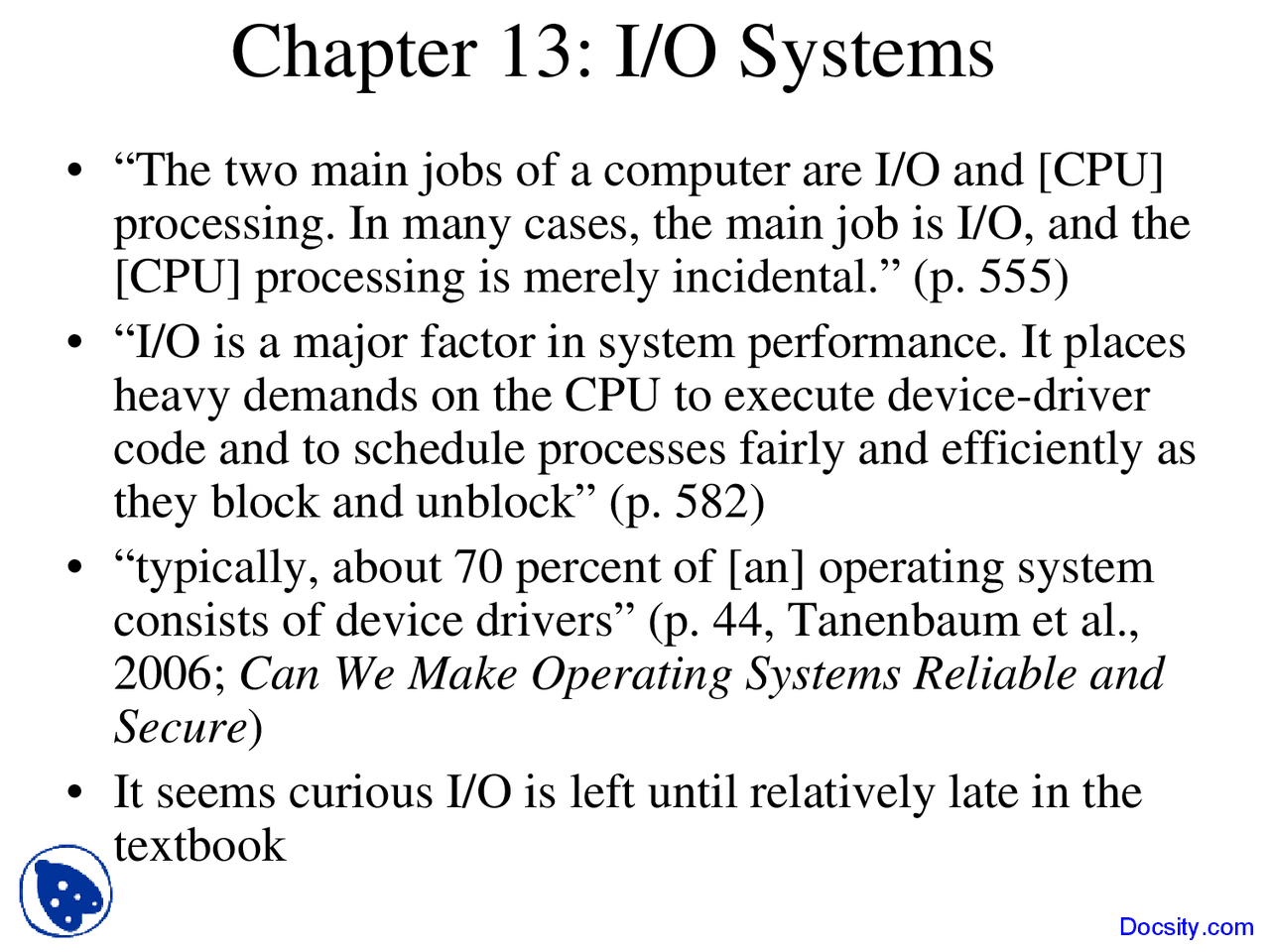

Chapter 13: I/O Systems
•“The two main jobs of a computer are I/O and [CPU]
processing. In many cases, the main job is I/O, and the
[CPU] processing is merely incidental.” (p. 555)
•“I/O is a major factor in system performance. It places
heavy demands on the CPU to execute device-driver
code and to schedule processes fairly and efficiently as
they block and unblock” (p. 582)
•“typically, about 70 percent of [an] operating system
consists of device drivers” (p. 44, Tanenbaum et al.,
2006; Can We Make Operating Systems Reliable and
Secure)
•It seems curious I/O is left until relatively late in the
textbook
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff

Partial preview of the text

Download Systems - Operating System - Lecture Slides and more Slides Computer Science in PDF only on Docsity!

Chapter 13: I/O Systems

  • “The two main jobs of a computer are I/O and [CPU]

processing. In many cases, the main job is I/O, and the

[CPU] processing is merely incidental.” (p. 555)

  • “I/O is a major factor in system performance. It places

heavy demands on the CPU to execute device-driver

code and to schedule processes fairly and efficiently as

they block and unblock” (p. 582)

  • “typically, about 70 percent of [an] operating system

consists of device drivers” (p. 44, Tanenbaum et al.,

2006; Can We Make Operating Systems Reliable and

Secure )

  • It seems curious I/O is left until relatively late in the

textbook

Overview

• Computer system architecture

• I/O Device Control

• Accessing devices

  • Polling & interrupts

• Device drivers

• Blocking, non-blocking, and asynchronous I/O

I/O Device Control

  • Devices controlled via special registers of a device controller
  • CPU needs to control devices
    • Read or write control signals or data in special registers of a device controller
  • General interfaces
    • Port I/O : Special I/O machine instructions that trigger the bus to select the proper I/O port & move the data into or out of a device register - E.g., IN, INS, OUT, OUTS on numerous Intel architectures
    • Memory mapped I/O : The I/O registers of the device become part of the linear memory space of the “RAM” of the computer; standard memory load and store machine instructions are used
  • E.g., a serial port might use port I/O, while a graphics controller could have a memory-mapped image of the computer screen

Example I/O Port Instructions on

Intel 64 & IA-32 (See next page)

http://developer.intel.com/products/processor/manuals/index.htm http://download.intel.com/design/processor/manuals/253665.pdf Docsity.com

General Methods for

Accessing Devices

• Two general methods by which devices can

be accessed

  • Each of these methods can be used with either

ports or memory-mapped I/O

• Polling

  • A busy wait, repeatedly checking a device for

some change in status

• Interrupts

  • Using interrupt line of CPU to provide service

to devices

Polling

  • Also called programmed I/O
  • CPU is used (e.g., by a device driver), in a

program code loop, to continuously check a device

to see if it is ready to accept data or commands, or

produce output

  • Continuous polling
  • In some cases, a process periodically checks a

device, and then blocks until next period elapsed

  • Periodic polling
  • E.g., a USB mouse might be periodically polled for data at 100 Hz rate Loop (until device ready) Check device End-loop Docsity.com

Hardware Interrupts

  • I/O via software continuous polling can be inefficient
    • CPU may spend too much time waiting for devices
      • I.e., amount of time between I/O operations may be large
    • Only one CPU; continuous polling may tie up this resource
  • Often better to design differently
    • Handle I/O as different type of event
    • No longer have CPU actively wait until device is ready for next operation
    • Instead, have the device send an asynchronous signal-- an interrupt when it is ready
  • CPU has wire called an interrupt request line
  • I/O controller sets the interrupt request line to 1
    • CPU, as part of instruction processing cycle, automatically checks interrupt request line
    • If it is set to 1, this generates a hardware interrupt Docsity.com

Figure 13.3 Interrupt-driven I/O cycle

Other Interrupt Features

  • Interrupts can have different priorities
    • A higher priority interrupt can interrupt the handler of a lower priority interrupt (but not vice versa)
  • Maskable vs. nonmaskable interrupts
    • Normal I/O uses maskable interrupts that can be turned off (e.g., when kernel executes a critical section)
    • Fatal error conditions may use a nonmaskable interrupt to make sure interrupt gets through (e.g., see Fig. 13.4)

Device Drivers - 1

  • Generally handle device access details
    • E.g., program devices to initiate I/O operations and provide interrupt handlers
  • Present a uniform device-access interface to the I/O

subsystem

  • Standard device driver interfaces are specified by the particular operating system

Figure 13.6: A Kernel I/O Structure

Blocking vs. Nonblocking I/O

  • Blocking I/O (a.k.a., synchronous I/O)
    • Process suspended for duration of I/O operation
    • I.e., Process enters a waiting queue
  • Nonblocking I/O
    • Does not cause a process to enter a waiting queue
    • Returns immediately, with status information such as the number of bytes of data transferred
    • I/O processing (due to a non-blocking I/O request) does not continue after request
  • Asynchronous I/O
    • Similar to nonblocking I/O, but an asynchronous call not only returns immediately, but has I/O processing continue after call
    • Communication with process about completion of I/O can occur via a variable, callback, or signal, or polling
