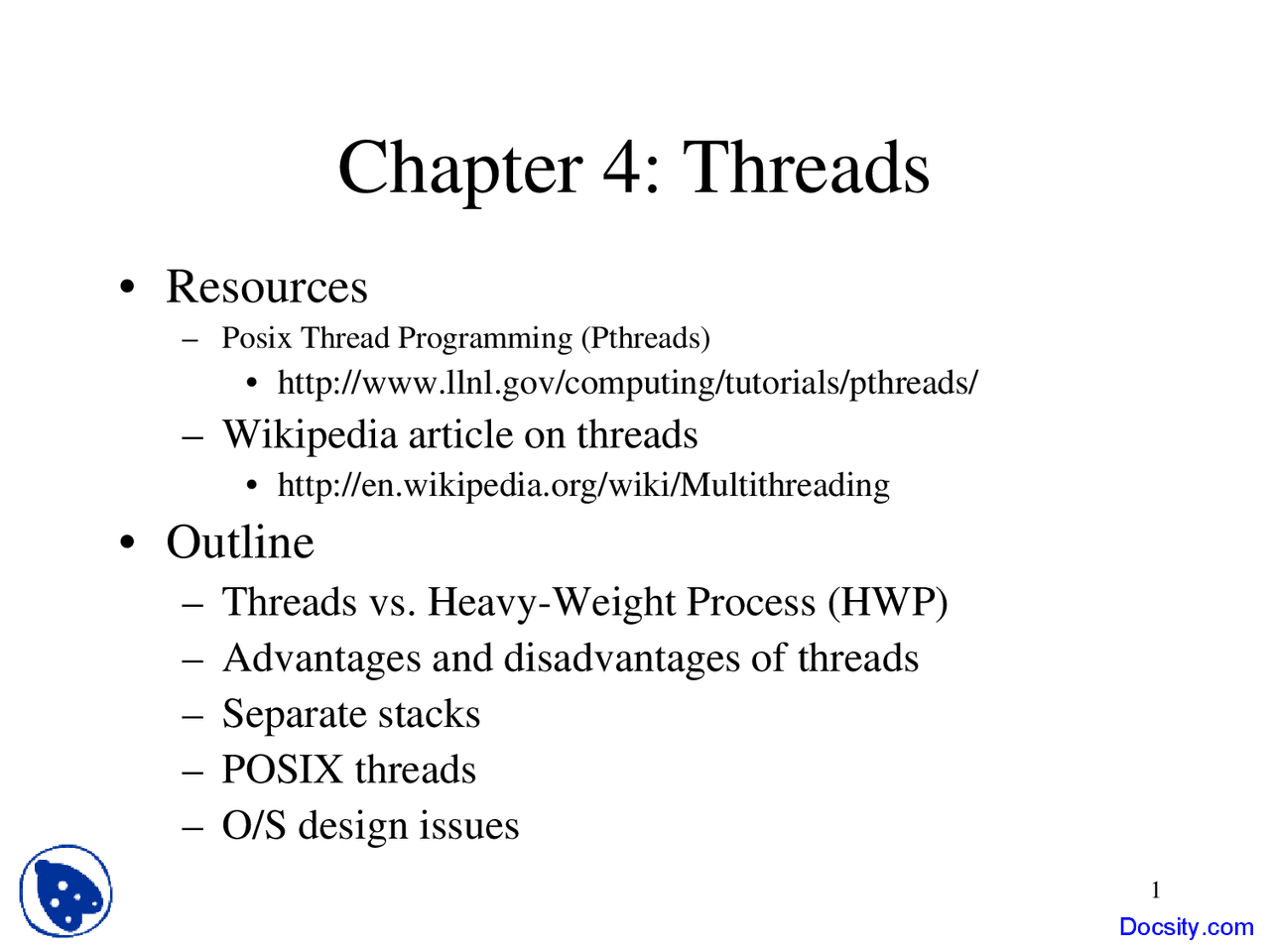

Chapter 4: Threads
- Resources
- Posix Thread Programming (Pthreads)
- http://www.llnl.gov/computing/tutorials/pthreads/
- Wikipedia article on threads
- http://en.wikipedia.org/wiki/Multithreading
- Outline
- Threads vs. Heavy-Weight Process (HWP)
- Advantages and disadvantages of threads
- Separate stacks
- POSIX threads
- O/S design issues
Multi-threaded
Process
2
Single-threaded
Process
Figure 4.1 Docsity.com
4
Threads: Benefits
- Resource sharing: economy
- Memory is shared (i.e., address space shared)
- Open files, sockets shared
- Speed
- E.g., Solaris: thread creation about 30x faster than heavyweight process creation; context switch about 5x faster with thread
- User responsiveness
- When one thread blocks, another may handle user I/O
- But: depends on threading implementation
- Utilizing hardware parallelism
- Like heavy weight processes, can also make use of multiprocessor architectures
- But: depends on threading implementation Docsity.com
5
Threads: Drawbacks
- Synchronization
- Access to shared memory or shared variables must be controlled if the memory or variables are changed
- Can add complexity, bugs to program code
- E.g., need to be very careful to avoid race conditions, deadlocks and other concurrency problems (see Ch 6)
- Lack of independence
- Threads not independent, within a Heavy-Weight Process (HWP)
- The RAM address space is shared; No memory protection from each other
- The stacks of each thread are intended to be in separate RAM, but if one thread has a problem (e.g., with pointers or array addressing), it could write over the stack of another thread Docsity.com
7
Each Thread has a Separate Stack,
Program Counter (PC) , & Registers
8
Separate Stack Per Thread
• Why?
• When a function or procedure is called, an
“activation record” or “stack frame” is
pushed on the stack
• This may contain (a) parameters, (b) return
address, and (c) local variables.
• If two threads are using same stack they
may corrupt these activation records, or at
best use each others activation records.
10
Parameter Passing Mechanism
• Arguments evaluated to produce values
• Memory allocated on stack frame for each
parameter
• Argument values are copied to these places
in the stack frame
11
Example: Nested function calls
1: void nested2(int x) 2: { 3: int y = 9; 4: printf("hello2= %d,%d\n", x, y); 5: }
6: void nested1(int x) 7: { 8: int y = 6; 9: printf("hello1= %d, %d\n", x, y); 10: nested2(77); 11:}
12: void nested0(int x) 13: { 14: int y = 0; 15: printf("hello0= %d, %d\n", x, y); 16: nested1(13); 17: } 18: int main(void) 19: { 20: int z = 1; 21: nested0(3); 22: fflush(stdin); 23: getchar(); 24: return 0; 25: }
13
What happens if >1 thread?
• Say that each thread has own PC, stack
pointer, and registers, but all threads share
the same stack
14
Tracing Nested Function Calls:
With Two Threads and One Stack–
One Possible Sequence
After
line 20
z 1
After line 14 After call on line 21
z 1
x 3 y 0 line 21
z 1
z 1
Etc.
key: thread 1 thread 2
Problem : The stack pointer and the stack data are both being shared by 2 threads, in an unsynchronized manner!
Docsity.com
19
POSIX Threads: Pthreads
• Specification for thread behavior
• pthread_create
- Start thread given a function in program to run
• pthread_exit
• For details and other functions in API, see:
http://www.llnl.gov/computing/tutorials/pthreads
20
http://www.cprince.com/courses/cs5631/lectures/Chapter (Adapted from Figure 4.9; runs on OS X)
How is threading implemented?
Two main possibilities
- User level support
- Same PCB (Process Control Block) for all threads in HWP
- Relatively fast; no O/S system calls required
- Implemented by a library at the user level
- No support from kernel; kernel “unaware” of threads
- One thread blocks: Causes other threads in HWP to block
- Kernel level support
- Separate PCB per thread
- Relatively slow; Requires O/S support
- Other threads in a task execute when one is blocked
- Can make use of hardware parallelism (e.g., multiple processors) within HWP
23
Threading ‘Models’
Many-to-one
One-to-one
Many-to-many
Docsity.com
