Interpret, correct and complete algorithms
Unit 6 Algorithms
Name: ...................................................................................................... Class: ......................

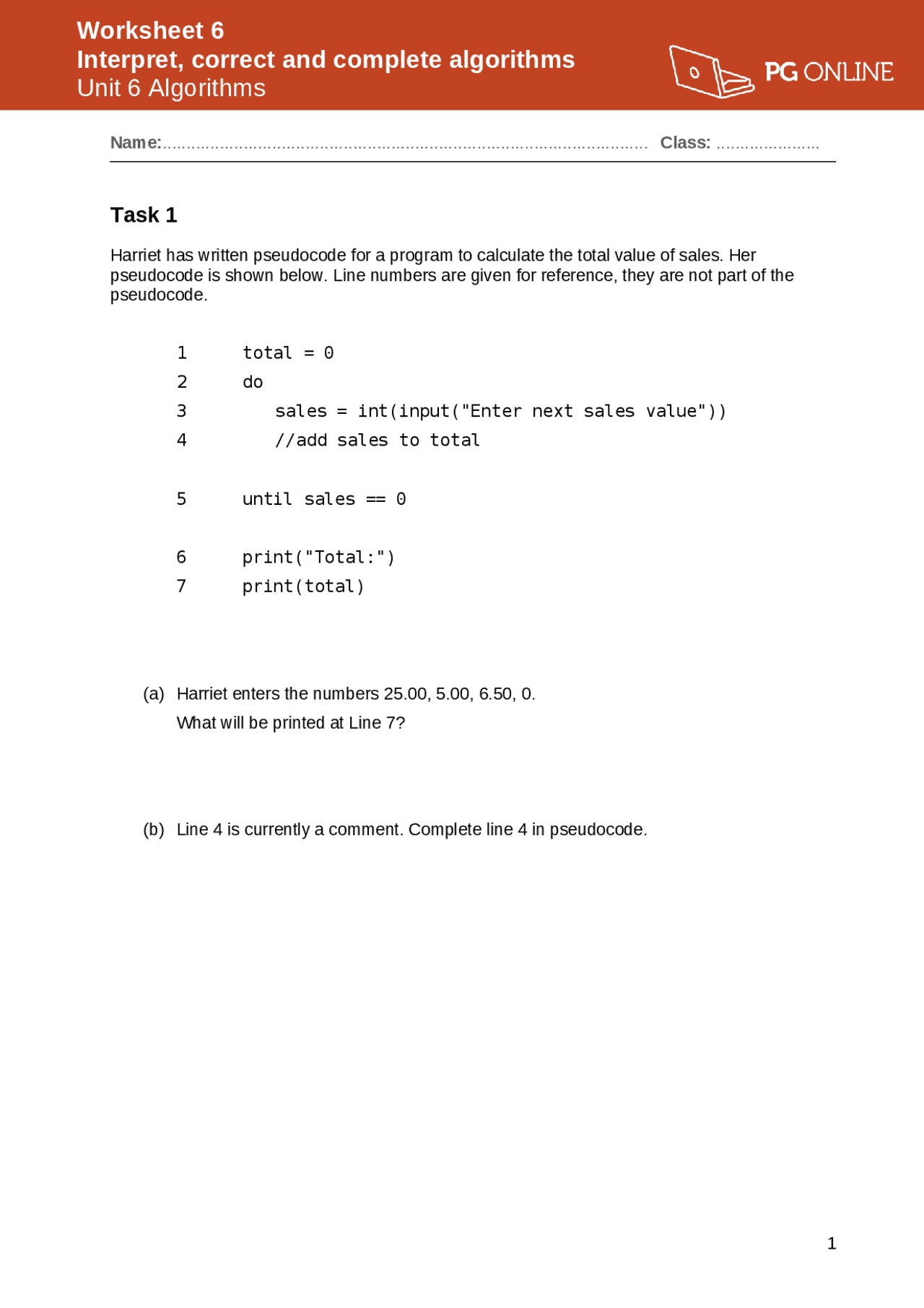

Task 1
Harriet has written pseudocode for a program to calculate the total value of sales. Her pseudocode is shown below. Line numbers are given for reference, they are not part of the pseudocode. 1 total = 0 2 do 3 sales = int(input("Enter next sales value")) 4 //add sales to total 5 until sales == 0 6 print("Total:") 7 print(total) (a) Harriet enters the numbers 25.00, 5.00, 6.50, 0. What will be printed at Line 7? (b) Line 4 is currently a comment. Complete line 4 in pseudocode.
Interpret, correct and complete algorithms
Unit 6 Algorithms
(c) Draw a flow diagram that corresponds to this pseudocode.
Interpret, correct and complete algorithms
Unit 6 Algorithms
Task 2
James is writing a program to simulate a dice game. The function Random(1,6) generates a number between 1 and 6. He has drawn a flowchart to represent the algorithm to calculate a player’s score when it is their turn. Paul and Coleen play the game.
Interpret, correct and complete algorithms
Unit 6 Algorithms
(a) Describe the rules of the game. (b) Paul rolls the dice three times, getting six and two on the first throw, one and four on the second throw and two and three on the third throw. Coleen also rolls the dice three times, getting five and six on the first throw, four and six on the second throw, two and two on the third throw. What are the scores of each player?
Interpret, correct and complete algorithms
Unit 6 Algorithms
Task 3
The following program code is part of a game in which Mighty Max is engaged with the enemy, dealing deathly blows in all directions to overcome the evil gremlins but taking considerable punishment himself until he is fatally wounded. wounds = 0 gremlins = 4 strength = 30 while strength > 0 if gremlins >= 1 then wounds = wounds + gremlins endif if strength > 2 then gremlins = gremlins - 1 print("Mighty Max has dealt a deathly blow to a gremlin, but his strength is fading") endif strength = strength - wounds print(wounds) print(gremlins) print(strength) endwhile print("Alas, our hero has been overcome… game over") Complete the next 4 rows in the following trace table. wounds gremlins strength strength > 0 0 4 30 True
Interpret, correct and complete algorithms
Unit 6 Algorithms
Task 4
When the creator of the game of chess showed his invention to the ruler of the country. The ruler was so pleased that he gave the inventor the right to name his prize for the invention. The man, who was very clever, asked the king for the following as his prize: One grain of rice on the first square Two grains on the second square Four grains on the third square – and doubling for each square thereafter. A programmer decides to find out how many grains of wheat the inventor will end up with. He tests the program with just 6 squares of the chessboard. The program is shown below. Complete the trace table to show the total number of grains of wheat received for the first 6 squares of the chessboard. print("How many grains of wheat will be on each square?") grains = 1 total = 1 for n = 2 to 6 grains = grains * 2 total = total + grains print(total) next n grains Total n 1 1 2 OUTPUT:
Interpret, correct and complete algorithms
Unit 6 Algorithms
Task 6
The following program asks the user to enter three numbers. It should then calculate the largest of the three numbers. There is a logical error in the code. a = input("First number: ) b == input("Second number: ") c = input("Third number: ") if a > b OR a > c print(a) elif b > a AND b > c print(b else print(c) endif (a) Identify the error and correct it. (b) There are three syntax errors in the code. Identify these and fix them.
