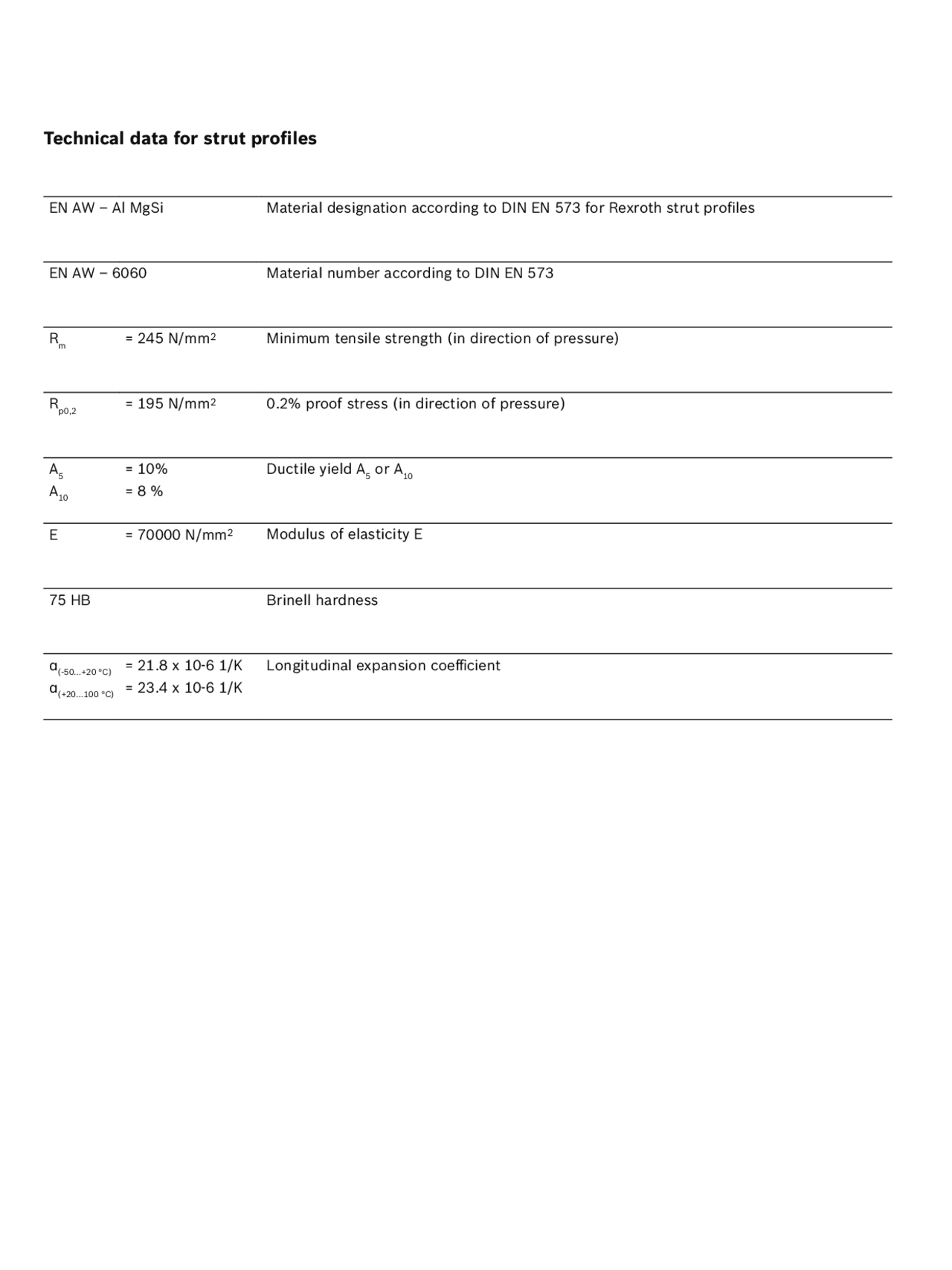

Technical data for strut profiles
EN AW – Al MgSi Material designation according to DINEN573 for Rexroth strut profiles
EN AW – 6060 Material number according to DINEN573
Rm= 245 N/mm2Minimum tensile strength (in direction of pressure)
Rp0,2 = 195 N/mm20.2% proof stress (in direction of pressure)
A5= 10% Ductile yield A5 or A10
A10 = 8 %
E = 70000 N/mm2Modulus of elasticity E
75 HB Brinell hardness
α(-50…+20 °C) = 21.8 x 10-6 1/K Longitudinal expansion coefficient
α(+20…100 °C) = 23.4 x 10-6 1/K
pf3

Partial preview of the text

Download Technical Data for Rexroth Strut Profiles: Material Properties and Geometric Tolerances and more Study notes Material Engineering in PDF only on Docsity!

Technical data for strut profiles

EN AW – Al MgSi Material designation according to DIN EN 573 for Rexroth strut profiles

EN AW – 6060 Material number according to DIN EN 573

Rm = 245 N/mm^2 Minimum tensile strength (in direction of pressure)

Rp0,2 = 195 N/mm^2 0.2% proof stress (in direction of pressure)

A 5 = 10% Ductile yield A 5 or A 10

A 10 = 8 %

E = 70000 N/mm^2 Modulus of elasticity E

75 HB Brinell hardness

α(-50…+20 °C) = 21.8 x 10-6 1/K Longitudinal expansion coefficient

α(+20…100 °C) = 23.4 x 10-6 1/K

μ = 0.34 Poisson’s ratio

E6/EV1 - 12 μm - 300 HV Anodizing process – layer thickness – layer hardness

Lmax 11-20 22.5-30 40 45- t ±0.15^ ±0.2^ +0.6^ ±0.

L (^) max^80 90 120 t +0.8^ ±0.4^ +1.0^ +1.

L (^) max^180 270 t ±0.6^ ±1.0^ ±1.

L2^6 8

t +0.3^ +0.3^ +0.

Ø 5.5^ 7.3^10

t -0. +0.

Permitted dimensional tolerance t (mm) for profiles from different deliveries

ø

Lmax L

00109370

Deviation limits and form tolerances according to DIN EN 12020-

Rexroth profiles generally fall well within the generally applicable tolerances specified in

the standard. They are specifically defined for the individual products.

L = 2000 mm max. 0,3 mm

300 mm

max. 1,5 mm

Longitudinal straightness tolerance of profile

00126465

T

b

L = 2000 mm

Longitudinal torsional tolerance of profile

b (mm)

T

(mm)

≤ 100 1. 100 … 150 1. 150 … 200 1. 200 … 350 2.
