Tolerances
Chain Dimensioning

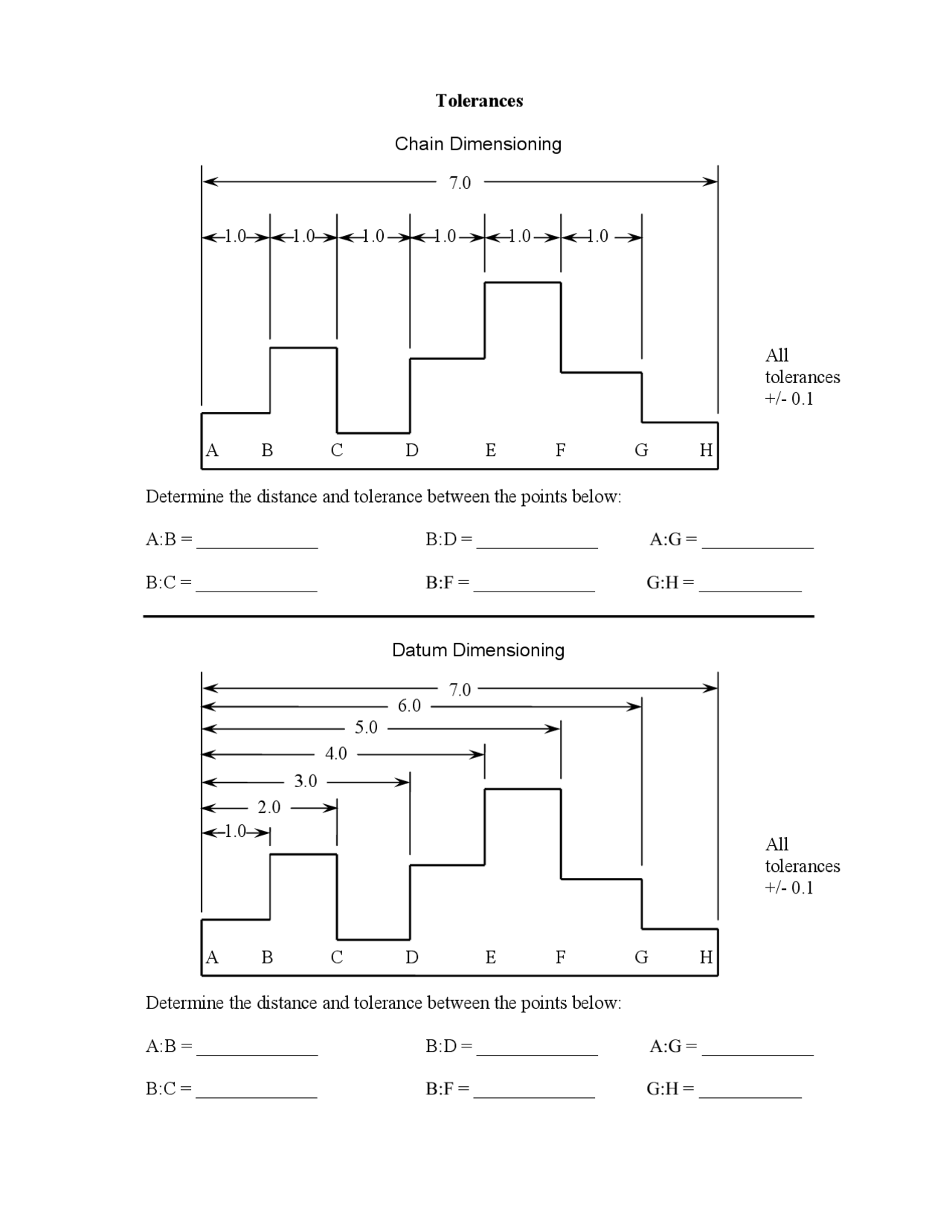

Determine the distance and tolerance between the points below:
A:B = _____________ B:D = _____________ A:G = ____________
B:C = _____________ B:F = _____________ G:H = ___________
Datum Dimensioning
Determine the distance and tolerance between the points below:
A:B = _____________ B:D = _____________ A:G = ____________
B:C = _____________ B:F = _____________ G:H = ___________
A B C D E F G H
7.0
1.0
2.0
3.0
4.0
5.0
6.0
A B C D E F G H
7.0
1.0 1.0 1.0 1.0 1.0 1.0
All
tolerances
+/- 0.1
All
tolerances
+/- 0.1
