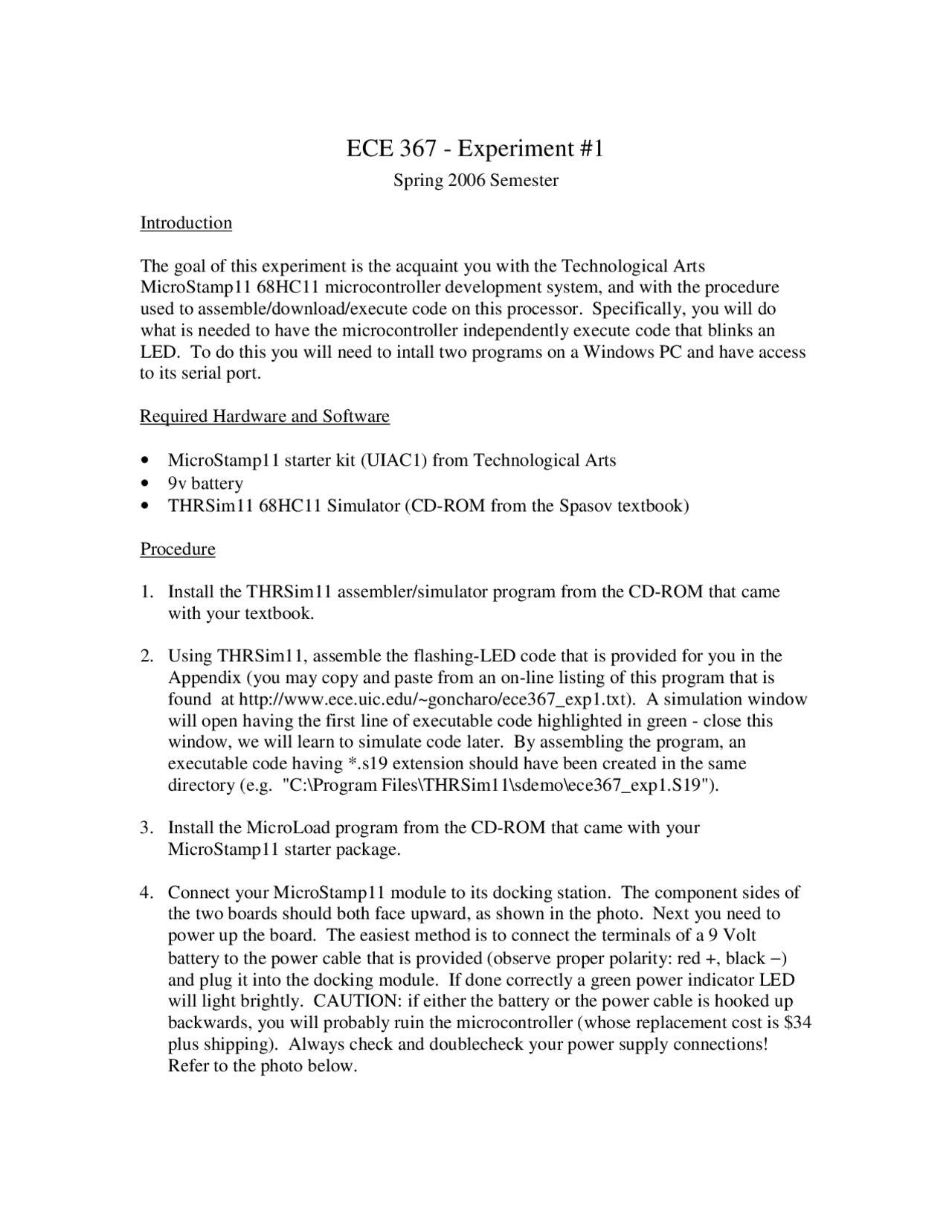

ECE 367 - Experiment #1
Spring 2006 Semester
Introduction
The goal of this experiment is the acquaint you with the Technological Arts
MicroStamp11 68HC11 microcontroller development system, and with the procedure
used to assemble/download/execute code on this processor. Specifically, you will do
what is needed to have the microcontroller independently execute code that blinks an
LED. To do this you will need to intall two programs on a Windows PC and have access
to its serial port.
Required Hardware and Software
MicroStamp11 starter kit (UIAC1) from Technological Arts
9v battery
THRSim11 68HC11 Simulator (CD-ROM from the Spasov textbook)
Procedure
1. Install the THRSim11 assembler/simulator program from the CD-ROM that came
with your textbook.
2. Using THRSim11, assemble the flashing-LED code that is provided for you in the
Appendix (you may copy and paste from an on-line listing of this program that is
found at http://www.ece.uic.edu/~goncharo/ece367_exp1.txt). A simulation window
will open having the first line of executable code highlighted in green - close this
window, we will learn to simulate code later. By assembling the program, an
executable code having *.s19 extension should have been created in the same
directory (e.g. "C:\Program Files\THRSim11\sdemo\ece367_exp1.S19").
3. Install the MicroLoad program from the CD-ROM that came with your
MicroStamp11 starter package.
4. Connect your MicroStamp11 module to its docking station. The component sides of
the two boards should both face upward, as shown in the photo. Next you need to
power up the board. The easiest method is to connect the terminals of a 9 Volt
battery to the power cable that is provided (observe proper polarity: red +, black )
and plug it into the docking module. If done correctly a green power indicator LED
will light brightly. CAUTION: if either the battery or the power cable is hooked up
backwards, you will probably ruin the microcontroller (whose replacement cost is $34
plus shipping). Always check and doublecheck your power supply connections!
Refer to the photo below.
pf3

Partial preview of the text

Download Experiment 1: Blinking an LED with MicroStamp11 68HC11 Microcontroller and more Lab Reports Microprocessors in PDF only on Docsity!

ECE 367 - Experiment

Spring 2006 Semester

Introduction

The goal of this experiment is the acquaint you with the Technological Arts

MicroStamp11 68HC11 microcontroller development system, and with the procedure

used to assemble/download/execute code on this processor. Specifically, you will do

what is needed to have the microcontroller independently execute code that blinks an

LED. To do this you will need to intall two programs on a Windows PC and have access

to its serial port.

Required Hardware and Software

• MicroStamp11 starter kit (UIAC1) from Technological Arts

• 9v battery

• THRSim11 68HC11 Simulator (CD-ROM from the Spasov textbook)

Procedure

1. Install the THRSim11 assembler/simulator program from the CD-ROM that came

with your textbook.

2. Using THRSim11, assemble the flashing-LED code that is provided for you in the

Appendix (you may copy and paste from an on-line listing of this program that is

found at http://www.ece.uic.edu/~goncharo/ece367_exp1.txt). A simulation window

will open having the first line of executable code highlighted in green - close this

window, we will learn to simulate code later. By assembling the program, an

executable code having *.s19 extension should have been created in the same

directory (e.g. "C:\Program Files\THRSim11\sdemo\ece367_exp1.S19").

3. Install the MicroLoad program from the CD-ROM that came with your

MicroStamp11 starter package.

4. Connect your MicroStamp11 module to its docking station. The component sides of

the two boards should both face upward, as shown in the photo. Next you need to

power up the board. The easiest method is to connect the terminals of a 9 Volt

battery to the power cable that is provided (observe proper polarity: red +, black −)

and plug it into the docking module. If done correctly a green power indicator LED

will light brightly. CAUTION: if either the battery or the power cable is hooked up

backwards, you will probably ruin the microcontroller (whose replacement cost is $

plus shipping). Always check and doublecheck your power supply connections!

Refer to the photo below.

Run MicroLoad and in the options menu configure it to work with MicroStamp11,

standard version. Also specify the COM port that your PC gives you access to.

Connect the other end of the serial cable to this serial communications port. Next

complete the downloading of code by specifying your file name (in the THRSim

directory, having .s19 extension) and follow directions regarding the two mode

switch settings and reset switch when downloading the code.

If it appears that code is being transferred but then stops before fully downloaded, try

the following: lay everything down on a desk and don’t touch it while code is

downloading. This prevents glitches from occurring due to loose connections

somewhere in your data or power cables.

When the code is successfully downloaded (MicroLoad will let you know that this is

the case), put the two mode switches into run position − apart from each other − and

press the reset switch button. An on-board red LED that is connected to Port A pin 6

will be flashing at one cycle per second.

Congratulations! You now have a stand-alone computer that performs a simple

function. Inspect the code and change the software delay loop constant “#25000” to

“#12500”. How does this affect the LED blinking rate? Demonstrate the new

flashing rate to your T.A.

red wire (+9v)
