bg1
1

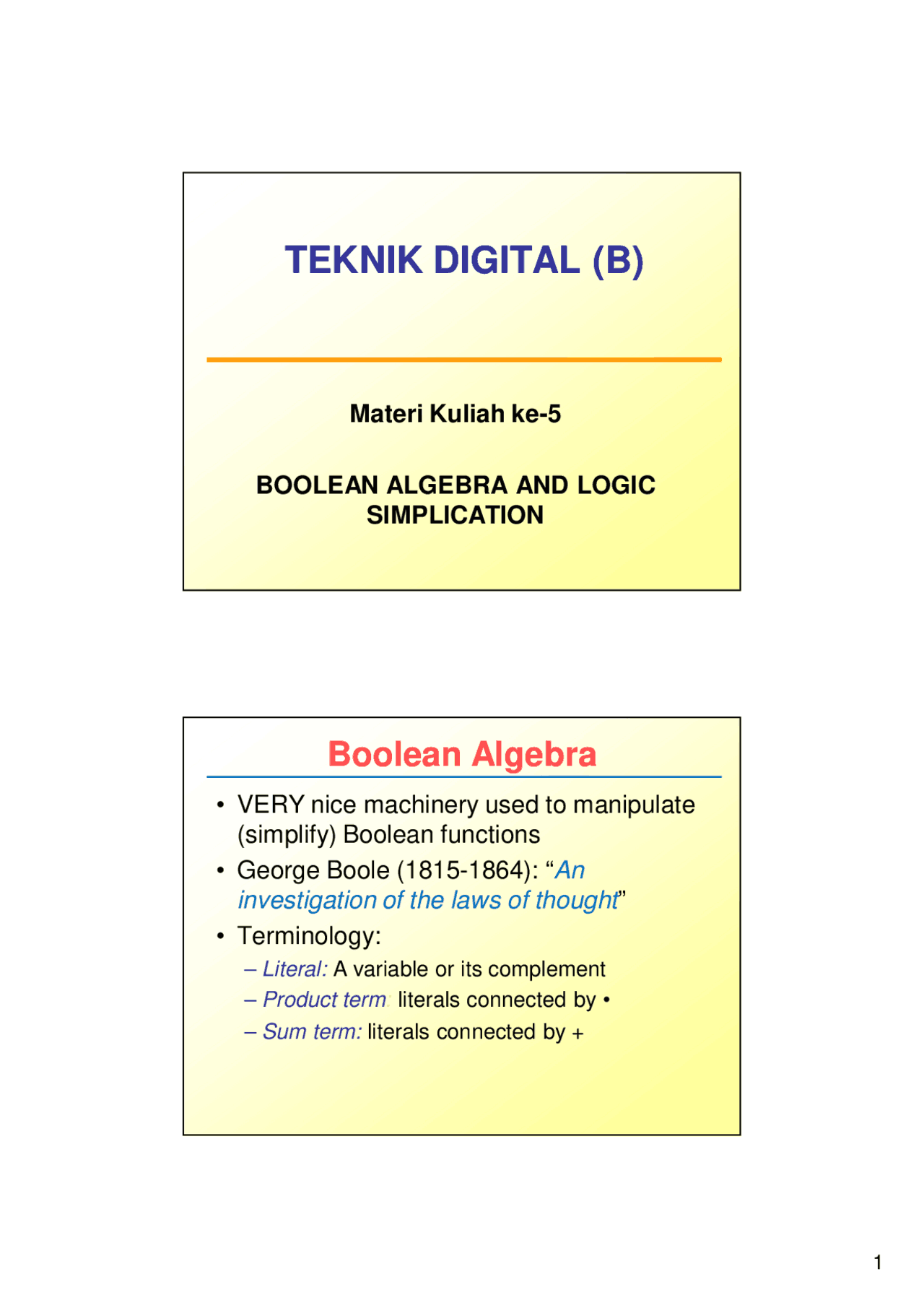

TEKNIK TEKNIK DIGITAL DIGITAL (B)(B)
Materi Kuliah ke-5
BOOLEAN ALGEBRA AND LOGIC
SIMPLICATION
Boolean AlgebraBoolean Algebra
• VERY nice machinery used to manipulate
(simplify) Boolean functions
• George Boole (1815-1864): “An
investigation of the laws of thought”
• Terminology:
–Literal: A variable or its complement
–Product term:literals connected by •
–Sum term: literals connected by +
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff

Partial preview of the text

Download TEKNIK DIGITAL (B) and more Summaries Algebra in PDF only on Docsity!

TEKNIKTEKNIK DIGITALDIGITAL (B)(B)

Materi Kuliah ke- 5 BOOLEAN ALGEBRA AND LOGIC SIMPLICATION

Boolean AlgebraBoolean Algebra

  • VERY nice machinery used to manipulate (simplify) Boolean functions
  • George Boole (1815-1864): “ An investigation of the laws of thought ”
  • Terminology:
    • Literal: A variable or its complement
    • Product term: literals connected by •
    • Sum term: literals connected by +

Boolean Algebra PropertiesBoolean Algebra Properties

Let X: boolean variable, 0,1: constants

  1. X + 0 = X  Zero Axiom
  2. X • 1 = X  Unit Axiom
  3. X + 1 = 1  Unit Property
  4. X • 0 = 0  Zero Property

Boolean Algebra Properties (cont.)Boolean Algebra Properties (cont.)

Let X: boolean variable, 0,1: constants

  1. X + X = X  Idempotence
  2. X • X = X  Idempotence
  3. X + X’ = 1  Complement
  4. X • X’ = 0  Complement
  5. (X’)’ = X  Involution

More Boolean Algebra PropertiesMore Boolean Algebra Properties

  1. X + Y = Y + X 11. X • Y = Y • X Commutative

  2. X + (Y+Z) = (X+Y) + Z 13. X•(Y•Z) = (X•Y)•Z Associative

  3. X•(Y+Z) = X•Y + X•Z 15. X+(Y•Z) = (X+Y) • (X+Z) Distributive

  4. (X + Y)’ = X’ • Y’ 17. (X • Y)’ = X’ + Y’ DeMorgan’s In general, ( X 1 + X 2 + … + Xn )’ = X 1 ’•X 2 ’ • … • Xn’, and ( X 1 • X 2 • … • Xn )’ = X 1 ’ + X 2 ’ + … + Xn’ Let X,Y, and Z: boolean variables Absorption Property (Covering)Absorption Property (Covering)

  5. x + x•y = x

  6. x•(x+y) = x (dual)

  • Proof: x + x•y = x•1 + x•y = x•(1+y) = x• 1 = x QED ( 2 true by duality)

Consensus TheoremConsensus Theorem

  1. xy + x’z + yz = xy + x’z
  2. (x+y)•(x’+z)•(y+z) = (x+y)•(x’+z) -- (dual)
  • Proof: xy + x’z + yz = xy + x’z + (x+x’)yz = xy + x’z + xyz + x’yz = (xy + xyz) + (x’z + x’zy) = xy + x’z QED ( 2 true by duality).

Truth Tables (revisited)Truth Tables (revisited)

  • Enumerates all possible combinations of variable values and the corresponding function value
  • Truth tables for some arbitrary functions F 1 (x,y,z), F 2 (x,y,z) , and F 3 (x,y,z) are shown to the right. x y z F 1 F 2 F 3 0 0 0 0 1 1 0 0 1 0 0 1 0 1 0 0 0 1 0 1 1 0 1 1 1 0 0 0 1 0 1 0 1 0 1 0 1 1 0 0 0 0 1 1 1 1 0 1

Algebraic ManipulationAlgebraic Manipulation

  • Boolean algebra is a useful tool for

simplifying digital circuits.

  • Why do it? Simpler can mean cheaper,

smaller, faster.

  • Example: Simplify F = x’yz + x’yz’ + xz.
  • F = x’yz + x’yz’ + xz

= x’y(z+z’) + xz

= x’y• 1 + xz

= x’y + xz

Algebraic Manipulation (cont.)Algebraic Manipulation (cont.)

  • Example: Prove x’y’z’ + x’yz’ + xyz’ = x’z’ + yz’
  • Proof: x’y’z’+ x’yz’+ xyz’ = x’y’z’ + x’yz’ + x’yz’ + xyz’ = x’z’(y’+y) + yz’(x’+x) = x’z’•1 + yz’• 1 = x’z’ + yz’ QED.

Complement of a FunctionComplement of a Function

  • The complement of a function is

derived by interchanging (• and +),

and (1 and 0) , and complementing

each variable.

  • Otherwise, interchange 1s to 0s in the

truth table column showing F.

  • The complement of a function IS NOT

THE SAME as the dual of a function.

Complementation: ExampleComplementation: Example

  • Find G(x,y,z), the complement of F(x,y,z) = xy’z’ + x’yz
  • G = F’ = (xy’z’ + x’yz)’ = (xy’z’)’ • (x’yz)’ DeMorgan = (x’+y+z) • (x+y’+z’) DeMorgan again
  • Note: The complement of a function can also be derived by finding the function’s dual, and then complementing all of the literals

MintermMinterm

  • Represents exactly one combination in the truth table.
  • Denoted by mj , where j is the decimal equivalent of the minterm’s corresponding binary combination (bj).
  • A variable in mj is complemented if its value in bj is 0, otherwise is uncomplemented.
  • Example: Assume 3 variables (A,B,C), and j =3. Then, b j = 011 and its corresponding minterm is denoted by mj = A’BC

MaxtermMaxterm

  • Represents exactly one combination in the truth table.
  • Denoted by Mj , where j is the decimal equivalent of the maxterm’s corresponding binary combination (bj).
  • A variable in Mj is complemented if its value in bj is 1, otherwise is uncomplemented.
  • Example: Assume 3 variables (A,B,C), and j =3. Then, b j = 011 and its corresponding maxterm is denoted by M j = A+B’+C’

Truth Table notation forTruth Table notation for MintermsMinterms andand MaxtermsMaxterms

  • Minterms and Maxterms are easy to denote using a truth table.
  • Example: Assume 3 variables x,y,z (order is fixed) x y z Minterm Maxterm 0 0 0 x’y’z’ = m 0 x+y+z = M 0 0 0 1 x’y’z = m 1 x+y+z’ = M 1 0 1 0 x’yz’ = m 2 x+y’+z = M 2 0 1 1 x’yz = m 3 x+y’+z’= M 3 1 0 0 xy’z’ = m 4 x’+y+z = M 4 1 0 1 xy’z = m 5 x’+y+z’ = M 5 1 1 0 xyz’ = m 6 x’+y’+z = M 6 1 1 1 xyz = m 7 x’+y’+z’ = M 7

Canonical Forms (Unique)Canonical Forms (Unique)

  • Any Boolean function F( ) can be expressed as a unique sum of min terms and a unique product of max terms (under a fixed variable ordering).
  • In other words, every function F() has two canonical forms: - Canonical Sum-Of-Products (sum of minterms) - Canonical Product-Of-Sums (product of maxterms)

Shorthand:Shorthand: ∑∑ andand ∏∏

  • f 1 (a,b,c) = ∑ m(1,2,4,6), where ∑ indicates that this is a sum-of-products form, and m(1,2,4,6) indicates that the minterms to be included are m 1 , m 2 , m 4 , and m 6.
  • f 1 (a,b,c) = ∏ M(0,3,5,7), where ∏ indicates that this is a product-of-sums form, and M(0,3,5,7) indicates that the maxterms to be included are M 0 , M 3 , M 5 , and M 7.
  • Since mj = Mj’ for any j , ∑ m(1,2,4,6) = ∏ M(0,3,5,7) = f 1 (a,b,c) Conversion Between Canonical FormsConversion Between Canonical Forms
  • Replace ∑ with ∏ (or vice versa ) and replace those j’ s that appeared in the original form with those that do not.
  • Example: f 1 (a,b,c) = a’b’c + a’bc’ + ab’c’ + abc’ = m 1 + m 2 + m 4 + m 6 = ∑(1,2,4,6) = ∏(0,3,5,7) = (a+b+c)•(a+b’+c’)•(a’+b+c’)•(a’+b’+c’)

Standard Forms (NOT Unique)Standard Forms (NOT Unique)

  • Standard forms are “ like” canonical

forms, except that not all variables need

appear in the individual product (SOP) or

sum (POS) terms.

  • Example:

f 1 (a,b,c) = a’b’c + bc’ + ac’

is a standard sum-of-products form

  • f 1 (a,b,c) = (a+b+c)•(b’+c’)•(a’+c’)

is a standard product-of-sums form.

Conversion of SOP fromConversion of SOP from

standard to canonical formstandard to canonical form

  • Expand non-canonical terms by inserting equivalent of 1 in each missing variable x: (x + x’) = 1
  • Remove duplicate minterms
  • f 1 (a,b,c) = a’b’c + bc’ + ac’ = a’b’c + (a+a’)bc’ + a(b+b’)c’ = a’b’c + abc’ + a’bc’ + abc’ + ab’c’ = a’b’c + abc’ + a’bc + ab’c’
