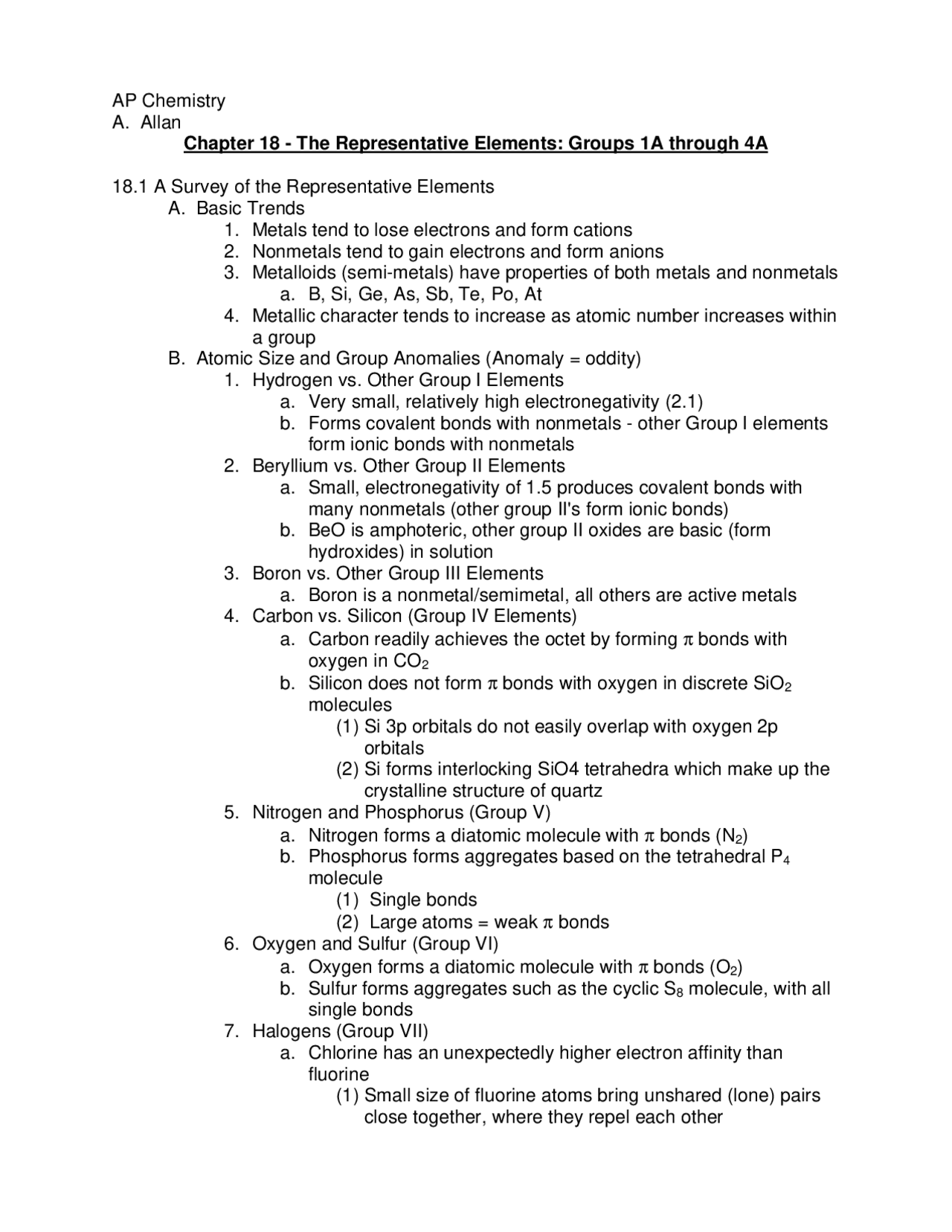

AP Chemistry
A. AllanChapter 18 - The Representative Elements: Groups 1A through 4A
18.1 A Survey of the Representative Elements
A. Basic Trends
1. Metals tend to lose electrons and form cations
2. Nonmetals tend to gain electrons and form anions
3. Metalloids (semi-metals) have properties of both metals and nonmetals
a. B, Si, Ge, As, Sb, Te, Po, At
4. Metallic character tends to increase as atomic number increases within
a group
B. Atomic Size and Group Anomalies (Anomaly = oddity)
1. Hydrogen vs. Other Group I Elements
a. Very small, relatively high electronegativity (2.1)
b. Forms covalent bonds with nonmetals - other Group I elements
form ionic bonds with nonmetals
2. Beryllium vs. Other Group II Elements
a. Small, electronegativity of 1.5 produces covalent bonds with
many nonmetals (other group II's form ionic bonds)
b. BeO is amphoteric, other group II oxides are basic (form
hydroxides) in solution
3. Boron vs. Other Group III Elements
a. Boron is a nonmetal/semimetal, all others are active metals
4. Carbon vs. Silicon (Group IV Elements)
a. Carbon readily achieves the octet by forming π bonds with
oxygen in CO2
b. Silicon does not form π bonds with oxygen in discrete SiO2
molecules
(1) Si 3p orbitals do not easily overlap with oxygen 2p
orbitals
(2) Si forms interlocking SiO4 tetrahedra which make up the
crystalline structure of quartz
5. Nitrogen and Phosphorus (Group V)
a. Nitrogen forms a diatomic molecule with π bonds (N2)
b. Phosphorus forms aggregates based on the tetrahedral P4
molecule
(1) Single bonds
(2) Large atoms = weak π bonds
6. Oxygen and Sulfur (Group VI)
a. Oxygen forms a diatomic molecule with π bonds (O2)
b. Sulfur forms aggregates such as the cyclic S8 molecule, with all
single bonds
7. Halogens (Group VII)
a. Chlorine has an unexpectedly higher electron affinity than
fluorine
(1) Small size of fluorine atoms bring unshared (lone) pairs
close together, where they repel each other
pf3
pf4
pf5

Partial preview of the text

Download The Representative Elements and more Schemes and Mind Maps Chemistry in PDF only on Docsity!

AP Chemistry A. Allan Chapter 18 - The Representative Elements: Groups 1A through 4A

18.1 A Survey of the Representative Elements A. Basic Trends

  1. Metals tend to lose electrons and form cations
  2. Nonmetals tend to gain electrons and form anions
  3. Metalloids (semi-metals) have properties of both metals and nonmetals a. B, Si, Ge, As, Sb, Te, Po, At
  4. Metallic character tends to increase as atomic number increases within a group B. Atomic Size and Group Anomalies (Anomaly = oddity)
  5. Hydrogen vs. Other Group I Elements a. Very small, relatively high electronegativity (2.1) b. Forms covalent bonds with nonmetals - other Group I elements form ionic bonds with nonmetals
  6. Beryllium vs. Other Group II Elements a. Small, electronegativity of 1.5 produces covalent bonds with many nonmetals (other group II's form ionic bonds) b. BeO is amphoteric, other group II oxides are basic (form hydroxides) in solution
  7. Boron vs. Other Group III Elements a. Boron is a nonmetal/semimetal, all others are active metals
  8. Carbon vs. Silicon (Group IV Elements) a. Carbon readily achieves the octet by forming π bonds with oxygen in CO 2 b. Silicon does not form π bonds with oxygen in discrete SiO 2 molecules (1) Si 3p orbitals do not easily overlap with oxygen 2p orbitals (2) Si forms interlocking SiO4 tetrahedra which make up the crystalline structure of quartz
  9. Nitrogen and Phosphorus (Group V) a. Nitrogen forms a diatomic molecule with π bonds (N 2 ) b. Phosphorus forms aggregates based on the tetrahedral P 4 molecule (1) Single bonds (2) Large atoms = weak π bonds
  10. Oxygen and Sulfur (Group VI) a. Oxygen forms a diatomic molecule with π bonds (O 2 ) b. Sulfur forms aggregates such as the cyclic S 8 molecule, with all single bonds
  11. Halogens (Group VII) a. Chlorine has an unexpectedly higher electron affinity than fluorine (1) Small size of fluorine atoms bring unshared (lone) pairs close together, where they repel each other

C. Abundance and Preparation

  1. Earth's Crust, Ocean, Atmosphere

Oxygen 49.2% Titanium 0.58% Silicon 25.7% Chlorine 0.19% Aluminum 7.50% Phosphorus 0.11% Iron 4.71% Manganese 0.09% Calcium 3.39% Carbon 0.08% Sodium 2.63% Sulfur 0.06% Potassium 2.40% Barium 0.04% Magnesium 1.93% Nitrogen 0.03% Hydrogen 0.87% Fluorine 0.03%

  1. Major Elements in the Human Body

Oxygen 65.0% Potassium 0.34% Carbon 18.0% Sulfur 0.26% Hydrogen 10.0% Sodium 0.14% Nitrogen 3.0% Chlorine 0.14% Calcium 1.4% Iron 0.004% Phosphorus 1.0% Zinc 0.003% Magnesium 0.50%

  1. Metallurgy - Obtaining a Metal from its Ore a. Reduction of metal ions to atoms, usually using carbon as the reducing agent 2SnO(s) + C(s) + heat ‡ 2Sn(s) + CO 2 (g) 2PbO(s) + C(s) + heat ‡ 2Pb(s) + CO 2 (g) Hydrogen as reducing agent SnO(s) + H 2 (g) + heat ‡ Sn(s) + H 2 O(g) b. Electrolysis (1) purification of highly active metals
  2. Purification of Nonmetals a. Liquefaction (1) sequential expansion (cooling) followed by compression of a gas b. Electrolysis (1) Hydrogen from water c. Decomposition (1) Hydrogen from methane (more common)

D. Hydrogen Halides

  1. Ionic hydrides a. Hydrogen and a Group I or II metal b. Hydride ion is H- c. Hydrides are powerful reducing agents, explosive in water d. Examples include LiH and CaH 2
  2. Nonmetals + hydrogen (covalent hydrides) a. Examples include H 2 O, NH 3 , CH 4 , HCl
  3. Metallic (Interstitial) Hydrides a. Hydrogen and a transition metal b. Hydrogen is absorbed by transition metals (1) Amount of hydrogen depends on length of exposure (2) Potential method of storing Hydrogen fuel

18.4 The Group 2A Elements - The Alkaline Earth Metals A. Basicity of Oxides

  1. MO(s) + H 2 O(l) ‡ M2+(aq) + 2OH-(aq)
  2. BeO has amphoteric properties B. Reaction with Water
  3. M(s) + H 2 O(l) ‡ M2+(aq) + 2OH-(aq) + H 2 (g)
  4. Ca, Sr, Ba react at room temperature, Mg in boiling water C. Uses
  5. Calcium phosphate in bone structure
  6. Mg in metabolism and muscle function
  7. Mg metal in flash bulbs and metal alloys D. Removal from "hard" water
  8. Cation exchange resin replaces each Mg+2^ and Ca+2^ in water with 2 sodium ions Note: Detergents are less soluble in hard water. There is noticeable difficulty, for instance, washing detergent out of one's hair when the concentration of Group II ions is high

18.5 The Group 3A Elements A. Boranes

  1. B 2 H 6 (diborane) and others (B 5 H 9 ) are electron deficient and highly reactive

B. Aluminum

  1. Most abundant metal on earth
  2. Oxide (Al2O3) is amphoteric
  3. Metallic properties, but covalent bonds to nonmetals

C. Gallium

  1. Largest liquid range of any metal a. melts at 29.8°C b. boils at 2400°C D. Indium and Thallium
  2. The Inert Pair Effect a. Lose one electron to form +1 ion (full s orbital) b. Lose three electrons to form +3 ion (octet)

18.6 The Group 4A Elements A. Variation within the Group

  1. C is a nonmetal
  2. Si and Ge are semimetals
  3. Sn and Pb are metals
  4. All tend to form 4 covalent bonds to nonmetals (tetravalence) B. Carbon
  5. Three allotropic forms (allotropic = two or more distinct forms)

Graphite Diamond Buckminster Fullerene

  1. Carbon oxides

carbon monoxide carbon dioxide carbon suboxide

C. Silicon

  1. Found in earth's crust in silica and silicates
  2. Semimetal used in semiconductors D. Germanium
  3. Rare semimetal used as a semiconductor in electric devices E. Tin
  4. Widely used in alloys

Bronze 20% Sn, 80% Cu Solder 33% Sn, 67% Pb

Pewter 85% Sn, 7% Cu, 6% Bi, 2% Sn
