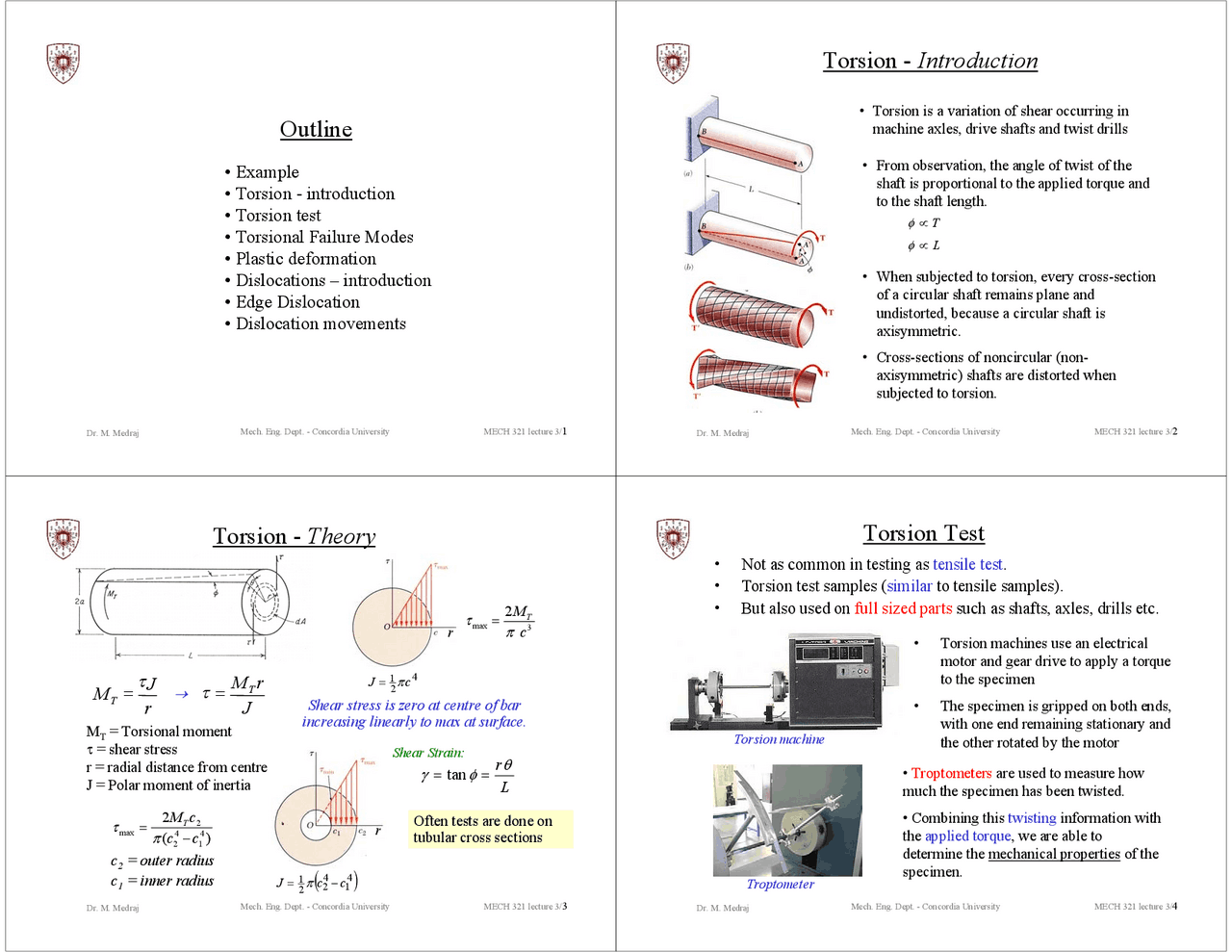

Dr. M. Medraj Mech. Eng. Dept. - Concordia University MECH 321 lecture 3/1
Outline
•Example
Torsion - introduction
Torsion test
Torsional Failure Modes
Plastic deformation
Dislocations – introduction
Edge Dislocation
Dislocation movements
Dr. M. Medraj Mech. Eng. Dept. - Concordia University MECH 321 lecture 3/2
From observation, the angle of twist of the
shaft is proportional to the applied torque and
to the shaft length.
L
T
φ
φ
When subjected to torsion, every cross-section
of a circular shaft remains plane and
undistorted, because a circular shaft is
axisymmetric.
Cross-sections of noncircular (non-
axisymmetric) shafts are distorted when
subjected to torsion.
Torsion - Introduction
Torsion is a variation of shear occurring in
machine axles, drive shafts and twist drills
Dr. M. Medraj Mech. Eng. Dept. - Concordia University MECH 321 lecture 3/3
Torsion - Theory
J
rMT
=
τ
r
J
MT=
τ
MT= Torsional moment
τ= shear stress
r = radial distance from centre
J = Polar moment of inertia
Often tests are done on
tubular cross sections
4
2
1cJ
π
=
r
Shear stress is zero at centre of bar
increasing linearly to max at surface.
3
max
2
c
MT
π
τ
=
(
)
4
1
4
2
2
1ccJ =
π
r
)(
2
4
1
4
2
2
max cc
cMT
=
π
τ
c2= outer radius
c1= inner radius
L
r
θ
φγ
== tan
Shear Strain:
Dr. M. Medraj Mech. Eng. Dept. - Concordia University MECH 321 lecture 3/4
Torsion Test
Not as common in testing as tensile test.
Torsion test samples (similar to tensile samples).
But also used on full sized parts such as shafts, axles, drills etc.
Troptometer
Torsion machine
Torsion machines use an electrical
motor and gear drive to apply a torque
to the specimen
The specimen is gripped on both ends,
with one end remaining stationary and
the other rotated by the motor
Troptometers are used to measure how
much the specimen has been twisted.
Combining this twisting information with
the applied torque, we are able to
determine the mechanical properties of the
specimen.
