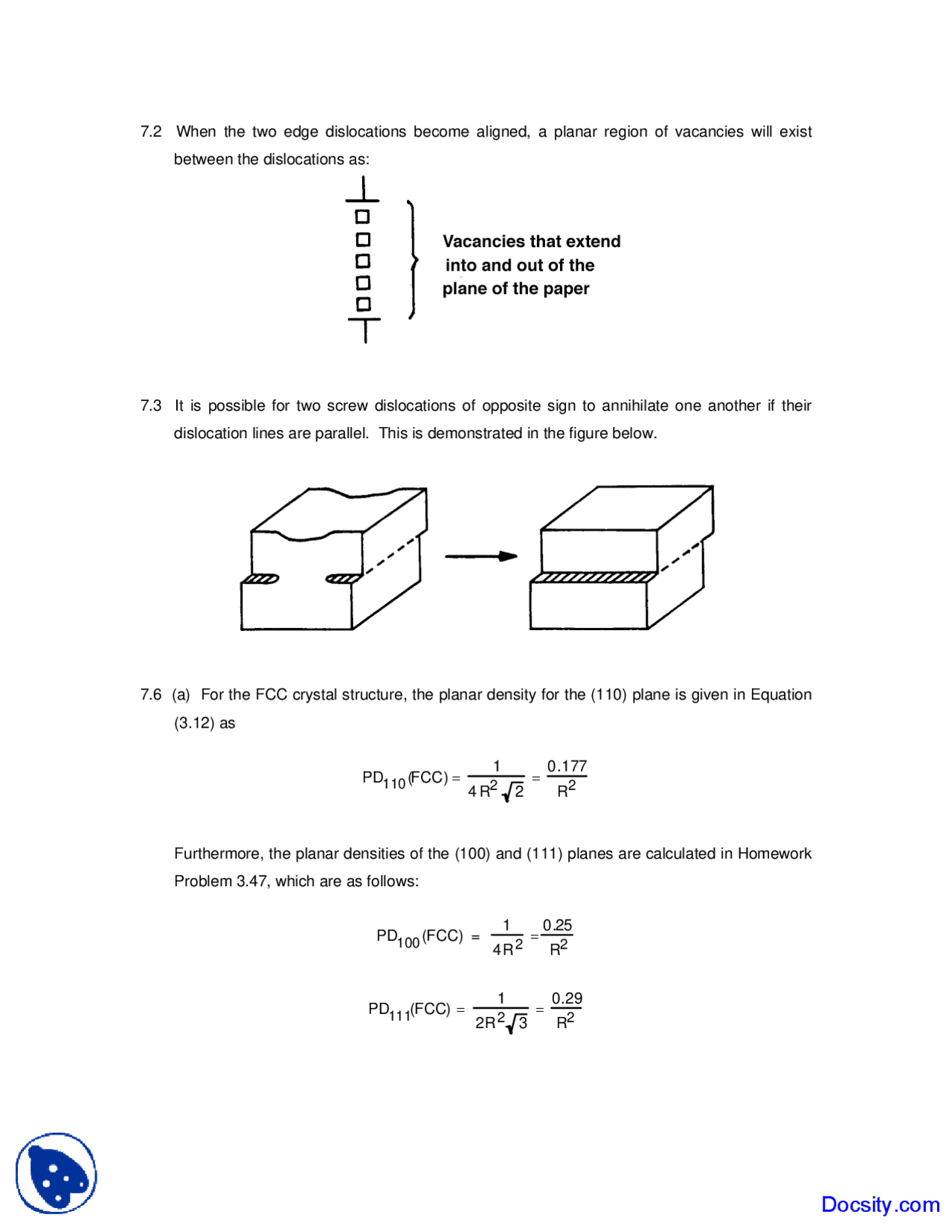

7.2 When the two edge dislocations become aligned, a planar region of vacancies will exist between the dislocations as:
7.3 It is possible for two screw dislocations of opposite sign to annihilate one another if their dislocation lines are parallel. This is demonstrated in the figure below.
7.6 (a) For the FCC crystal structure, the planar density for the (110) plane is given in Equation (3.12) as
PD 110 (FCC) = 1 4 R^2
R^2
Furthermore, the planar densities of the (100) and (111) planes are calculated in Homework Problem 3.47, which are as follows:
PD 100 (FCC) = 1 4R 2
R^2
PD 111 (FCC) = 1
2R 2 3
R^2
(b) For the BCC crystal structure, the planar densities of the (100) and (110) planes were determined in Homework Problem 3.48, which are as follows:
PD 100 (BCC) = 3 16 R^2
R 2
PD 110 (BCC) = 3
8R 2 2
R 2
Below is a BCC unit cell, within which is shown a (111) plane.
(a)
The centers of the three corner atoms, denoted by A , B , and C lie on this plane. Furthermore, the (111) plane does not pass through the center of atom D , which is located at the unit cell center. The atomic packing of this plane is presented in the following figure; the corresponding atom positions from the Figure (a) are also noted.
(b)
PD 111 (BCC) = 0.5 atom 8R 2 3
16R^2
R^2
7.9 Resolved shear stress is the shear component of an applied tensile (or compressive) stress resolved along a slip plane that is other than perpendicular or parallel to the stress axis. The critical resolved shear stress is the value of resolved shear stress at which yielding begins; it is a property of the material.
7.12 We are asked to compute the critical resolved shear stress for Zn. As stipulated in the problem, φ = 65°, while possible values for λ are 30°, 48°, and 78°. (a) Slip will occur along that direction for which (cos φ cos λ) is a maximum, or, in this case, for the largest cos λ. The cosines for the possible λ values are given below.
cos(30°) = 0. cos(48°) = 0. cos(78°) = 0.
Thus, the slip direction is at an angle of 30° with the tensile axis. (b) From Equation (7.3), the critical resolved shear stress is just
τcrss = σy (cos φ cos λ)max
= (2.5 MPa) cos(65[ °)cos( 3 0°)] = 0.90 MPa (130 psi)
7.20 These three strengthening mechanisms are described in Sections 7.8, 7.9, and 7.10.
7.21 (a) Perhaps the easiest way to solve for σ o and ky in Equation (7.5) is to pick two values
each of σ y and d -^ 1/2^ from Figure 7.13, and then set up and solve two simultaneous equations. For example
d-^ 1/2^ (mm)-^ 1/2^ σy (MPa) 4 75 12 175
The two equations are thus
75 = σo + 4k (^) y
