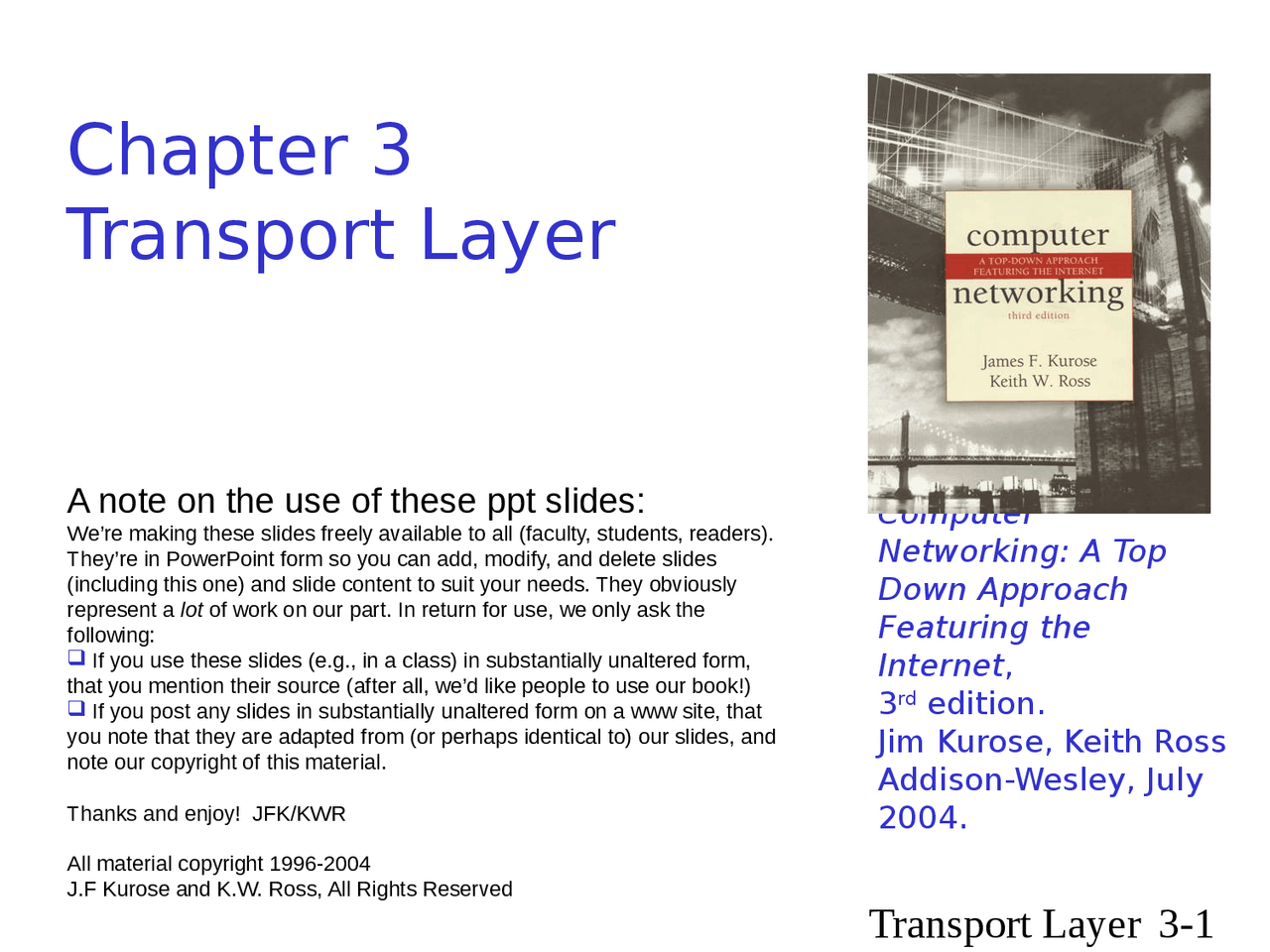

Chapter 3
Transport Layer
Computer Networking: A Top Down Approach Featuring the Internet , 3 rd^ edition. Jim Kurose, Keith Ross Addison-Wesley, July
A note on the use of these ppt slides: We’re making these slides freely available to all (faculty, students, readers). They’re in PowerPoint form so you can add, modify, and delete slides (including this one) and slide content to suit your needs. They obviously represent a lot of work on our part. In return for use, we only ask the following: (^) If you use these slides (e.g., in a class) in substantially unaltered form, that you mention their source (after all, we’d like people to use our book!) (^) If you post any slides in substantially unaltered form on a www site, that you note that they are adapted from (or perhaps identical to) our slides, and note our copyright of this material. Thanks and enjoy! JFK/KWR All material copyright 1996- J.F Kurose and K.W. Ross, All Rights Reserved
Chapter 3: Transport Layer
Our goals:
understand
principles behind
transport layer
services:
(^) multiplexing/demulti plexing (^) reliable data transfer (^) flow control (^) congestion control
learn about transport
layer protocols in the
Internet:
(^) UDP: connectionless transport (^) TCP: connection-oriented transport (^) TCP congestion control
Transport services and
protocols
(^) provide logical communication between app processes running on different hosts (^) transport protocols run in end systems (^) send side: breaks app messages into segments, passes to network layer (^) rcv side: reassembles segments into messages, passes to app layer (^) more than one transport protocol available to apps (^) Internet: TCP and UDP
applicatio n transport network data link physical
applicatio n transport network data link physical
network data link physical
network data link physical
network data link physical
network data link data linknetwork^ physical physical
logical end-end transport
Transport vs. network layer
network layer:
logical
communication
between hosts
transport layer:
logical
communication
between processes
(^) relies on, enhances, network layer services
Household analogy:
12 kids sending letters
to 12 kids
processes = kids
app messages =
letters in envelopes
hosts = houses
transport protocol =
Ann and Bill
network-layer protocol
= postal service
Chapter 3 outline
3.1 Transport-layer
services
3.2 Multiplexing and
demultiplexing
3.3 Connectionless
transport: UDP
3.4 Principles of
reliable data transfer
3.5 Connection-
oriented transport:
TCP
(^) segment structure (^) reliable data transfer (^) flow control (^) connection management
3.6 Principles of
congestion control
3.7 TCP congestion
control
Multiplexing/demultiplexing
application
transport
network
link
physical
P1 application transport
network
link
physical
application
transport
network
link
physical
P3 (^) P1^ P2 P
host 1 host 2^ host 3
= socket = process
delivering received segments to correct socket
Demultiplexing at rcv host: gathering data from multiple sockets, enveloping data with header (later used for demultiplexing)
Multiplexing at send host:
Connectionless
demultiplexing
Create sockets with port
numbers:
DatagramSocket mySocket1 = new DatagramSocket(99111);
DatagramSocket mySocket2 = new DatagramSocket(99222);
UDP socket identified by
two-tuple:
(dest IP address, dest port number)
When host receives
UDP segment:
(^) checks destination port number in segment (^) directs UDP segment to socket with that port number
IP datagrams with
different source IP
addresses and/or
source port numbers
directed to same socket
Connectionless demux (cont)
DatagramSocket serverSocket = new DatagramSocket(6428);
Client IP:B
P
client IP: A
P3^ P1P
server IP: C
SP: 6428 DP: 9157
SP: 9157 DP: 6428
SP: 6428 DP: 5775
SP: 5775 DP: 6428
SP provides “return address”
Connection-oriented demux
(cont)
Client IP:B
P
client IP: A
P4 P2^ P
server IP: C
SP: 9157 DP: 80
SP: 9157 DP: 80
P5 P6^ P
D-IP:C
S-IP: A D-IP:C
S-IP: B
SP: 5775 DP: 80
D-IP:C
S-IP: B
Connection-oriented demux:
Threaded Web Server
Client IP:B
P
client IP: A
P2^ P
server IP: C
SP: 9157 DP: 80
SP: 9157 DP: 80
P4 P
D-IP:C
S-IP: A D-IP:C
S-IP: B
SP: 5775 DP: 80
D-IP:C
S-IP: B
UDP: User Datagram Protocol [RFC 768]
(^) “no frills,” “bare bones” Internet transport protocol
(^) “best effort” service, UDP segments may be: (^) lost (^) delivered out of order to app
(^) connectionless:
(^) no handshaking between UDP sender, receiver (^) each UDP segment handled independently of others
Why is there a UDP?
(^) no connection establishment (which can add delay) (^) simple: no connection state at sender, receiver (^) small segment header (^) no congestion control: UDP can blast away as fast as desired
UDP: more
(^) often used for streaming
multimedia apps (^) loss tolerant (^) rate sensitive
other UDP uses
DNS
SNMP
(^) reliable transfer over
UDP: add reliability at application layer (^) application-specific error recovery!
source port # dest port #
32 bits
Application data (message)
UDP segment format
length checksum
Length, in bytes of UDP segment, including header
Internet Checksum Example
Note
When adding numbers, a carryout from the
most significant bit needs to be added to
the result
Example: add two 16-bit integers
wraparound
sum checksum
Chapter 3 outline
3.1 Transport-layer
services
3.2 Multiplexing and
demultiplexing
3.3 Connectionless
transport: UDP
3.4 Principles of
reliable data transfer
3.5 Connection-
oriented transport:
TCP
(^) segment structure (^) reliable data transfer (^) flow control (^) connection management
3.6 Principles of
congestion control
3.7 TCP congestion
control
