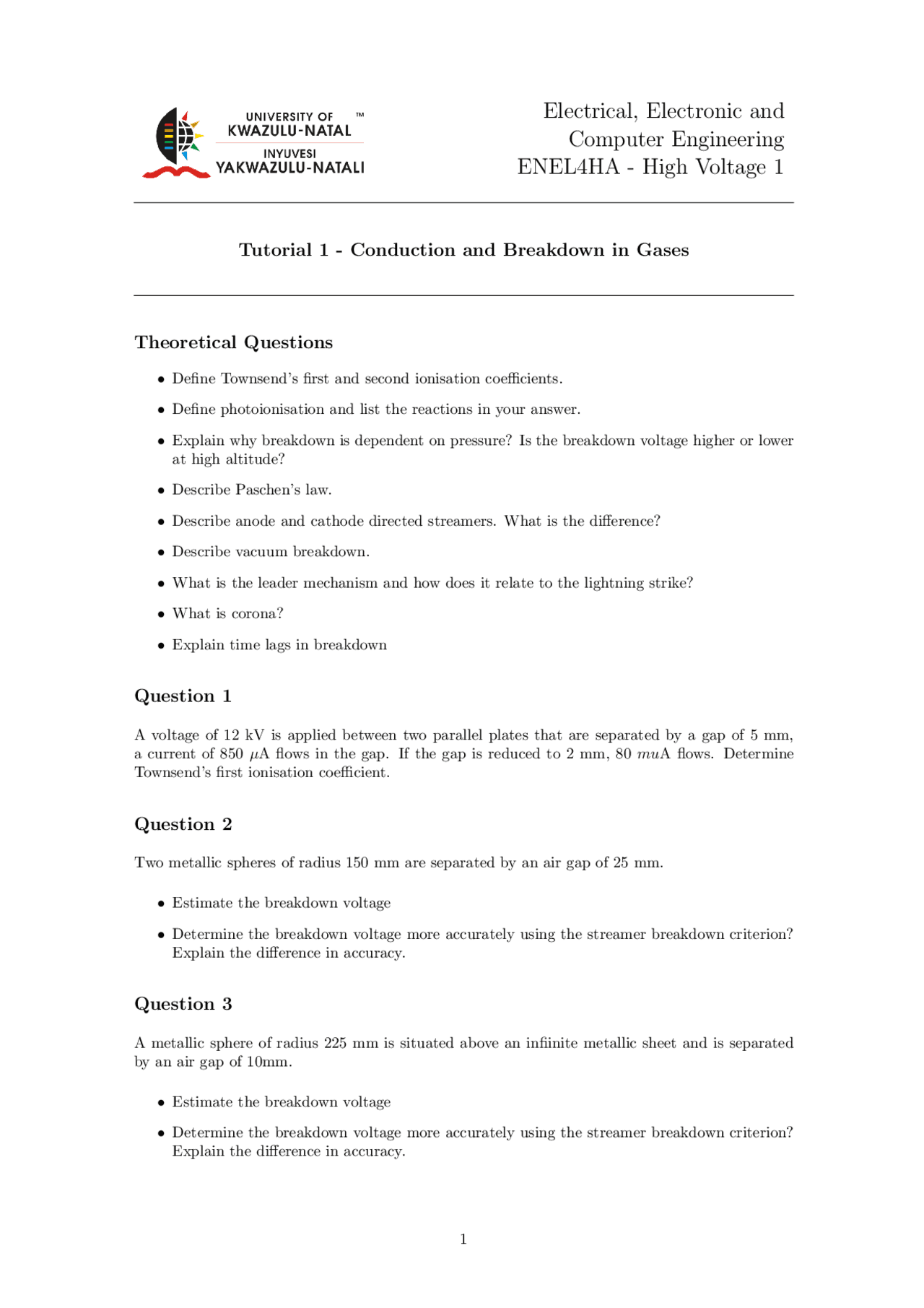

Electrical, Electronic and
Computer Engineering
ENEL4HA - High Voltage 1
Tutorial 1 - Conduction and Breakdown in Gases
Theoretical Questions
•Define Townsend’s first and second ionisation coefficients.
•Define photoionisation and list the reactions in your answer.
•Explain why breakdown is dependent on pressure? Is the breakdown voltage higher or lower
at high altitude?
•Describe Paschen’s law.
•Describe anode and cathode directed streamers. What is the difference?
•Describe vacuum breakdown.
•What is the leader mechanism and how does it relate to the lightning strike?
•What is corona?
•Explain time lags in breakdown
Question 1
A voltage of 12 kV is applied between two parallel plates that are separated by a gap of 5 mm,
a current of 850 µA flows in the gap. If the gap is reduced to 2 mm, 80 muA flows. Determine
Townsend’s first ionisation coefficient.
Question 2
Two metallic spheres of radius 150 mm are separated by an air gap of 25 mm.
•Estimate the breakdown voltage
•Determine the breakdown voltage more accurately using the streamer breakdown criterion?
Explain the difference in accuracy.
Question 3
A metallic sphere of radius 225 mm is situated above an infiinite metallic sheet and is separated
by an air gap of 10mm.
•Estimate the breakdown voltage
•Determine the breakdown voltage more accurately using the streamer breakdown criterion?
Explain the difference in accuracy.
1
pf3

Partial preview of the text

Download Tutorials and test paper about break down streamer and more Exercises Volcanology in PDF only on Docsity!

Electrical, Electronic and

Computer Engineering

ENEL4HA - High Voltage 1

Tutorial 1 - Conduction and Breakdown in Gases

Theoretical Questions

  • Define Townsend’s first and second ionisation coefficients.
  • Define photoionisation and list the reactions in your answer.
  • Explain why breakdown is dependent on pressure? Is the breakdown voltage higher or lower at high altitude?
  • Describe Paschen’s law.
  • Describe anode and cathode directed streamers. What is the difference?
  • Describe vacuum breakdown.
  • What is the leader mechanism and how does it relate to the lightning strike?
  • What is corona?
  • Explain time lags in breakdown

Question 1

A voltage of 12 kV is applied between two parallel plates that are separated by a gap of 5 mm, a current of 850 μA flows in the gap. If the gap is reduced to 2 mm, 80 muA flows. Determine Townsend’s first ionisation coefficient.

Question 2

Two metallic spheres of radius 150 mm are separated by an air gap of 25 mm.

  • Estimate the breakdown voltage
  • Determine the breakdown voltage more accurately using the streamer breakdown criterion? Explain the difference in accuracy.

Question 3

A metallic sphere of radius 225 mm is situated above an infiinite metallic sheet and is separated by an air gap of 10mm.

  • Estimate the breakdown voltage
  • Determine the breakdown voltage more accurately using the streamer breakdown criterion? Explain the difference in accuracy.

Question 4

A coaxial busbar with an inner conductor with external radius of 15 mm and outer conductor with internal radius of 75 mm. The system is filled with SF6 at 3 bar.

  • Estimate the breakdown voltage.
  • Determine the breakdown voltage more accurately using the streamer breakdown criterion? Explain the difference in accuracy.
