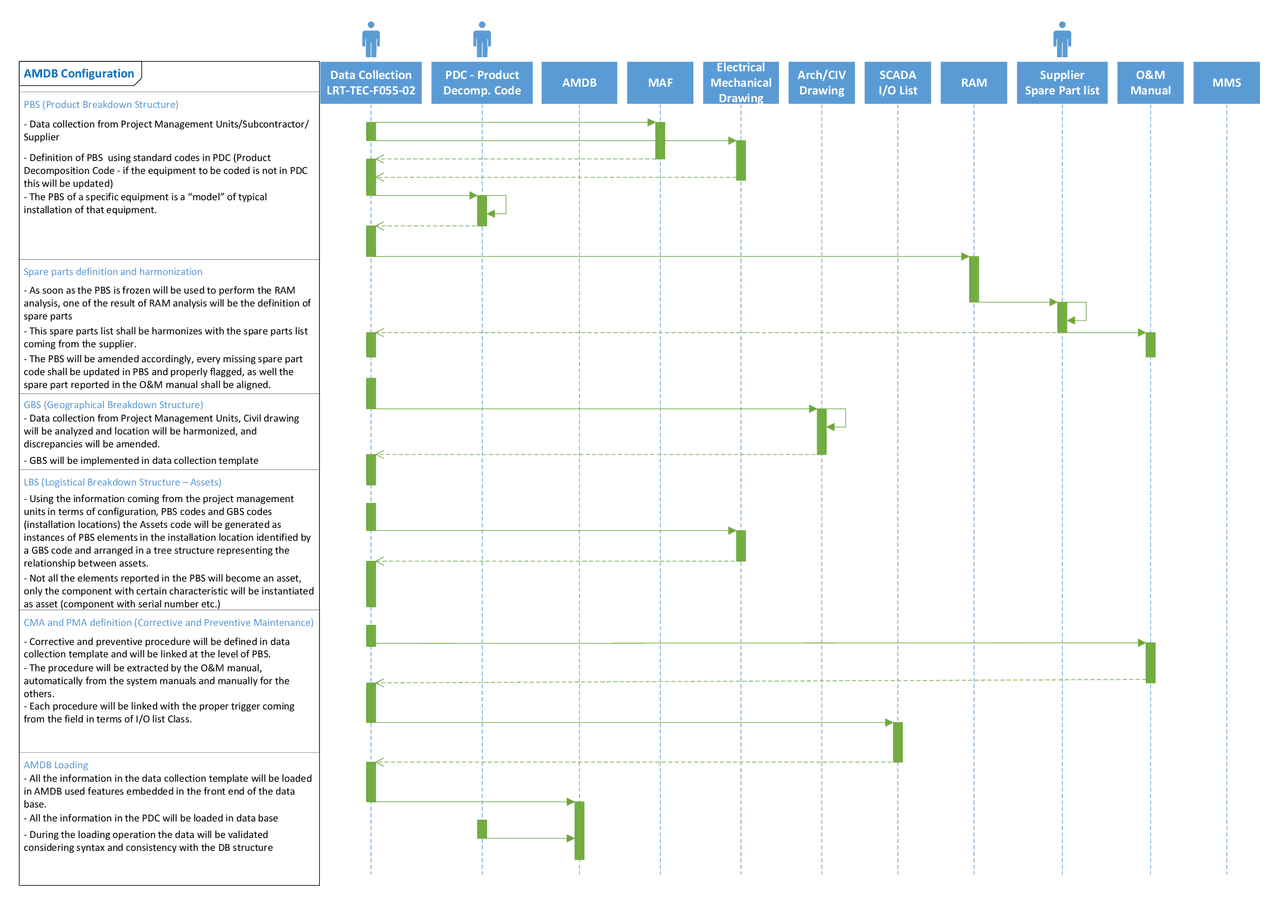

UML Amdb - Data Validation process | Schemes and Mind Maps Maintenance Engineering

Data Collection

LRT-TEC-F055-02 MAF SCADA

I/O List

Electrical

Mechanical

Drawing

Supplier

Spare Part list

O&M

Manual

RAM MMSAMDB

PDC - Product

Decomp. Code

- Data collection from Project Management Units/Subcontractor/

Supplier

PBS (Product Breakdown Structure)

Arch/CIV

Drawing

- Definition of PBS using standard codes in PDC (Product

Decomposition Code - if the equipment to be coded is not in PDC

this will be updated)

GBS (Geographical Breakdown Structure)

- Data collection from Project Management Units, Civil drawing

will be analyzed and location will be harmonized, and

discrepancies will be amended.

- GBS will be implemented in data collection template

LBS (Logistical Breakdown Structure – Assets)

- Using the information coming from the project management

units in terms of configuration, PBS codes and GBS codes

(installation locations) the Assets code will be generated as

instances of PBS elements in the installation location identified by

a GBS code and arranged in a tree structure representing the

relationship between assets.

- The PBS of a specific equipment is a “model” of typical

installation of that equipment.

- Not all the elements reported in the PBS will become an asset,

only the component with certain characteristic will be instantiated

as asset (component with serial number etc.)

Spare parts definition and harmonization

- As soon as the PBS is frozen will be used to perform the RAM

analysis, one of the result of RAM analysis will be the definition of

spare parts

- This spare parts list shall be harmonizes with the spare parts list

coming from the supplier.

- The PBS will be amended accordingly, every missing spare part

code shall be updated in PBS and properly flagged, as well the

spare part reported in the O&M manual shall be aligned.

AMDB Configuration

CMA and PMA definition (Corrective and Preventive Maintenance)

AMDB Loading

- Corrective and preventive procedure will be defined in data

collection template and will be linked at the level of PBS.

- All the information in the data collection template will be loaded

in AMDB used features embedded in the front end of the data

base.

- The procedure will be extracted by the O&M manual,

automatically from the system manuals and manually for the

others.

- Each procedure will be linked with the proper trigger coming

from the field in terms of I/O list Class.

- All the information in the PDC will be loaded in data base

- During the loading operation the data will be validated

considering syntax and consistency with the DB structure

Partial preview of the text

Download UML Amdb - Data Validation process and more Schemes and Mind Maps Maintenance Engineering in PDF only on Docsity!

Data CollectionLRT-TEC-F055-^

MAF^

SCADAI/O List

ElectricalMechanicalDrawing

SupplierSpare Part list

O&MManual

RAM^

MMS

AMDB

PDC - ProductDecomp. Code

PBS (Product Breakdown Structure) - Data collection from Project Management Units/Subcontractor/Supplier

Arch/CIVDrawing

AMDB Configuration - Definition of PBS using standard codes in PDC (ProductDecomposition Code - if the equipment to be coded is not in PDCthis will be updated)- The PBS of a specific equipment is a “model” of typicalinstallation of that equipment. Spare parts definition and harmonization - As soon as the PBS is frozen will be used to perform the RAManalysis, one of the result of RAM analysis will be the definition ofspare parts - This spare parts list shall be harmonizes with the spare parts listcoming from the supplier.- The PBS will be amended accordingly, every missing spare partcode shall be updated in PBS and properly flagged, as well thespare part reported in the O&M manual shall be aligned. GBS (Geographical Breakdown Structure) - Data collection from Project Management Units, Civil drawingwill be analyzed and location will be harmonized, anddiscrepancies will be amended. - GBS will be implemented in data collection template LBS (Logistical Breakdown Structure – Assets) - Using the information coming from the project managementunits in terms of configuration, PBS codes and GBS codes(installation locations) the Assets code will be generated asinstances of PBS elements in the installation location identified bya GBS code and arranged in a tree structure representing therelationship between assets.- Not all the elements reported in the PBS will become an asset,only the component with certain characteristic will be instantiatedas asset (component with serial number etc.) CMA and PMA definition (Corrective and Preventive Maintenance) - Corrective and preventive procedure will be defined in datacollection template and will be linked at the level of PBS.- The procedure will be extracted by the O&M manual,automatically from the system manuals and manually for theothers.- Each procedure will be linked with the proper trigger comingfrom the field in terms of I/O list Class. AMDB Loading- All the information in the data collection template will be loadedin AMDB used features embedded in the front end of the database.- All the information in the PDC will be loaded in data base- During the loading operation the data will be validatedconsidering syntax and consistency with the DB structure

MMSAMDB

Correspondence Matrix between PDC and QRC AMCS - Creation of a correspondence matrix regarding Alstom and QDVCSystem, Discipline, Equipment and Room codes from LRTCcodification to QRC AMCS codification - The process will be iterated till LRTC codes have acorrespondence in AMCS, if correspondence is impossible MSIshall implement missing codes - At the end of the process the PDC will be transferred to AMDB

PDC - ProductDecomp. Code^

QRC/MSI

At the level of AMDB the code compliant to QRC AMCS will begenerated- Baseline configuration of:Asset^ Location^ Corrective Maintenance Item^ Company^ Preventive Maintenance
