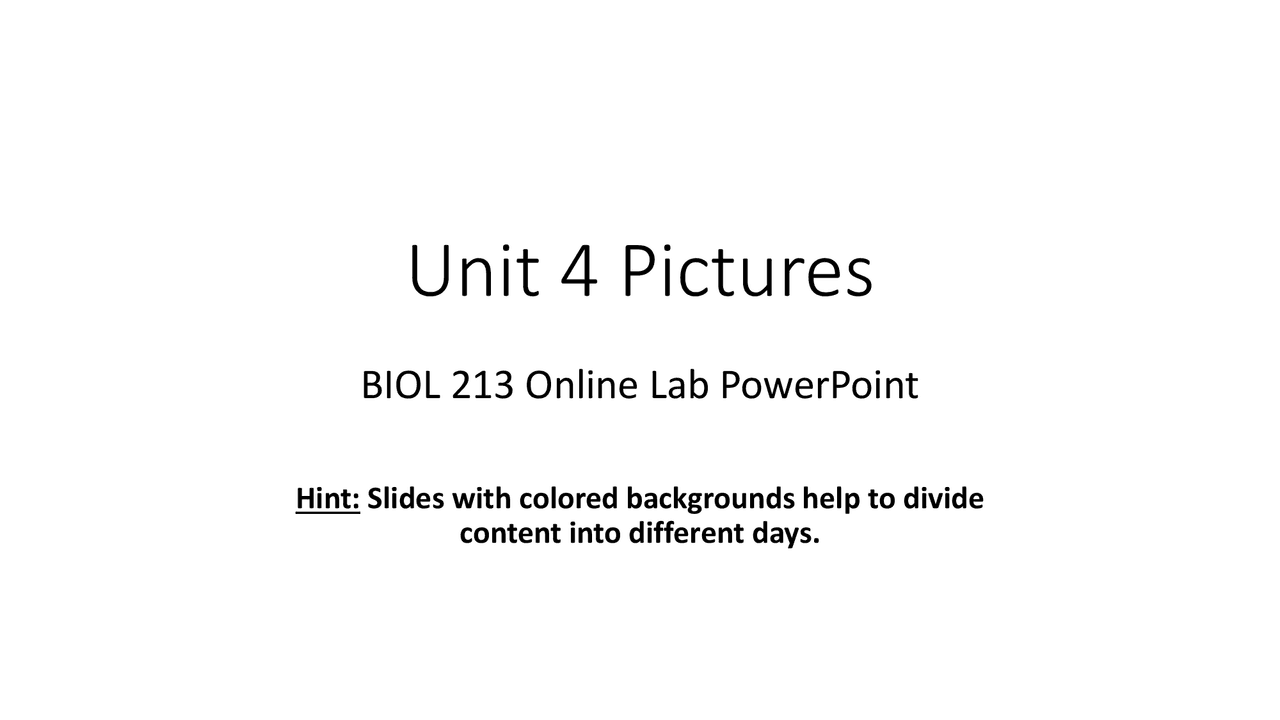

Unit 4 Pictures
BIOL 213 Online Lab PowerPoint
Hint: Slides with colored backgrounds help to divide
content into different days.
Urinary Gross Anatomy and
Histology
Figure 25.1 The urinary system.
© 2016 Pearson Education, Inc.
Esophagus (cut)
Inferior vena cava
Adrenal gland
Hepatic veins (cut)
Renal artery
Renal hilum
Renal vein
Iliac crest
L. Kidney
L. Ureter
Urinary
bladder
Urethra
Aorta
Rectum (cut)
Uterus (part of female
reproductive system)
Urinary Anatomy
Figure 25.4b Internal anatomy of the kidney.
© 2016 Pearson Education, Inc.
Renal cortex
Renal medulla
Major calyx
Papilla of pyramid
Renal pelvis
Ureter
Minor calyx
Renal column
Renal pyramid in renal medulla
Fibrous capsule
Diagrammatic view
Nephron
PATH OF URINE DRAINAGE:
Minor calyx
Major calyx
Renal pelvis
Ureter
Urinary bladder
Papillary duct
Figure 25.6-1 Location and structure of nephrons.
© 2016 Pearson Education, Inc.
Cortex
Medulla
Proximal convoluted tubule
Distal convoluted tubule
Thick segment Thin segment
Renal cortex Renal medulla
Renal pelvis
Ureter
Kidney Renal corpuscle
- Glomerular capsule
- Glomerulus
Nephron loop
- Descending limb
- Ascending limb
Collecting duct
Renal Tubule
- Loop of Henle has descending
and ascending limbs
Marieb
Don’t forget to study the loop in both orientations!
It helps if you start at Bowman’s Capsule and work your way through the nephron from there.
Juxtaglomerular Apparatus (JGA) – in orange, blue, and red
***Helpful picture for corpuscle model.
© 2016 Pearson Education, Inc.
Glomerulus
Glomerular capsule
Afferent arteriole
Efferent arteriole
Red blood cell
Podocyte cell body (visceral layer)
Foot processes of podocytes
Parietal layer of glomerular capsule
Proximal tubule cell
Lumens of glomerular capillaries Endothelial cell of glomerular capillary
Efferent arteriole
Capsular space
Juxtaglomerular complex Renal corpuscle
Glomerular mesangial cells
Afferent arteriole
Juxtaglomerular Complex:
- Macula densa cells of the ascending limb of nephron loop - Extraglomerular mesangial cells
- Granular cells
Renal Tubule
- Proximal convoluted tubule (PCT)
- Cuboidal cells with dense microvilli and large
mitochondria
- Functions in reabsorption and secretion
- Confined to cortex
Marieb
Don’t forget to look for these on the corpuscle model…they help you to know when you have hit the PCT.
Olexik
Website
Olexik
Website
Pelvic Model
Torso Model
Human Sized Kidney Model
Enlarged Kidney
Model
