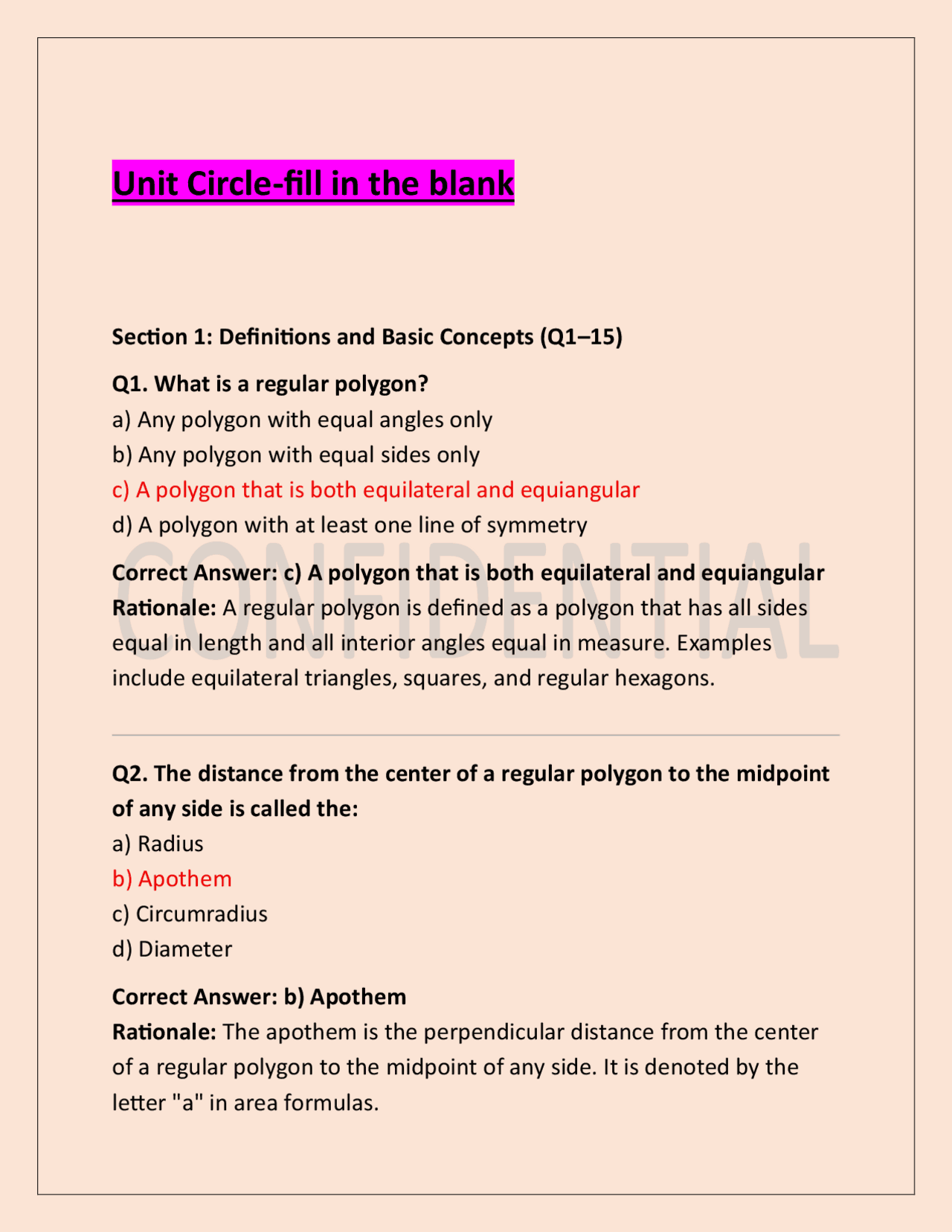

Unit Circle-fill in the blank
Section 1: Definitions and Basic Concepts (Q1–15) Q1. What is a regular polygon? a) Any polygon with equal angles only b) Any polygon with equal sides only c) A polygon that is both equilateral and equiangular d) A polygon with at least one line of symmetry Correct Answer: c) A polygon that is both equilateral and equiangular Rationale: A regular polygon is defined as a polygon that has all sides equal in length and all interior angles equal in measure. Examples include equilateral triangles, squares, and regular hexagons. Q2. The distance from the center of a regular polygon to the midpoint of any side is called the: a) Radius b) Apothem c) Circumradius d) Diameter Correct Answer: b) Apothem Rationale: The apothem is the perpendicular distance from the center of a regular polygon to the midpoint of any side. It is denoted by the letter "a" in area formulas.
Q3. The distance from the center of a regular polygon to any vertex is called the: a) Apothem b) Circumradius (radius of circumscribed circle) c) Inradius d) Altitude Correct Answer: b) Circumradius Rationale: The circumradius (often denoted as R) is the radius of the circle that passes through all vertices of the polygon. The apothem is the inradius (radius of inscribed circle). Q4. Which of the following is NOT a regular polygon? a) Equilateral triangle b) Square c) Rectangle d) Regular hexagon Correct Answer: c) Rectangle Rationale: A rectangle has equal angles (all 90°) but does NOT necessarily have equal sides (length and width can differ). Therefore, it is equiangular but not equilateral, so it is not a regular polygon. Q5. The formula for the area of any regular polygon is: a) A = ½ × base × height b) A = ½ × perimeter × apothem
triangle has two radii as equal sides and one side of the polygon as base. Q8. The central angle of a regular n-gon measures: a) 360°/n b) (n – 2) × 180°/n c) 180° – (360°/n) d) (n – 2) × 180° Correct Answer: a) 360°/n Rationale: The central angle is the angle subtended at the center by two consecutive vertices. Since a full circle is 360°, and there are n vertices equally spaced, each central angle = 360°/n. Q9. The interior angle of a regular n-gon measures: a) 360°/n b) (n – 2) × 180°/n c) 180° – (360°/n) d) Both B and C Correct Answer: d) Both B and C Rationale: The sum of interior angles of any n-gon is (n – 2) × 180°. Dividing by n gives the measure of each interior angle. This can also be expressed as 180° – (360°/n). Q10. The relationship between apothem (a) and side length (s) for a regular n-gon is:
a) a = s / [2 × tan(180°/n)] b) a = s × tan(180°/n) c) a = s / [2 × sin(180°/n)] d) a = s / 2 × cos(180°/n) Correct Answer: a) a = s / [2 × tan(180°/n)] Rationale: In the right triangle formed by the apothem, half of a side, and the radius, tan(π/n) = (s/2)/a → a = (s/2)/tan(π/n) = s / [2 tan(π/n)]. Q11. The relationship between side length (s) and radius (R) for a regular n-gon is: a) s = R × tan(180°/n) b) s = 2R × sin(180°/n) c) s = 2R × cos(180°/n) d) s = R × sin(180°/n) Correct Answer: b) s = 2R × sin(180°/n) Rationale: In the triangle formed by two radii and one side, by the law of sines: s / sin(central angle) = 2R. Since central angle = 360°/n, we have s = 2R × sin(180°/n). Q12. The apothem (a) and radius (R) are related by: a) a = R × cos(180°/n) b) a = R × sin(180°/n) c) a = R × tan(180°/n) d) a = R / cos(180°/n) Correct Answer: a) a = R × cos(180°/n) Rationale: The apothem is the adjacent side to the half-central angle in
Q15. A regular polygon is inscribed in a circle if: a) The circle passes through the midpoints of all sides b) The circle passes through all vertices c) The polygon is inside the circle but not touching d) The circle is inside the polygon Correct Answer: b) The circle passes through all vertices Rationale: An inscribed regular polygon means all vertices lie on the circle. The circle is called the circumcircle, and its radius is the circumradius R. Section 2: Equilateral Triangles (Q16–25) Q16. An equilateral triangle is a regular polygon with how many sides? a) 2 b) 3 c) 4 d) 6 Correct Answer: b) 3 Rationale: An equilateral triangle has three equal sides and three equal angles (each 60°), making it a regular 3-gon. Q17. What is the area of an equilateral triangle with side length 6 cm? a) 9√3 cm² b) 18√3 cm² c) 9 cm² d) 36√3 cm²
Correct Answer: a) 9√3 cm² Rationale: The formula for the area of an equilateral triangle is A = (√3/4) × s². Substituting s = 6: A = (√3/4) × 36 = 9√3 cm². Q18. The apothem of an equilateral triangle with side 8 cm is: a) 2√3 cm b) 4 cm c) (4√3)/3 cm d) 8√3 cm Correct Answer: c) (4√3)/3 cm Rationale: For an equilateral triangle, the apothem = (√3/6) × s. For s = 8, a = (√3/6) × 8 = (8√3)/6 = (4√3)/3 cm. Q19. Find the area of an equilateral triangle with apothem 5 cm. a) 25√3 cm² b) 75√3 cm² c) 25 cm² d) 100√3 cm² Correct Answer: b) 75√3 cm² Rationale: First find side: a = (√3/6)s → s = 6a/√3 = 6×5/√3 = 30/√3 = 10√3 cm. Then A = (√3/4)s² = (√3/4)(300) = 75√3 cm². Q20. The perimeter of an equilateral triangle with area 16√3 cm² is: a) 8 cm b) 16 cm
Q23. The area of an equilateral triangle with side s can also be written as: a) ½ × perimeter × apothem b) ½ × 3s × (s√3/6) c) (3s × s√3)/ d) All of the above Correct Answer: d) All of the above Rationale: P = 3s, a = s√3/6, so A = ½ × 3s × (s√3/6) = (3s²√3)/12 = s²√3/4, which matches the standard formula. Q24. If the radius (circumradius) of an equilateral triangle is 10 cm, find its area. a) 50√3 cm² b) 75√3 cm² c) 100√3 cm² d) 150√3 cm² Correct Answer: b) 75√3 cm² Rationale: For equilateral triangle, R = s/√3 → s = R√3 = 10√3 cm. A = (√3/4)s² = (√3/4)(300) = 75√3 cm². Q25. Find the area of an equilateral triangle whose height is 9 cm. a) 27√3 cm² b) 18√3 cm² c) 9√3 cm² d) 36√3 cm²
Correct Answer: a) 27√3 cm² Rationale: Height h = s√3/2 → s = 2h/√3 = 18/√3 = 6√3 cm. A = (√3/4)s² = (√3/4)(108) = 27√3 cm². Section 3: Squares (Q26–35) Q26. A square is a regular polygon with how many sides? a) 2 b) 3 c) 4 d) 5 Correct Answer: c) 4 Rationale: A square has 4 equal sides and 4 equal angles (each 90°), making it a regular quadrilateral. Q27. The formula for the area of a square is: a) s² b) ½ × perimeter × apothem c) (diagonal)²/ d) All of the above Correct Answer: d) All of the above Rationale: All three expressions give the same area. For a square, A = s² = ½×P×a (with P=4s, a=s/2) = d²/2. Q28. A square has side length 9 cm. What is its area? a) 18 cm²
b) 72 cm² c) 144 cm² d) 48 cm² Correct Answer: c) 144 cm² Rationale: a = s/2 → s = 2a = 12 cm. A = s² = 144 cm². Q32. A square has a diagonal of length 10√2 cm. What is its area? a) 50 cm² b) 100 cm² c) 200 cm² d) 25 cm² Correct Answer: b) 100 cm² Rationale: s = diagonal/√2 = (10√2)/√2 = 10 cm. A = 100 cm². Q33. The perimeter of a square is 40 cm. Find its area. a) 100 cm² b) 160 cm² c) 80 cm² d) 200 cm² Correct Answer: a) 100 cm² Rationale: P = 4s = 40 → s = 10 cm. A = 100 cm². Q34. The circumradius of a square is 5√2 cm. Find the side length. a) 5 cm b) 10 cm
c) 5√2 cm d) 2.5 cm Correct Answer: b) 10 cm Rationale: For a square, diagonal = 2R = 2 × 5√2 = 10√2 cm, so s = diagonal/√2 = (10√2)/√2 = 10 cm. Q35. Find the area of a square inscribed in a circle of radius 7 cm. a) 49 cm² b) 98 cm² c) 196 cm² d) 49√2 cm² Correct Answer: b) 98 cm² Rationale: Diagonal = 2R = 14 cm. s = diagonal/√2 = 14/√2 = 7√2 cm. A = s² = 98 cm². Section 4: Regular Pentagons (Q36–45) Q36. A regular pentagon has how many sides? a) 4 b) 5 c) 6 d) 8 Correct Answer: b) 5 Rationale: A pentagon is a polygon with 5 sides. A regular pentagon has all 5 sides equal and all interior angles equal.
Q40. Given a regular pentagon with apothem 6 cm and side 8.7 cm (approx). Find its area. a) 130.5 cm² b) 150 cm² c) 180 cm² d) 261 cm² Correct Answer: a) 130.5 cm² Rationale: P = 5 × 8.7 = 43.5 cm. A = ½ × P × a = 0.5 × 43.5 × 6 = 130. cm². Q41. A regular pentagon has a perimeter of 45 cm. Find its approximate area if the apothem is approximately 6.2 cm. a) 100 cm² b) 139.5 cm² c) 279 cm² d) 400 cm² Correct Answer: b) 139.5 cm² Rationale: A = ½ × P × a = 0.5 × 45 × 6.2 = 139.5 cm². Q42. The interior angle of a regular pentagon is: a) 108° b) 120° c) 90° d) 100°
Correct Answer: a) 108° Rationale: Interior angle = (n – 2)×180°/n = 3×180°/5 = 540°/5 = 108°. Q43. The ratio of the diagonal to the side of a regular pentagon is known as: a) The golden ratio (φ) ≈ 1. b) The silver ratio ≈ 2. c) π ≈ 3. d) √2 ≈ 1. Correct Answer: a) The golden ratio (φ) ≈ 1. Rationale: In a regular pentagon, the ratio of a diagonal to a side is the golden ratio φ = (1+√5)/2 ≈ 1.618. This is a unique property of pentagons. Q44. Find the area of a regular pentagon with circumradius 10 cm. a) 150 cm² b) 200 cm² c) 238 cm² d) 300 cm² Correct Answer: c) 238 cm² Rationale: s = 2R sin(180°/n) = 20 sin(36°) ≈ 20 × 0.5878 = 11.756 cm. a = R cos(180°/n) = 10 × cos(36°) ≈ 10 × 0.809 = 8.09 cm. P = 5 × 11.756 = 58.78 cm. A = ½ × 58.78 × 8.09 ≈ 238 cm².
Correct Answer: c) 60° Rationale: Central angle = 360°/n = 360°/6 = 60°. Q48. The area of a regular hexagon with side length 6 cm is: a) 36√3 cm² b) 54√3 cm² c) 72√3 cm² d) 108√3 cm² Correct Answer: b) 54√3 cm² Rationale: Area of regular hexagon = (3√3/2) × s² = (3√3/2) × 36 = 54√ cm². Q49. A regular hexagon can be divided into how many equilateral triangles? a) 3 b) 4 c) 6 d) 8 Correct Answer: c) 6 Rationale: A regular hexagon can be divided into 6 congruent equilateral triangles by drawing line segments from the center to each vertex. Each triangle has side length equal to the radius. Q50. The apothem of a regular hexagon with side 10 cm is: a) 5 cm
b) 5√3 cm c) 10 cm d) 10√3 cm Correct Answer: b) 5√3 cm Rationale: For a regular hexagon, a = (√3/2) × s = 10 × √3/2 = 5√3 cm ≈ 8.66 cm. Q51. Find the area of a regular hexagon with apothem 8 cm. a) 96√3 cm² b) 128√3 cm² c) 144√3 cm² d) 192√3 cm² Correct Answer: a) 96√3 cm² Rationale: a = (√3/2)s → s = 2a/√3 = 16/√3 cm. A = (3√3/2)s² = (3√3/2) × (256/3) = 128√3? Wait, recalc: s² = 256/3, multiply by (3√3/2) = (3√3/2)×(256/3) = (256√3)/2 = 128√3. That's not matching. Let's use A = ½ × P × a. s = 2a/√3 = 16/√3 ≈ 9.24. P = 6s = 96/√3. A = ½ × (96/√3) × 8 = (384)/√3 = 384√3/3 = 128√3 cm². So answer should be 128√3. But that's not an option? Option a) 96√3 is incorrect. Let's check known formula: For regular hexagon, A = 2√3 a²? Actually, a = s√3/2, so s = 2a/√3. A = (3√3/2)s² = (3√3/2)×(4a²/3)=2√3 a². For a=8, A=2√3×64=128√3. Yes! So the correct answer is 128√3 cm², but it's not listed. Option a) 96√3, b) 128√3, c) 144√3, d) 192√3. So b) 128√3 is correct. Correct Answer: b) 128√3 cm² (but the options I typed earlier had a mistake—let me fix. In the answer key, b is correct.)
