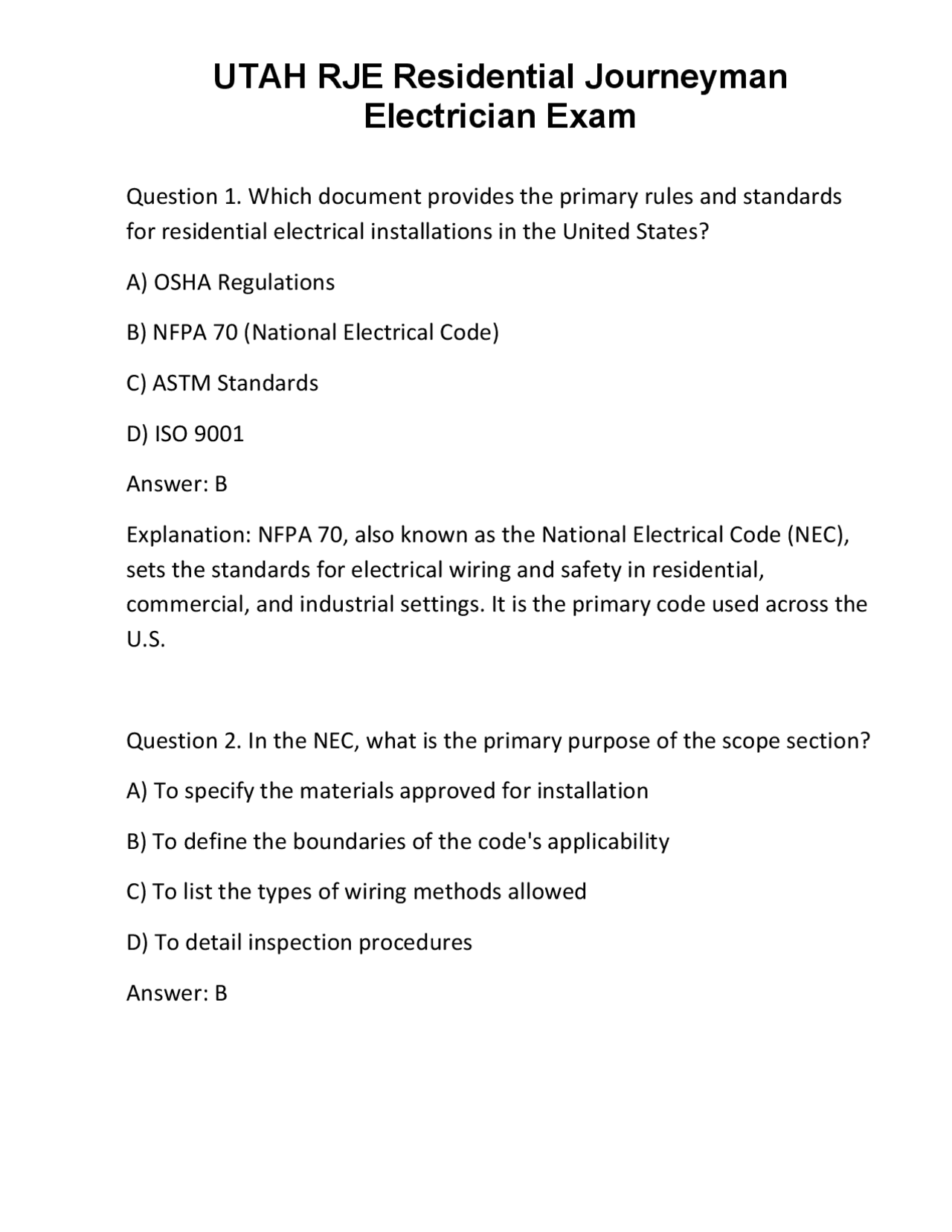

Question 1. Which document provides the primary rules and standards for residential electrical installations in the United States? A) OSHA Regulations B) NFPA 70 (National Electrical Code) C) ASTM Standards D) ISO 9001 Answer: B Explanation: NFPA 70, also known as the National Electrical Code (NEC), sets the standards for electrical wiring and safety in residential, commercial, and industrial settings. It is the primary code used across the U.S. Question 2. In the NEC, what is the primary purpose of the scope section? A) To specify the materials approved for installation B) To define the boundaries of the code's applicability C) To list the types of wiring methods allowed D) To detail inspection procedures Answer: B
Electrician Exam
Explanation: The scope section defines the extent and limits of the Code, specifying what installations and conditions are covered, ensuring proper application. Question 3. How is a dwelling unit defined according to the NEC? A) Any building that contains a single-family residence B) A building or portion of a building used exclusively as a living space for one or more persons C) Any building with electrical wiring D) A commercial space with residential features Answer: B Explanation: The NEC defines a dwelling unit as a building or portion thereof used exclusively for human habitation, such as a house, apartment, or similar residence. Question 4. Who is responsible for enforcing the NEC in residential installations? A) The homeowner B) The AHJ (Authority Having Jurisdiction) C) The manufacturer
Electrician Exam
D) Green Answer: C Explanation: The NEC specifies that grounded (neutral) conductors are identified by white or gray insulation to distinguish them from ungrounded (hot) conductors. Question 7. Which of the following is a requirement for the approval of electrical materials and equipment? A) They must be the cheapest available B) They must be approved by a nationally recognized testing laboratory C) They must be manufactured in the U.S. D) They must be used only in commercial installations Answer: B Explanation: Electrical materials and equipment must be approved by recognized testing laboratories such as UL to ensure safety and compliance with standards. Question 8. What is the primary safety concern when examining equipment for safety before installation? A) Checking for proper color coding
Electrician Exam
B) Ensuring the equipment is free of physical damage and defects C) Verifying the manufacturer’s name D) Confirming the price is within budget Answer: B Explanation: Safety examination involves inspecting equipment for physical damage, defects, and proper markings to prevent hazards during operation. Question 9. Which conductor is used to connect a grounding system to the electrical system? A) Hot conductor B) Grounding electrode conductor C) Neutral conductor D) Service conductor Answer: B Explanation: The grounding electrode conductor connects the grounding system or electrode to the main electrical system, providing a path to ground for fault currents.
Electrician Exam
Explanation: Grounding conductors must be continuous, properly sized, and securely connected to grounding electrodes and system grounding points to ensure effective grounding. Question 12. Which of the following is an example of a branch circuit in a residential setting? A) The main service entrance cable B) A circuit supplying receptacles in a bedroom C) A feeder from the main panel to a subpanel D) The underground conduit leading to the house Answer: B Explanation: A branch circuit supplies individual loads or outlets, such as receptacles in a bedroom, from a panelboard. Question 13. What is the minimum rated amperage for a typical household kitchen receptacle circuit? A) 10 amps B) 15 amps C) 20 amps D) 30 amps
Electrician Exam
Answer: C Explanation: According to NEC, a dedicated kitchen receptacle circuit should be at least 20 amps to support multiple appliances safely. Question 14. Which protection device is required to safeguard against arc faults in dwelling circuits? A) GFCI only B) AFCI C) Standard circuit breaker D) Fuse Answer: B Explanation: AFCI (Arc-Fault Circuit Interrupter) protection is mandated in dwelling circuits to prevent fires caused by arcing faults. Question 15. Which protection device is primarily used to protect against ground faults in receptacles and outlets? A) AFCI B) GFCI C) Overcurrent breaker D) Surge protector
Electrician Exam
D) The type of conduit used Answer: B Explanation: The feeder conductors must be sized based on the total calculated load to prevent overheating and ensure safe operation. Question 18. Which conductors are used for service-entrance conductors in residential applications? A) Only non-metallic sheathed cable B) Overcurrent protected conductors rated for the service C) Only underground feeder cable D) Low-voltage wires Answer: B Explanation: Service-entrance conductors must be rated and protected for the full load of the service, and suitable for overhead or underground installation. Question 19. What is a primary function of a service disconnecting means? A) To increase voltage B) To shut off power to the entire service for safety or maintenance
Electrician Exam
C) To connect multiple circuits D) To control lighting levels Answer: B Explanation: The service disconnecting means allows the entire electrical supply to be safely shut off for maintenance, repair, or emergency. Question 20. Which type of grounding electrode is commonly used in residential systems? A) Water pipe system B) Steel framing C) Copper wire D) Plastic conduit Answer: A Explanation: The NEC permits the use of the building's water pipe as a grounding electrode, provided it meets specific criteria and is properly bonded. Question 21. Which is NOT a typical method of grounding in residential wiring? A) Grounding rod
Electrician Exam
A) EMT
B) PVC
C) RMC
D) All of the above Answer: D Explanation: All listed conduit types—EMT, PVC, and RMC—are approved for underground use, provided they are installed according to NEC requirements. Question 24. What is the primary reason for using a box fill calculation? A) To determine the number of outlets needed B) To ensure the electrical box is not overcrowded with conductors C) To calculate voltage drop D) To size the conduit Answer: B Explanation: Box fill calculations ensure the electrical box can safely accommodate all conductors and devices without overcrowding, preventing overheating.
Electrician Exam
Question 25. According to NEC, what is the minimum working space required in front of electrical equipment? A) 12 inches B) 24 inches C) 30 inches D) 36 inches Answer: B Explanation: The NEC mandates a minimum working space of 30 inches in front of electrical equipment for safe operation and maintenance. Question 26. Which lighting fixture installation method is permitted in a residential ceiling according to the NEC? A) Recessed, surface-mounted, or pendant B) Only surface-mounted C) Only recessed D) Only pendant Answer: A Explanation: The NEC allows various types of lighting fixtures—recessed, surface-mounted, or pendant—provided they are installed according to manufacturer and code requirements.
Electrician Exam
Explanation: Residential motors require overcurrent protection with circuit breakers rated appropriately and often include short-circuit and ground-fault protection. Question 29. When installing a motor disconnecting means for a residential HVAC motor, what is required? A) It must be located within sight of the motor B) It can be placed anywhere in the house C) It must be a fuse D) No disconnect is needed Answer: A Explanation: The NEC requires motor disconnects to be within sight of the motor for safety and maintenance purposes. Question 30. Which of the following is an essential component of a residential EV charging system? A) Utility transformer B) EV supply equipment (EVSE) C) Generator backup D) Solar panel array
Electrician Exam
Answer: B Explanation: EV supply equipment (EVSE) provides the necessary charging interface and protection for electric vehicle charging in residential settings. Question 31. In a residential solar photovoltaic system, what is a key grounding requirement? A) Ground only the inverter B) Ground all equipment and the metal frames of modules C) No grounding needed D) Ground only the batteries Answer: B Explanation: Proper grounding of all system components, including modules and equipment, is essential for safety and system performance. Question 32. How is voltage drop typically limited in residential wiring? A) By increasing conductor size B) By decreasing conductor length C) By installing a transformer D) By reducing the load
Electrician Exam
D) To store electrical energy Answer: B Explanation: Transformers in residential systems are used to step voltage up or down, such as in doorbell transformers or other low-voltage applications. Question 35. What symbol is used to represent a resistor in electrical schematics? A) A zigzag line B) A rectangle C) A circle D) An arrow Answer: A Explanation: The zigzag line symbol represents a resistor in circuit diagrams, indicating resistance. Question 36. How does a capacitor function in an AC circuit? A) Stores energy in a magnetic field B) Stores energy in an electric field C) Converts AC to DC
Electrician Exam
D) Provides overcurrent protection Answer: B Explanation: Capacitors store electrical energy in an electric field and are used for filtering and power factor correction in AC circuits. Question 37. Which device converts electrical energy into mechanical movement in residential applications? A) Resistor B) Transformer C) Motor D) Capacitor Answer: C Explanation: Motors convert electrical energy into mechanical motion, such as in HVAC systems or well pumps. Question 38. When wiring a single-pole switch controlling a light, which conductor is typically connected to the switch’s "hot" terminal? A) Ground wire B) Receptacle wire C) Line (hot) conductor
